System And Components
Assembly
100%

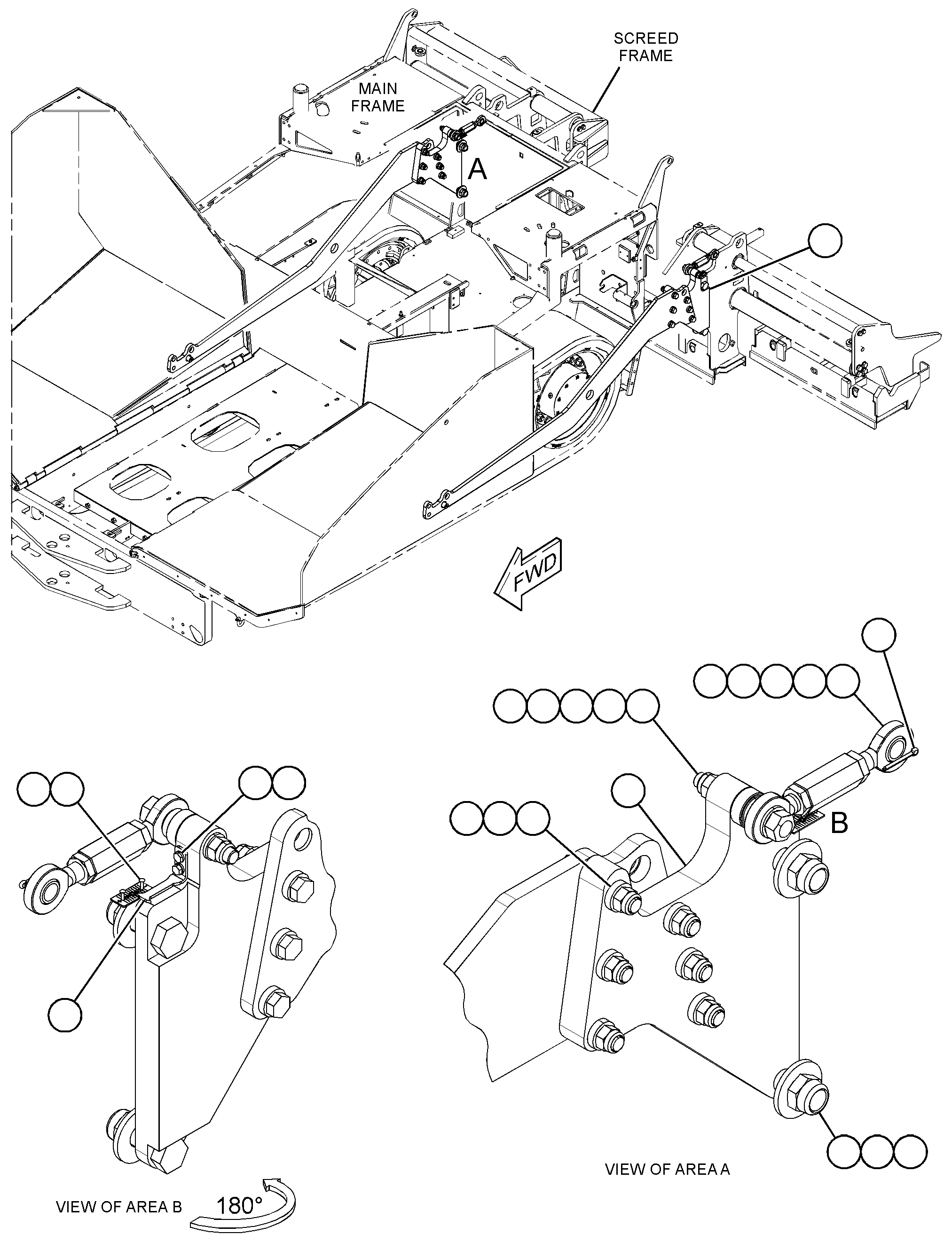

499-6340 ARM GP-DROPPART OF 444-5440 SCREED AR, 444-5430 SCREED AR-FIXED

Group No: 499-6340 · Commonality
Part NumberPart NameQty
24181201 NUT (M20X1.5-THD, LH)2
26034172 BALL JOINT (RH)2
26034183 BALL JOINT (LH)2
30847954 TURNBUCKLE (M20X1.5X75-MM)2
30848035 PLATE-INDICATOR2
43216296 PLATE-INDICATOR2
55289927 BRACKET (LH)1
55289938 BRACKET (RH)1
49963289 BUSHING2
499632910 BOLT (M16X2X110-MM)2
068640511 WASHER (26X63.5X6-MM THK)4
171933212 BOLT (M24X2X70-MM)4
176531113 LOCKNUT (M16X2-THD)14
251956714 NUT (M20X1.5-THD)2
3E433715 RIVET-POP4
198478016 WASHER-HARD (17.5X32X8-MM THK)24
8T035817 BOLT (M16X2X90-MM)12
8T039018 NUT-SELF LOCKING (M24X2-THD)4
8T412319 WASHER (22X35X3.5-MM THK)2
8T497020 BOLT (M6X1X14-MM)4
9X825621 WASHER (6.6X12X2-MM THK)4
9X825722 WASHER (17.5X30X3.5-MM THK)2
3B530123 PIN-COTTER2
