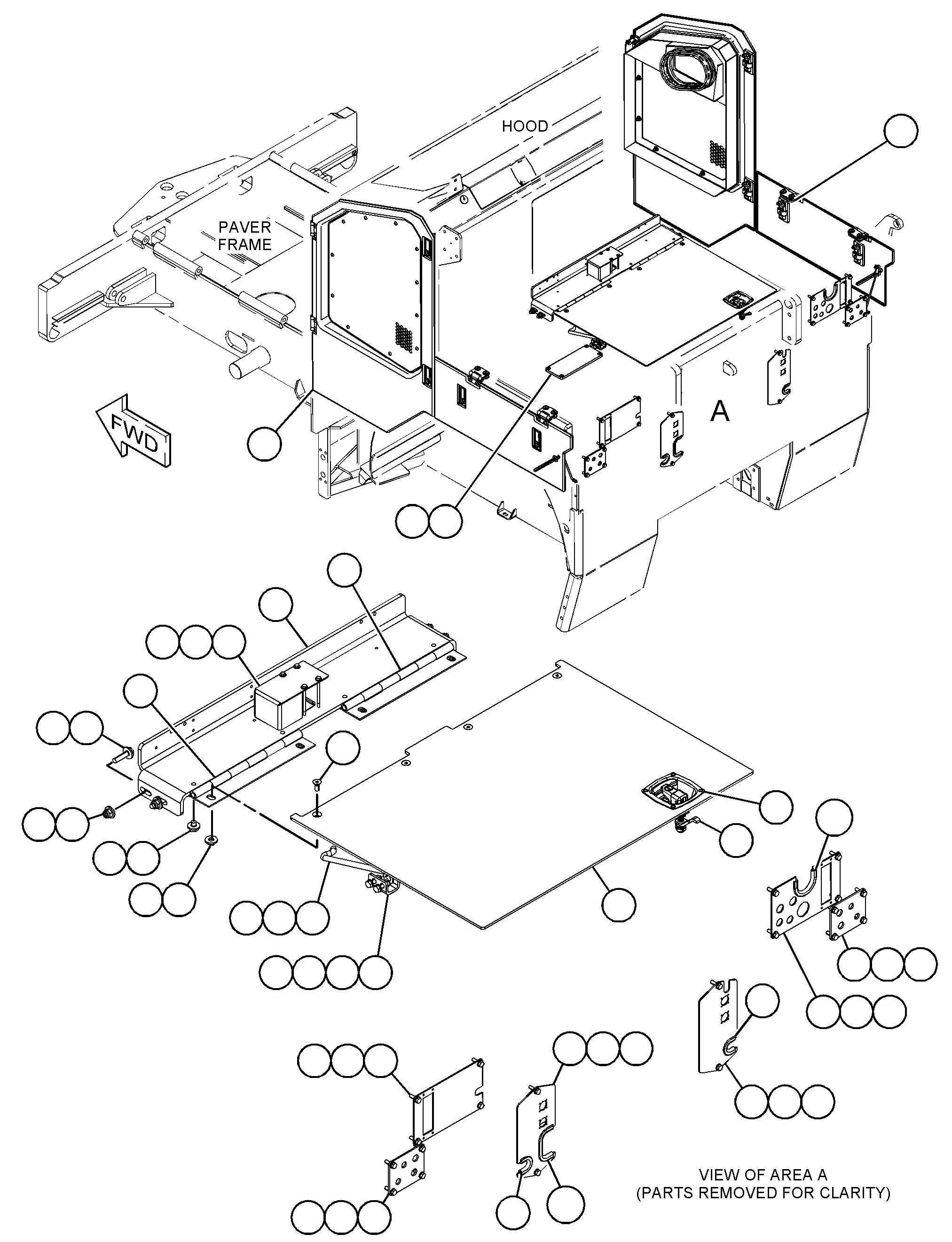

489-3294 DOOR GP-ACCESSPART OF 476-0179 COVER GP-REAR

Group No: 489-3294 · Commonality
Part NumberPart NameQty
10877561 ROD1
23931732 HINGE2
30531693 PAWL1
30665194 PLATE1
32606105 LATCH AS1
1H3244LOCKWASHER4
0951207NUT (M12X1.75-THD)2
3260612WASHER-TAB2
3445673NUT (M6X1-THD)4
45228436 PLATE-SUPPORT1
46029307 PLATE1
46050998 PLATE2
46337389 COVER AS1
468966310 PLATE1
468966411 PLATE1
468966512 PLATE1
470649413 PLATE1
474069114 COVER1
489328815 DOOR GP-ACCESS1
114048916 BOLT (M5X0.8X75-MM)4
171945517 SCREW (8X1.25X16-MM)4
344567418 NUT (M8X1.25-THD)6
3B461719 PIN-COTTER1
4B427420 WASHER (5.5X13X1.2-MM THK)4
5P411621 WASHER-HARD (8.8X20.5X2-MM THK)4
7X262122 BOLT (M10X1.5X12-MM)4
7X772923 WASHER (11X25X3-MM THK)12
8C750524 SCREW-FLAT HEAD (M8X1.25X20-MM)4
8T038925 LOCKNUT (M10X1.5-THD)4
8T418626 BOLT (M10X1.5X40-MM)4
8T422327 WASHER-HARD (13.5X25.5X3-MM THK)1
8T422428 WASHER-HARD (8.8X16X2-MM THK)24
8T490829 BOLT (M8X1.25X25-MM)20
8T754730 BOLT (M8X1.25X30-MM)2
258464831 SEAL (7.7-CM EACH)
258464831A SEAL (14.3-CM)
258464831B SEAL (13.4-CM)
256766932 PLATE4
