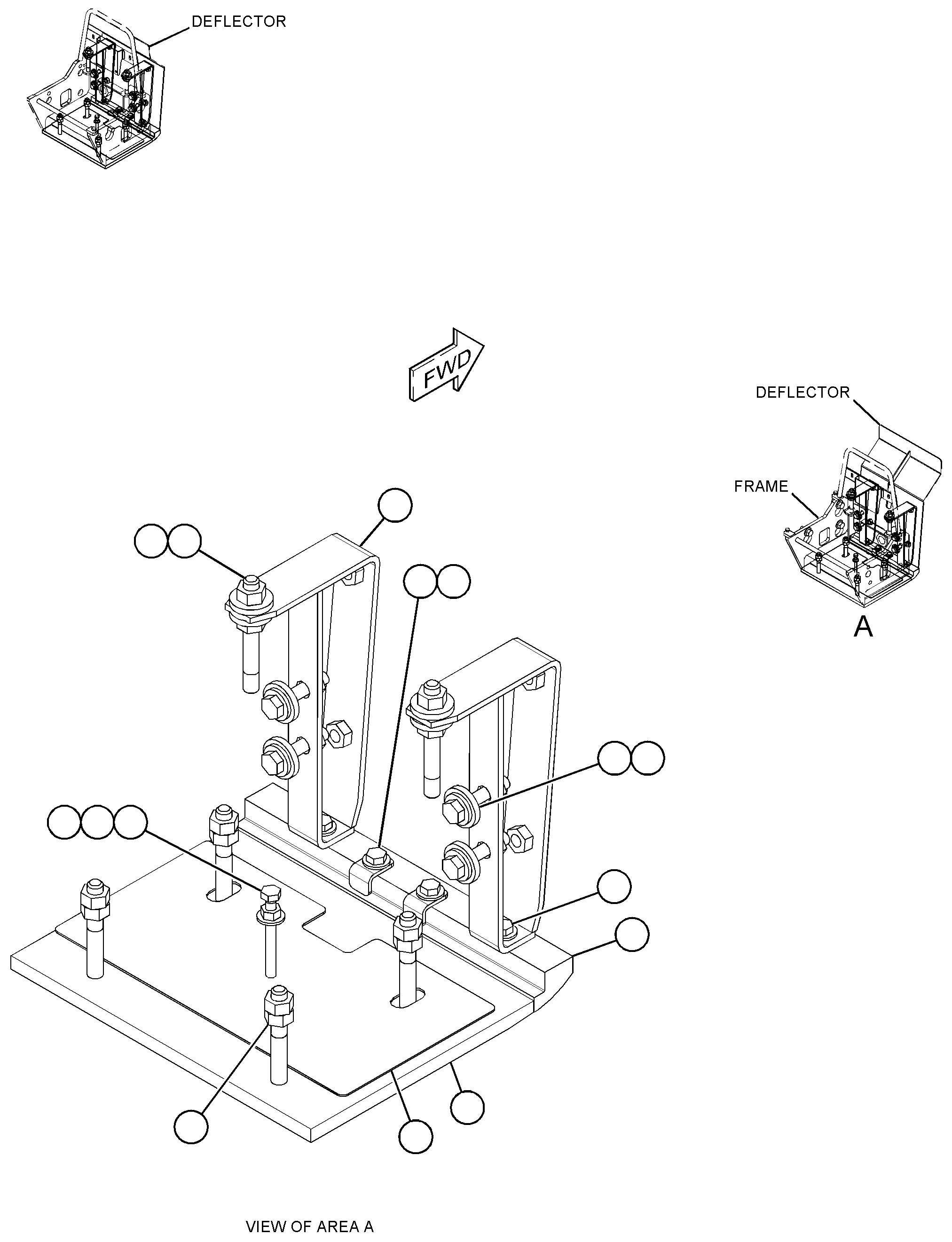

477-6102 PLATE & HEATER GP-SCREEDPART OF 488-7353 EXTENSION AR-SCREED

Group No: 477-6102 · Commonality
Part NumberPart NameQty
32933561 NUT (M12X1.75-THD)24
43734442 PLATE GP-SCREED2
4194909STUD (M12X1.75X100-MM)4
4333174PLATE-SCREED1
43852153 PLATE-CLAMP2
46921994 SUPPORT AS4
8T3490NUT-WELD (M10X1.5-THD)4
46922495 CLAMP4
48005946 BAR-NOSE2
41949097 STUD (M12X1.75X100-MM)4
5C72618 NUT (M8X1.25-THD)2
5P41169 WASHER-HARD (8.8X20.5X2-MM THK)10
7D164910 WASHER-HARD (13.5X32X5-MM THK)16
7X772911 WASHER (11X25X3-MM THK)8
8T418512 BOLT (M10X1.5X50-MM)8
8T418913 BOLT (M8X1.25X20-MM)4
8T420014 BOLT (M8X1.25X16-MM)4
8T687015 BOLT (M8X1.25X70-MM)2
