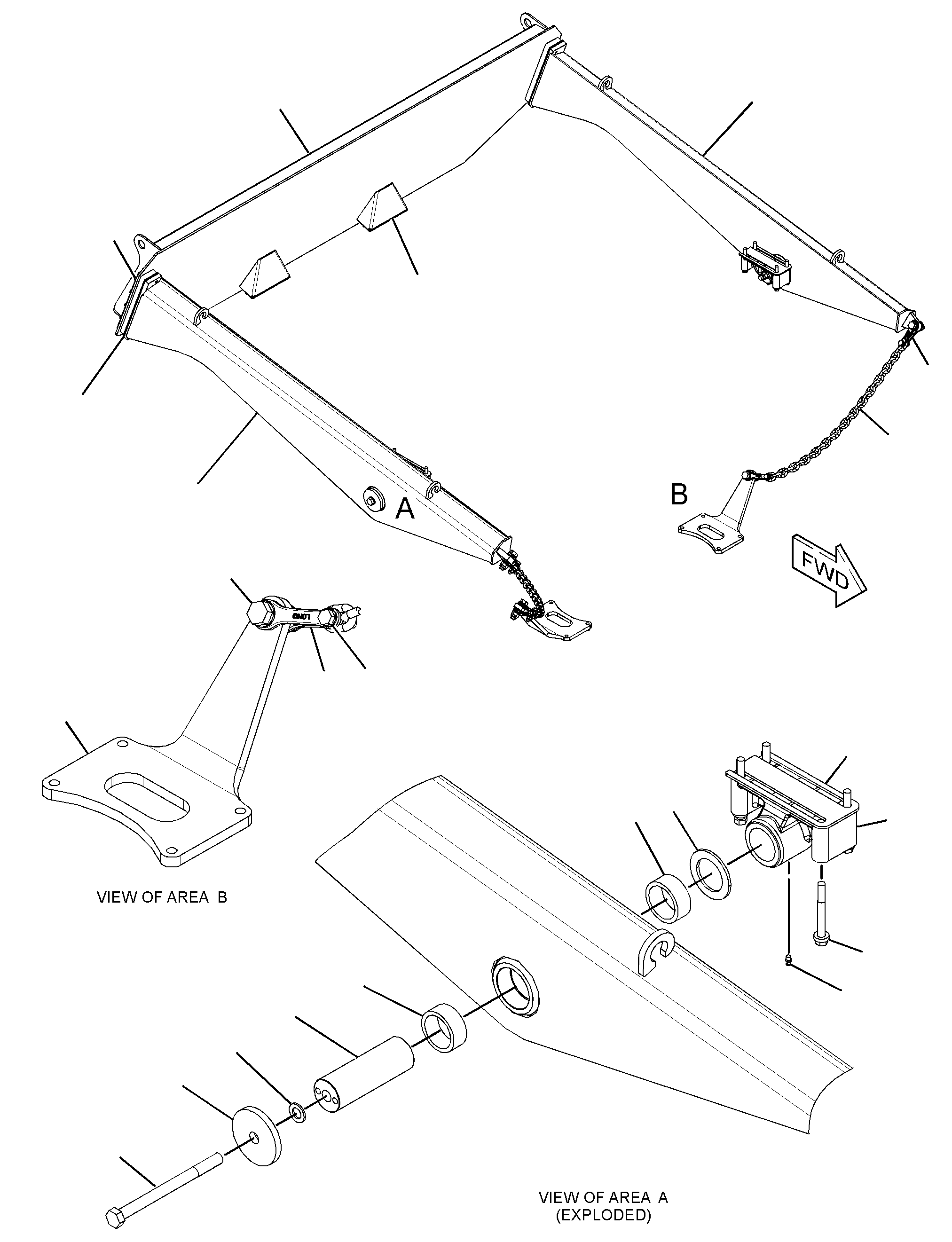

380-3698 TAILGATE ARS/N 2T41-UP

Group No: 380-3698 · Commonality
Part NumberPart NameQty
3B84891 FITTING-GREASE (1/8-27 PTF)2
3U28372 PAD-THRUST2
4U31653 DISC2
5U71514 CAP-GREASE2
9X89135 BOLT (M24X3X300-MM)2
15448126 ABSORBER-SHOCK2
15463697 SHIM (3-MM THK)12
16940408 SHIM (2-MM THK)4
19290679 BUSHING4
192906810 PIN2
233136311 PIVOT (TAILGATE)2
257724412 LINK (LONG)2
257724513 LINK (SHORT)2
337071614 SHIM (6-MM THK)6
360469915 SHIM (1-MM THK)4
450653416 PLATE AS (RH)1
450653517 PLATE AS (LH)1
450652318 PLATE AS1
3915687PLATE AS2
8T3597NUT-WELD (M12X1.75-THD)2
452787019 PLATE2
442979220 CHAIN2
198478021 WASHER-HARD (17.5X32X8-MM THK)8
3E941122 WASHER-HARD (17.5X38X6-MM THK)18
6V767623 NUT (M24X3-THD)6
7X248924 BOLT (M24X3X100-MM)4
7X255425 BOLT (M16X2X70-MM)4
7X255626 BOLT (M16X2X100-MM)18
8T416727 WASHER-HARD (26X44X4-MM THK)16
7X255728 BOLT (M16X2X140-MM)8
7X255829 BOLT (M16X2X150-MM)8
8T413930 BOLT (M12X1.75X30-MM)4
9X825731 WASHER (17.5X30X3.5-MM THK)8
8T417333 BOLT (M16X2X110-MM)18
8T417534 BOLT (M16X2X90-MM)18
8T422335 WASHER-HARD (13.5X25.5X3-MM THK)4
8T477836 LOCKNUT (M16X2-THD)4
