System And Components

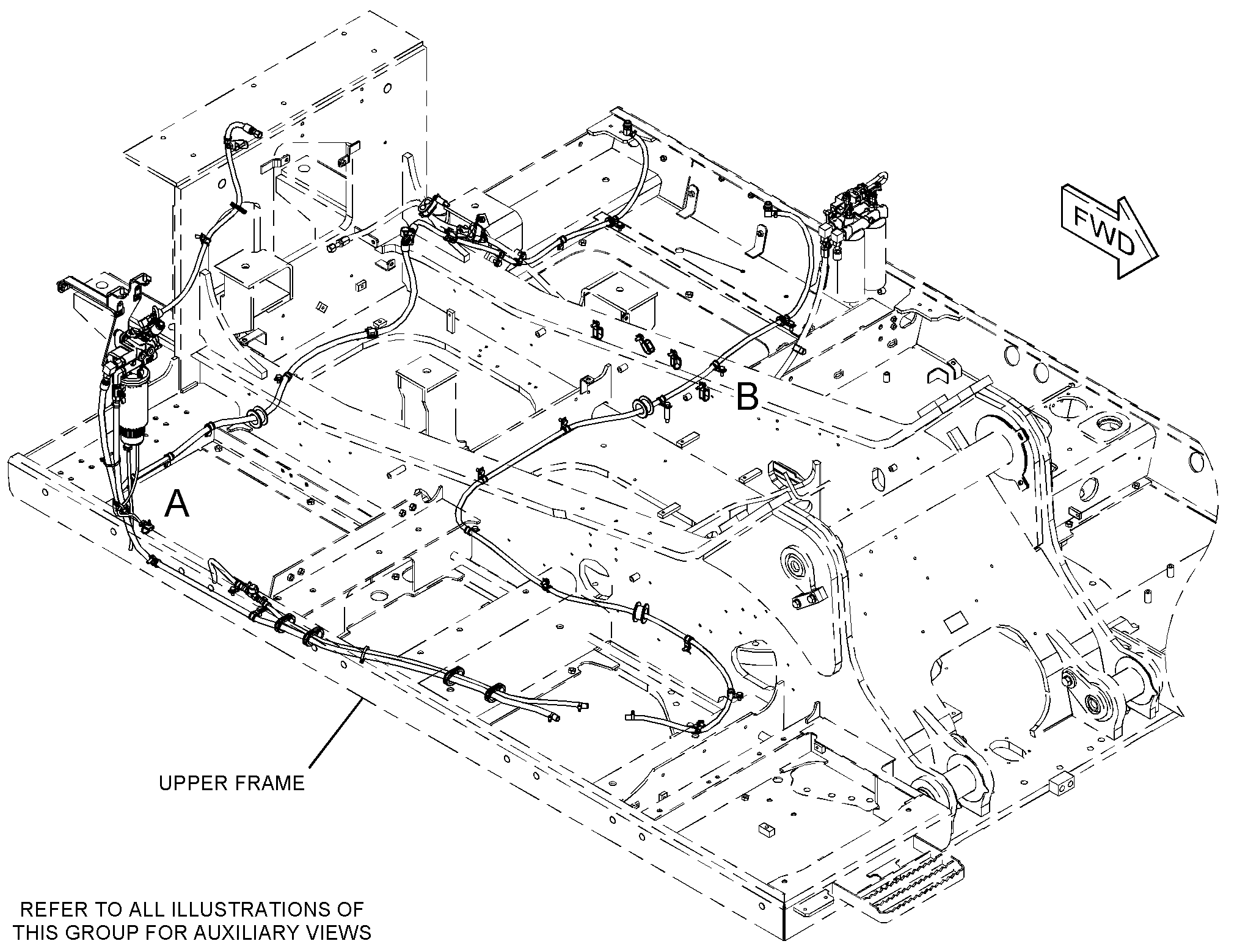

368-8305 LINES GP-FUELS/N KCS1-UP; LJY1-UP
Group No: 368-8305 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0379 | 1 VALVE-MANUAL (FUEL) | 1 | |
| 0932065 | 2 GROMMET | 4 | |
| 1241718 | 3 SLEEVE | 1 | |
| 3328593 | 4 VALVE AS-BALL | 1 | |
| 1562525 | VALVE-SHUTOFF | 1 | |
| 2385080 | SEAL-O-RING | 1 | |
| 4391887 | 5 ELBOW AS | 1 | |
| 1911782 | 6 SPACER (8.5X12.7X38.2-MM THK) | 1 | |
| 1911783 | 7 SPACER (8.5X12.7X87.3-MM THK) | 2 | |
| 4590620 | 8 ELBOW AS | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2609244 | ELBOW | 1 | |
| 3328594 | 9 ELBOW AS | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2681530 | ELBOW | 1 | |
| 3371327 | 10 BOSS | 1 | |
| 3384384 | 11 PLATE AS | 1 | |
| 3601693 | 12 PUMP GP-FUEL PRM & PRIM FILTER | 1 | |
| 3686663 | 13 BRACKET AS | 1 | |
| 4597063 | 14 HOSE | 1 | |
| 3902255 | 15 HOSE | 1 | |
| 3902257 | 16 HOSE AS | 1 | |
| 5197009 | 17 HOSE AS | 1 | |
| 4433196 | 18 SUPPORT AS | 1 | |
| 4236434 | 19 SENSOR GP-LIQUID LEVEL (WATER IN FUEL) | 1 | |
| 4483002 | 20 HOSE AS | 1 | |
| 3328598 | 22 ADAPTER AS | 1 | |
| 0963872 | 23 GROMMET | 1 | |
| 1017404 | 24 BOLT-SOCKET HEAD (M10X1.5X30-MM) | 4 | |
| 1343299 | 25 GROMMET | 3 | |
| 1358575 | 26 BOLT AS | 3 | |
| 2501424 | 30 ELBOW AS | 1 | |
| 6V8724 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 2287089 | SEAL-O-RING | 1 | |
| 2609219 | 31 CONNECTOR AS | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 2751442 | 32 CLIP (TAB) | 2 | |
| 2751443 | 33 CLIP (SLOT) | 2 | |
| 2751444 | 34 GROMMET | 2 | |
| 3095131 | 35 PLUG AS | 2 | |
| 9S8006 | PLUG (7/8-14-THD) | 1 | |
| 2385081 | SEAL-O-RING | 1 | |
| 3196227 | 36 ELBOW AS | 1 | |
| 6V9851 | ELBOW | 1 | |
| 2287090 | SEAL-O-RING | 1 | |
| 3474416 | 37 ADAPTER | 2 | |
| 3514315 | 38 CLIP (LOOP) | 6 | |
| 3514318 | 39 CLIP (LOOP) | 16 | |
| 3514320 | 40 CLIP (LOOP) | 6 | |
| 3S2093 | 41 STRAP-CABLE | 2 | |
| 5G3676 | 42 GROMMET | 1 | |
| 6K8180 | 43 GROMMET | 2 | |
| 6S8620 | 44 CLAMP-HOSE | 8 | |
| 7K1181 | 45 STRAP-CABLE | 2 | |
| 7V6571 | 46 GROMMET | 1 | |
| 7X0579 | 47 WASHER-HARD (8.8X25.5X2-MM THK) | 6 | |
| 7X2539 | 48 BOLT (M8X1.25X110-MM) | 2 | |
| 4491426 | 49 ADAPTER AS | 1 | |
| 8T1889 | 50 CLIP (SLOT) | 2 | |
| 8T1890 | 51 CLIP (TAB) | 2 | |
| 8T4121 | 52 WASHER-HARD (11X21X2.5-MM THK) | 39 | |
| 8T4136 | 53 BOLT (M10X1.5X25-MM) | 13 | |
| 8T4137 | 54 BOLT (M10X1.5X20-MM) | 20 | |
| 8T5005 | 55 BOLT (M10X1.5X70-MM) | 1 | |
| 8T6466 | 56 BOLT (M10X1.5X60-MM) | 1 | |
| 8T6869 | 57 BOLT (M8X1.25X60-MM) | 1 | |
| 8T7547 | 58 BOLT (M8X1.25X30-MM) | 1 | |
| 8T9655 | 59 MOUNT-ISOLATION | 6 | |
| 8C3681 | 60 HOSE (45-CM) | ||
| 3478645 | 61 HOSE (40-CM) | ||
| 3478645 | 61A HOSE (137-CM) | ||
| 4585893 | 62 PLATE | 1 | |
| 3432385 | 63 CLIP (LOOP) | 2 |
