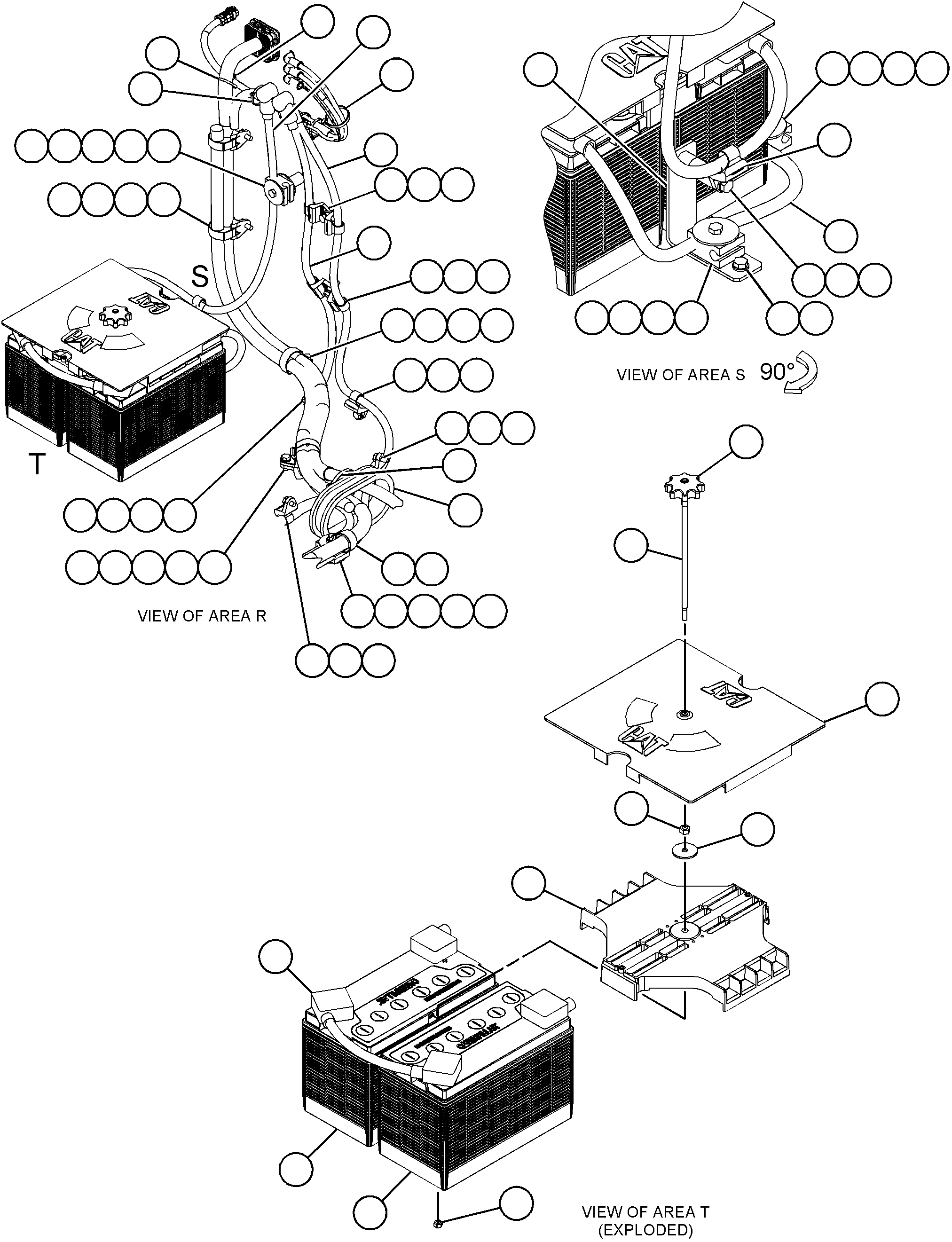

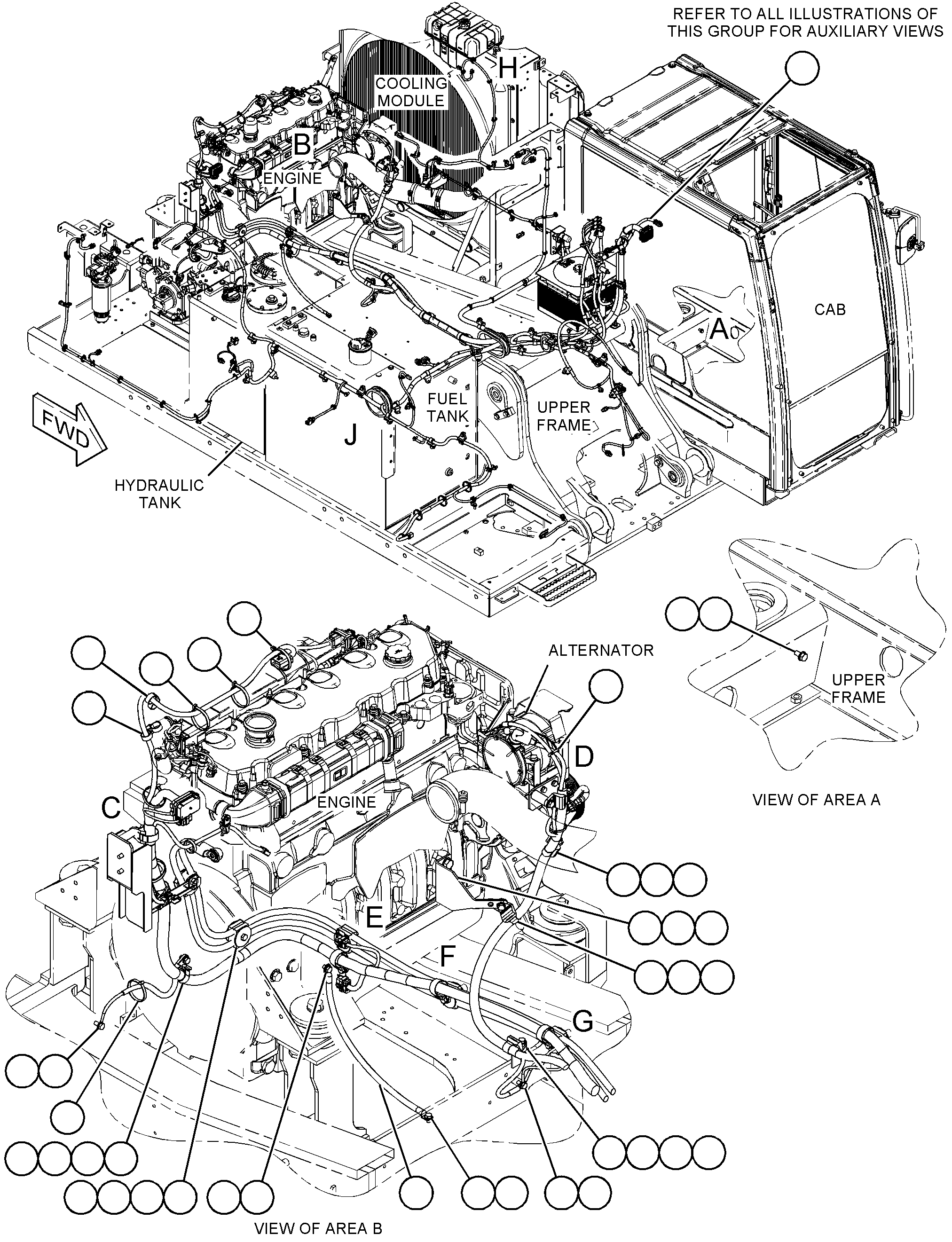

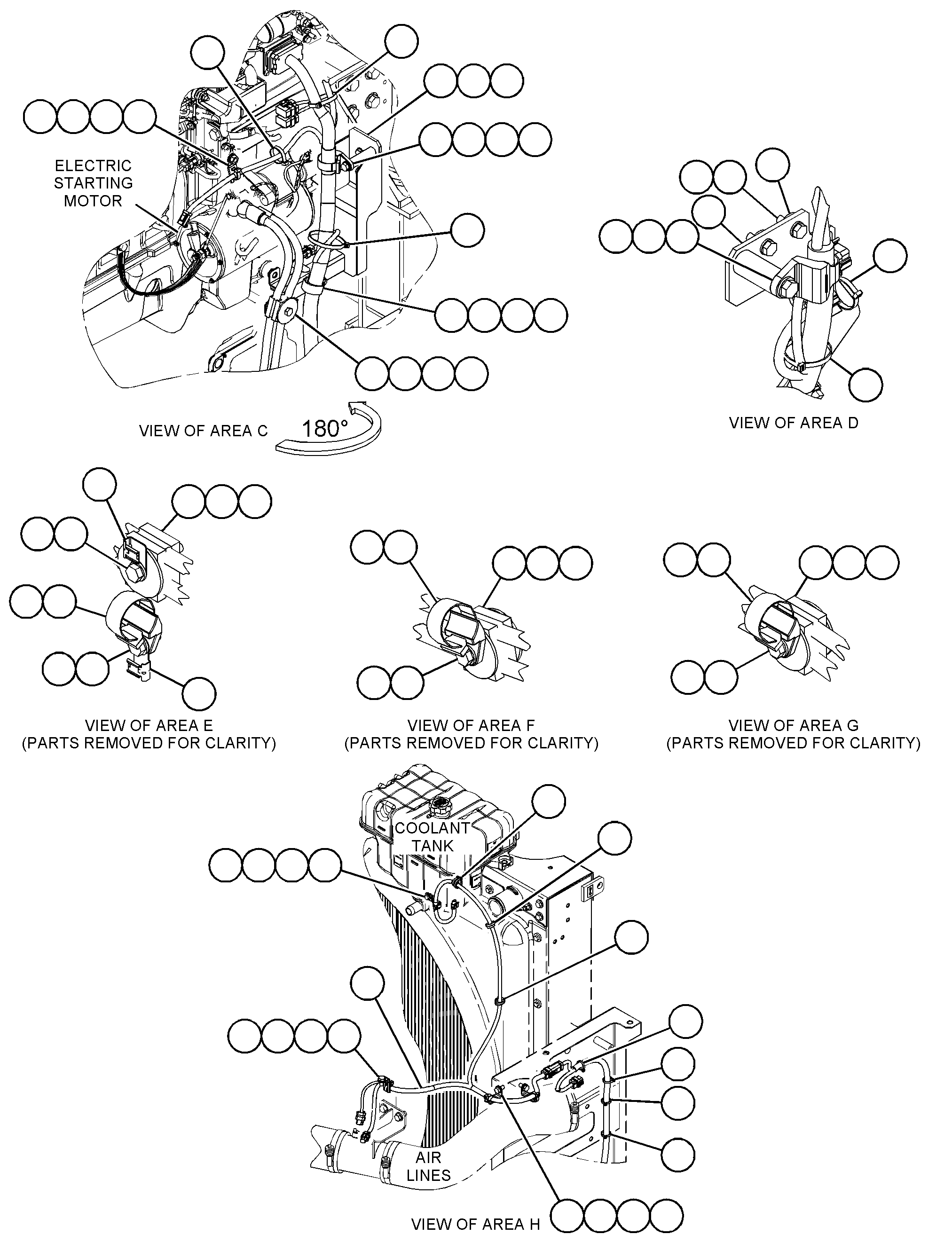

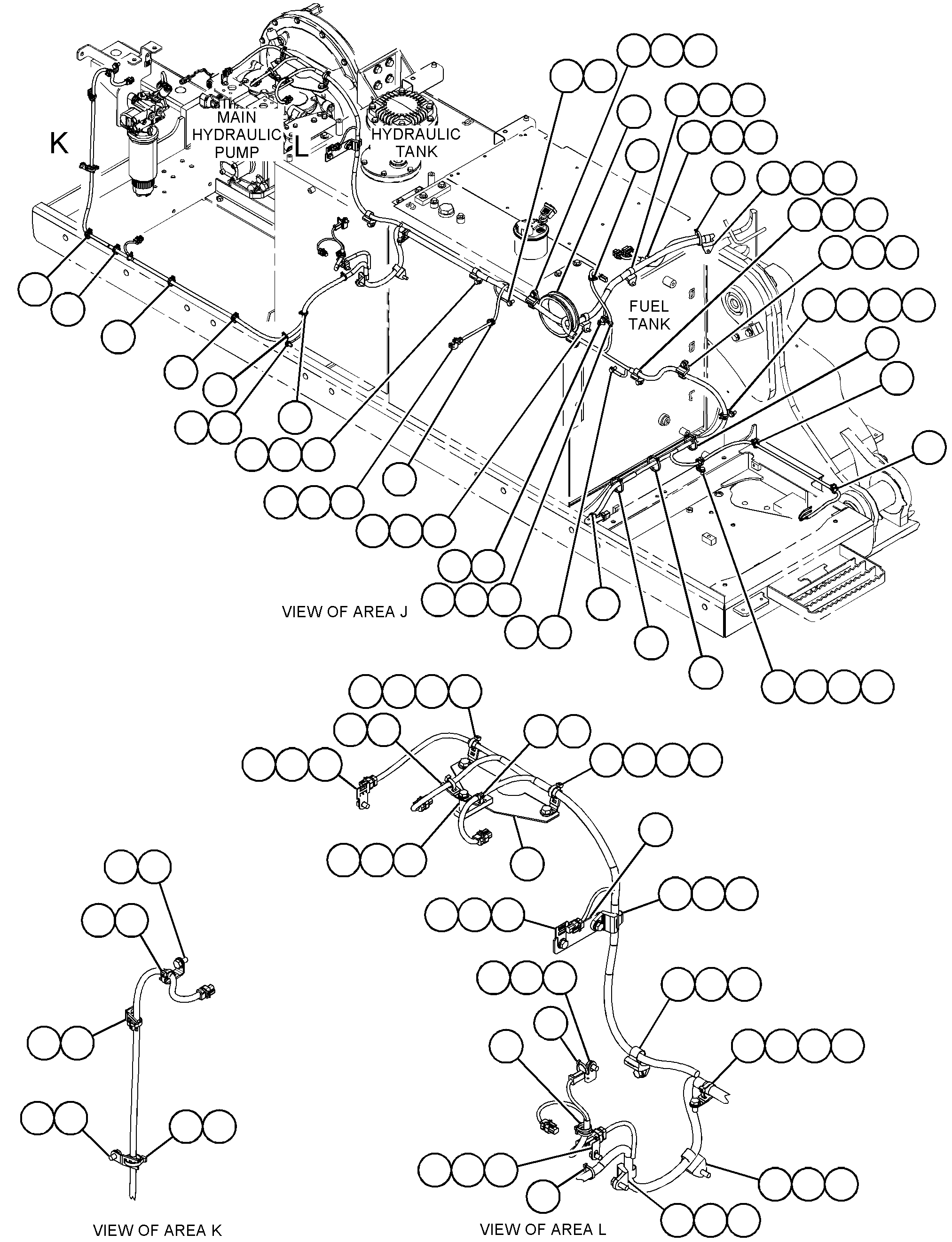

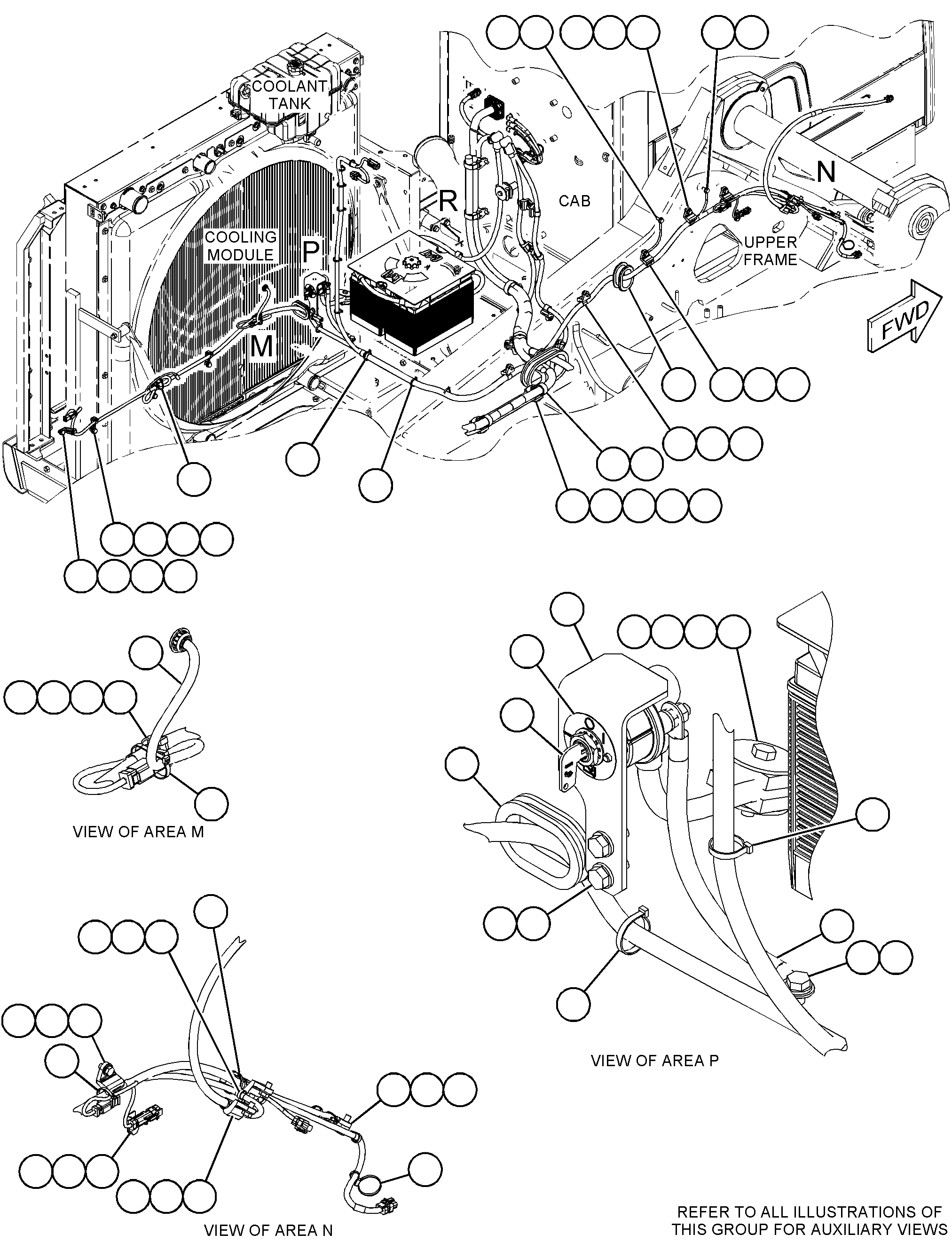

377-8172 BATTERY & WIRING GPS/N KCS1-UP; LJY1-UP

Group No: 377-8172 · Commonality

Part Number	Part Name	Qty
3E8320	1 PLATE-INSTRUCTION (BATTERY)	1
3S2093	2 STRAP-CABLE	54
4I7889	3 SPACER (11X25X45-MM THK)	2
5I8270	4 COVER-BATTERY	1
6G2256	5 CLAMP	11
6G2263	6 SPACER (10.5X19X28.5-MM THK)	12
7K1181	7 STRAP-CABLE	34
7N0719	8 SWITCH GP-DISCONNECT (BATTERY)	1
7Y3195	9 GROMMET	1
7Y8165	10 GROMMET	1
1114836	11 CLIP	4
1114837	12 CLIP	33
1114839	13 STRAP	12
1160118	14 CLIP	5
1240986	15 GROMMET	1
1288886	16 STRAP AS-GROUND	1
1321805	17 STRAP AS-GROUND	1
1425535	18 GROMMET	1
2382501	19 KNOB	1
2382528	20 ROD	1
1152422	21 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)	2
2667379	22 STRAP-CABLE	1
3280132	23 CABLE AS	1
1598049	CABLE (00-GA, RED)(31-CM)
9G0002	COVER AS-TERMINAL (RED)	1
9G0005	COVER AS-TERMINAL (BLACK)	1
3366029	24 BRACKET	1
3474734	25 CLIP	2
3508151	26 HARNESS AS-SENSOR (SHUNT)	1
1006674	SEAL-CONNECTOR	2
1166158	PLUG AS-CONNECTOR (2-PIN)	1
1166161	CAP-CONNECTOR	1
1245640	TERMINAL-SOCKET	2
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
1261768	SOCKET-CONNECTOR (14-GA TO 16-GA)	11
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	11
2304011	PLUG AS-CONNECTOR (2-PIN)	1
4550704	SEAL-CONNECTOR	1
2305010	PLUG AS-CONNECTOR (6-PIN)	1
4550707	SEAL-CONNECTOR	1
2818803	PLUG AS-CONNECTOR (3-PIN)	1
4550705	SEAL-CONNECTOR	1
3S2093	STRAP-CABLE	1
3508298	27 CABLE AS	1
1598050	CABLE (00-GA, BLACK)(120-CM)
1S7252	TERMINAL-CABLE (00-GA, 3/8-IN SCREW)	1
9G0005	COVER AS-TERMINAL (BLACK)	1
9G8909	COVER-TERMINAL (BLACK)	1
8C5918	TERMINAL AS-BATTERY (NEGATIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
3508493	28 BRACKET AS-ALTERNATOR	1
3690062	29 CABLE AS	1
1598049	CABLE (00-GA, RED)(97-CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
3010091	COVER-TERMINAL (RED)	1
9G0002	COVER AS-TERMINAL (RED)	1
8T9756	TERMINAL AS-BATTERY (POSITIVE)	1
1M6119	BOLT (5/16-18X1.375-IN)	1
1M6120	NUT (5/16-18-THD)	1
3690063	30 BRACKET AS	1
3778287	31 BRACKET AS-PUMP	1
3778289	32 BRACKET AS-PUMP	1
3886709	33 CABLE AS-STARTER	1
1598049	CABLE (00-GA, RED)(408-CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	2
3010091	COVER-TERMINAL (RED)	1
8N0869	COVER-TERMINAL (RED)	1
3972377	34 CABLE AS	1
1598049	CABLE (00-GA, RED)(403-CM)
1S7251	TERMINAL-CABLE (00-GA, 1/2-IN SCREW)	1
4186304	35 BRACKET AS	1
4193911	36 LAMP GP-INDICATOR (12/24-VOLT, AMBER)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
4222960	37 BRACKET AS	1
4512175	38 WASHER-HARD (17.5X30X3.5-MM THK)	2
4512180	39 BOLT (M16X2X35-MM)	2
4786232	40 HARNESS AS-CHASSIS	1
8T8799	BOOT (RED)	3
8T8827	BOOT (RED)	1
3422972	CAP-CONNECTOR (2-PIN)	1
3422973	CAP-CONNECTOR (3-PIN)	1
1032529	HOSE (67-CM)
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	11
1261767	PIN-CONNECTOR (14-GA TO 16-GA)	11
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
1552270	KIT-CONNECTING PLUG (2-PIN)	7
1607689	PLUG AS-CONNECTOR (70-PIN)	1
1599322	SEAL-O-RING	1
1779656	KIT-CONNECTING PLUG (4-PIN)	1
2304009	PLUG AS-CONNECTOR (12-PIN)	3
4550709	SEAL-CONNECTOR	1
2304011	PLUG AS-CONNECTOR (2-PIN)	9
4550704	SEAL-CONNECTOR	1
2304013	PLUG AS-CONNECTOR (3-PIN)	4
4550705	SEAL-CONNECTOR	1
2305010	PLUG AS-CONNECTOR (6-PIN)	3
4550707	SEAL-CONNECTOR	1
2397352	PLUG AS-CONNECTOR (6-PIN)	1
4550707	SEAL-CONNECTOR	1
2418834	PLUG AS-CONNECTOR (12-PIN)	1
4550709	SEAL-CONNECTOR	1
2645732	PLUG AS-CONNECTOR (120-PIN)	1
2887324	SEAL-CONNECTOR	1
2818801	PLUG AS-CONNECTOR (2-PIN)	1
4550704	SEAL-CONNECTOR	1
2818803	PLUG AS-CONNECTOR (3-PIN)	1
4550705	SEAL-CONNECTOR	1
3245824	PLUG AS-CONNECTOR (1-PIN)	1
8T8737	PLUG-SEAL	145
2434505	RECEPTACLE AS-CONNECTOR (2-PIN)	1
2434508	RECEPTACLE AS-CONNECTOR (6-PIN)	1
2434510	RECEPTACLE AS-CONNECTOR (12-PIN)	1
1028802	KIT-RECEPTACLE (2-PIN)	3
9W0844	SOCKET-CONNECTOR (14-GA TO 16-GA)	28
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	104
1261768	SOCKET-CONNECTOR (14-GA TO 16-GA)	104
3245825	SOCKET-CONNECTOR (4-GA)	1
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	47
7T0094	SOCKET-CONNECTOR (12-GA TO 14-GA)	4
3S2093	STRAP-CABLE	23
9G4336	TERMINAL-RING (4-GA, 3/8-IN SCREW)	1
2L8052	TERMINAL-RING (6-GA, 3/8-IN SCREW)	1
2L8060	TERMINAL-RING (8-GA, 3/8-IN SCREW)	1
2L8067	TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)	1
2L8069	TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)	4
2L8075	TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)	2
2L8079	TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)	5
3T4688	TERMINAL-RING (4-GA, 7/16-IN SCREW)	1
9X0196	TERMINAL AS (16-GA)	2
1108769	WIRE AS (16-GA, BLACK)	1
4353145	TERMINAL AS-RING	3
1257876	TUBE-HEAT SHRINK (17.78-MM DIA)(3-CM)
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(33-CM)
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(75-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM)
1114838	41 CLIP	12
1288678	42 SPACER (10.5X25X15-MM THK)	1
1325789	43 CLIP (LADDER)	9
1984777	44 WASHER-HARD (11X25X10-MM THK)	1
2041611	45 STRAP-CABLE (DUAL)	1
2041673	46 STRAP-CABLE	2
2G8767	47 WASHER (10.5X60X3-MM THK)	19
4P7429	48 CLIP (LADDER)	2
4P7581	49 CLIP (LADDER)	9
4P8134	50 CLIP (LADDER)	1
5C7261	51 NUT (M8X1.25-THD)	1
5P4116	52 WASHER-HARD (8.8X20.5X2-MM THK)	1
6W6005	53 HOLD-DOWN-BATTERY	1
8T4121	54 WASHER-HARD (11X21X2.5-MM THK)	84
8T4133	55 NUT (M10X1.5-THD)	2
8T4136	56 BOLT (M10X1.5X25-MM)	10
8T4137	57 BOLT (M10X1.5X20-MM)	46
8T4179	58 BOLT (M12X1.75X20-MM)	2
8T4182	59 BOLT (M10X1.5X45-MM)	1
8T4185	60 BOLT (M10X1.5X50-MM)	5
8T4186	61 BOLT (M10X1.5X40-MM)	1
8T4191	62 BOLT (M10X1.5X16-MM)	10
8T4195	63 BOLT (M10X1.5X30-MM)	6
8T4196	64 BOLT (M10X1.5X35-MM)	3
8T4198	65 BOLT (M10X1.5X100-MM)	1
8T4199	66 BOLT (M8X1.25X12-MM)	1
8T4223	67 WASHER-HARD (13.5X25.5X3-MM THK)	2
8T4224	68 WASHER-HARD (8.8X16X2-MM THK)	2
8T4226	69 WASHER-PLATED (10.5X45X3-MM THK)	1
8T4908	70 BOLT (M8X1.25X25-MM)	2
8T5005	71 BOLT (M10X1.5X70-MM)	1
8T6466	72 BOLT (M10X1.5X60-MM)	5
8T7971	73 WASHER-HARD (13.5X25.5X5-MM THK)	2
