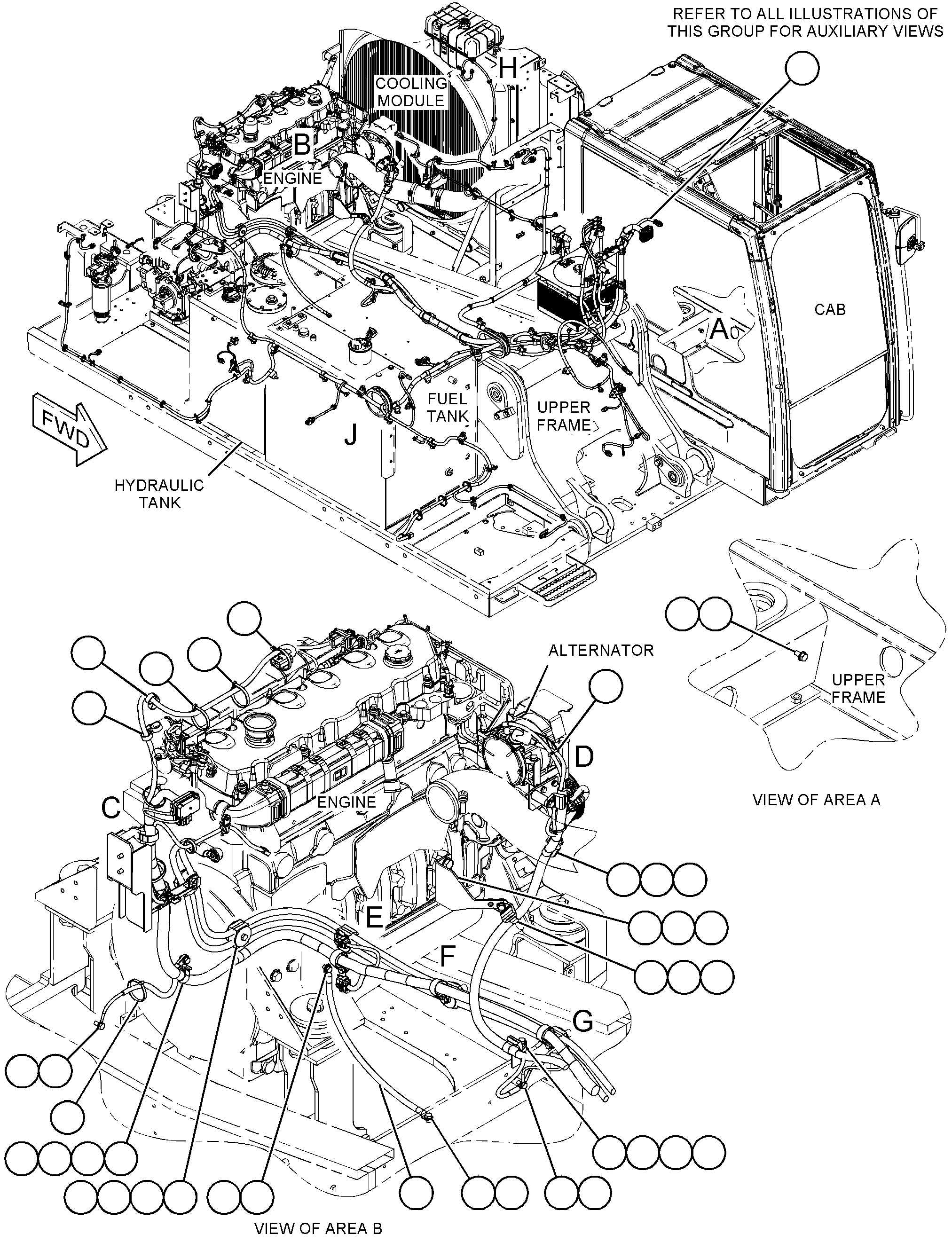

Assembly
100%

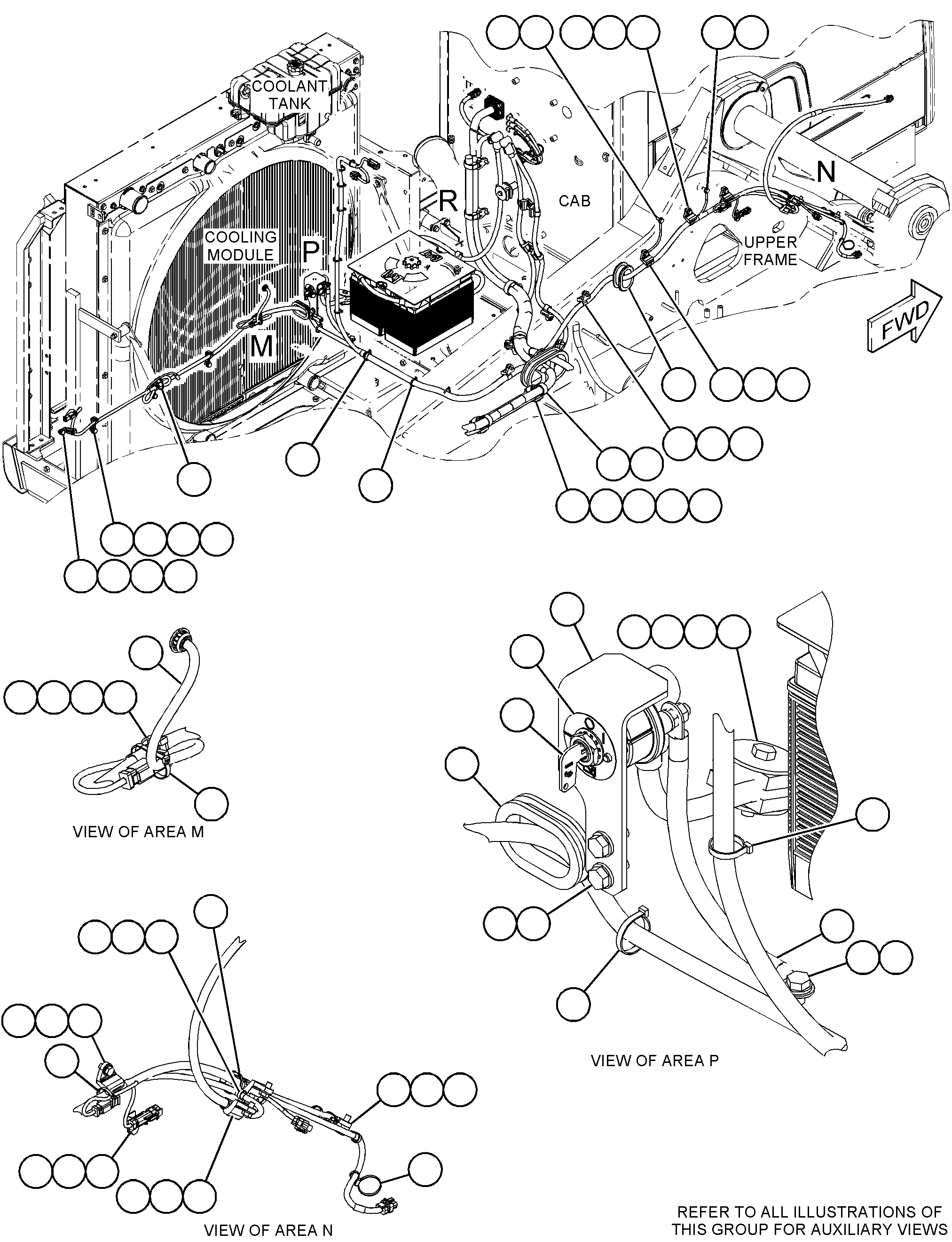

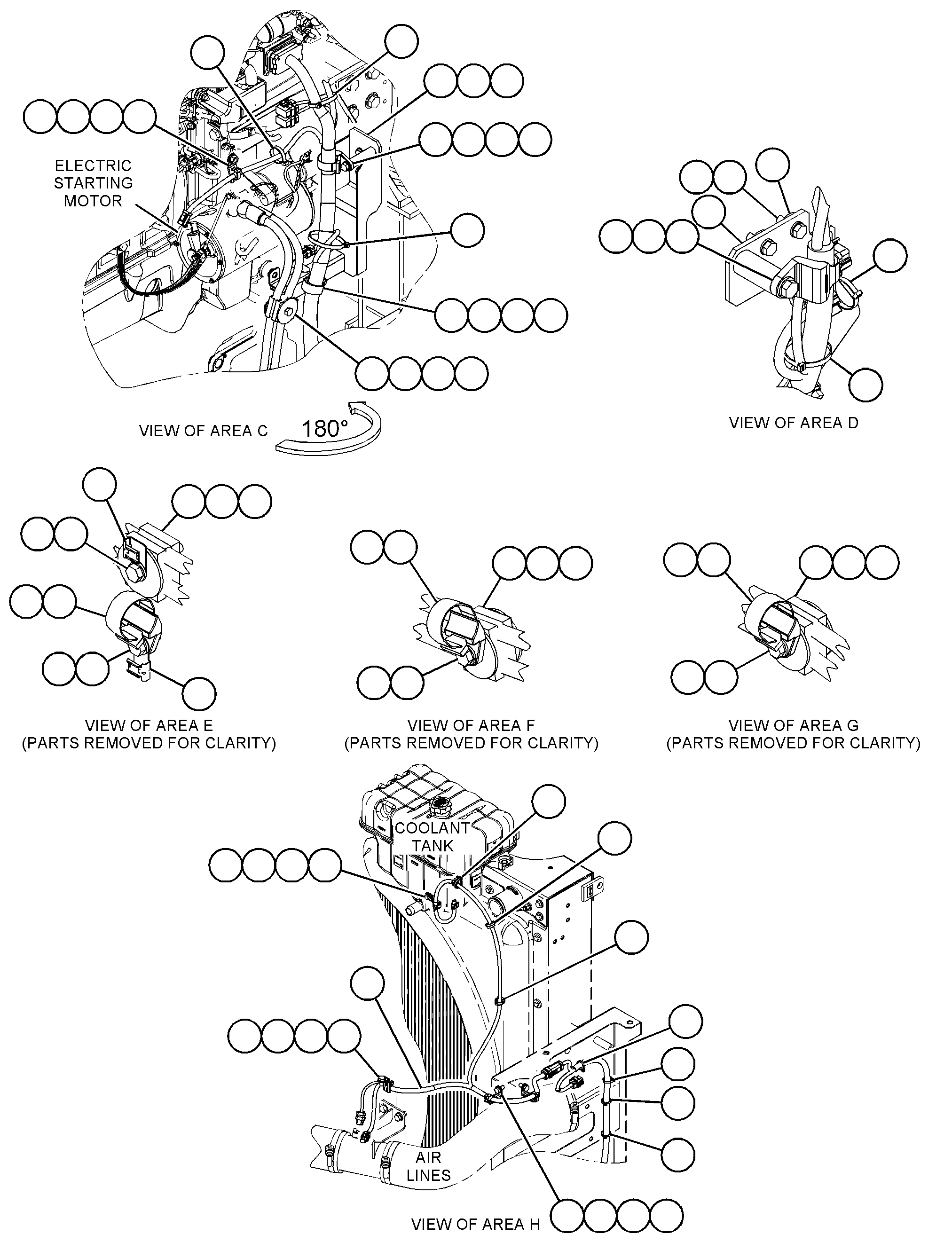

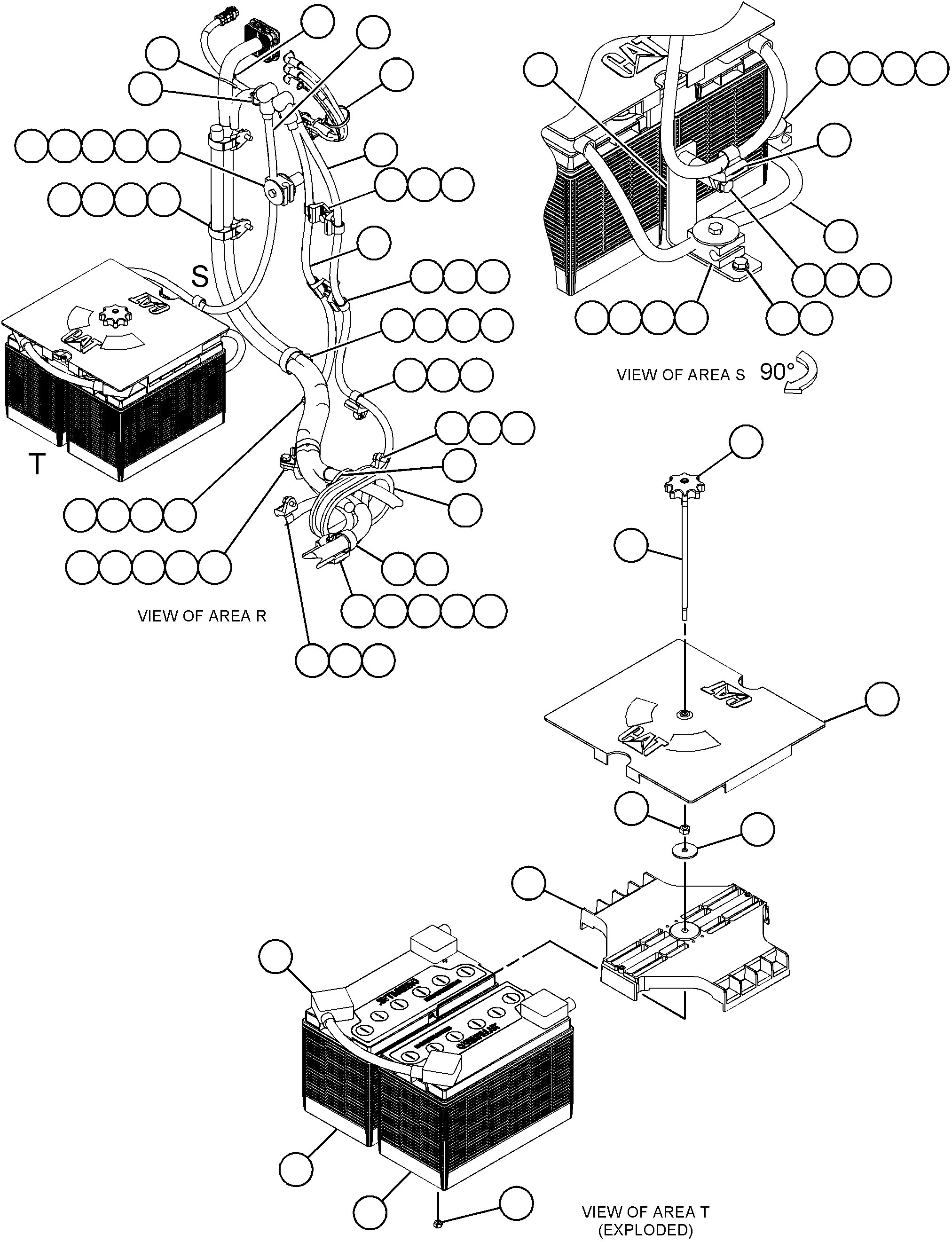

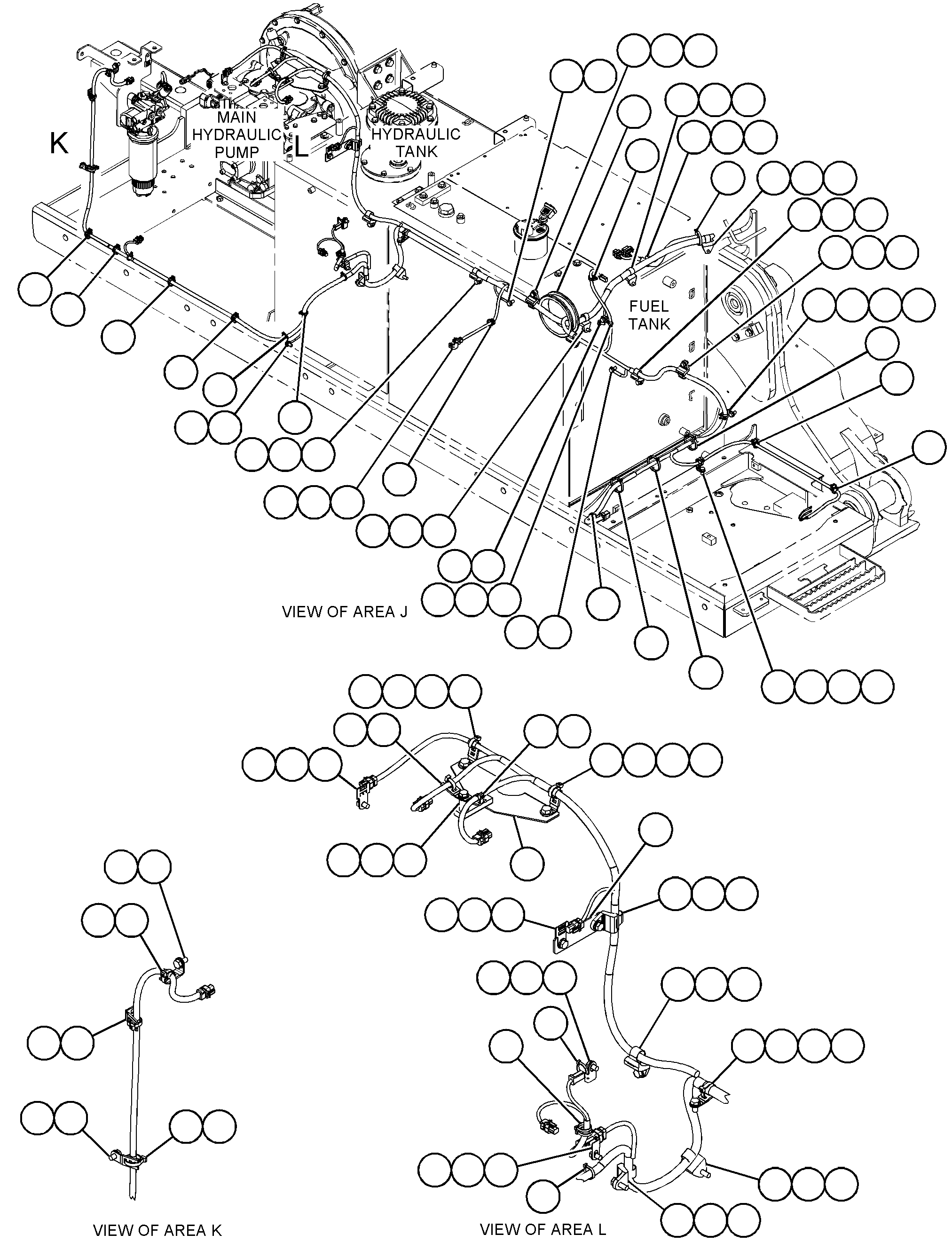

493-6627 BATTERY & WIRING GPS/N KCS10001-UP; LJY10001-UP

Group No: 493-6627 · Commonality
Part NumberPart NameQty
3E83201 PLATE-INSTRUCTION (BATTERY)1
3S20932 STRAP-CABLE57
4I78893 SPACER (11X25X45-MM THK)2
5I82704 COVER-BATTERY1
6G22565 CLAMP11
6G22636 SPACER (10.5X19X28.5-MM THK)12
6W60057 HOLD-DOWN-BATTERY1
7K11818 STRAP-CABLE34
7N07199 SWITCH GP-DISCONNECT (BATTERY)1
7Y319510 GROMMET1
7Y816511 GROMMET1
111483612 CLIP4
111483713 CLIP33
111483914 STRAP12
116011815 CLIP5
124098616 GROMMET1
128888617 STRAP AS-GROUND1
132180518 STRAP AS-GROUND1
142553519 GROMMET1
238250120 KNOB1
238252821 ROD1
9X340422 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)2
1152422BATTERY GP (12-VOLT, MAINTENANCE FREE, WET)2
1231373CAP AS-FILLER (7/8-9-THD)6
266737923 STRAP-CABLE1
328013224 CABLE AS1
9G0002COVER AS-TERMINAL (RED)1
8L8413STRAP-CABLE (WHITE)1
9G0005COVER AS-TERMINAL (BLACK)1
8L8413STRAP-CABLE (WHITE)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1M6119BOLT (5/16-18X1.375-IN)1
1M6120NUT (5/16-18-THD)1
1598049CABLE (00-GA, RED)(31-CM)
336602925 BRACKET1
347473426 CLIP2
350815127 HARNESS AS-SENSOR (SHUNT)1
350829828 CABLE AS1
1S7252TERMINAL-CABLE (00-GA, 3/8-IN SCREW)1
9G0005COVER AS-TERMINAL (BLACK)1
9G8909COVER-TERMINAL (BLACK)1
8C5918TERMINAL AS-BATTERY (NEGATIVE)1
1598050CABLE (00-GA, BLACK)(120-CM)
350849329 BRACKET AS-ALTERNATOR1
369006230 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)1
9G0002COVER AS-TERMINAL (RED)1
8T9756TERMINAL AS-BATTERY (POSITIVE)1
1598049CABLE (00-GA, RED)
3010091COVER-TERMINAL (RED)1
369006331 BRACKET AS1
377828732 BRACKET AS-PUMP1
377828933 BRACKET AS-PUMP1
388670934 CABLE AS-STARTER1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
8N0869COVER-TERMINAL (RED)1
1598049CABLE (00-GA, RED)(408-CM)
3010091COVER-TERMINAL (RED)1
397237735 CABLE AS1
1S7251TERMINAL-CABLE (00-GA, 1/2-IN SCREW)2
6V2722TUBE-HEAT SHRINK (25.4-MM DIA)(0.1-M)
1598049CABLE (00-GA, RED)(403-CM)
418630436 BRACKET AS1
419391137 LAMP GP-INDICATOR (12/24-VOLT, AMBER)1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
1028802KIT-RECEPTACLE (2-PIN)1
422296038 BRACKET AS1
451217539 WASHER-HARD (17.5X30X3.5-MM THK)2
451218040 BOLT (M16X2X35-MM)2
494749141 HARNESS AS-CHASSIS1
1028802KIT-RECEPTACLE (2-PIN)3
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)56
3S2093STRAP-CABLE25
3T4688TERMINAL-RING (4-GA, 7/16-IN SCREW)1
7T0094SOCKET-CONNECTOR (12-GA TO 14-GA)4
9X0196TERMINAL AS (16-GA)2
8T8737PLUG-SEAL137
8T8799BOOT (RED)3
8T8827BOOT (RED)1
1108769WIRE AS (16-GA, BLACK)1
1032529HOSE (67-CM)
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)30
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(20-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(95-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)108
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)108
9G4336TERMINAL-RING (4-GA, 3/8-IN SCREW)1
2L8052TERMINAL-RING (6-GA, 3/8-IN SCREW)1
2L8060TERMINAL-RING (8-GA, 3/8-IN SCREW)1
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)1
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)6
2L8075TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)3
9X3401PIN-CONNECTOR (16-GA TO 18-GA)11
1261767PIN-CONNECTOR (14-GA TO 16-GA)11
1552270KIT-CONNECTING PLUG (2-PIN)7
1779656KIT-CONNECTING PLUG (4-PIN)1
1607689PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
2304009PLUG AS-CONNECTOR (12-PIN)3
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)9
4550704SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)5
4550705SEAL-CONNECTOR1
2305008PLUG AS-CONNECTOR (4-PIN)1
4550706SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)3
4550707SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2418834PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)1
2434508RECEPTACLE AS-CONNECTOR (6-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
2645732PLUG AS-CONNECTOR (120-PIN)1
2887324SEAL-CONNECTOR1
2818801PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2818803PLUG AS-CONNECTOR (3-PIN)1
3245824PLUG AS-CONNECTOR (1-PIN)1
3245825SOCKET-CONNECTOR (4-GA)1
3422972CAP-CONNECTOR (2-PIN)1
3422973CAP-CONNECTOR (3-PIN)2
3422978CAP-CONNECTOR (4-PIN)1
4353145TERMINAL AS-RING3
1257876TUBE-HEAT SHRINK (17.78-MM DIA)3
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
111483842 CLIP12
128867843 SPACER (10.5X25X15-MM THK)1
132578944 CLIP (LADDER)8
198477745 WASHER-HARD (11X25X10-MM THK)1
204161146 STRAP-CABLE (DUAL)1
177221547 STRAP-DUAL CLAMP2
2G876748 WASHER (10.5X60X3-MM THK)19
4P742949 CLIP (LADDER)2
4P758150 CLIP (LADDER)10
4P813451 CLIP (LADDER)1
5C726152 NUT (M8X1.25-THD)1
5P411653 WASHER-HARD (8.8X20.5X2-MM THK)1
8T412154 WASHER-HARD (11X21X2.5-MM THK)84
8T413355 NUT (M10X1.5-THD)2
8T413656 BOLT (M10X1.5X25-MM)10
8T413757 BOLT (M10X1.5X20-MM)45
8T417958 BOLT (M12X1.75X20-MM)2
8T418259 BOLT (M10X1.5X45-MM)1
8T418560 BOLT (M10X1.5X50-MM)5
8T418661 BOLT (M10X1.5X40-MM)1
8T419162 BOLT (M10X1.5X16-MM)11
8T419563 BOLT (M10X1.5X30-MM)6
8T419664 BOLT (M10X1.5X35-MM)3
8T419865 BOLT (M10X1.5X100-MM)1
8T419966 BOLT (M8X1.25X12-MM)1
8T422367 WASHER-HARD (13.5X25.5X3-MM THK)2
8T422468 WASHER-HARD (8.8X16X2-MM THK)2
8T422669 WASHER-PLATED (10.5X45X3-MM THK)1
8T490870 BOLT (M8X1.25X25-MM)2
8T500571 BOLT (M10X1.5X70-MM)1
8T646672 BOLT (M10X1.5X60-MM)5
8T797173 WASHER-HARD (13.5X25.5X5-MM THK)2
