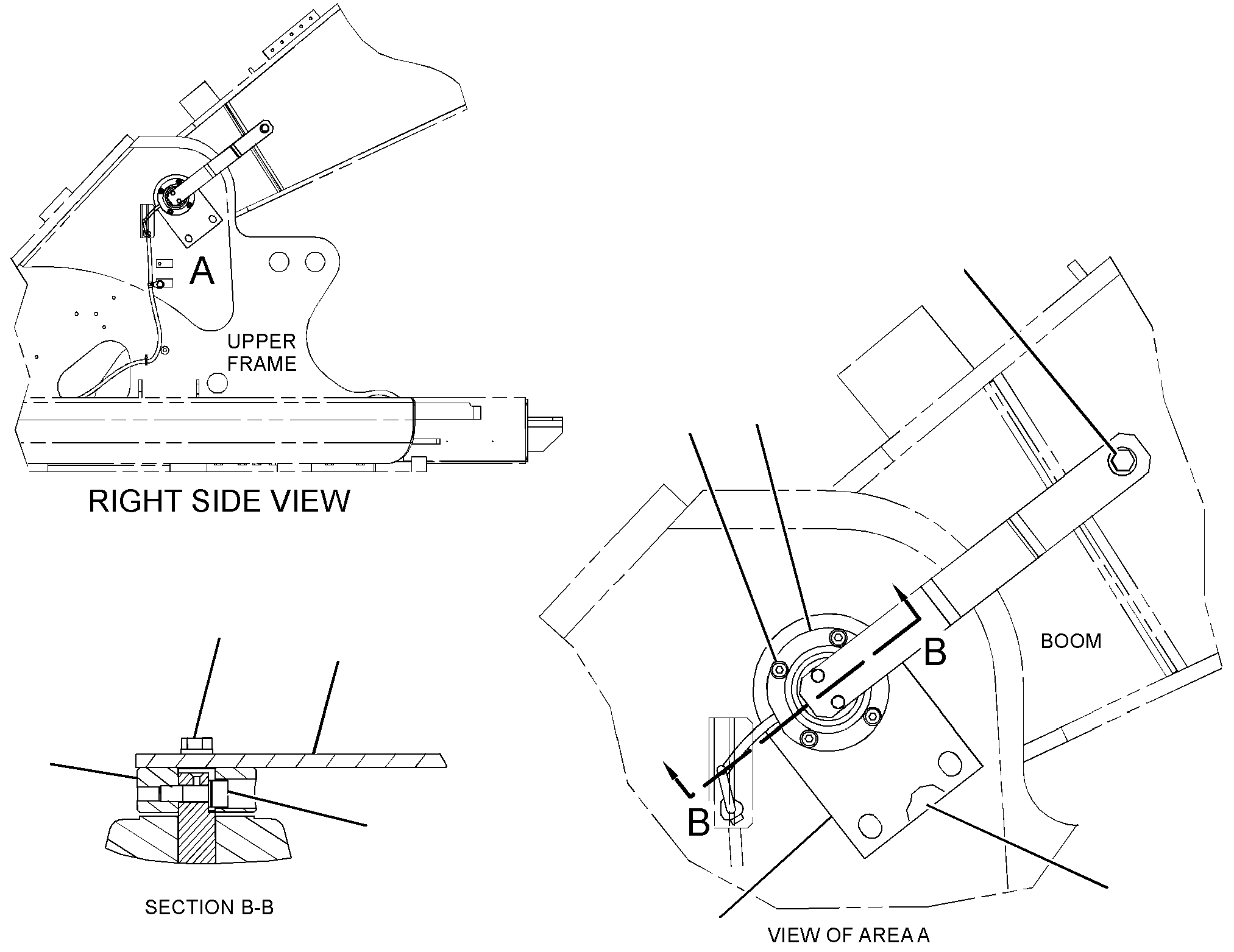

Assembly
100%

338-6839 SENSOR & MTG GP-POSITION -GRADE CONTROL, BOOMS/N KCS1-UP; LJY1-UP

Group No: 338-6839 · Commonality
Part NumberPart NameQty
34519481 SENSOR GP-POSITION (ROTARY)(BOOM)1
44941722 PLATE1
34955423 HOLDER1
44942064 LEVER1
13139835 BOLT-SOCKET HEAD (M8X1.25X35-MM)4
34954276 SPACER1
5C95537 BOLT (M6X1X16-MM)2
8T41798 BOLT (M12X1.75X20-MM)1
8T42239 WASHER-HARD (13.5X25.5X3-MM THK)1
8T422410 WASHER-HARD (8.8X16X2-MM THK)4
9X825611 WASHER (6.6X12X2-MM THK)2
105348712 BOLT-SOCKET HEAD (M6X1X20-MM)1
144807313 LOCKWASHER1
