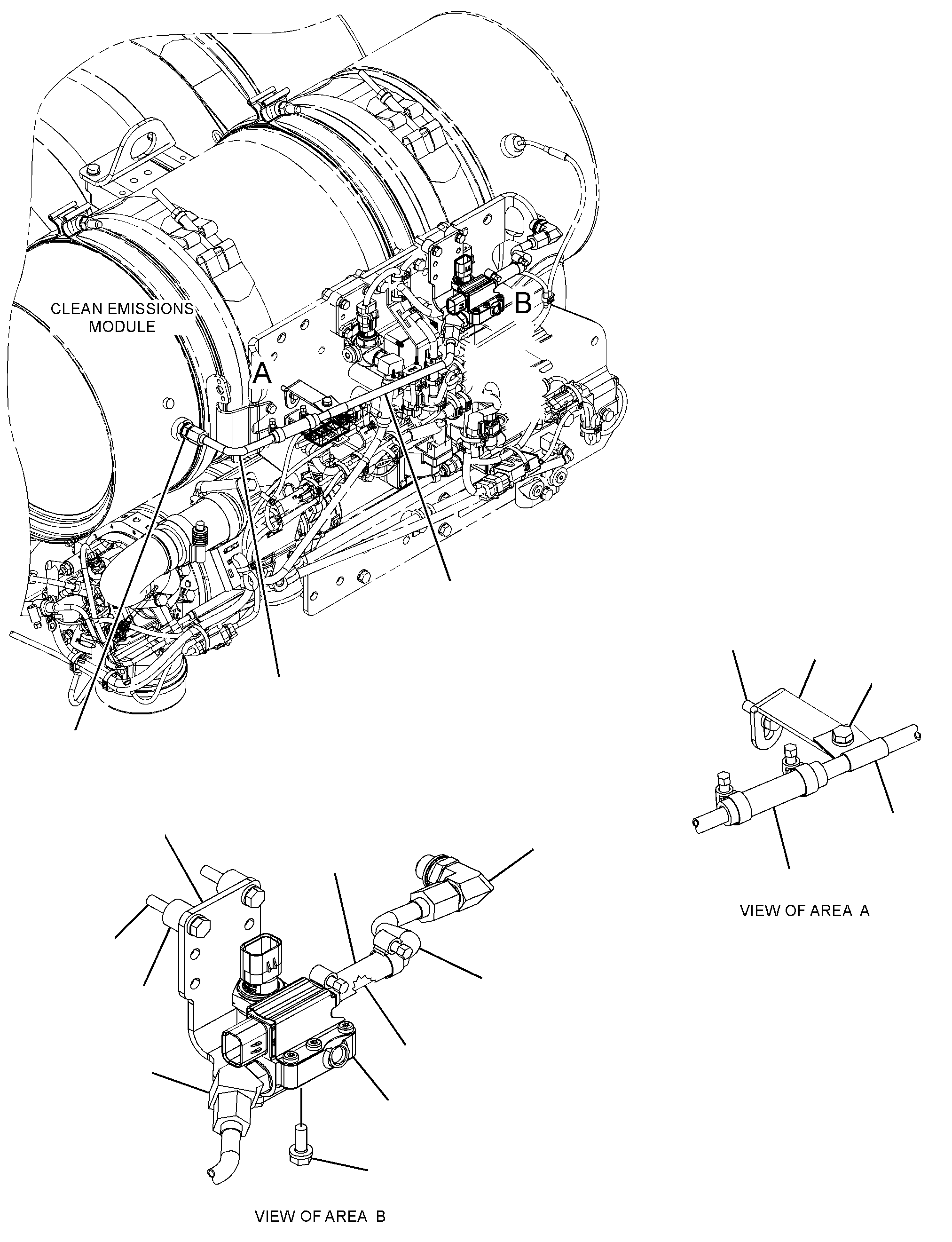

416-4729 SENSOR & MTG GP-PRESSURES/N KCS1-UP; LJY1-UP
Group No: 416-4729 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0472 | 1 ADAPTER | 1 | |
| 2167951 | 2 ADAPTER-ELBOW | 1 | |
| 3855773 | 3 CONNECTOR AS | 1 | |
| 5P1046 | CONNECTOR | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 3983755 | 4 SENSOR GP-PRESSURE (EXHAUST) | 1 | |
| 4152415 | 5 HOSE-AIR | 2 | |
| 4164734 | 6 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 4164735 | 7 TUBE AS | 1 | |
| 4164736 | 8 TUBE AS | 1 | |
| 4164737 | 9 TUBE AS | 1 | |
| 4164738 | 10 BRACKET | 1 | |
| 1246275 | 11 CLAMP-HOSE | 4 | |
| 1860815 | 12 BOLT (M6X1X20-MM) | 1 | |
| 2422961 | 13 SPACER (7X16X12-MM THK) | 3 | |
| 3441200 | 14 WASHER-HARD (6.6X12X2-MM THK) | 6 | |
| 3441206 | 15 BOLT (M6X1X16-MM) | 3 | |
| 3441208 | 16 BOLT (M6X1X35-MM) | 3 | |
| 3535103 | 17 ADAPTER AS | 1 | |
| 0307942 | ELBOW | 1 | |
| 2147568 | SEAL-O-RING | 1 | |
| 7W3556 | 18 WASHER (14.27X20.57X1.5-MM THK) | 2 | |
| 9S4200 | 19 CLIP | 1 | |
| 3118366 | 20 WASHER-HARD (8.8X16X2-MM THK) | 1 |
