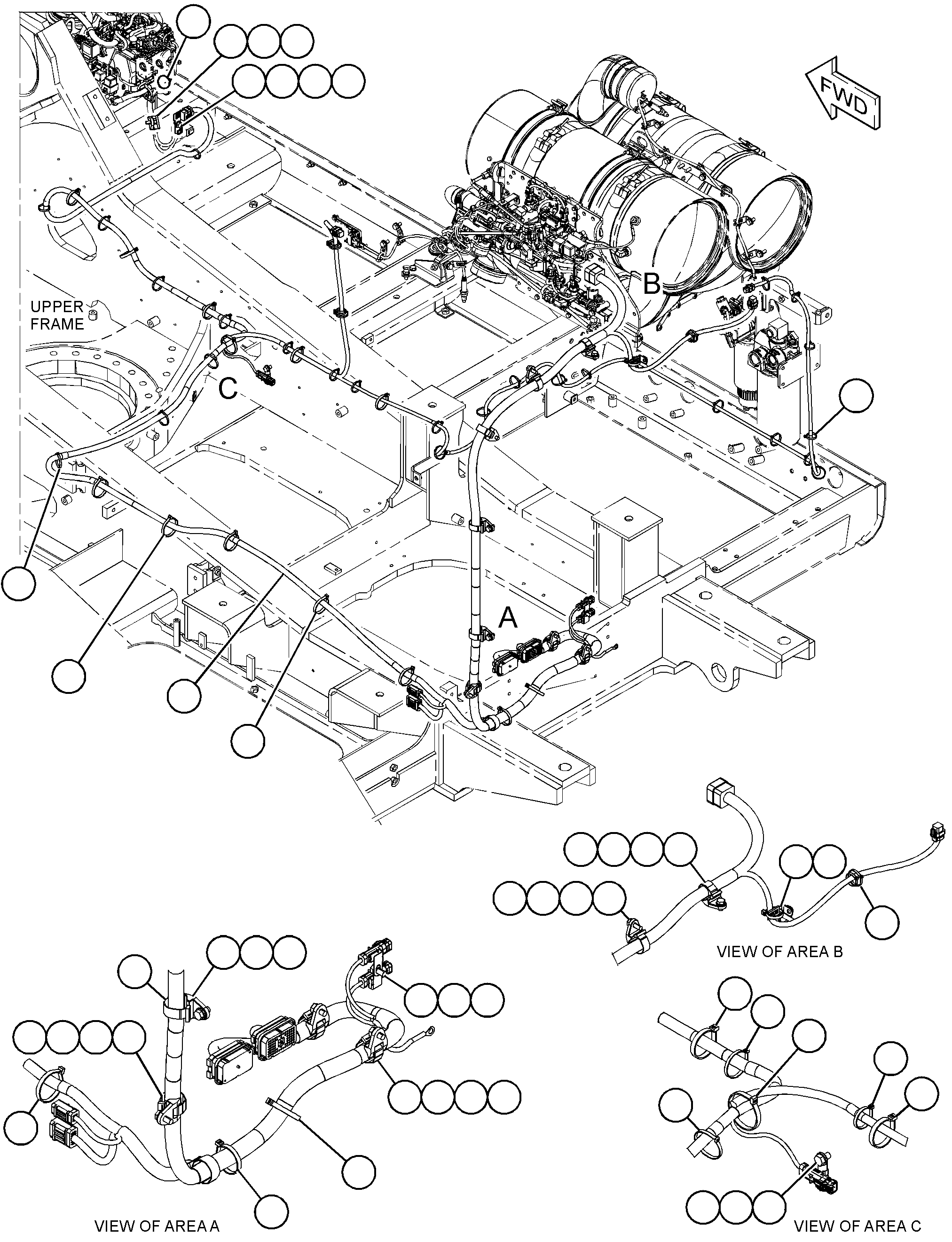

377-8177 WIRING GP-CEMS/N KCS1-UP; LJY1-UP

Group No: 377-8177 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE35
7K11812 STRAP-CABLE15
11148373 CLIP1
11148394 STRAP9
11601185 CLIP4
34747346 CLIP1
47862337 HARNESS AS-CHASSIS1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)2
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)2
3S2093STRAP-CABLE4
8T8737PLUG-SEAL113
9W0852PIN-CONNECTOR (14-GA TO 16-GA)5
9W0844SOCKET-CONNECTOR (14-GA TO 16-GA)5
1130580RECEPTACLE AS-CONNECTOR (40-PIN)1
1064155KIT-RETAINING BOLT1
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(95-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)59
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)59
2L8069TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW)1
9X3401PIN-CONNECTOR (16-GA TO 18-GA)44
1261767PIN-CONNECTOR (14-GA TO 16-GA)44
1607689PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2305010PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2388245PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2397352PLUG AS-CONNECTOR (6-PIN)1
4550707SEAL-CONNECTOR1
2434505RECEPTACLE AS-CONNECTOR (2-PIN)3
2434508RECEPTACLE AS-CONNECTOR (6-PIN)1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
3245678RESISTOR AS (120-OHM)3
2647029SEAL-CONNECTOR1
3358954PLUG AS-CONNECTOR (70-PIN)1
1599322SEAL-O-RING1
11148388 CLIP9
13257899 CLIP (LADDER)1
8T412110 WASHER-HARD (11X21X2.5-MM THK)13
8T413611 BOLT (M10X1.5X25-MM)2
8T413712 BOLT (M10X1.5X20-MM)8
8T419113 BOLT (M10X1.5X16-MM)2
8T419514 BOLT (M10X1.5X30-MM)1
