System And Components

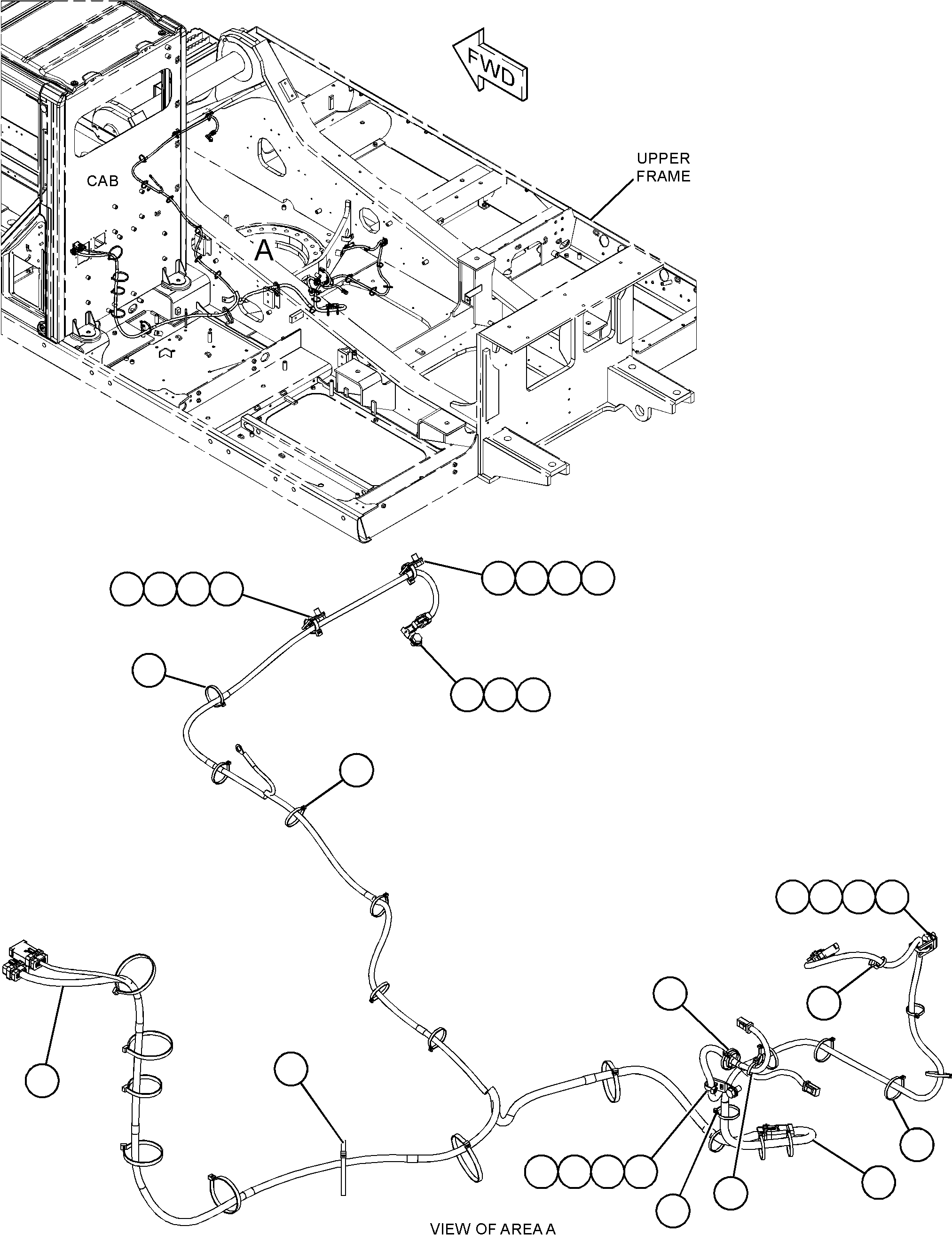

360-6197 WIRING GP-CHASSIS -UNIVERSAL QUICK COUPLERS/N KCS1-UP
Group No: 360-6197 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 17 | |
| 7I2673 | 2 STRAP-CABLE | 2 | |
| 7K1181 | 3 STRAP-CABLE | 12 | |
| 1160118 | 4 CLIP | 1 | |
| 3690194 | 5 HARNESS AS-VALVE (QUICK COUPLER SOLENOID) | 1 | |
| 3886688 | 6 HARNESS AS-CHASSIS (QUICK COUPLER SOLENOID) | 1 | |
| 3422976 | CAP-CONNECTOR (12-PIN) | 1 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 2 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2312295 | PLUG AS-CONNECTOR (8-PIN) | 1 | |
| 4550708 | SEAL-CONNECTOR | 1 | |
| 8T8737 | PLUG-SEAL | 19 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 5 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 5 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 1325789 | 7 CLIP (LADDER) | 1 | |
| 4P7581 | 8 CLIP (LADDER) | 3 | |
| 8T4121 | 9 WASHER-HARD (11X21X2.5-MM THK) | 5 | |
| 8T4137 | 10 BOLT (M10X1.5X20-MM) | 1 | |
| 8T4191 | 11 BOLT (M10X1.5X16-MM) | 4 |
