System And Components

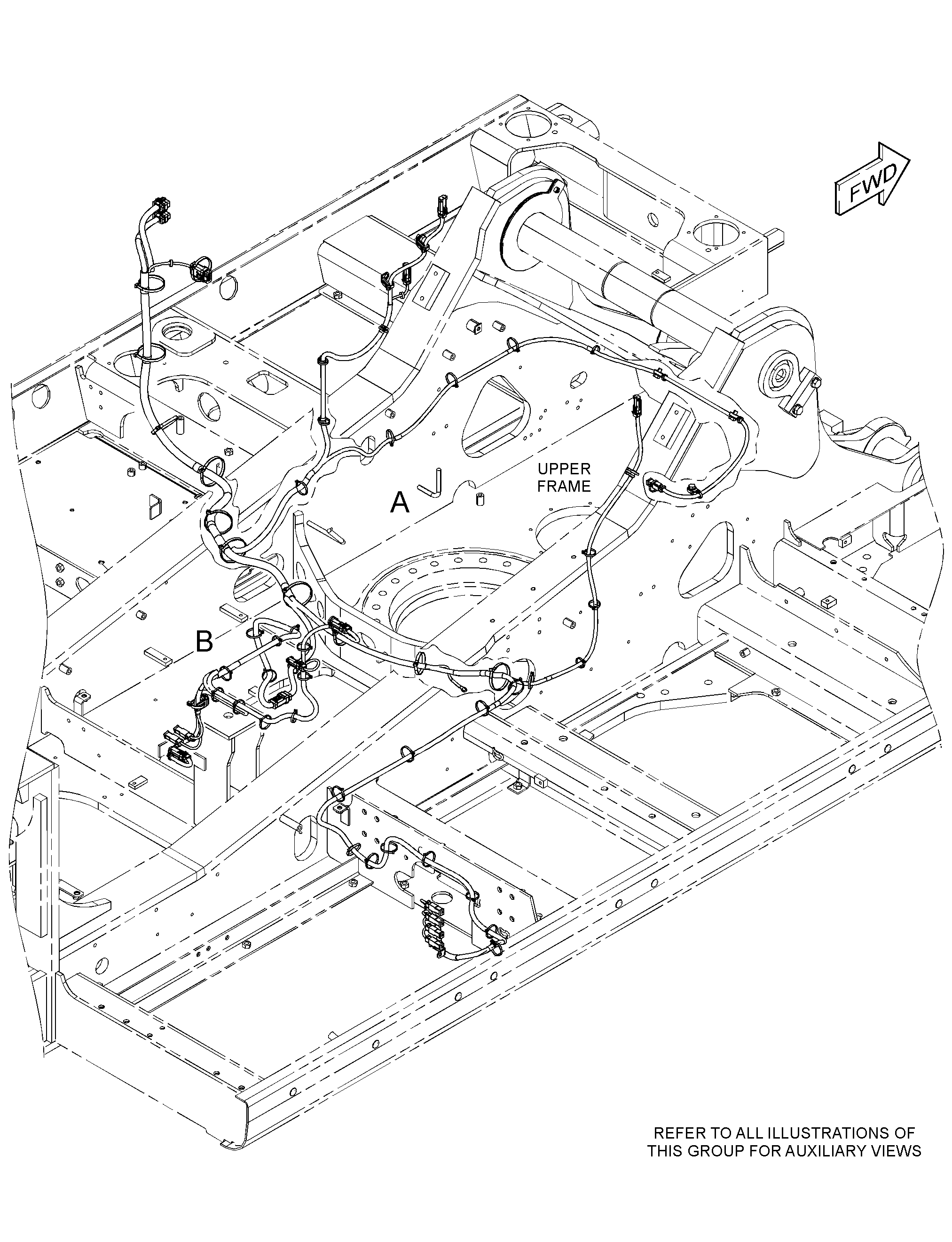

377-8180 WIRING GP-CHASSIS -COMBINED FUNCTION, SMARTBOOMS/N KCS1-UP; LJY1-UP
Group No: 377-8180 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 41 | |
| 7I2673 | 2 STRAP-CABLE | 2 | |
| 7K1181 | 3 STRAP-CABLE | 15 | |
| 1114836 | 4 CLIP | 3 | |
| 2041611 | 5 STRAP-CABLE (DUAL) | 1 | |
| 3690168 | 6 HARNESS AS-SENSOR (STICK) | 1 | |
| 4433831 | 7 HARNESS AS-CHASSIS (CAB BULKHEAD) | 1 | |
| 3422972 | CAP-CONNECTOR (2-PIN) | 2 | |
| 3422973 | CAP-CONNECTOR (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 5 | |
| 2304009 | PLUG AS-CONNECTOR (12-PIN) | 3 | |
| 4550709 | SEAL-CONNECTOR | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 2 | |
| 4550704 | SEAL-CONNECTOR | 1 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 4550705 | SEAL-CONNECTOR | 1 | |
| 2312295 | PLUG AS-CONNECTOR (8-PIN) | 1 | |
| 4550708 | SEAL-CONNECTOR | 1 | |
| 8T8737 | PLUG-SEAL | 38 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 5 | |
| 2434510 | RECEPTACLE AS-CONNECTOR (12-PIN) | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 31 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 11 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 11 | |
| 3S2093 | STRAP-CABLE | 5 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 1257874 | TUBE-HEAT SHRINK (5.72-MM DIA)(15-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(10-CM) | ||
| 1325789 | 8 CLIP (LADDER) | 2 | |
| 4P7429 | 9 CLIP (LADDER) | 2 | |
| 7X2548 | 10 BOLT (M12X1.75X16-MM) | 1 | |
| 8T4121 | 11 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4137 | 12 BOLT (M10X1.5X20-MM) | 3 | |
| 8T4191 | 13 BOLT (M10X1.5X16-MM) | 1 | |
| 8T4223 | 14 WASHER-HARD (13.5X25.5X3-MM THK) | 1 |
