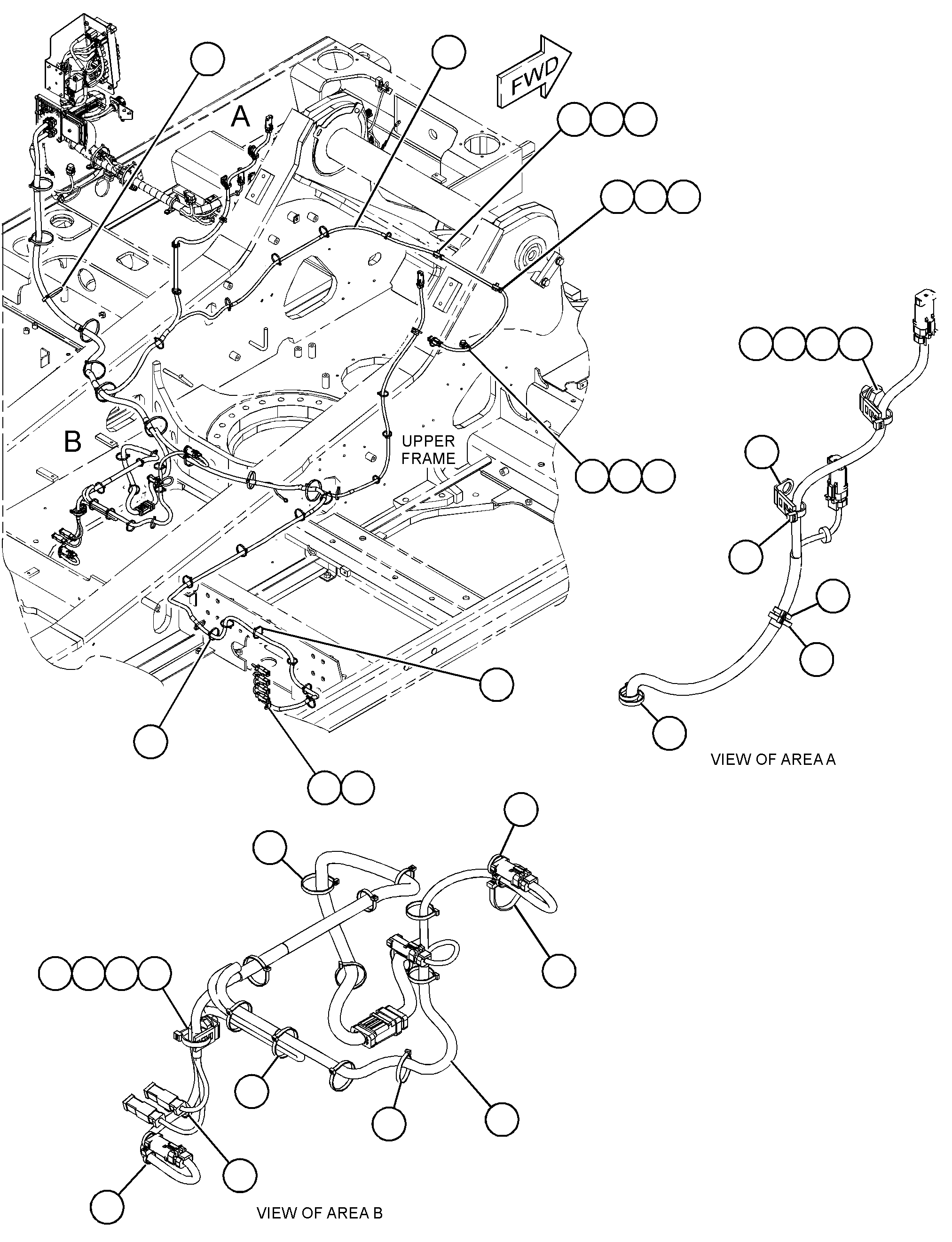

493-6640 WIRING GP-CHASSIS -COMBINED FUNCTION, SMARTBOOMS/N KCS1-UP; LJY1-UP

Group No: 493-6640 · Commonality
Part NumberPart NameQty
3S20931 STRAP-CABLE41
7K11812 STRAP-CABLE14
11148363 CLIP3
48062164 HARNESS AS-SENSOR (SMARTBOOM)1
1028802KIT-RECEPTACLE (2-PIN)2
8T8729PIN-CONNECTOR (16-GA TO 20-GA)6
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)1
3S2093STRAP-CABLE2
8T8737PLUG-SEAL6
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)6
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)6
9X3401PIN-CONNECTOR (16-GA TO 18-GA)4
1261767PIN-CONNECTOR (14-GA TO 16-GA)1
1552270KIT-CONNECTING PLUG (2-PIN)2
2304011PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2434510RECEPTACLE AS-CONNECTOR (12-PIN)1
2818803PLUG AS-CONNECTOR (3-PIN)2
4550705SEAL-CONNECTOR1
3422972CAP-CONNECTOR (2-PIN)1
3422973CAP-CONNECTOR (3-PIN)2
49436195 HARNESS AS-CHASSIS (SMARTBOOM)1
1028802KIT-RECEPTACLE (2-PIN)5
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)34
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)14
1261768SOCKET-CONNECTOR (14-GA TO 16-GA)14
1552270KIT-CONNECTING PLUG (2-PIN)5
3S2093STRAP-CABLE5
8T8737PLUG-SEAL15
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM)
2L8079TERMINAL-RING (14-GA TO 16-GA, 3/8-IN SCREW)1
2304009PLUG AS-CONNECTOR (12-PIN)3
4550709SEAL-CONNECTOR1
2304011PLUG AS-CONNECTOR (2-PIN)2
4550704SEAL-CONNECTOR1
2304013PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
3422972CAP-CONNECTOR (2-PIN)2
3422973CAP-CONNECTOR (3-PIN)1
13257896 CLIP (LADDER)2
20416117 STRAP-CABLE (DUAL)1
4P74298 CLIP (LADDER)2
7I26739 STRAP-CABLE2
7X254810 BOLT (M12X1.75X16-MM)1
8T412111 WASHER-HARD (11X21X2.5-MM THK)4
8T413712 BOLT (M10X1.5X20-MM)3
8T419113 BOLT (M10X1.5X16-MM)1
8T422314 WASHER-HARD (13.5X25.5X3-MM THK)1
