System And Components

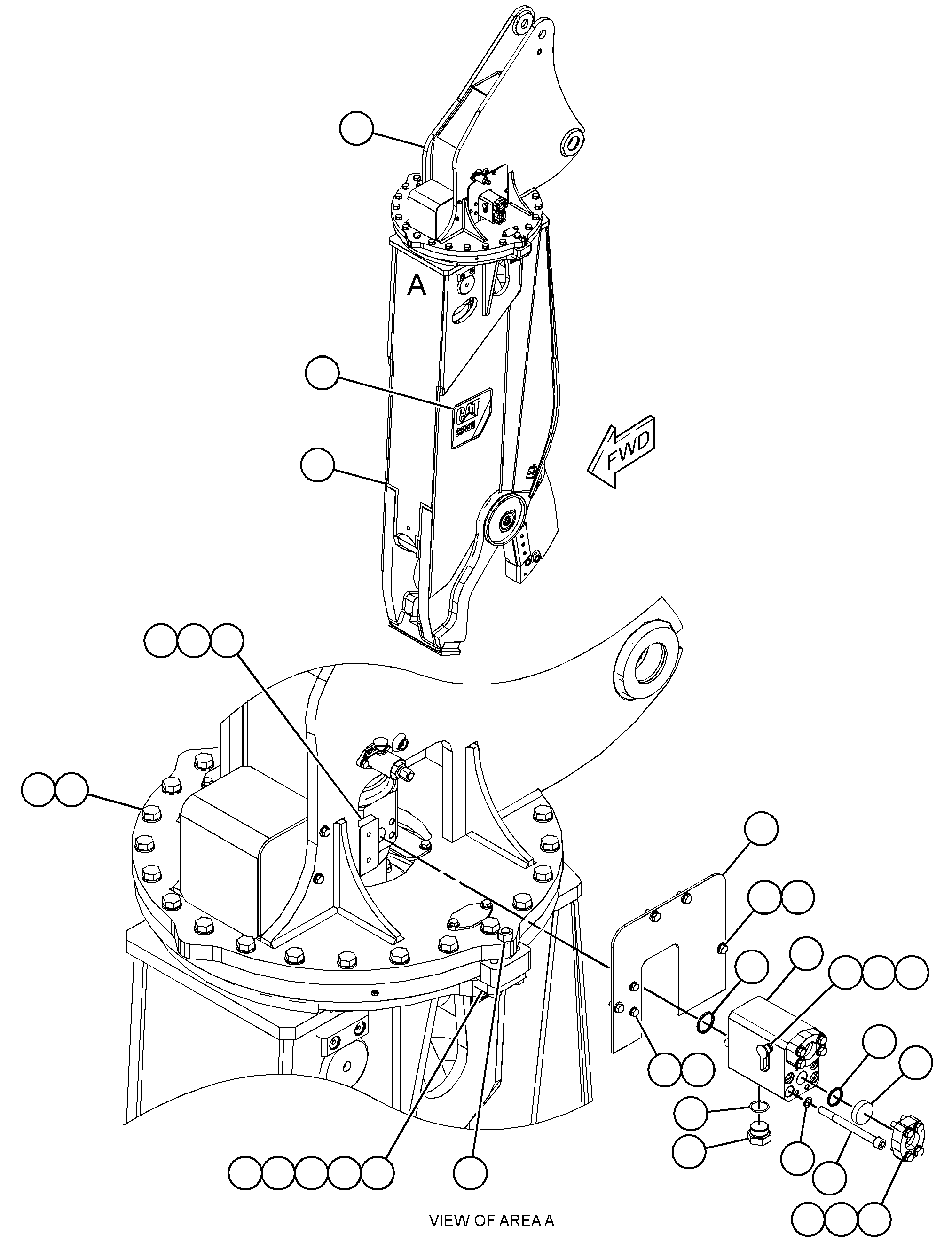

452-9108 SHEAR GP-HYDRAULICS/N LX31-UP; SXD1-UP
Group No: 452-9108
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V0852 | 1 CAP-DUST | 2 | |
| 3603698 | 2 PLUG | 2 | |
| 4354717 | 3 PLATE & FILM GP | 1 | |
| 4355393 | 4 PLATE-LOCK | 1 | |
| 4430858 | 5 HOUSING GP-SHEAR (HYDRAULIC) | 1 | |
| 4431009 | 6 PLATE-LOCK | 1 | |
| 4451361 | 7 MANIFOLD | 2 | |
| 4459492 | 8 ROTATOR GP-HYDRAULIC | 1 | |
| 4469278 | 9 COVER | 2 | |
| 4631056 | 10 BUMPER | 2 | |
| 1022562 | 11 BOLT-SOCKET HEAD (M16X2X180-MM) | 8 | |
| 1591121 | 12 LOCKWASHER | 8 | |
| 1P3704 | 13 SEAL-RECTANGULAR | 4 | |
| 1P3705 | 14 SEAL-RECTANGULAR | 2 | |
| 1P5767 | 15 FLANGE-HALF | 8 | |
| 2S4078 | 16 SEAL-O-RING | 2 | |
| 3J1907 | 17 SEAL-O-RING | 2 | |
| 5P0048 | 18 COVER | 4 | |
| 6V3531 | 19 BOLT (M20X2.5X50-MM) | 2 | |
| 6V3965 | 20 FITTING (QUICK DISCONNECT) | 2 | |
| 6V7742 | 21 NUT-FULL (M20X2.5-THD) | 1 | |
| 7X2577 | 22 BOLT (M24X3X90-MM) | 22 | |
| 7Y5241 | 23 BOLT-SOCKET HEAD (M20X2.5X60-MM) | 1 | |
| 8T0389 | 24 LOCKNUT (M10X1.5-THD) | 4 | |
| 8T4121 | 25 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4167 | 26 WASHER-HARD (26X44X4-MM THK) | 22 | |
| 8T4185 | 27 BOLT (M10X1.5X50-MM) | 4 | |
| 8T4192 | 28 BOLT (M12X1.75X25-MM) | 8 | |
| 8T4194 | 29 BOLT (M12X1.75X50-MM) | 16 | |
| 8T4223 | 30 WASHER-HARD (13.5X25.5X3-MM THK) | 24 | |
| 8T6430 | 31 BOLT (M20X2.5X50-MM) | 2 |
