System And Components

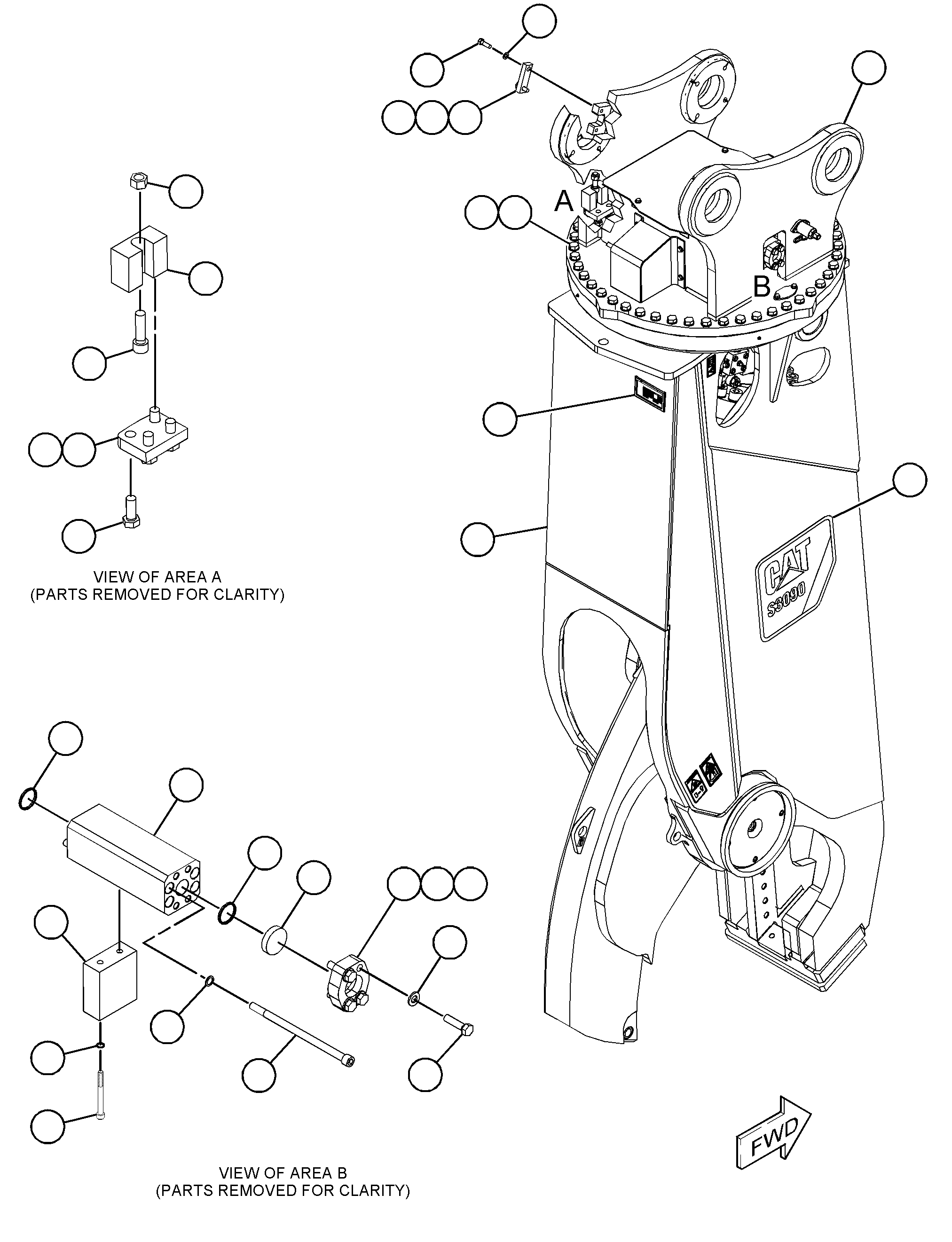

509-9577 SHEAR GP-HYDRAULICS/N SX81-UP; B7W1-UP
Group No: 509-9577
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3240938 | 1 PLATE | 2 | |
| 5100811 | 2 PLATE | 1 | |
| 4355393 | 3 PLATE-LOCK | 1 | |
| 4433068 | 5 PLATE-LOCK | 1 | |
| 4482631 | 6 HOUSING GP-SHEAR (HYDRAULIC) | 1 | |
| 4490925 | 7 FILM GP (S3090) | 1 | |
| 5085926 | 8 ROTATOR GP-HYDRAULIC | 1 | |
| 5099581 | 9 MANIFOLD | 2 | |
| 7X2607 | 10 BOLT (M12X1.75X130-MM) | 2 | |
| 1591119 | 11 LOCKWASHER | 2 | |
| 1591121 | 12 LOCKWASHER | 8 | |
| 1360155 | 13 SETSCREW (M4X0.7X8-MM) | 2 | |
| 1P3705 | 14 SEAL-RECTANGULAR | 4 | |
| 3112899 | 15 BOLT (M16X2X290-MM) | 8 | |
| 5P0049 | 16 COVER | 2 | |
| 5P8077 | 17 FLANGE-HALF | 4 | |
| 8T4131 | 18 NUT (M20X2.5-THD) | 1 | |
| 7Y5217 | 19 BOLT-SOCKET HEAD (M20X2.5X70-MM) | 1 | |
| 7X2489 | 20 BOLT (M24X3X100-MM) | 48 | |
| 8T4122 | 21 WASHER-HARD (17X32X3.5-MM THK) | 8 | |
| 8T4140 | 22 BOLT (M16X2X60-MM) | 8 | |
| 8T4167 | 23 WASHER-HARD (26X44X4-MM THK) | 48 | |
| 8T4193 | 24 BOLT (M16X2X50-MM) | 4 | |
| 8T6430 | 25 BOLT (M20X2.5X50-MM) | 4 | |
| 9X8257 | 26 WASHER (17.5X30X3.5-MM THK) | 4 |
