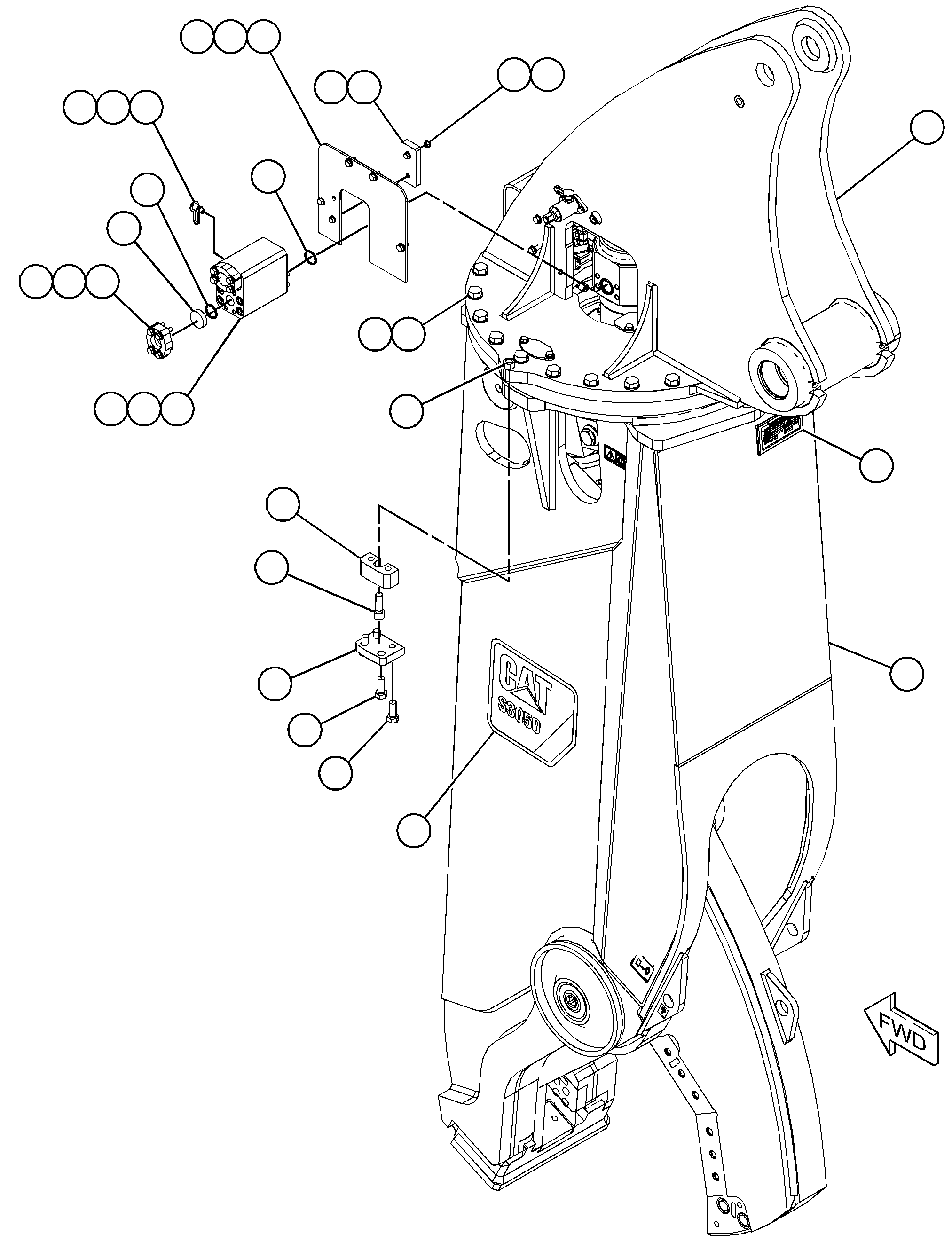

513-8110 SHEAR GP-HYDRAULICS/N LX31-UP; SXD1-UP

Group No: 513-8110
Part NumberPart NameQty
8T64301 BOLT (M20X2.5X50-MM)2
6V08522 CAP-DUST2
43547173 PLATE & FILM GP1
43553934 PLATE-LOCK1
44308585 HOUSING GP-SHEAR (HYDRAULIC)1
44310096 PLATE-LOCK1
44692787 COVER2
46310568 BUMPER2
51092919 MANIFOLD AS2
513811110 ROTATOR GP-HYDRAULIC1
102256211 BOLT-SOCKET HEAD (M16X2X180-MM)8
136015512 SETSCREW (M4X0.7X8-MM)2
159112113 LOCKWASHER8
1P370414 SEAL-RECTANGULAR4
1P370515 SEAL-RECTANGULAR2
1P576716 FLANGE-HALF8
3J190717 SEAL-O-RING2
5P004818 COVER4
6V353119 BOLT (M20X2.5X50-MM)2
6V396520 FITTING (QUICK DISCONNECT)2
7X257721 BOLT (M24X3X90-MM)20
7Y524122 BOLT-SOCKET HEAD (M20X2.5X60-MM)1
8T038923 LOCKNUT (M10X1.5-THD)4
8T412124 WASHER-HARD (11X21X2.5-MM THK)8
8T413125 NUT (M20X2.5-THD)1
8T416726 WASHER-HARD (26X44X4-MM THK)20
8T418527 BOLT (M10X1.5X50-MM)4
8T419228 BOLT (M12X1.75X25-MM)8
8T419429 BOLT (M12X1.75X50-MM)16
8T422330 WASHER-HARD (13.5X25.5X3-MM THK)24
