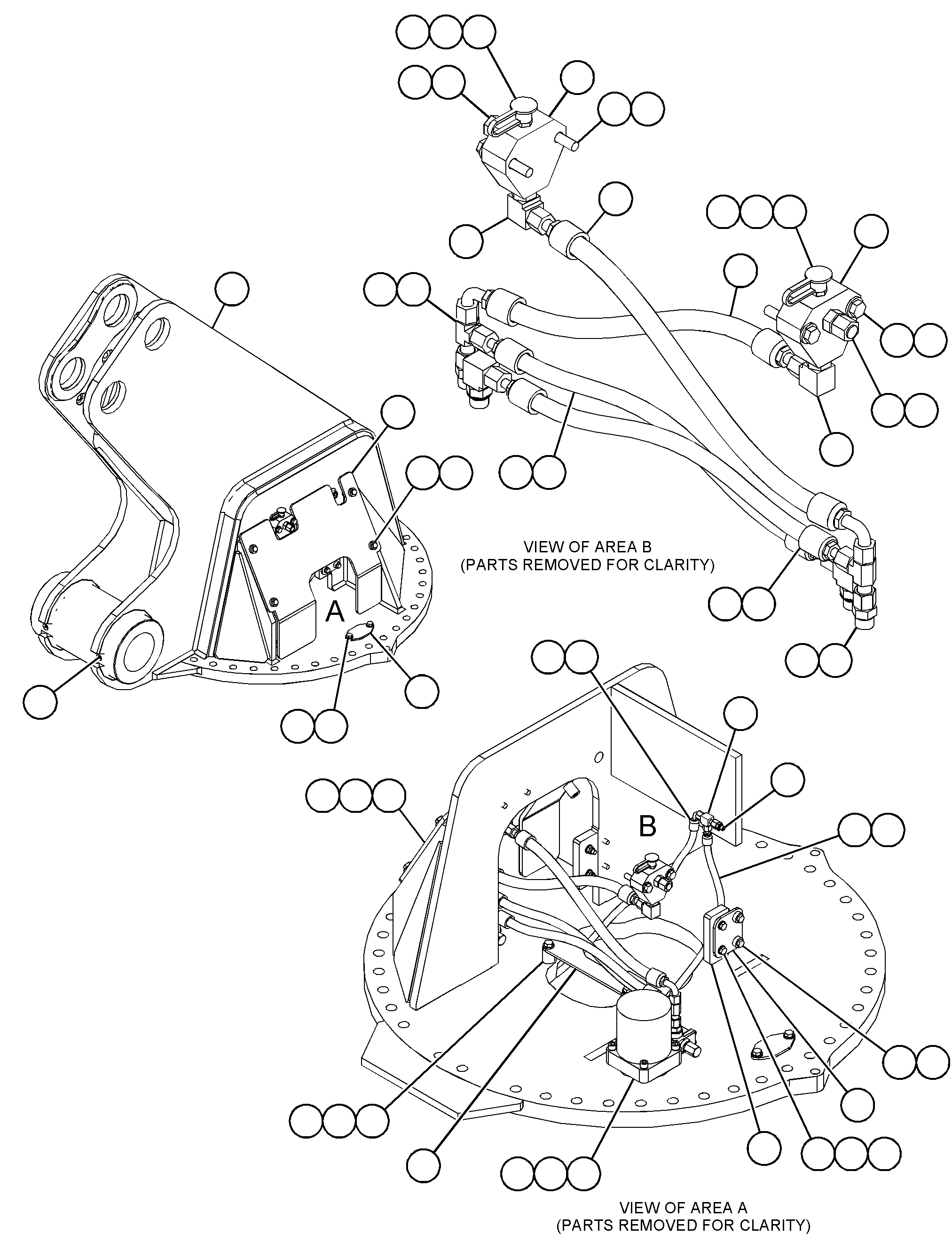

506-1004 ROTATOR GP-HYDRAULICS/N SX81-UP; B7W1-UP
Group No: 506-1004
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1505968 | 1 TEE AS | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 6V9835 | TEE | 1 | |
| 5W2817 | 2 FITTING-GREASE | 3 | |
| 1238828 | 3 CONNECTOR AS | 3 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 8T7876 | SEAL-O-RING | 1 | |
| 2286047 | CONNECTOR | 1 | |
| 1488444 | 4 TEE AS-SWIVEL | 2 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 2258744 | 5 HOSE AS | 1 | |
| 2351758 | 6 HOSE AS | 2 | |
| 4171736 | 7 COVER | 2 | |
| 4172441 | 8 MOTOR & MANIFOLD GP-ROTATOR (VALVE) | 2 | |
| 4173610 | 9 PLATE-LOCK | 1 | |
| 4326246 | 10 HOSE AS | 1 | |
| 4483412 | 11 SPACER (14X28.6X35-MM THK) | 2 | |
| 4631056 | 12 BUMPER | 2 | |
| 4817654 | 13 PLATE | 2 | |
| 4854475 | 14 MANIFOLD | 2 | |
| 4863122 | 15 COVER | 1 | |
| 4863134 | 16 COVER | 1 | |
| 5061003 | 17 HOUSING AS-ROTATOR | 1 | |
| 5218552 | 18 HOSE AS | 2 | |
| 1488345 | 19 CONNECTOR AS | 4 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 1488372 | 20 ELBOW AS | 4 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8721 | ELBOW | 1 | |
| 1591119 | 21 LOCKWASHER | 8 | |
| 1984777 | 22 WASHER-HARD (11X25X10-MM THK) | 4 | |
| 2659596 | 23 WASHER-HARD (13.5X30X9-MM THK) | 8 | |
| 3E6910 | 24 BOLT-SOCKET HEAD (M12X1.75X70-MM) | 8 | |
| 3J1907 | 25 SEAL-O-RING | 2 | |
| 6V0852 | 26 CAP-DUST | 2 | |
| 6V3965 | 27 FITTING (QUICK DISCONNECT) | 2 | |
| 6V9830 | 28 CAP (ORFS) | 2 | |
| 8T0389 | 29 LOCKNUT (M10X1.5-THD) | 4 | |
| 8T4121 | 30 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4183 | 31 BOLT (M12X1.75X40-MM) | 8 | |
| 8T4185 | 32 BOLT (M10X1.5X50-MM) | 8 | |
| 8T4192 | 33 BOLT (M12X1.75X25-MM) | 4 | |
| 8T4223 | 34 WASHER-HARD (13.5X25.5X3-MM THK) | 10 | |
| 8T4648 | 35 BOLT (M12X1.75X70-MM) | 4 | |
| 8T4910 | 36 BOLT (M12X1.75X60-MM) | 2 |
