System And Components

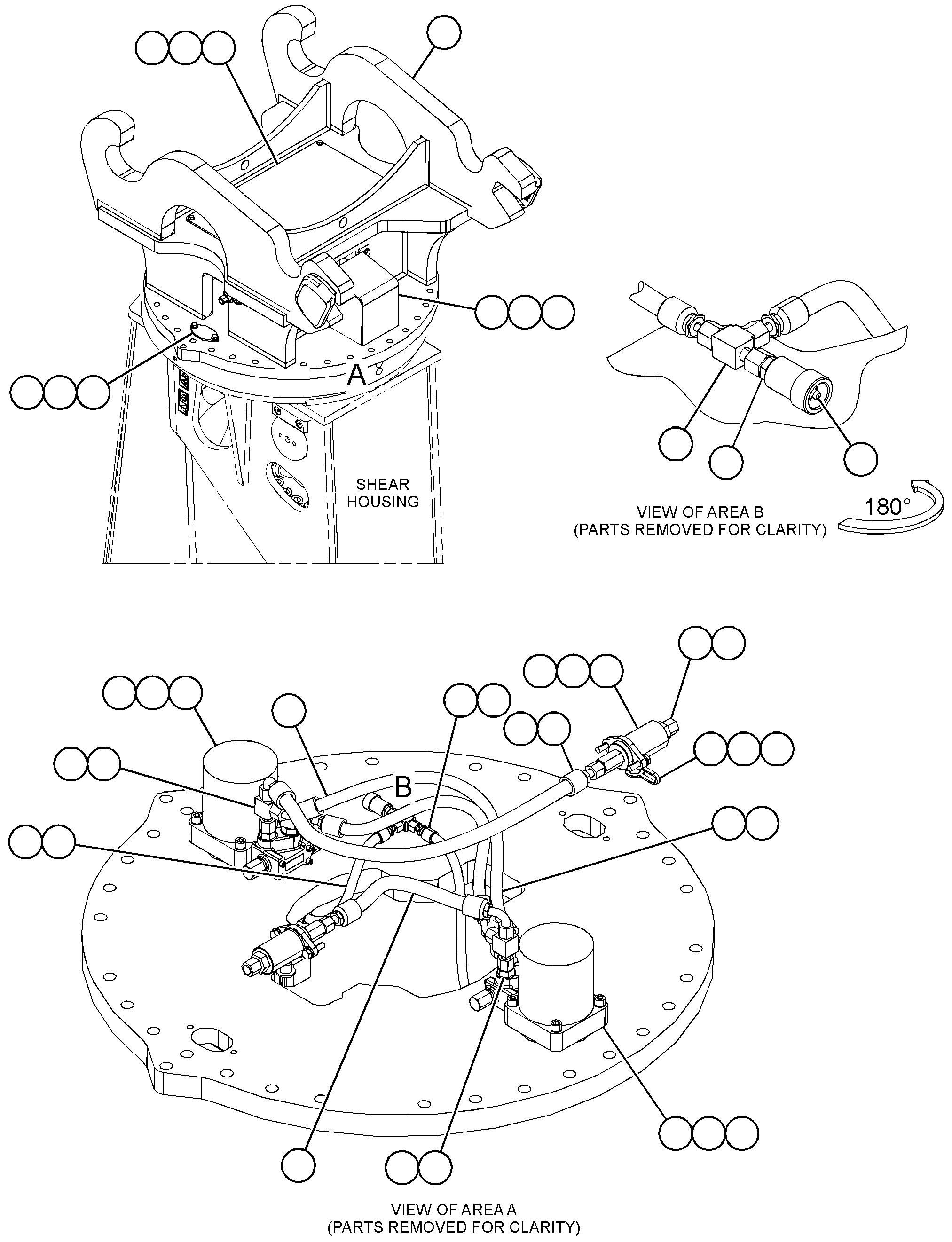

515-3285 ROTATOR GP-HYDRAULICS/N LX51-UP; SXG1-UP
Group No: 515-3285
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1488444 | 1 TEE AS-SWIVEL | 2 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 1505968 | 2 TEE AS | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 6V9835 | TEE | 1 | |
| 5W2817 | 3 FITTING-GREASE | 1 | |
| 1238828 | 4 CONNECTOR AS | 3 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 8T7876 | SEAL-O-RING | 1 | |
| 2286047 | CONNECTOR | 1 | |
| 1658980 | 5 HOSE AS | 1 | |
| 2681604 | 6 CONNECTOR AS | 2 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1049054 | CONNECTOR | 1 | |
| 3180334 | 7 MANIFOLD | 2 | |
| 4171736 | 8 COVER | 2 | |
| 4172441 | 9 MOTOR & MANIFOLD GP-ROTATOR (VALVE) | 2 | |
| 4568306 | 10 HOSE AS | 1 | |
| 4638733 | 11 COVER AS | 2 | |
| 5153286 | 12 HOUSING AS | 1 | |
| 5154059 | 13 COVER | 1 | |
| 5221199 | 14 HOSE AS | 1 | |
| 5221200 | 15 HOSE AS | 1 | |
| 5221201 | 16 HOSE AS | 1 | |
| 5221202 | 17 HOSE AS | 1 | |
| 1488328 | 18 CONNECTOR AS | 2 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8633 | CONNECTOR | 1 | |
| 1488345 | 19 CONNECTOR AS | 2 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8638 | CONNECTOR | 1 | |
| 1488372 | 20 ELBOW AS | 2 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8721 | ELBOW | 1 | |
| 1591119 | 21 LOCKWASHER | 8 | |
| 3E6910 | 22 BOLT-SOCKET HEAD (M12X1.75X70-MM) | 8 | |
| 3J1907 | 23 SEAL-O-RING | 2 | |
| 6V0852 | 24 CAP-DUST | 2 | |
| 6V3965 | 25 FITTING (QUICK DISCONNECT) | 2 | |
| 6V9830 | 26 CAP (ORFS) | 2 | |
| 8T4121 | 27 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4136 | 28 BOLT (M10X1.5X25-MM) | 4 | |
| 8T4192 | 29 BOLT (M12X1.75X25-MM) | 12 | |
| 8T4196 | 30 BOLT (M10X1.5X35-MM) | 4 | |
| 8T4223 | 31 WASHER-HARD (13.5X25.5X3-MM THK) | 12 |
