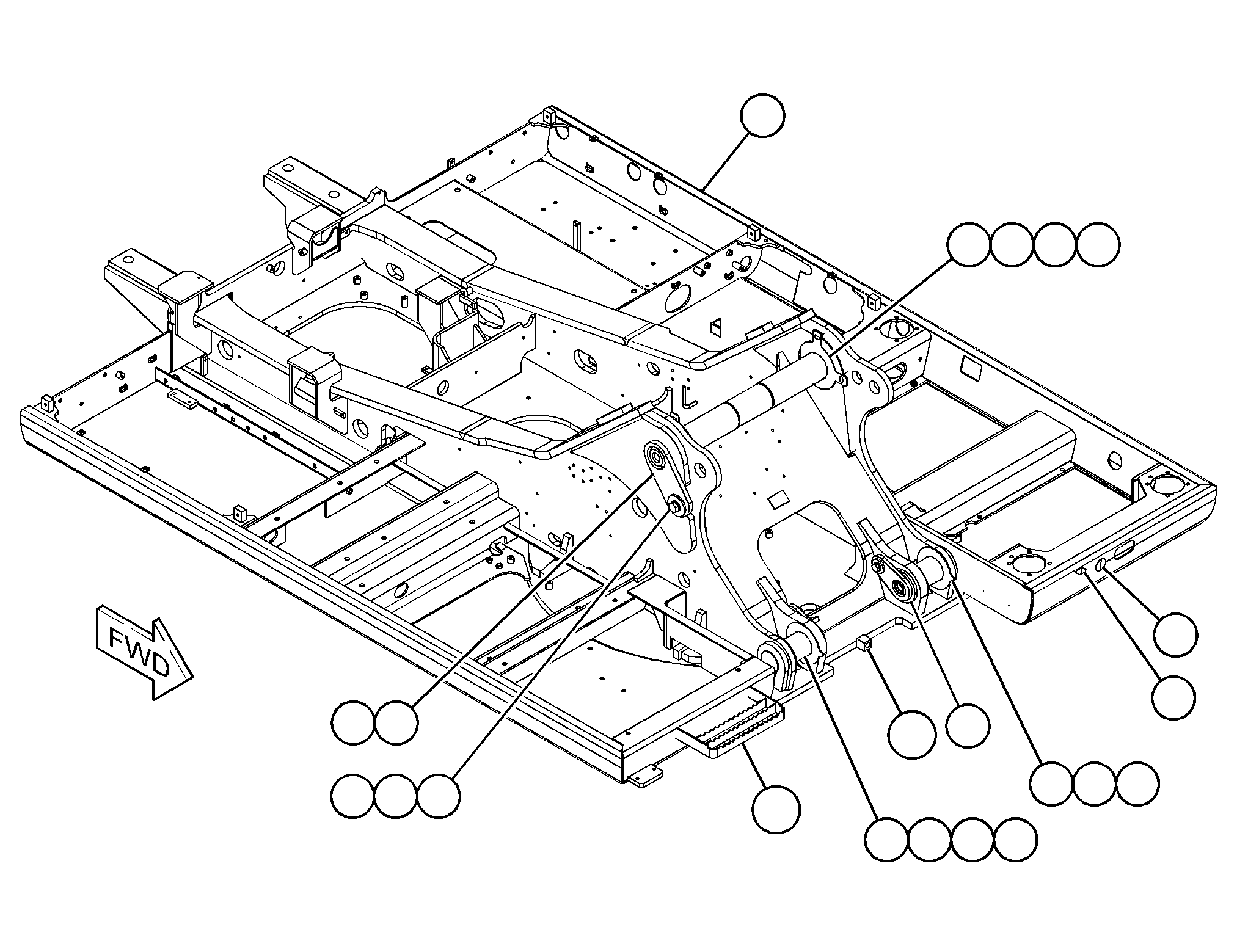

469-7524 FRAME GP-UPPERS/N HER1-UP

Group No: 469-7524
Part NumberPart NameQty
09300901 SHIM (1-MM THK)4
09303642 SPACER (103X140X12-MM THK)2
09664673 WASHER (22X60X8-MM THK)2
13324274 SHIM (0.5-MM THK)2
16614885 SHIM (2-MM THK)4
18656636 PIN AS2
20127717 WASHER (26X90X8-MM THK)1
21228408 SHIM (2-MM THK)2
24579009 CAP1
245790110 CAP1
260238511 PIN AS1
308878112 SHIM (0.5-MM THK)1
308878213 SHIM (1-MM THK)2
308878314 SHIM (2-MM THK)1
451217715 WASHER-HARD (26X44X4-MM THK)1
453417716 BOLT (M24X3X35-MM)1
451217617 WASHER-HARD (22X35X3.5-MM THK)2
469752718 FRAME AS-UPPER1
7Y063318A BOSS (1/8-27X.375-IN)1
163372918B STEP AS1
453284419 BOLT (M20X2.5X30-MM)2
1780852PLATE-SKIRT (1100-MM)1
1845724PLATE-SKIRT (2000-MM)1
