System And Components

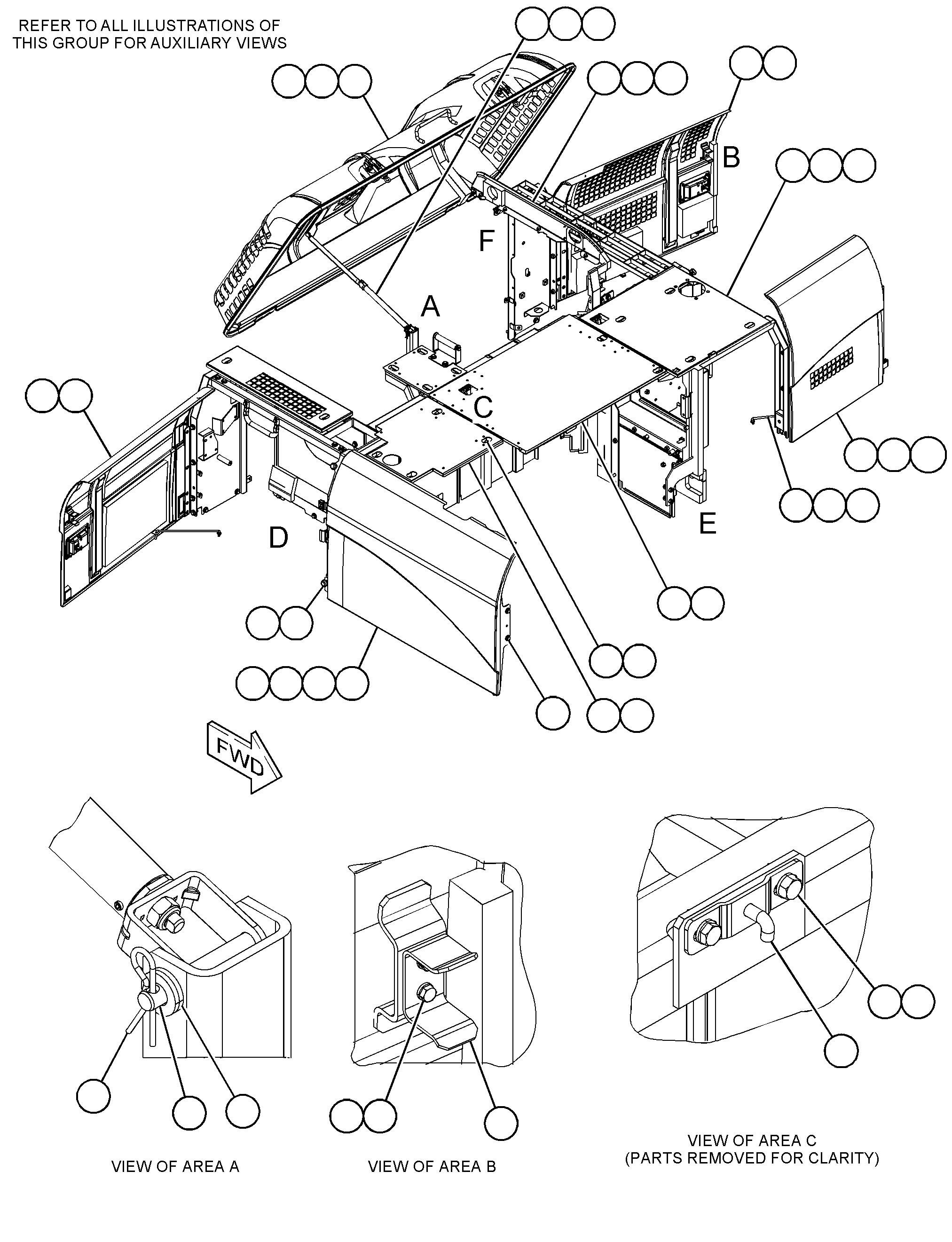

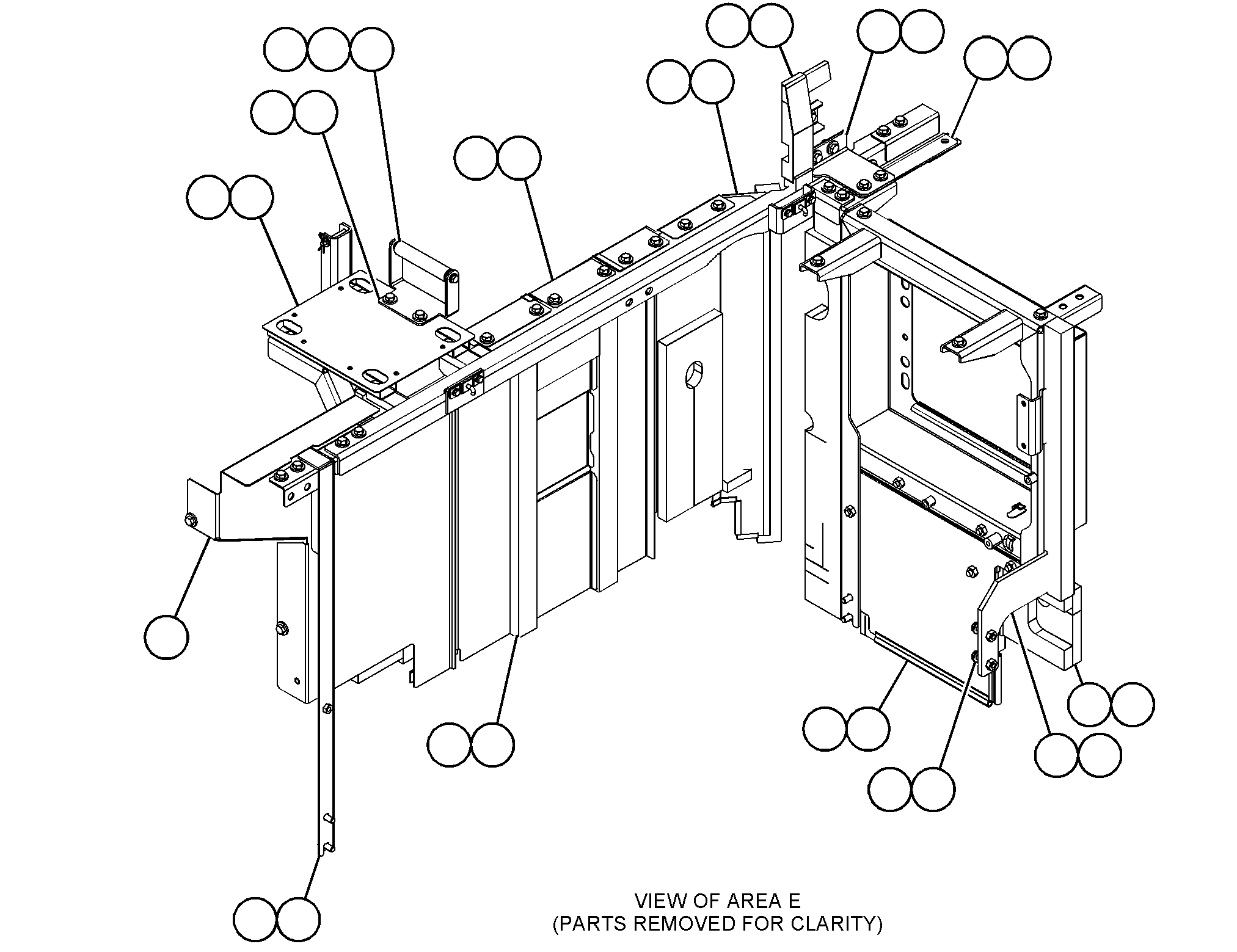

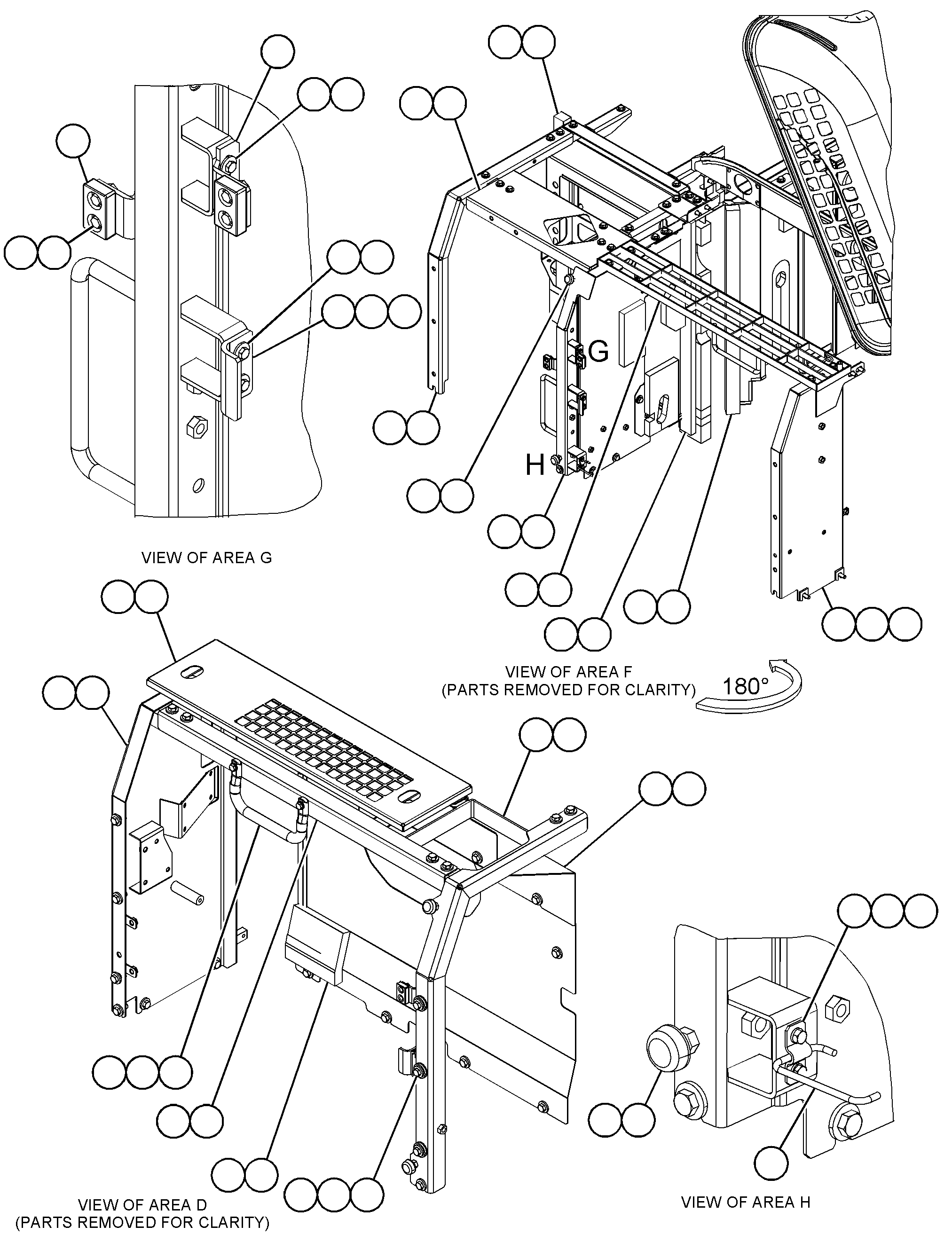

538-5240 HOOD & GUARD GPS/N LJE1-UP
Group No: 538-5240
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4I0118 | 1 HOOK AS | 2 | |
| 4I0232 | 2 STRIKER | 2 | |
| 4I1205 | 3 BUMPER | 4 | |
| 4I8019 | 4 SUPPORT | 3 | |
| 5C7261 | 5 NUT (M8X1.25-THD) | 1 | |
| 5C9553 | 6 BOLT (M6X1X16-MM) | 8 | |
| 6I6033 | 7 STOP | 3 | |
| 7Y2853 | 8 SPACER (13X38X5-MM THK) | 3 | |
| 8T4121 | 9 WASHER-HARD (11X21X2.5-MM THK) | 13 | |
| 8T4136 | 10 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4138 | 11 BOLT (M6X1X20-MM) | 10 | |
| 8T4189 | 12 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4194 | 13 BOLT (M12X1.75X50-MM) | 2 | |
| 8T4196 | 14 BOLT (M10X1.5X35-MM) | 2 | |
| 8T4223 | 15 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4224 | 16 WASHER-HARD (8.8X16X2-MM THK) | 5 | |
| 9X8256 | 17 WASHER (6.6X12X2-MM THK) | 14 | |
| 0873908 | 18 SHIM (1-MM THK) | 2 | |
| 0873909 | 19 SHIM (2-MM THK) | 2 | |
| 1223979 | 20 BAND | 1 | |
| 1223980 | 21 ROD | 1 | |
| 1224120 | 22 ROD | 3 | |
| 1358575 | 23 BOLT AS | 34 | |
| 1358577 | 24 BOLT AS | 2 | |
| 1358578 | 25 BOLT AS | 8 | |
| 1703016 | 26 SPACER (19X32X2-MM THK) | 6 | |
| 1906880 | 27 SUPPORT AS | 3 | |
| 2363328 | 28 SUPPORT | 1 | |
| 2378480 | 29 SUPPORT AS | 1 | |
| 2505024 | 30 SUPPORT AS | 1 | |
| 2561725 | 31 SUPPORT | 1 | |
| 2983111 | 32 HANDLE AS | 1 | |
| 3420806 | 33 SUPPORT AS-BRACKET | 1 | |
| 3420808 | 34 SUPPORT AS-ENCLOSURE | 1 | |
| 3420812 | 35 SHEET AS-SOUND SUPPRESSION | 1 | |
| 2363396 | INSULATION | 1 | |
| 3485409 | SEAL (5-DM) | ||
| 3421016 | 36 PLATE AS | 1 | |
| 3421091 | 37 SHEET AS-SOUND SUPPRESSION | 1 | |
| 3935308 | 38 COVER AS-SOUND SUPPRESSION (FUEL TANK, HYDRAULIC TANK) | 1 | |
| 4202183 | 39 SUPPORT AS | 1 | |
| 4202185 | 40 SHEET AS | 1 | |
| 4202230 | LINER | 1 | |
| 4202188 | 41 SUPPORT AS | 1 | |
| 4202189 | 42 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4202195 | 43 SUPPORT AS-ENCLOSURE | 1 | |
| 4202200 | 44 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4207243 | 45 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4214919 | 46 SUPPORT AS | 1 | |
| 4360753 | 47 HOOD GP-ENGINE | 1 | |
| 4360776 | 48 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4514015 | 49 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4514019 | 50 COVER AS-SOUND SUPPRESSION | 1 | |
| 4515180 | 51 SUPPORT AS | 1 | |
| 4520669 | 52 SHEET | 1 | |
| 4520670 | 53 PIPE AS | 1 | |
| 4522193 | 54 COVER AS | 1 | |
| 4522198 | 55 SHEET AS | 1 | |
| 4554072 | 56 COVER AS | 1 | |
| 4554073 | 57 SPRING AS-GAS (ENGINE HOOD) | 1 | |
| 4554147 | 58 SHEET AS-SOUND SUPPRESSION | 1 | |
| 4642253 | 59 COVER AS | 1 | |
| 4734184 | 60 DOOR AS-ACCESS (AIR CLEANER, BATTERY) | 1 | |
| 2084289 | CUSHION | 1 | |
| 1652976 | 60A HINGE | 2 | |
| 4734188 | 61 DOOR GP-ACCESS (FUEL PRIMING PUMP, RADIATOR) | 1 | |
| 4734212 | 62 DOOR GP-ACCESS (PUMP COMPARTMENT) | 1 | |
| 4734214 | 63 SUPPORT AS | 1 | |
| 4514111 | LINER | 1 | |
| 4734216 | 64 SUPPORT AS | 1 | |
| 5410337 | 65 SHEET AS | 1 | |
| 3485409 | SEAL (2-DM) | ||
| 5410341 | 66 SHEET AS | 1 | |
| 3485409 | SEAL (4-DM) | ||
| 4214883 | INSULATION | 1 | |
| 1146285 | 67 BAR | 2 | |
| 1358573 | 68 BOLT AS | 72 | |
| 3B4618 | 69 PIN-COTTER | 3 | |
| 5P0372 | 70 LOCK PIN | 1 | |
| 5P4115 | 71 WASHER-HARD (7.2X19X2-MM THK) | 10 | |
| 7F3708 | 72 PIN | 1 | |
| 7Y2854 | 73 SPACER (24X38X3-MM THK) | 3 | |
| 8T4133 | 74 NUT (M10X1.5-THD) | 4 | |
| 8T4181 | 75 BOLT (M6X1X20-MM) | 6 |
