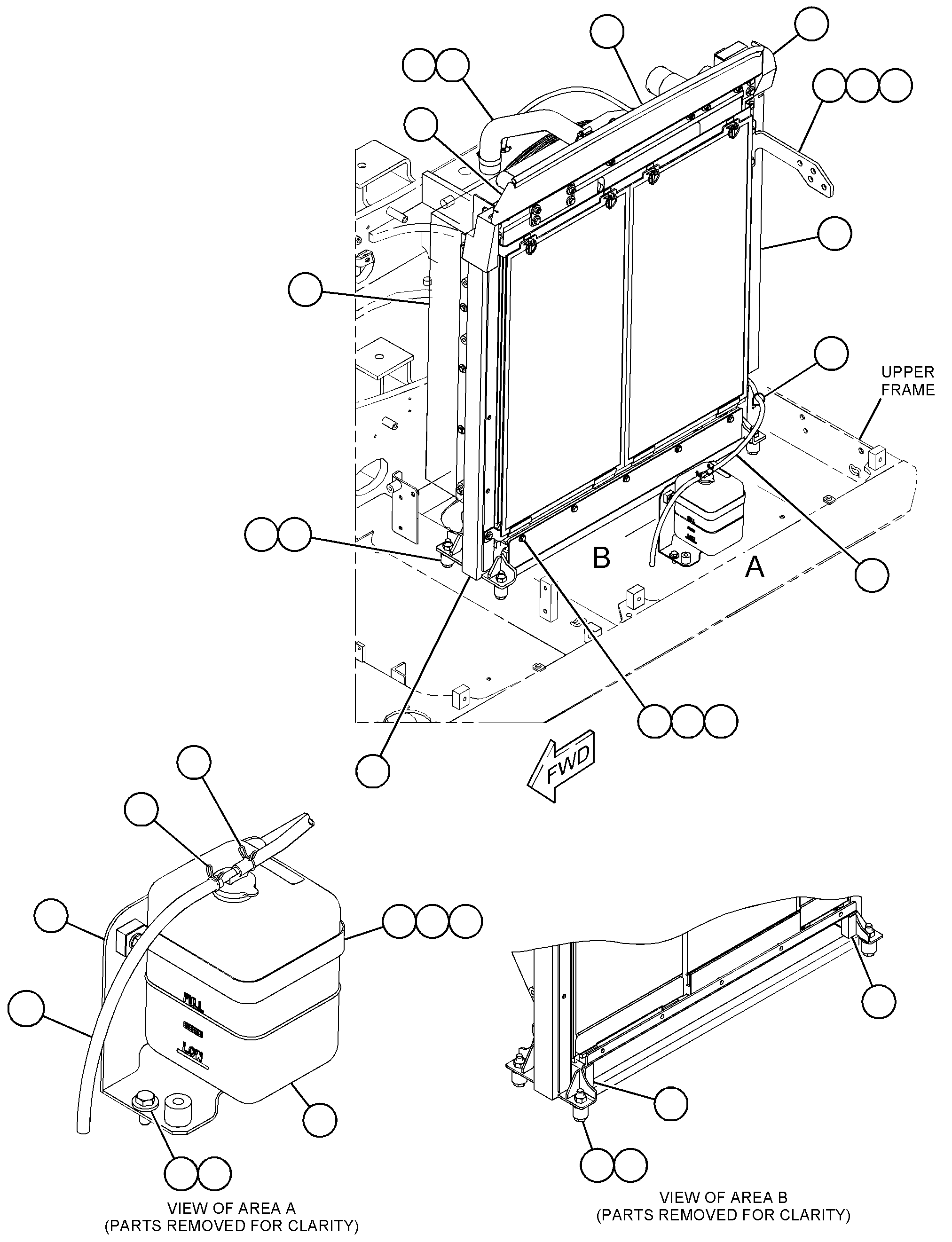

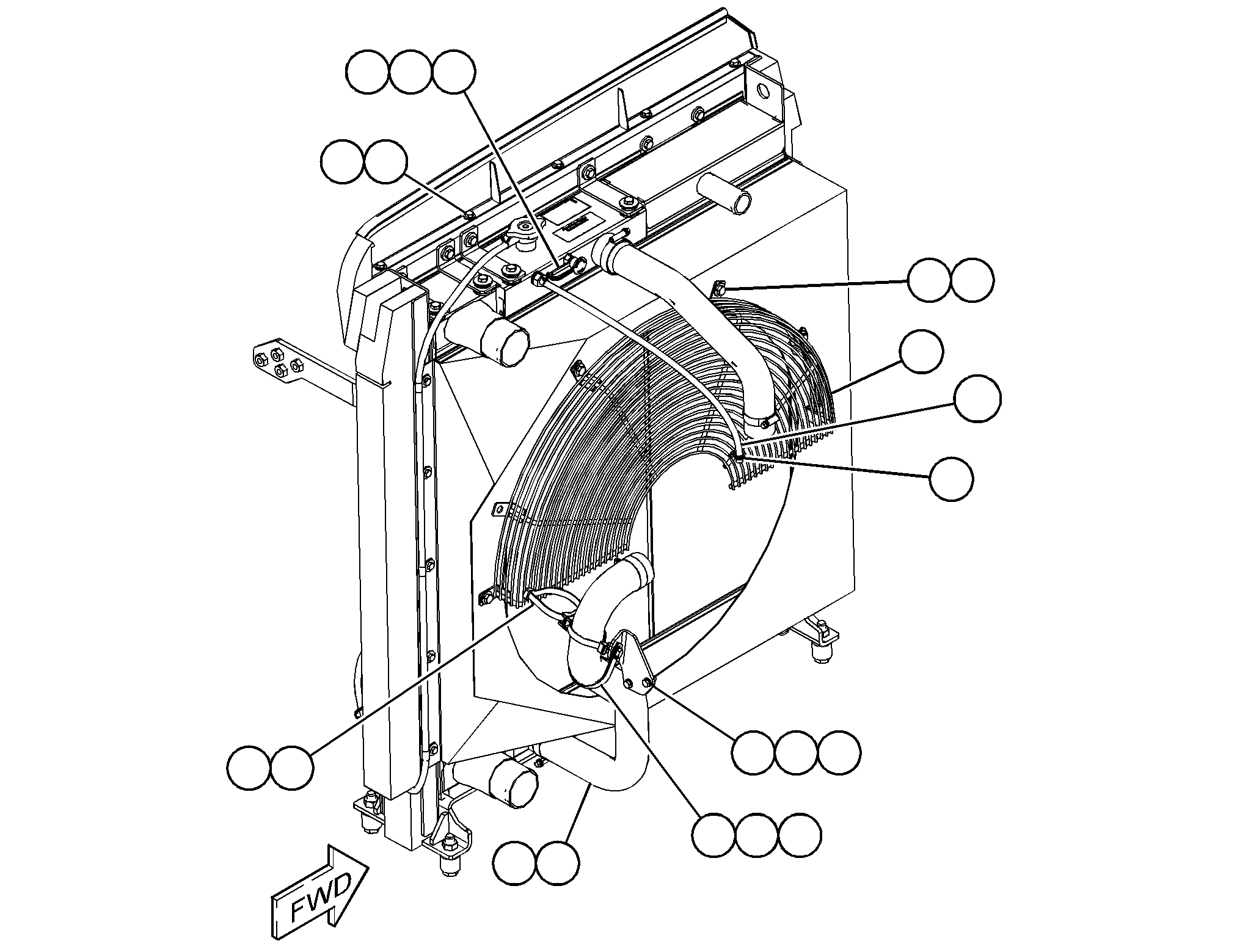

538-9744 RADIATOR & HYD OIL COOLER GPPART OF 538-9740 INSTALLATION AR-ENGINE
Group No: 538-9744
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4195 | 1 BOLT (M10X1.5X30-MM) | 2 | |
| 8T4189 | 2 BOLT (M8X1.25X20-MM) | 2 | |
| 8T4200 | 3 BOLT (M8X1.25X16-MM) | 7 | |
| 3S2093 | 4 STRAP-CABLE | 1 | |
| 5P4116 | 5 WASHER-HARD (8.8X20.5X2-MM THK) | 10 | |
| 7X7729 | 6 WASHER (11X25X3-MM THK) | 9 | |
| 8T4121 | 7 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4136 | 8 BOLT (M10X1.5X25-MM) | 3 | |
| 8T4137 | 9 BOLT (M10X1.5X20-MM) | 5 | |
| 8T4224 | 10 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 0964035 | 11 CLIP | 4 | |
| 0965819 | 12 TANK AS-COOLANT (RECOVERY) | 1 | |
| 1713369 | CAP AS (COOLANT RECOVERY) | 1 | |
| 1719077 | 13 BAND | 1 | |
| 1786450 | 14 SPACER (17X35X30-MM THK) | 4 | |
| 3057664 | 15 BRACKET AS | 1 | |
| 4532838 | 16 BOLT (M16X2X70-MM) | 4 | |
| 2006345 | 17 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2042281 | 18 STRAP-CABLE | 2 | |
| 3623147 | 19 CLIP (LOOP) | 1 | |
| 5249955 | 20 GUARD AS | 1 | |
| 5418766 | 21 BAFFLE AS | 1 | |
| 5418783 | 22 HOSE-RADIATOR (UPPER RADIATOR) | 1 | |
| 5418784 | 23 HOSE-RADIATOR (LOWER RADIATOR) | 1 | |
| 5480129 | 24 PLATE AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 5421098 | 25 LINER | 1 | |
| 5421099 | 26 LINER | 1 | |
| 5421100 | 27 LINER | 1 | |
| 5505706 | 28 SUPPORT AS | 1 | |
| 5570253 | 29 BAFFLE AS | 1 | |
| 5573771 | 30 RADIATOR & HYD OIL COOLER GP | 1 | |
| 8T4984 | 31 CLAMP-HOSE | 1 | |
| 8T6703 | 32 CLAMP-HOSE | 3 | |
| 1P4278 | 33 CLAMP-HOSE | 1 | |
| 7Y1976 | 34 HOSE-WATER (197-CM) | ||
| 7Y1976 | 34A HOSE-WATER (34-CM) | ||
| 7Y1976 | 34B HOSE-WATER (56-CM) | ||
| 3485409 | 35 SEAL (10-DM) | ||
| 5P5649 | 36 SEAL-BULK (0.7-M EACH) | ||
| 6V9027 | 37 SEAL-O-RING | 1 | |
| 1549023 | 38 VALVE-SAMPLING (COOLANT) | 1 | |
| 1570670 | 39 CAP-DUST | 1 | |
| 6V5217 | 40 BOLT (M8X1.25X20-MM) | 5 |
