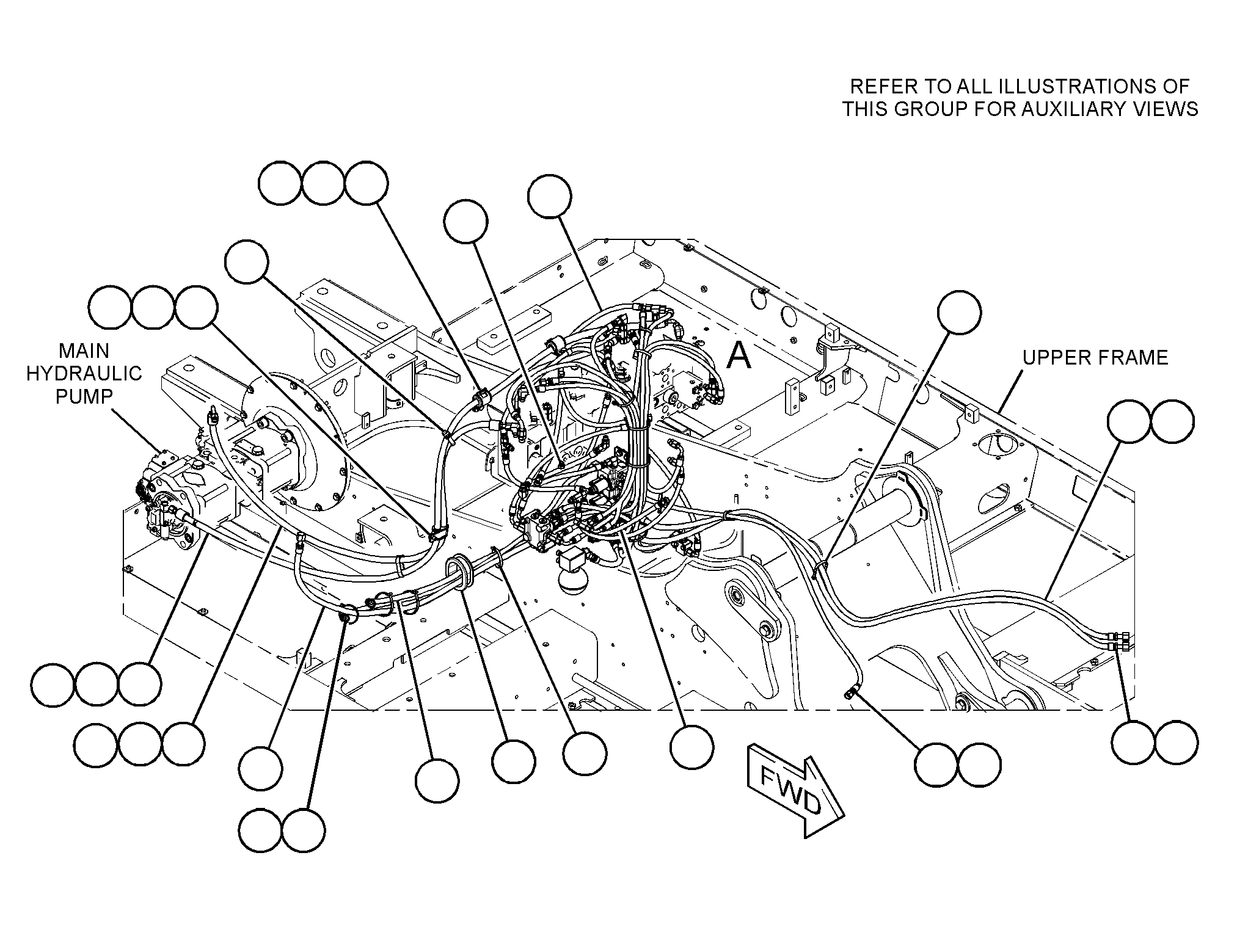

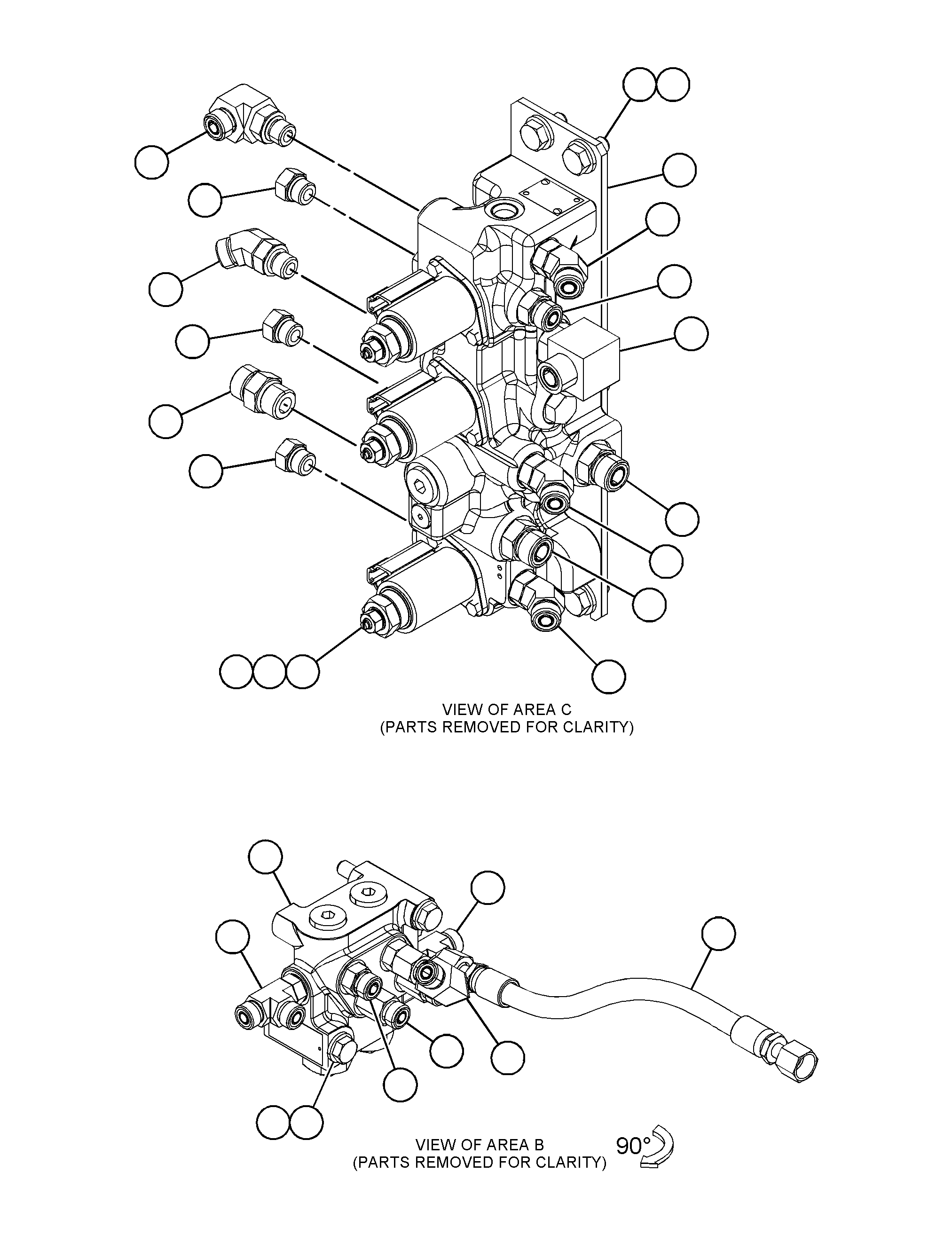

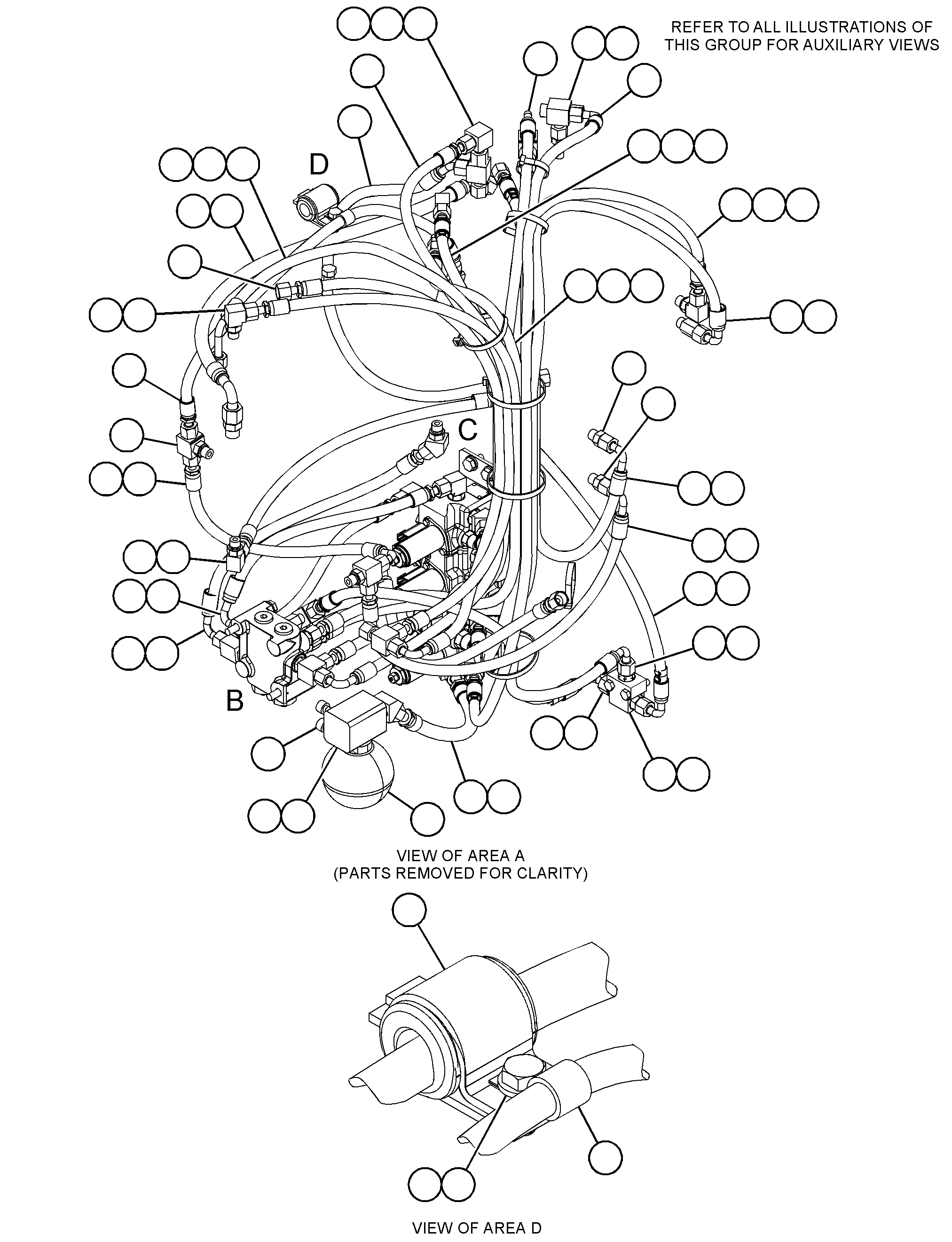

System And Components
556-6488 LINES GP-PILOTS/N FEY1-UP
Group No: 556-6488 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V8397 | 1 SEAL-O-RING | 2 | |
| 7K1181 | 2 STRAP-CABLE | 15 | |
| 8T4172 | 3 BOLT (M10X1.5X80-MM) | 2 | |
| 8T4192 | 4 BOLT (M12X1.75X25-MM) | 3 | |
| 0993649 | 5 BOLT (M8X1.25X40-MM) | 2 | |
| 1053484 | 6 BOLT-SOCKET HEAD (M10X1.5X25-MM) | 2 | |
| 1488336 | 7 CONNECTOR AS | 7 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488340 | 8 CONNECTOR AS | 4 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488353 | 9 ELBOW AS | 5 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488354 | 10 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9002 | ELBOW | 1 | |
| 1488364 | 11 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8625 | ELBOW | 1 | |
| 1488367 | 12 ELBOW AS | 2 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488433 | 13 TEE AS | 2 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488434 | 14 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9843 | TEE | 1 | |
| 1488439 | 15 TEE AS | 2 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8774 | TEE | 1 | |
| 1504044 | 16 CONNECTOR AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1779 | CONNECTOR | 1 | |
| 1645639 | 17 ELBOW AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1240988 | ELBOW-FILTER | 1 | |
| 1646979 | 18 VALVE GP-SHUTTLE | 1 | |
| 1764463 | 19 PLATE | 1 | |
| 1764469 | 20 BLOCK | 1 | |
| 2155037 | 21 MANIFOLD GP-CONTROL (PILOT OIL SUPPLY) | 1 | |
| 3100210 | 22 VALVE GP-PRESSURE REDUCING (BOOM, SWING PRIORITY) | 1 | |
| 3510286 | 23 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2597733 | CONNECTOR | 1 | |
| 4186282 | 24 CLAMP GP-HYDRAULIC LINES | 1 | |
| 4186286 | 25 CLAMP GP-HYDRAULIC LINES | 2 | |
| 5588178 | 26 HOSE AS | 1 | |
| 5588179 | 27 HOSE AS | 2 | |
| 5588181 | 28 HOSE AS | 1 | |
| 5588182 | 29 HOSE AS | 1 | |
| 5588183 | 30 HOSE AS | 1 | |
| 5588184 | 31 HOSE AS | 1 | |
| 5588185 | 32 HOSE AS | 1 | |
| 5588187 | 33 HOSE AS | 1 | |
| 5588189 | 34 HOSE AS | 2 | |
| 1488378 | 35 ELBOW AS | 8 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 36 PLUG AS | 6 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488435 | 37 TEE AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1646981 | 38 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 1 | |
| 5588190 | 39 HOSE AS | 1 | |
| 5588191 | 40 HOSE AS | 2 | |
| 5588192 | 41 HOSE AS | 1 | |
| 5588193 | 42 HOSE AS | 2 | |
| 5588194 | 43 HOSE AS | 1 | |
| 2024004 | 44 GROMMET | 1 | |
| 2042281 | 45 STRAP-CABLE | 2 | |
| 2851399 | 46 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2851465 | CONNECTOR | 1 | |
| 5588200 | 47 HOSE AS | 1 | |
| 5588201 | 48 HOSE AS | 1 | |
| 5588202 | 49 HOSE AS | 1 | |
| 5588203 | 50 HOSE AS | 1 | |
| 5588204 | 51 HOSE AS | 1 | |
| 5588206 | 52 HOSE AS | 1 | |
| 5588207 | 53 HOSE AS | 1 | |
| 5588221 | 54 HOSE AS | 1 | |
| 5588210 | 55 HOSE AS | 1 | |
| 5588211 | 56 HOSE AS | 1 | |
| 4I9521 | 57 BAND-MARKER (RED, L1) | 2 | |
| 4I9522 | 58 BAND-MARKER (YELLOW, L2) | 6 | |
| 4I9523 | 59 BAND-MARKER (BLUE, L3) | 4 | |
| 4I9524 | 60 BAND-MARKER (BROWN, L4) | 6 | |
| 4I9525 | 61 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9527 | 62 BAND-MARKER (GREEN, R3) | 4 | |
| 4I9528 | 63 BAND-MARKER (PURPLE, R4) | 4 | |
| 4K8864 | 64 CLIP (LOOP) | 1 | |
| 5249949 | 65 HOSE AS | 1 | |
| 5484703 | 66 HOSE AS | 1 | |
| 5588213 | 67 HOSE AS | 1 | |
| 5588214 | 68 HOSE AS | 1 | |
| 5588215 | 69 HOSE AS | 1 | |
| 5588219 | 70 HOSE AS | 1 | |
| 8T4121 | 71 WASHER-HARD (11X21X2.5-MM THK) | 8 | |
| 8T4136 | 72 BOLT (M10X1.5X25-MM) | 1 | |
| 8T4137 | 73 BOLT (M10X1.5X20-MM) | 5 | |
| 8T4139 | 74 BOLT (M12X1.75X30-MM) | 1 | |
| 8T4223 | 75 WASHER-HARD (13.5X25.5X3-MM THK) | 4 |
