System And Components

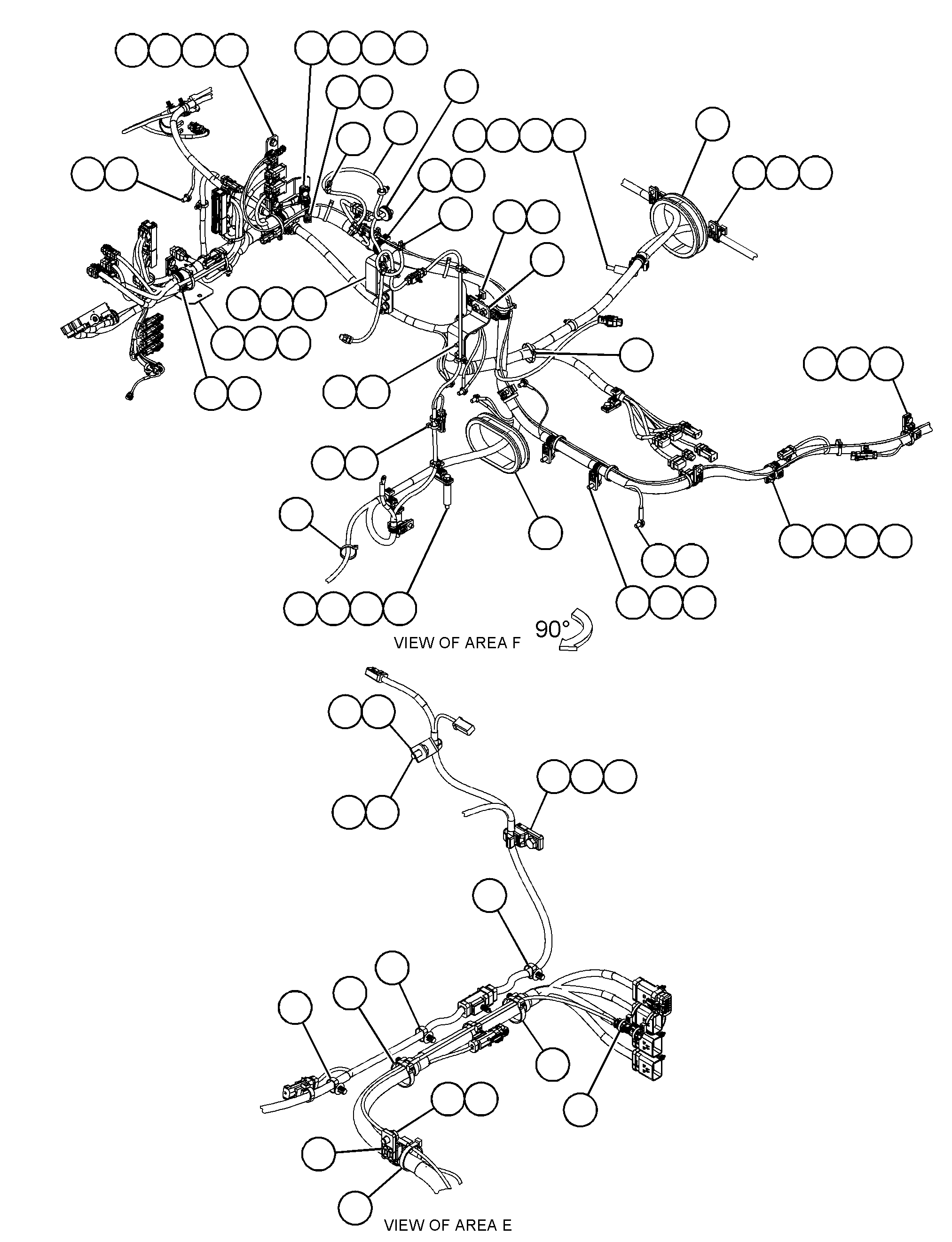

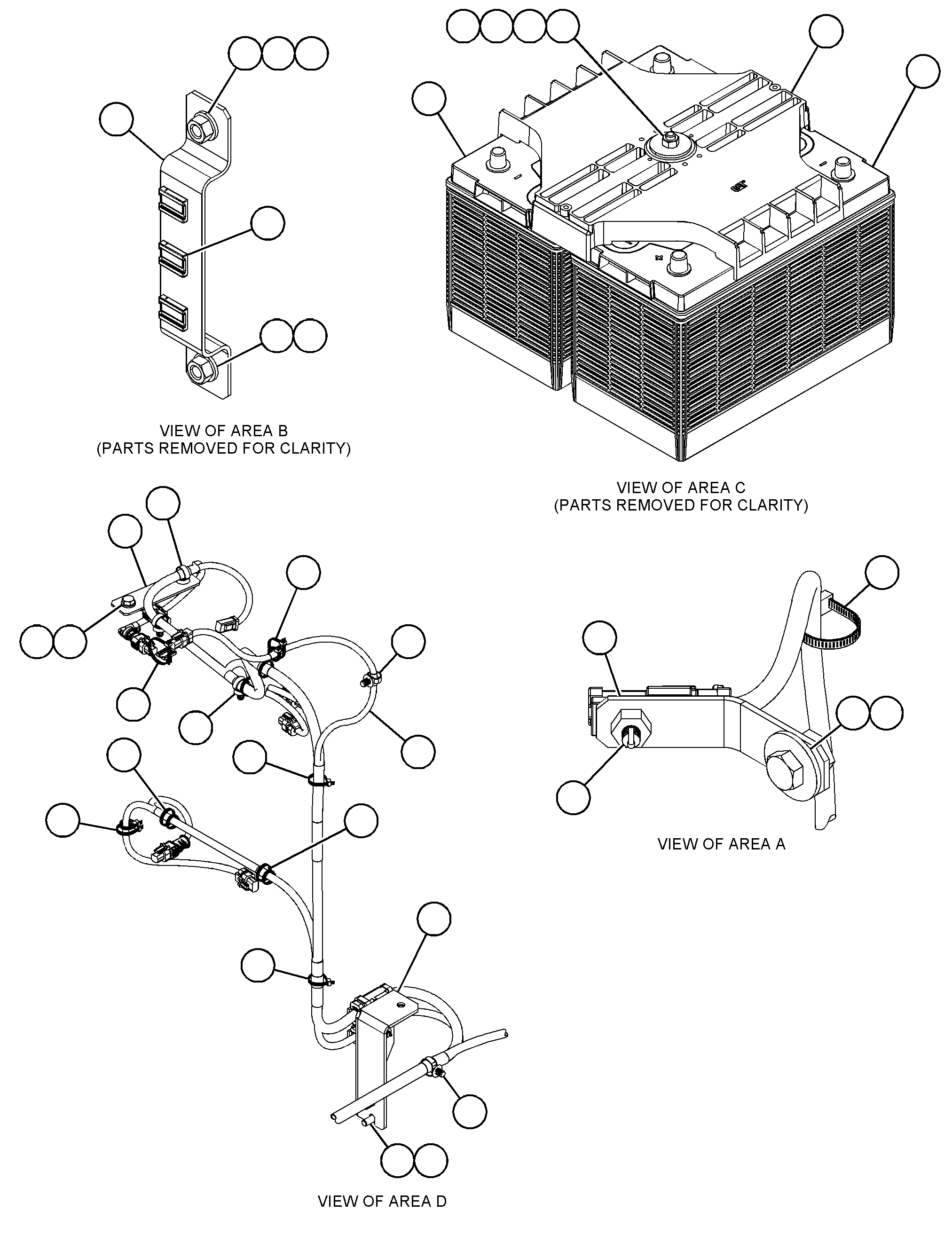

502-7224 BATTERY & WIRING GPS/N SZT1-UP
Group No: 502-7224 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8T4182 | 1 BOLT (M10X1.5X45-MM) | 1 | |
| 8T4196 | 2 BOLT (M10X1.5X35-MM) | 3 | |
| 2042281 | 3 STRAP-CABLE | 6 | |
| 8T4172 | 4 BOLT (M10X1.5X80-MM) | 1 | |
| 8T4198 | 5 BOLT (M10X1.5X100-MM) | 2 | |
| 3S2093 | 6 STRAP-CABLE | 42 | |
| 5F9757 | 7 GROMMET | 1 | |
| 6W6005 | 8 HOLD-DOWN-BATTERY | 1 | |
| 7K1181 | 9 STRAP-CABLE | 28 | |
| 8T4222 | 10 WASHER-PLATED (11X32X2.5-MM THK) | 1 | |
| 8T4226 | 11 WASHER-PLATED (10.5X45X3-MM THK) | 1 | |
| 1152422 | 12 BATTERY GP (12-VOLT, MAINTENANCE FREE, WET) | 2 | |
| 1231373 | CAP AS-FILLER (7/8-9-THD) | 6 | |
| 4837800 | 14 SPACER (11X20X20-MM THK) | 1 | |
| 4837805 | 15 SPACER (11X20X65-MM THK) | 2 | |
| 0932065 | 16 GROMMET | 1 | |
| 1240986 | 17 GROMMET | 2 | |
| 1997854 | 18 SPACER (11.8X20X45-MM THK) | 1 | |
| 2041611 | 19 STRAP-CABLE (DUAL) | 2 | |
| 2667379 | 20 STRAP-CABLE | 3 | |
| 3445675 | 21 NUT (M10X1.5-THD) | 1 | |
| 4841451 | 22 CLIP | 21 | |
| 4841452 | 23 CLIP | 6 | |
| 4841453 | 24 CLIP (RETAINER) | 8 | |
| 4841454 | 25 CLIP-RETAINING | 10 | |
| 4841456 | 26 STRAP-CABLE | 50 | |
| 5671765 | 27 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 5080558 | 28 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 5101207 | 29 HARNESS AS-CHASSIS (AIR CLEANER) | 1 | |
| 5101208 | 30 HARNESS AS-CHASSIS (COOLANT TANK) | 1 | |
| 5101210 | 31 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5202491 | 32 ROD | 1 | |
| 5242766 | 33 HARNESS AS-CHASSIS (FUEL TANK) | 1 | |
| 5282466 | 34 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 5282468 | 35 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 5388999 | 36 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 5445384 | 37 STRIP | 1 | |
| 5484075 | 38 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 1 | |
| 5846815 | 39 HARNESS AS-CHASSIS (MAIN) | 1 | |
| 5513741 | 40 CABLE AS-CHASSIS (ETHERNET) | 1 | |
| 4900571 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 4900572 | RECEPTACLE AS-CONNECTOR (2-PIN) | 2 | |
| 5513742 | 41 HARNESS AS-CHASSIS (HYDRAULIC TANK) | 1 | |
| 5513743 | 42 HARNESS AS-CHASSIS (PUMP) | 1 | |
| 5513744 | 43 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5513746 | 44 BRACKET AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 3 | |
| 5C7261 | 45 NUT (M8X1.25-THD) | 1 | |
| 7I2673 | 46 STRAP-CABLE | 1 | |
| 8T4121 | 47 WASHER-HARD (11X21X2.5-MM THK) | 43 | |
| 8T4133 | 48 NUT (M10X1.5-THD) | 3 | |
| 8T4136 | 49 BOLT (M10X1.5X25-MM) | 6 | |
| 8T4137 | 50 BOLT (M10X1.5X20-MM) | 28 | |
| 8T4223 | 51 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 1189901 | 52 SPACER (12X20X10-MM THK) | 1 |
