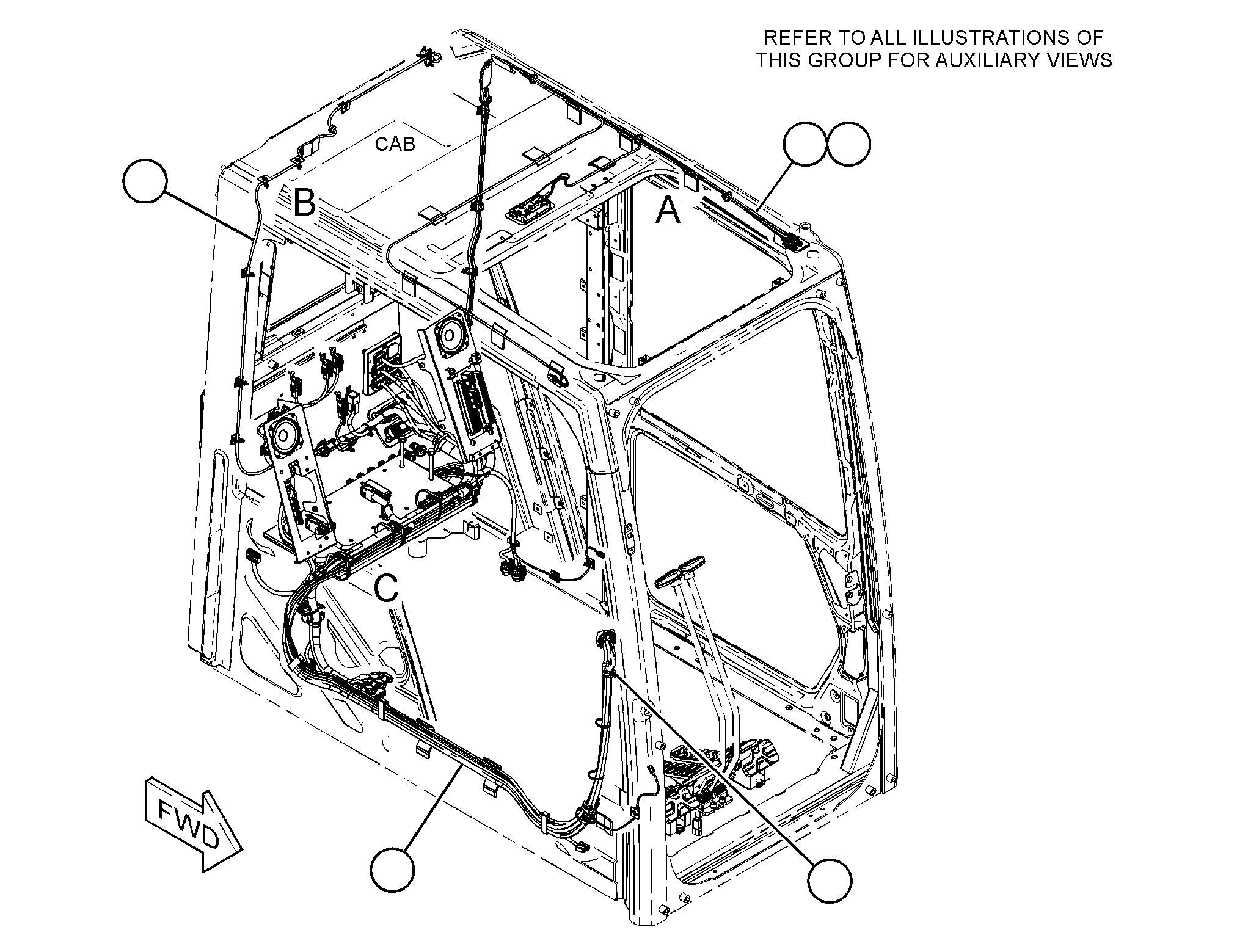

563-8329 WIRING GP-CABS/N SZT1-UP

Group No: 563-8329 · Commonality

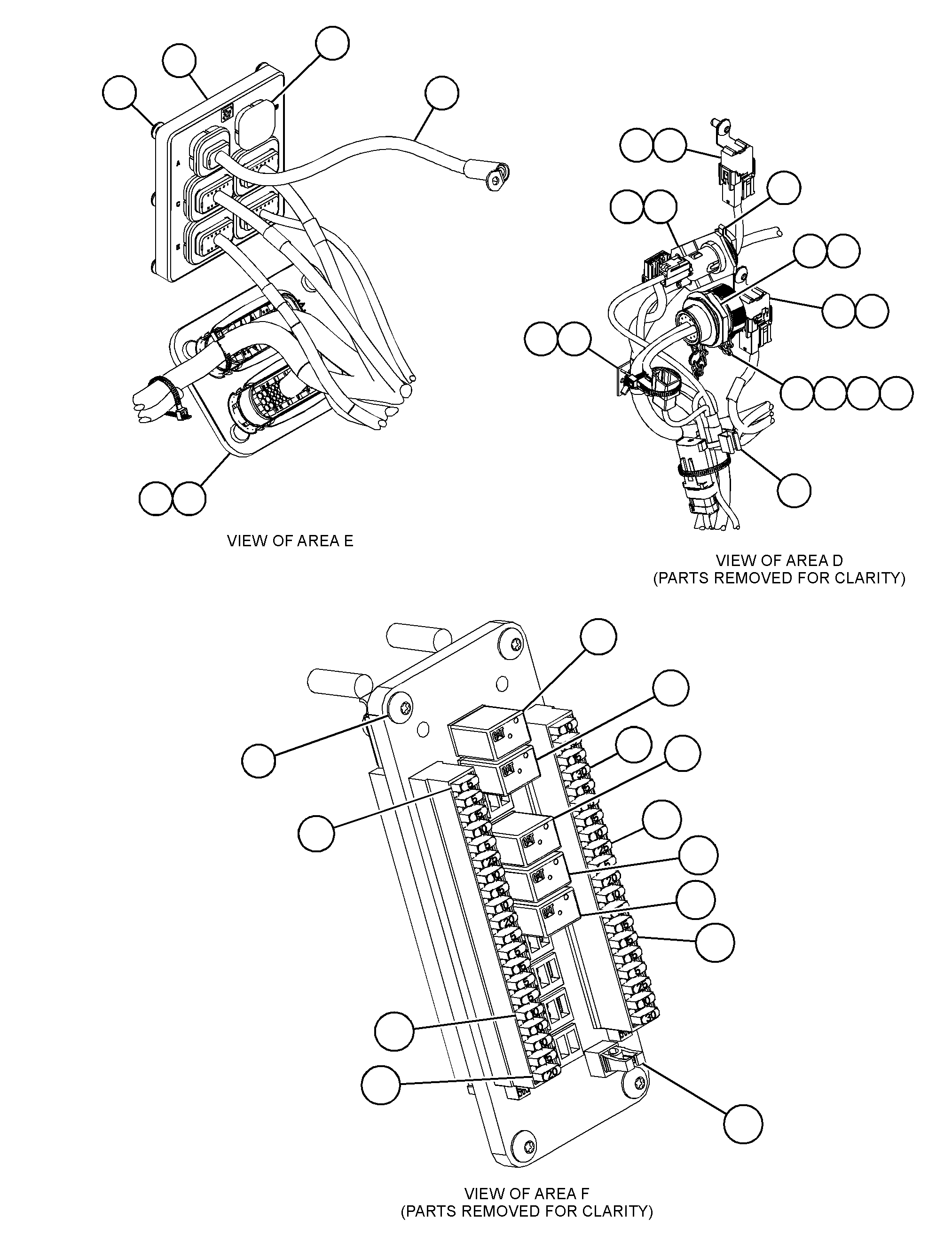

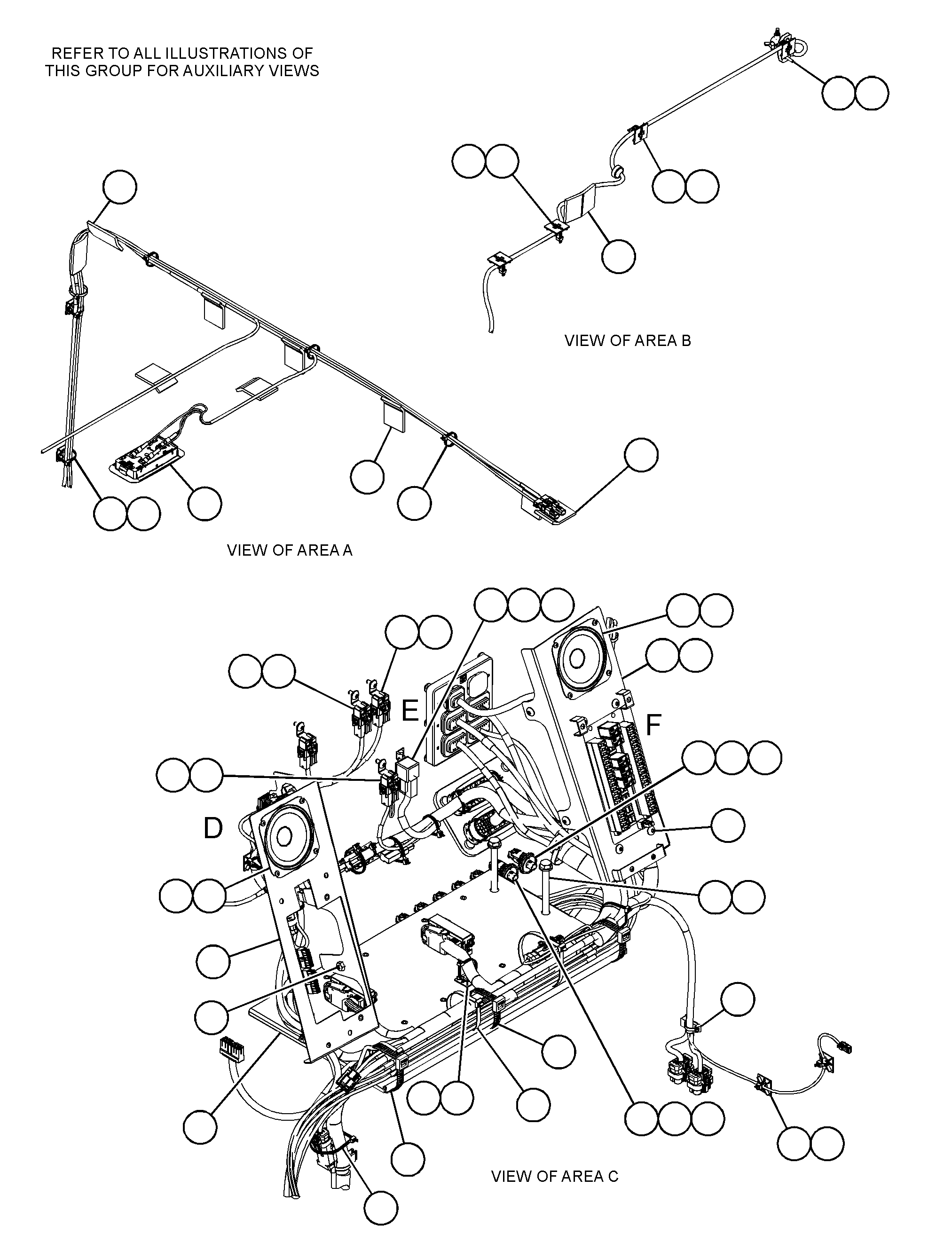

Part NumberPart NameQty
20422811 STRAP-CABLE3
8T41982 BOLT (M10X1.5X100-MM)3
09659623 WASHER-HARD (3.4X7X0.8-MM THK)1
09661664 WASHER-HARD (4.5X9X1-MM THK)2
14950505 RELAY (24-VOLT)(WIPER MOTOR)1
14950505A RELAY (24-VOLT)(WIPER, WASHER)1
14950505B RELAY (24-VOLT)(PRIMING PUMP)1
14950505C RELAY (24-VOLT)(LIFTING)1
14950505D RELAY (24-VOLT)(KEY)1
16367956 STRAP-CABLE1
16735937 STRAP1
20390078 NUT (1-1/2-18-THD)1
25106379 INSULATION19
270267910 LOCKWASHER1
272584111 RELAY (70-AMPERE)(MAIN)1
324568212 PANEL AS1
3245683SEAL1
327995513 CAP (1-PIN CONNECTOR)1
335536514 SOCKET-AUXILIARY POWER (12-VOLT)1
3C696915 NUT (M3X0.5-THD)1
3S209316 STRAP-CABLE31
427977117 TIE3
431951518 LAMP GP-DOME (12/24-VOLT, LED)(LED)1
484145619 STRAP-CABLE1
490057920 ADAPTER AS4
490058521 ADAPTER AS3
490058822 NUT7
490387523 CABLE AS (CAB)1
6V2369CABLE (4-GA, BLACK)(0.4-M)
9G4343TERMINAL-RING (4-GA, 1/4-IN SCREW)1
3245685RECEPTACLE AS-CONNECTOR (1-PIN)1
3280111PIN-CONNECTOR1
491783124 BASE18
492201025 PANEL AS1
492201226 TIE3
494002227 BASE AS (ANTENNA)1
505763728 PLUG AS-CONNECTOR (2-PIN)4
1690705PLUG-SEAL2
4900571PLUG AS-CONNECTOR (2-PIN)1
505763829 PLUG AS-CONNECTOR3
1690705PLUG-SEAL2
4900578PLUG AS-CONNECTOR (2-PIN)1
506591130 LOCK-CONNECTOR2
515717831 BRACKET1
524840332 BRACKET AS1
524840533 BRACKET AS1
524840834 BRACKET AS1
528151435 SPEAKER AS2
7Y3951TERMINAL-BLADE (14-GA)2
7Y3954CONNECTOR-PLUG (3-PIN)1
543265036 HARNESS AS-CAB (ROOF)1
586369837 WIRING GP-CAB (CAMERA, FRONT)1
5497500CABLE AS1
4832765TERMINAL AS (20-GA)2
4900571PLUG AS-CONNECTOR (2-PIN)1
5497501CABLE AS1
4832765TERMINAL AS (20-GA)2
4900582RECEPTACLE AS-CONNECTOR (2-PIN)1
4922011CLIP3
3S2093STRAP-CABLE2
7K1181STRAP-CABLE2
5863699HARNESS AS-CAB (CAMERA, FRONT)1
2382319BASE AS (FUSE, RELAY PANEL)1
9X8256WASHER (6.6X12X2-MM THK)2
0950742SCREW-MACHINE (M6X1X16-MM)2
1709394TERMINAL40
3422973CAP-CONNECTOR (3-PIN)1
3422978CAP-CONNECTOR (4-PIN)1
2679973CONNECTOR (4-PIN)1
7Y3958CONNECTOR-PLUG (6-PIN)1
1974406CONNECTOR-PLUG2
5065915CONNECTOR-PLUG2
7Y3955CONNECTOR-RECEPTACLE2
1495051CONNECTOR-RECEPTACLE6
1636800CONNECTOR-RECEPTACLE1
2041805CONNECTOR-RECEPTACLE1
4839066CONNECTOR-RECEPTACLE1
4918349CONNECTOR-RECEPTACLE2
5065917CONNECTOR-RECEPTACLE1
4244322COVER-CONNECTOR1
1211022DIODE1
8T8729PIN-CONNECTOR (16-GA TO 20-GA)43
1261767PIN-CONNECTOR (14-GA TO 16-GA)43
2025397PLUG4
2025400PLUG30
2813395PLUG AS-CONNECTOR (12-PIN)2
2304009PLUG AS-CONNECTOR (12-PIN)1
4550709SEAL-CONNECTOR1
2407874PLUG AS-CONNECTOR (2-PIN)1
4550704SEAL-CONNECTOR1
2407878PLUG AS-CONNECTOR (3-PIN)1
4550705SEAL-CONNECTOR1
2610524PLUG AS-CONNECTOR (4-PIN)1
4550706SEAL-CONNECTOR1
4427945PLUG AS-CONNECTOR (81-PIN)2
4536477COVER-CONNECTOR1
4447595PLUG AS-CONNECTOR (62-PIN)1
4832762PLUG AS-CONNECTOR (44-PIN)1
4900571PLUG AS-CONNECTOR (2-PIN)2
4900578PLUG AS-CONNECTOR (2-PIN)2
5071383PLUG AS-CONNECTOR (14-PIN)1
5071384PLUG AS-CONNECTOR (18-PIN)1
7Y3952PLUG-CONNECTOR (2-PIN)2
1114816PLUG-CONNECTOR (13-PIN)1
8T8737PLUG-SEAL39
4537871PLUG-SEAL95
4832768PLUG-SEAL16
3245684RECEPTACLE AS-CONNECTOR (12-PIN)4
4518019RECEPTACLE AS-CONNECTOR (14-PIN)1
5065910RECEPTACLE AS-CONNECTOR (62-PIN)1
3245678RESISTOR AS (120-OHM)2
4550704SEAL-CONNECTOR1
2795772SEAL82
1851861SEAL-WIRE9
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)27
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)2
3S2093STRAP-CABLE64
1027965TERMINAL (14-GA TO 20-GA)12
1254785TERMINAL (FEMALE)9
1532540TERMINAL (FEMALE)22
1706827TERMINAL (MALE)70
3639173TERMINAL (14-GA TO 18-GA)2
4914402TERMINAL (14-GA TO 16-GA)9
4914409TERMINAL (18-GA TO 20-GA)82
5065916TERMINAL (20-GA TO 24-GA)4
5065918TERMINAL (14-GA TO 20-GA)2
7Y3967TERMINAL AS3
7Y3963TERMINAL-BULLET (FEMALE)1
7Y3965TUBE1
4560575TERMINAL AS (16-GA)4
3135671PLUG-SEAL1
4560574TERMINAL AS (18-GA)57
4832765TERMINAL AS (20-GA)13
4832767TERMINAL AS (18-GA)15
5421570TERMINAL AS (16-GA)5
7Y3950TERMINAL-BLADE (14-GA TO 20-GA)4
7Y3951TERMINAL-BLADE (14-GA)9
1495069TERMINAL-BLADE (14-GA TO 20-GA)21
1495070TERMINAL-BLADE (16-GA TO 20-GA)32
1495071TERMINAL-BLADE (12-GA TO 14-GA)9
1706890TERMINAL-BLADE (14-GA)14
1706891TERMINAL-BLADE (16-GA TO 18-GA)18
2L8067TERMINAL-RING (10-GA TO 12-GA, 1/4-IN SCREW)2
5P5999TUBE (0.5-M)
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(51-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(180-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(55-CM)
1254840WEDGE-PLUG LOCK (13-PIN)1
113849037A FUSE (10-AMPERE)11
113849137B FUSE (15-AMPERE)12
113849237C FUSE (20-AMPERE)3
113849337D FUSE (25-AMPERE)3
124354837E FUSE (30-AMPERE)2
141275937F FUSE (5-AMPERE)9
161312837G RELAY (24-VOLT)(HORN RELAY)1
161312837H RELAY (24-VOLT)(PROXIMITY)1
161312837J RELAY (24-VOLT)(LIFTING)1
161312837K RELAY (24-VOLT)(BOOM LIGHT)1
161312837L RELAY (24-VOLT)(CHASSIS LIGHT)1
170688837M PULLER-FUSE1
123070738 SCREW-HEX SOCKET (M4X0.7X20-MM)2
6V966939 SCREW-MACHINE (M3X0.5X8-MM)1
7K118140 STRAP-CABLE4
7I227241 BOLT (M5X0.8X12-MM)1
8T032842 WASHER-HARD (5.5X10X1-MM THK)1
8T033743 SCREW-MACHINE (M4X0.7X12-MM)8
8T412144 WASHER-HARD (11X21X2.5-MM THK)3
9X204245 SCREW-TRUSS HEAD (M6X1X12-MM)18
9X204346 SCREW-TRUSS HEAD (M6X1X14-MM)8
