System And Components

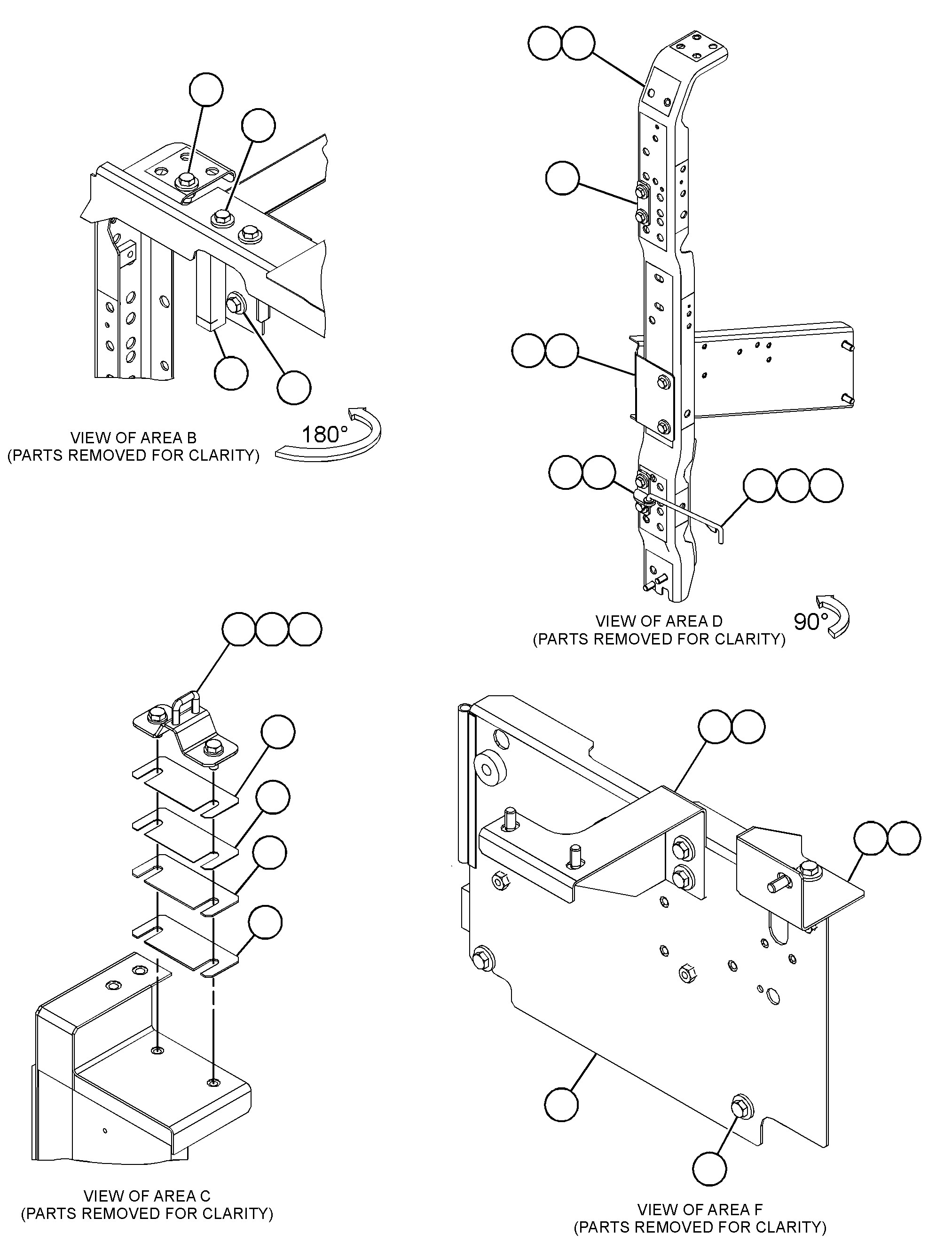

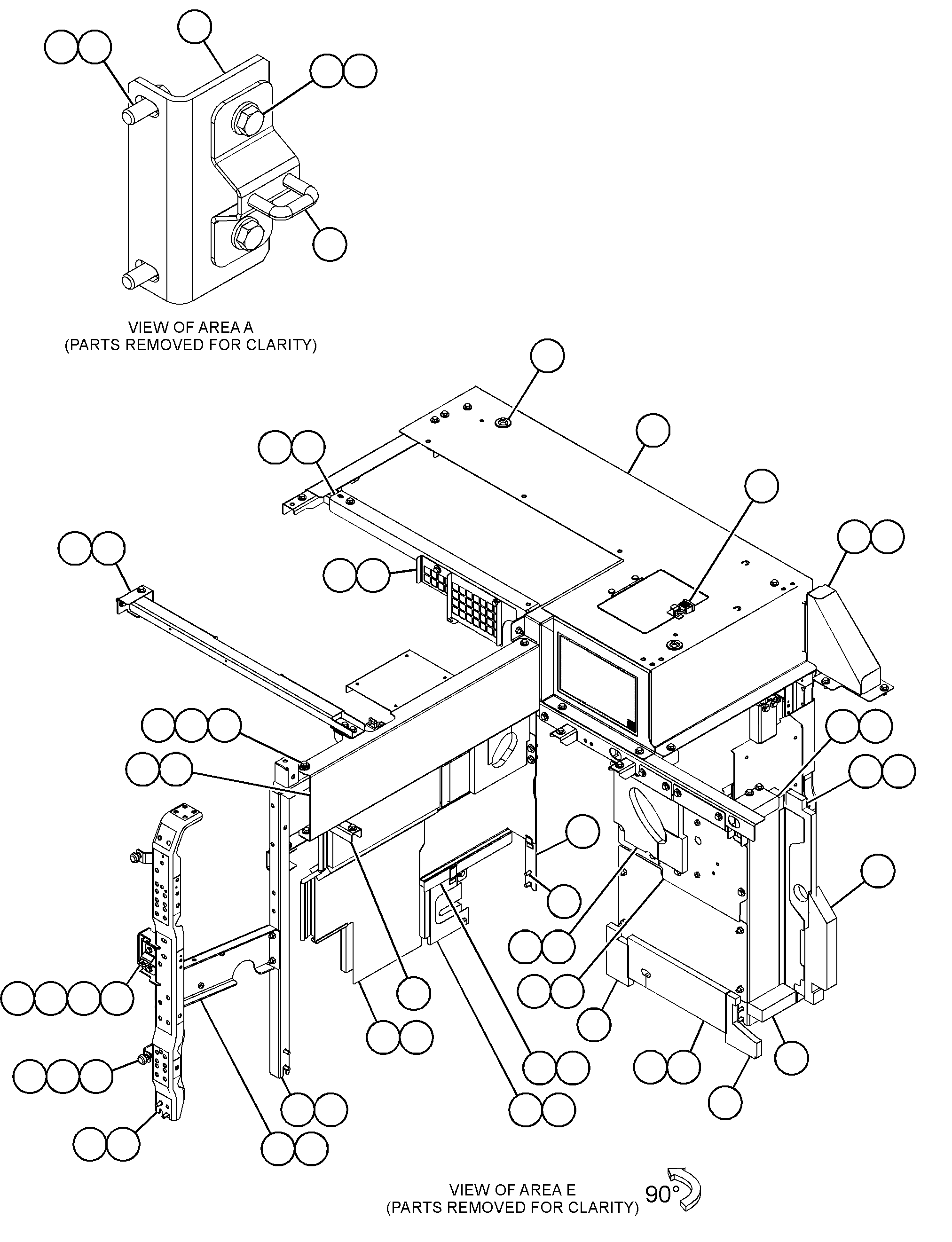

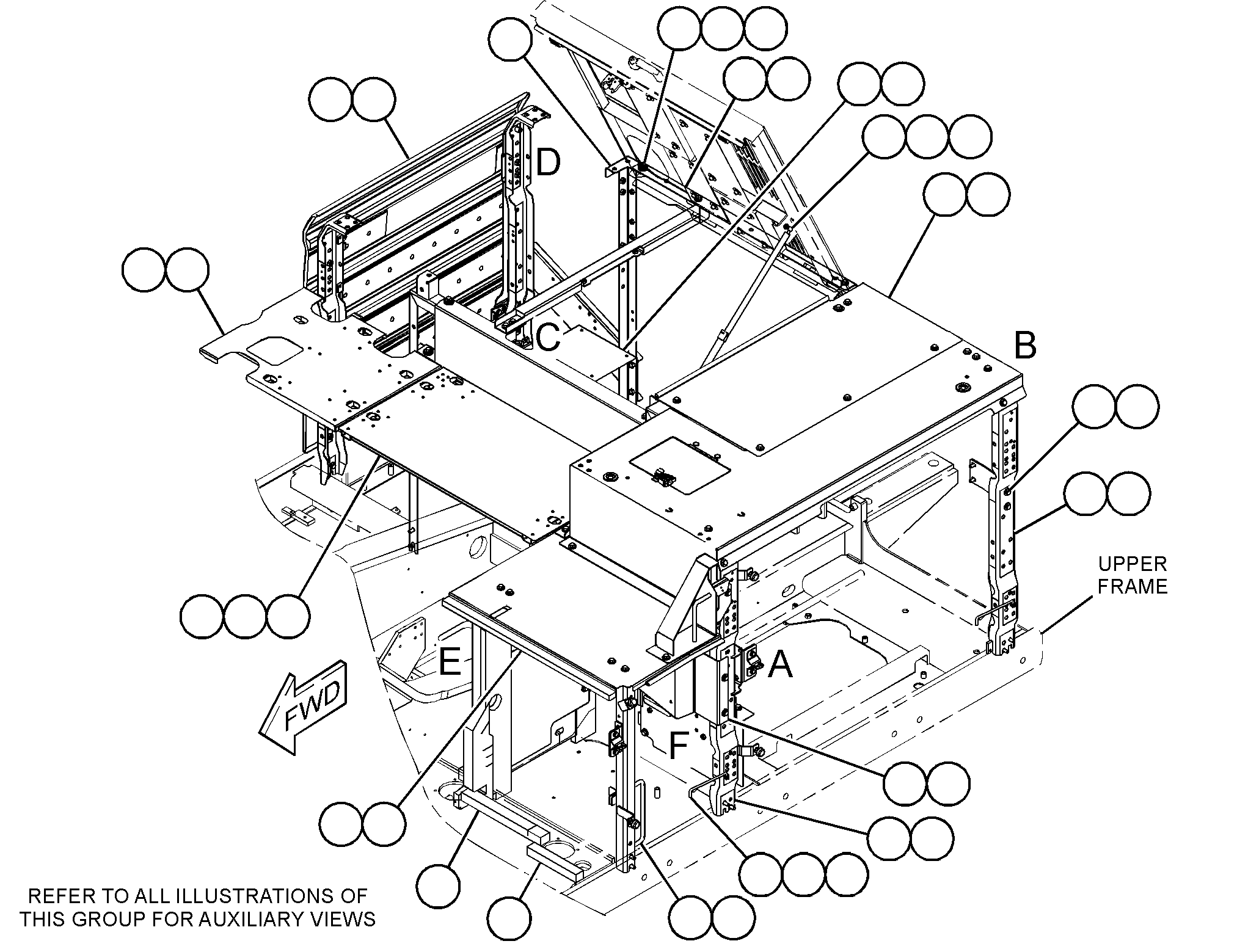

575-9545 HOOD & GUARD GPS/N SZT10001-UP
Group No: 575-9545 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1358573 | 1 BOLT AS | 7 | |
| 1358575 | 2 BOLT AS | 116 | |
| 1358577 | 3 BOLT AS | 3 | |
| 1358579 | 4 BOLT AS | 2 | |
| 1703016 | 5 SPACER (19X32X2-MM THK) | 8 | |
| 1709360 | 6 GROMMET | 2 | |
| 3272886 | 7 STRIKER AS | 4 | |
| 3432465 | 8 BUMPER | 6 | |
| 3B4611 | 9 PIN-COTTER | 3 | |
| 5089583 | 10 BRACKET AS | 2 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 5089584 | 11 BRACKET AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 5089685 | 12 LINER | 1 | |
| 5103106 | 13 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5103164 | 14 LINER | 1 | |
| 5167469 | 15 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5167545 | 16 LINER | 1 | |
| 5167546 | 17 LINER | 1 | |
| 5277804 | 18 SHIM (1-MM THK) | 2 | |
| 5102391 | 19 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 3 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 8 | |
| 5102420 | 20 SUPPORT AS | 1 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 8 | |
| 5277805 | 21 SHIM (2-MM THK) | 2 | |
| 5283561 | 22 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5283564 | 23 SUPPORT AS | 1 | |
| 5283651 | LINER | 1 | |
| 5283566 | 24 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5761793 | 25 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 11 | |
| 5359190 | 26 COVER AS | 1 | |
| 3485409 | SEAL (3-DM) | ||
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 5359211 | 27 SUPPORT AS-SOUND SUPPRESSION | 1 | |
| 5360278 | 28 PLATE | 1 | |
| 5761769 | 29 SUPPORT AS | 1 | |
| 5761770 | LINER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5228630 | 30 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 4 | |
| 5432337 | 31 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 1787023 | BOSS (M10X1.5X30-MM) | 1 | |
| 5259771 | 32 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 7 | |
| 5432338 | 33 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 10 | |
| 5462598 | 34 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480197 | 35 PLATE AS | 1 | |
| 5283558 | 36 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 3 | |
| 5480208 | 37 COVER AS | 1 | |
| 5489976 | INSULATION | 2 | |
| 5283563 | 38 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5480299 | 39 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 1 | |
| 5480316 | 40 COVER AS | 1 | |
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 6 | |
| 6P2216 | CAP (PUSH ON) | 6 | |
| 5103263 | SILENCER | 3 | |
| 6P2215 | PIN-WELD | 6 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 2 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 5769469 | 41 COVER AS | 1 | |
| 1019848 | SEAL (0.5-M) | ||
| 5283665 | LINER | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 5 | |
| 5769464 | 42 COVER GP-ACCESS | 1 | |
| 5283583 | 43 COVER AS-SOUND SUPPRESSION | 1 | |
| 1019848 | SEAL (1-M) | ||
| 4I7924 | WASHER (4.5X40X1.2-MM THK) | 3 | |
| 6P2216 | CAP (PUSH ON) | 3 | |
| 5103280 | SILENCER | 1 | |
| 6P2215 | PIN-WELD | 3 | |
| 5480376 | 44 SUPPORT AS | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 6 | |
| 5480379 | 45 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480381 | 46 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5480389 | 47 COVER AS | 1 | |
| 5480420 | 48 SHEET AS | 1 | |
| 5480452 | 49 SPRING AS-GAS | 1 | |
| 2658463 | STUD-BALL (M8X1.25X16-MM) | 2 | |
| 5464979 | 50 ROD AS | 3 | |
| 4B4278 | WASHER (10.2X20.5X1.6-MM THK) | 1 | |
| 5474722 | 51 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 2 | |
| 5512612 | 52 LINER | 1 | |
| 5761764 | 53 LINER | 1 | |
| 5761765 | 54 SHEET AS-SOUND SUPPRESSION | 1 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 5359273 | LINER | 1 | |
| 5761766 | LINER | 1 | |
| 5761767 | 55 SHEET AS-SOUND SUPPRESSION | 1 | |
| 5769468 | 56 SUPPORT AS | 1 | |
| 7Y6215 | PLATE | 3 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 9 | |
| 9R2672 | BOSS-THREADED (M10X1.5X20-MM) | 1 | |
| 5773722 | 57 PLATE AS | 1 | |
| 3485409 | SEAL (3-DM) | ||
| 5192384 | LINER | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 6 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 5 | |
| 8T3612 | NUT-WELD (M8X1.25-THD) | 5 | |
| 5773751 | 58 SUPPORT | 1 | |
| 5773753 | 59 SUPPORT AS | 1 | |
| 5788177 | 60 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 4 | |
| 8T3597 | NUT-WELD (M12X1.75-THD) | 15 | |
| 5474745 | 61 DOOR GP-ACCESS | 1 | |
| 5C7261 | 62 NUT (M8X1.25-THD) | 2 | |
| 5P4116 | 63 WASHER-HARD (8.8X20.5X2-MM THK) | 2 | |
| 2462641 | 64 PADLOCK GP | 1 | |
| 5P8500 | KEY | 1 | |
| 7Y2853 | 65 SPACER (13X38X5-MM THK) | 3 | |
| 7Y2854 | 66 SPACER (24X38X3-MM THK) | 1 | |
| 7Y8990 | 67 SPACER (24X38X1.5-MM THK) | 2 | |
| 8T4121 | 68 WASHER-HARD (11X21X2.5-MM THK) | 23 | |
| 8T4133 | 69 NUT (M10X1.5-THD) | 6 | |
| 8T4136 | 70 BOLT (M10X1.5X25-MM) | 14 |
