System And Components

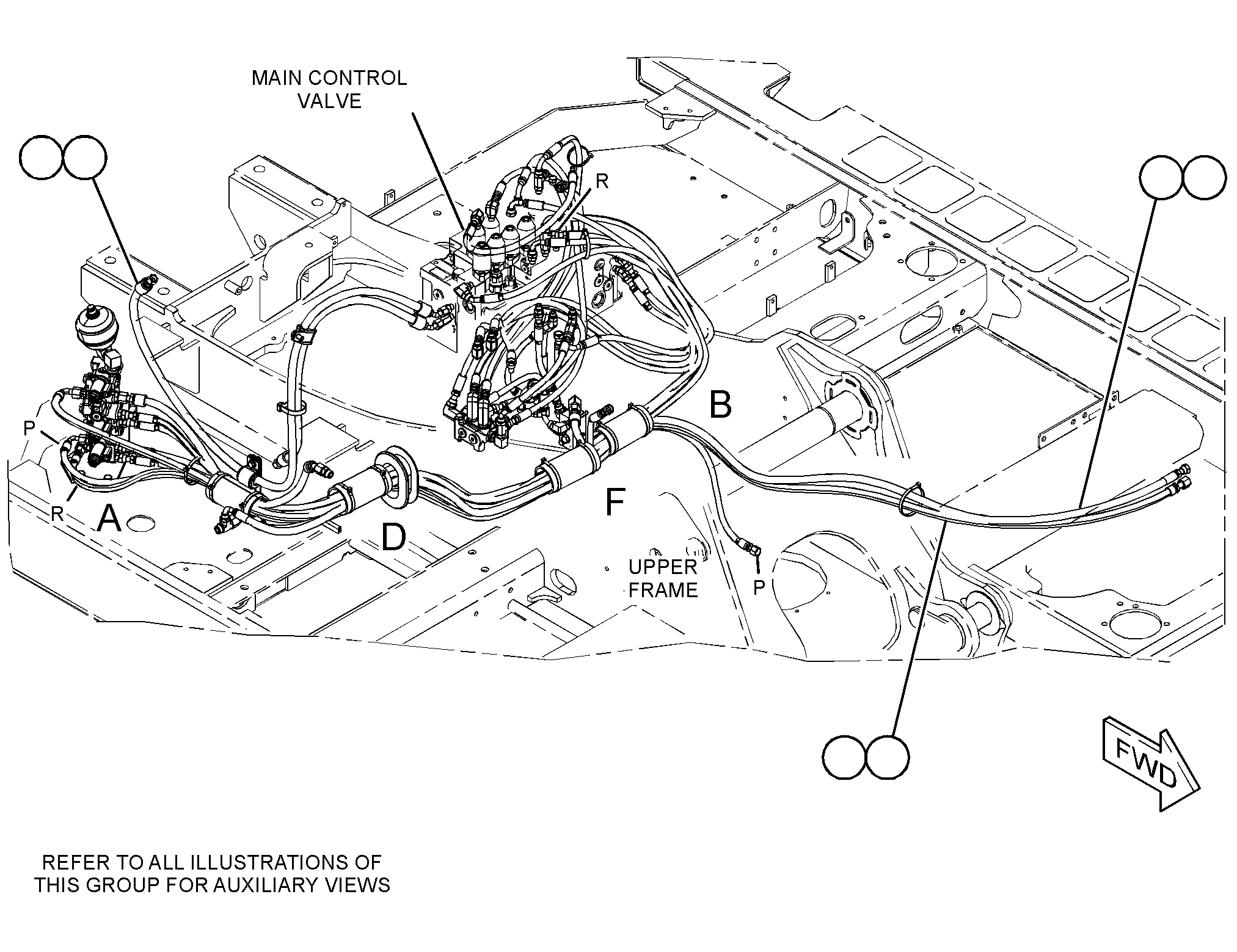

572-4902 LINES GP-PILOT -CONTROL VALVES/N MDW1-UP
Group No: 572-4902

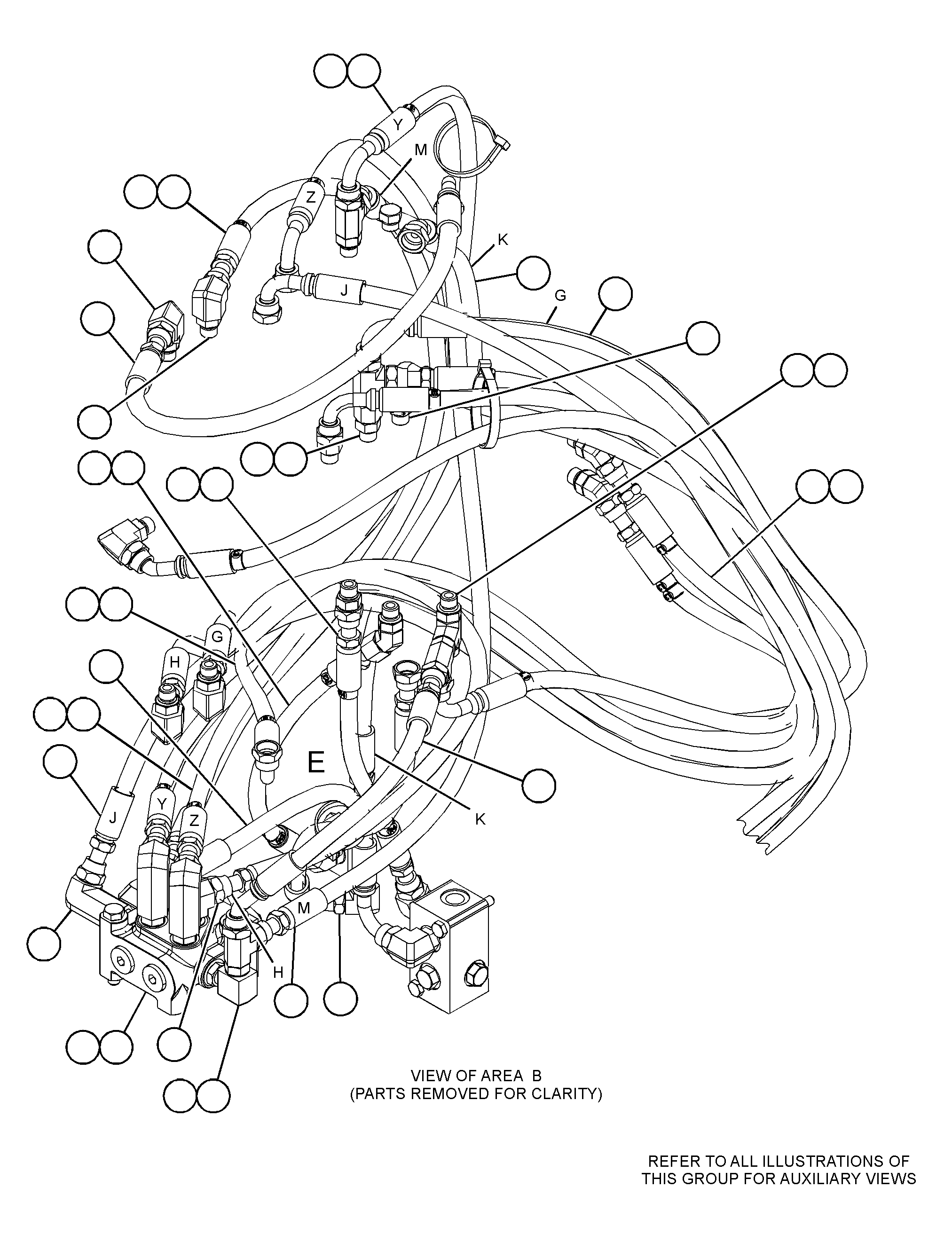

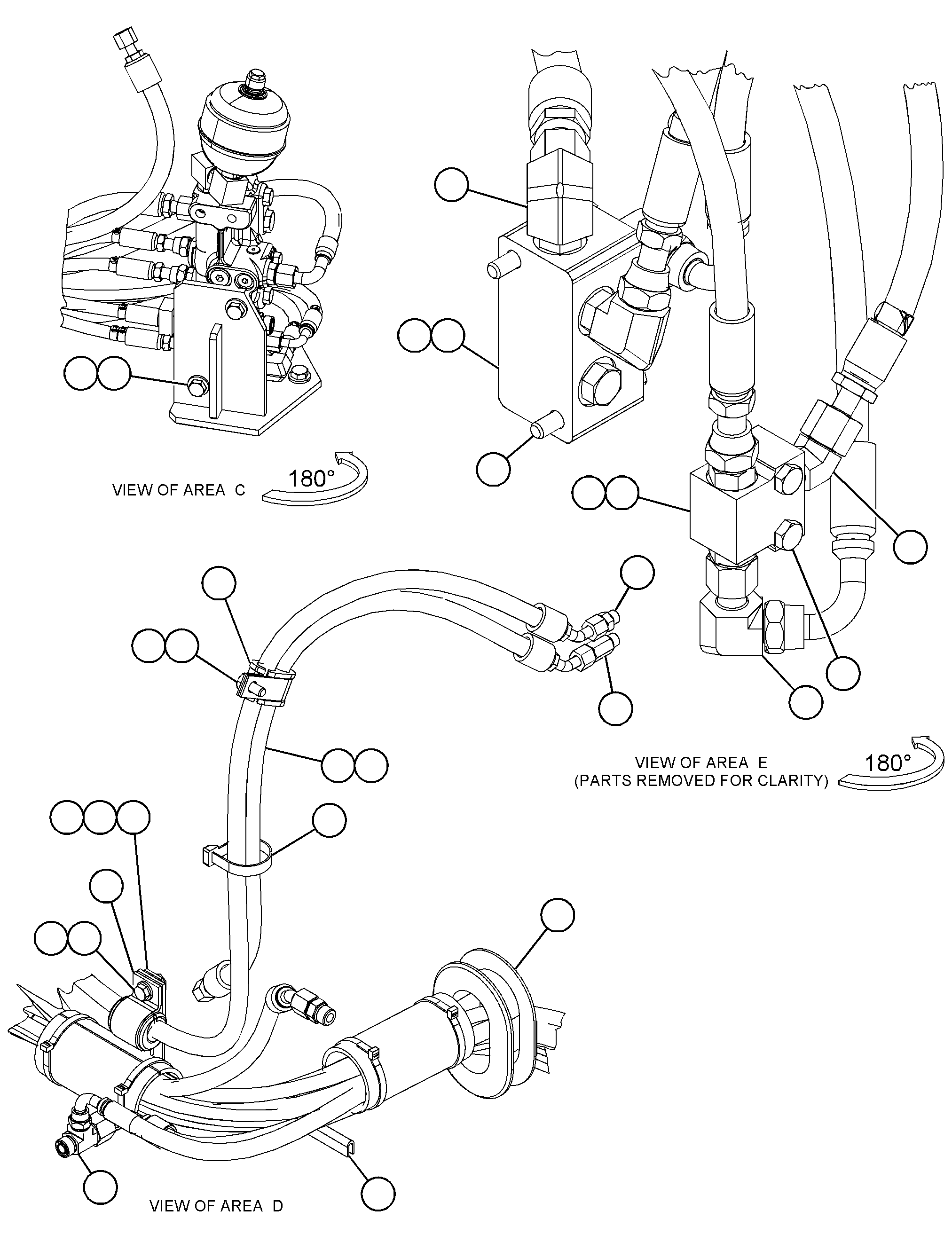

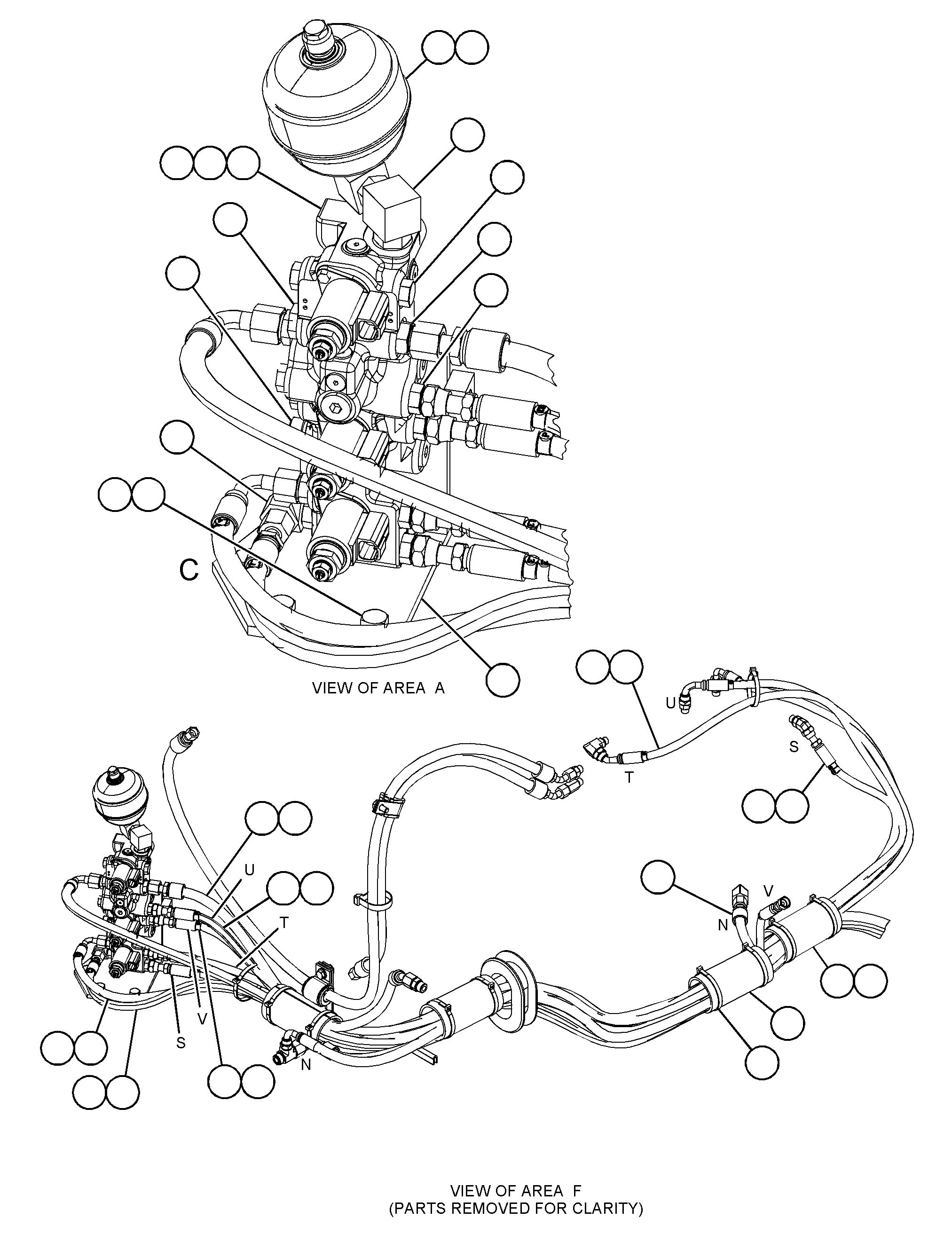

| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1158645 | 1 GUARD | 4 | |
| 1293400 | 2 GUARD | 1 | |
| 1335813 | 3 BAND-MARKER (GRAY, P) | 2 | |
| 1488336 | 4 CONNECTOR AS | 9 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 1488338 | 5 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T0075 | CONNECTOR | 1 | |
| 1488340 | 6 CONNECTOR AS | 3 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V8639 | CONNECTOR | 1 | |
| 1488353 | 7 ELBOW AS | 4 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9001 | ELBOW | 1 | |
| 1488365 | 8 ELBOW AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 8T6876 | ELBOW | 1 | |
| 1488367 | 9 ELBOW AS | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9850 | ELBOW | 1 | |
| 1488378 | 10 ELBOW AS | 11 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8724 | ELBOW | 1 | |
| 1488407 | 11 PLUG AS | 10 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 1488411 | 12 PLUG AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 1488428 | 13 TEE AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V8782 | TEE | 1 | |
| 1488433 | 14 TEE AS | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 1488435 | 15 TEE AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8781 | TEE | 1 | |
| 1503036 | 16 ELBOW AS | 3 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T1905 | ELBOW | 1 | |
| 1504027 | 17 TEE AS | 1 | |
| 3E2310 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1645628 | 18 CONNECTOR AS | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1076631 | CONNECTOR-FILTER | 1 | |
| 1646869 | 19 CONNECTOR AS | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1289001 | CONNECTOR-FILTER | 1 | |
| 1646874 | 20 FITTING AS-ELBOW (QUICK DISCONNECT, MALE) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0857356 | ELBOW-ADAPTER | 1 | |
| 1646979 | 21 VALVE GP-SHUTTLE | 1 | |
| 1646981 | 22 ACCUMULATOR GP-HYDRAULIC (CHARGED) | 1 | |
| 1764791 | 23 BLOCK | 1 | |
| 1877028 | 24 SUPPORT AS | 1 | |
| 2042281 | 25 STRAP-CABLE | 1 | |
| 2155037 | 26 MANIFOLD GP-CONTROL (PILOT OIL SUPPLY) | 1 | |
| 2181183 | 27 HOSE AS | 1 | |
| 2573023 | 28 HOSE AS | 1 | |
| 2967059 | 29 FITTING AS | 2 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1785883 | FITTING | 1 | |
| 3074969 | 30 HOSE AS | 1 | |
| 3100210 | 31 VALVE GP-PRESSURE REDUCING (BOOM, SWING PRIORITY) | 1 | |
| 3174749 | 32 SUPPORT AS | 1 | |
| 8T3490 | NUT-WELD (M10X1.5-THD) | 1 | |
| 3174846 | 33 HOSE AS | 1 | |
| 3200156 | 34 HOSE AS | 1 | |
| 4186282 | 35 CLAMP GP-HYDRAULIC LINES | 1 | |
| 4186286 | 36 CLAMP GP-HYDRAULIC LINES | 1 | |
| 4I6039 | 37 GROMMET | 1 | |
| 4I9521 | 38 BAND-MARKER (RED, L1) | 4 | |
| 4I9522 | 39 BAND-MARKER (YELLOW, L2) | 2 | |
| 4I9523 | 40 BAND-MARKER (BLUE, L3) | 12 | |
| 4I9524 | 41 BAND-MARKER (BROWN, L4) | 4 | |
| 4I9525 | 42 BAND-MARKER (ORANGE, R1) | 2 | |
| 4I9527 | 43 BAND-MARKER (GREEN, R3) | 8 | |
| 4I9528 | 44 BAND-MARKER (PURPLE, R4) | 4 | |
| 5029445 | 45 HOSE AS | 1 | |
| 5029448 | 46 HOSE AS | 1 | |
| 5029479 | 47 HOSE AS | 1 | |
| 5588185 | 48 HOSE AS | 1 | |
| 5588187 | 49 HOSE AS | 1 | |
| 5588189 | 50 HOSE AS | 1 | |
| 5588209 | 51 HOSE AS | 1 | |
| 5588214 | 52 HOSE AS | 1 | |
| 5588215 | 53 HOSE AS | 1 | |
| 5588216 | 54 HOSE AS | 1 | |
| 5588221 | 55 HOSE AS | 1 | |
| 5642850 | 56 HOSE AS | 1 | |
| 5741451 | 57 HOSE AS | 1 | |
| 5741452 | 58 HOSE AS | 1 | |
| 5741453 | 59 HOSE AS | 1 | |
| 5801962 | 60 HOSE AS | 1 | |
| 5741455 | 61 HOSE AS | 1 | |
| 5741456 | 62 HOSE AS | 1 | |
| 5741457 | 63 HOSE AS | 1 | |
| 5741458 | 64 HOSE AS | 1 | |
| 5741459 | 65 HOSE AS | 1 | |
| 5741460 | 66 HOSE AS | 1 | |
| 5741461 | 67 HOSE AS | 1 | |
| 7K1181 | 68 STRAP-CABLE | 13 | |
| 7X0818 | 69 BOLT (M8X1.25X45-MM) | 2 | |
| 8T4121 | 70 WASHER-HARD (11X21X2.5-MM THK) | 4 | |
| 8T4136 | 71 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4137 | 72 BOLT (M10X1.5X20-MM) | 2 | |
| 8T4139 | 73 BOLT (M12X1.75X30-MM) | 3 | |
| 8T4192 | 74 BOLT (M12X1.75X25-MM) | 2 | |
| 8T4223 | 75 WASHER-HARD (13.5X25.5X3-MM THK) | 5 | |
| 8T5005 | 76 BOLT (M10X1.5X70-MM) | 2 | |
| 8T6869 | 77 BOLT (M8X1.25X60-MM) | 2 |
