System And Components

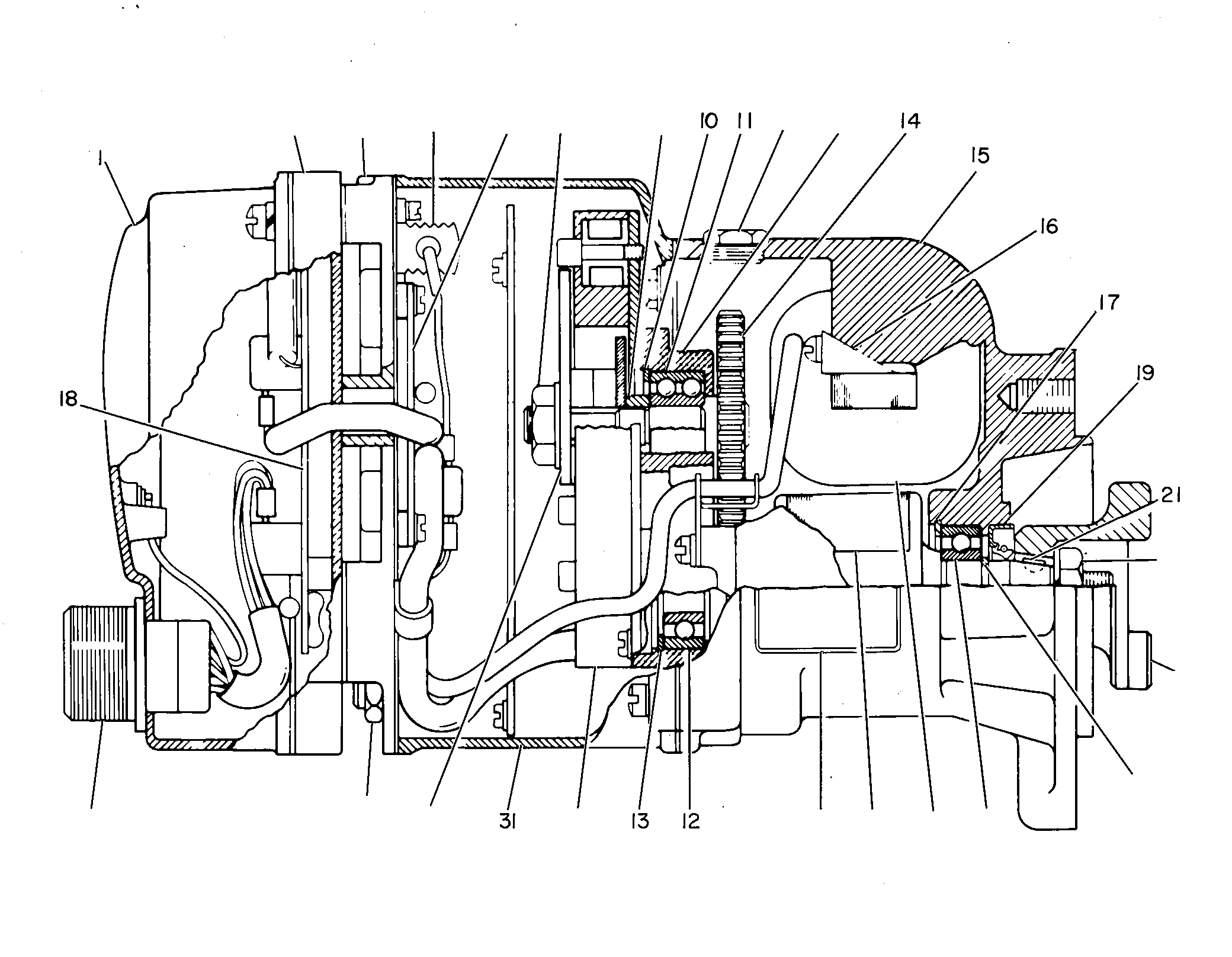

8N-5973 MAGNETO GPPART OF 8N-5972 IGNITION GP-GAS ENGINE
Group No: 8N-5973
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3N4139 | 1 COVER-END | 1 | |
| 3N4146 | 2 CAP-HEAT SINK | 1 | |
| 3N4145 | 3 HEAT SINK | 1 | |
| 3N4105 | 4 RESISTOR | 1 | |
| 8N1854 | 5 BOARD AS-POWER | 1 | |
| 8N5977 | 6 PLUG AS-CONNECTOR | 1 | |
| 3N4143 | 7 BUSHING-TERMINAL | 1 | |
| 6L3839 | 8 SCREW-WINDOW | 1 | |
| 3N4136 | 9 SUPPORT AS-BEARING | 1 | |
| 2D6398 | 10 RING-RETAINING | 1 | |
| 3N4166 | 11 BALL BEARING | 1 | |
| 8L4070 | 12 BALL BEARING | 1 | |
| 3N4137 | 13 RING-RETAINING | 1 | |
| 3N4138 | 14 GEAR AS | 1 | |
| 6N0402 | 15 HOUSING | 1 | |
| 6L3805 | 16 WEDGE-COIL | 2 | |
| 3N4137 | 17 RING-RETAINING | 1 | |
| 8N5975 | 18 BOARD AS-DISTRIBUTOR | 1 | |
| 6N0403 | 19 SEAL-LIP TYPE | 1 | |
| 6D0047 | 20 LOCKNUT | 1 | |
| 9F5644 | LOCKWASHER | 1 | |
| 1B8702 | 21 KEY-WOODRUFF | 1 | |
| 1B2578 | 22 NUT (3/8-16-THD) | 1 | |
| 3B4506 | LOCKWASHER | 1 | |
| 3N4147 | 23 COUPLING-DRIVE | 1 | |
| 2L8509 | 24 RING-LOCK | 1 | |
| 6F5645 | 25 BALL BEARING | 1 | |
| 3N0551 | 26 COIL AS | 1 | |
| 6L3824 | 27 ROTOR AS | 1 | |
| 6L3827 | 28 PLATE-IDENTIFICATION | 1 | |
| 3N4103 | 29 DIODE-POWER ZENER | 1 | |
| 8N5978 | 30 COIL AS | 1 | |
| 3N4142 | 31 CAP-END | 1 | |
| 6N4359 | 32 ROTOR AS-PULSER | 1 | |
| 3N4160 | KIT-GASKET | 1 | |
| 3N4161 | KIT-HARDWARE | 1 | |
| 3N4159 | KIT-WIRE CONNECTION | 1 | |
| 6N0709 | KIT-SEAL | 1 |
