System And Components

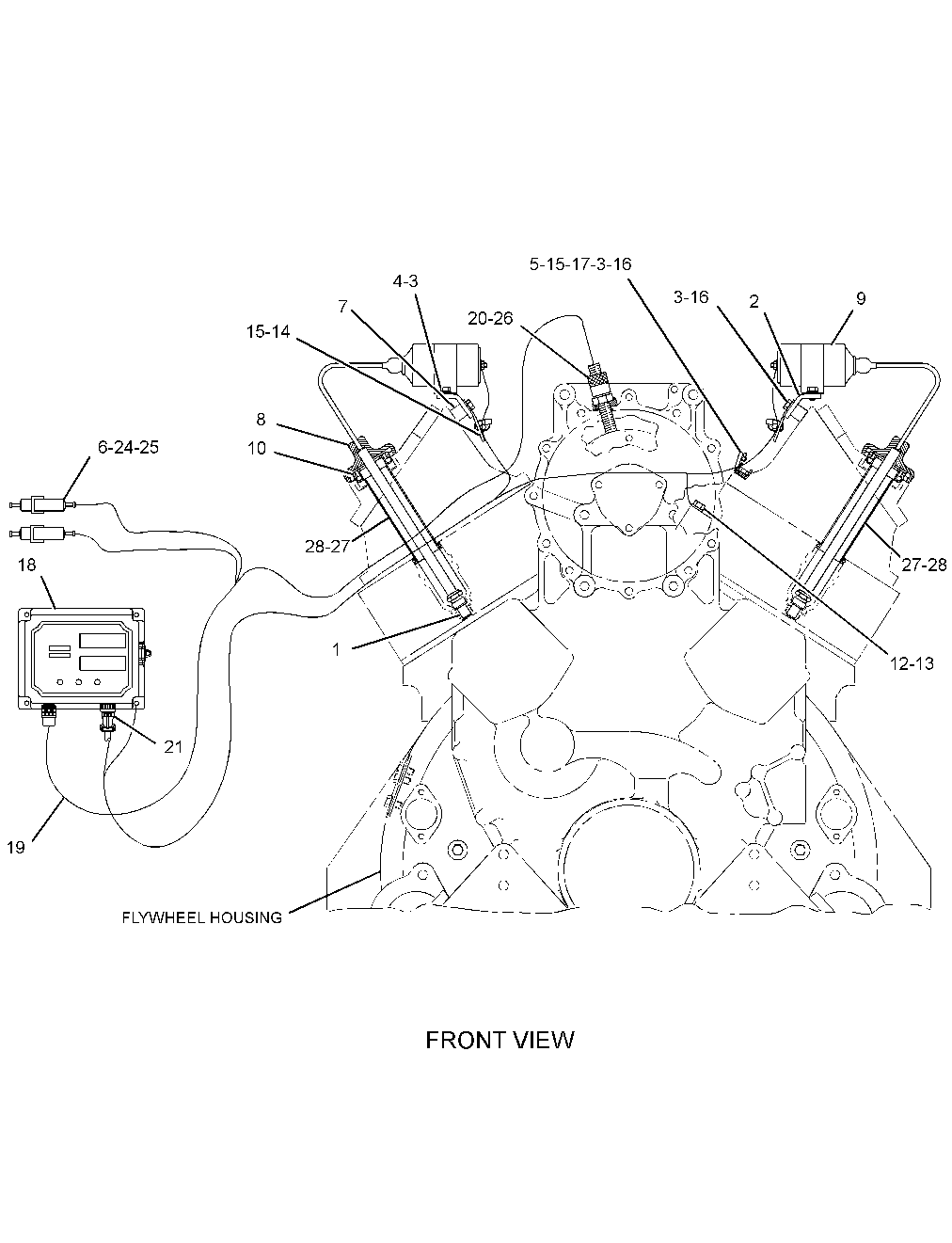

216-4018 IGNITION GP-GAS ENGINES/N 6NB1-UP
Group No: 216-4018
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2N2839 | 1 PLUG AS-SPARK | 8 | |
| 1083515 | GASKET-PLUG | 1 | |
| 1072874 | 2 BRACKET | 2 | |
| 5P4116 | 3 WASHER-HARD (8.8X20.5X2-MM THK) | 25 | |
| 1C0569 | 4 BOLT (5/16-18X0.5-IN) | 16 | |
| 9G9151 | 5 CLIP | 1 | |
| 2S6024 | 6 FUSE (5-AMPERE) | 2 | |
| 8L5449 | 7 SPACER (0.375X0.75X0.69-IN THK) | 8 | |
| 2502149 | 8 WIRE AS | 8 | |
| 2W3747 | 9 TRANSFORMER AS | 8 | |
| 7E0079 | 10 SEAL | 8 | |
| 0T0065 | 12 BOLT (3/8-16X3.5-IN) | 1 | |
| 5M2894 | 13 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 4P7581 | 14 CLIP (LADDER) | 8 | |
| 7K1181 | 15 STRAP-CABLE | 9 | |
| 1A9579 | 16 BOLT (5/16-18X1.5-IN) | 9 | |
| 4P8134 | 17 CLIP (LADDER) | 1 | |
| 1636164 | 18 CONTROL GP-TIMING | 1 | |
| 1636110 | 19 HARNESS AS-SENSOR | 1 | |
| 1166806 | 20 SENSOR GP-SPEED (TIMING) | 1 | |
| 1636165 | 21 HARNESS AS-WIRING (IGNITION) | 1 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 6D8149 | PLUG AS-CONNECTOR (10-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 5P1476 | TERMINAL-FORK (14-GA TO 16-GA, NO. 10 SCREW) | 16 | |
| 2L8052 | TERMINAL-RING (6-GA, 3/8-IN SCREW) | 2 | |
| 2L8060 | TERMINAL-RING (8-GA, 3/8-IN SCREW) | 2 | |
| 2L8076 | TERMINAL-RING (14-GA TO 16-GA, NO. 10 SCREW) | 1 | |
| 9G2731 | 24 HOLDER AS-FUSE | 2 | |
| 8T6342 | 25 TUBE-HEAT SHRINK (3.2-MM DIA)(8-CM) | ||
| 4B8407 | 26 GASKET-COPPER | 1 | |
| 2146132 | 27 TUBE | 8 | |
| 5P8068 | 28 SEAL-O-RING | 8 |
