System And Components

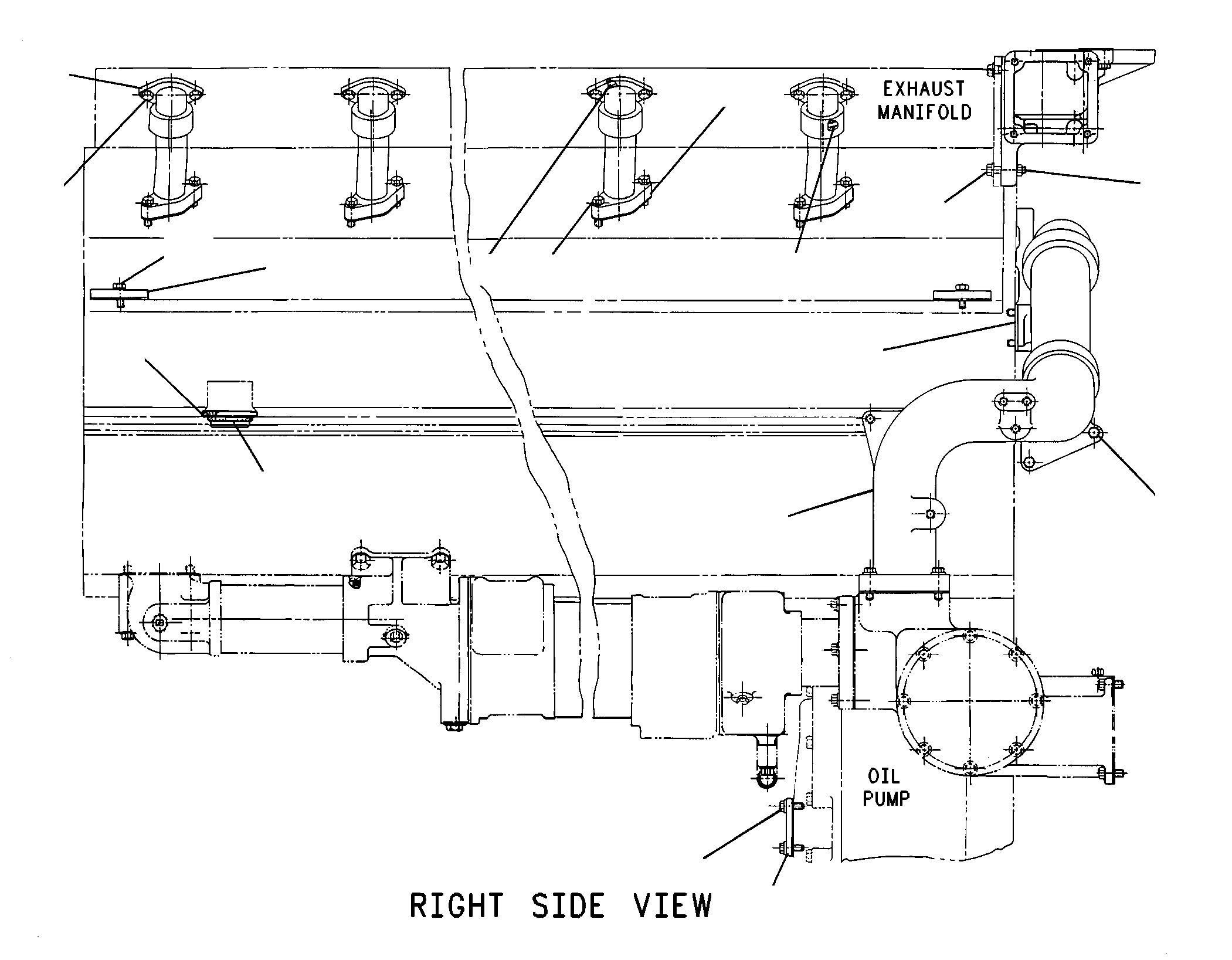

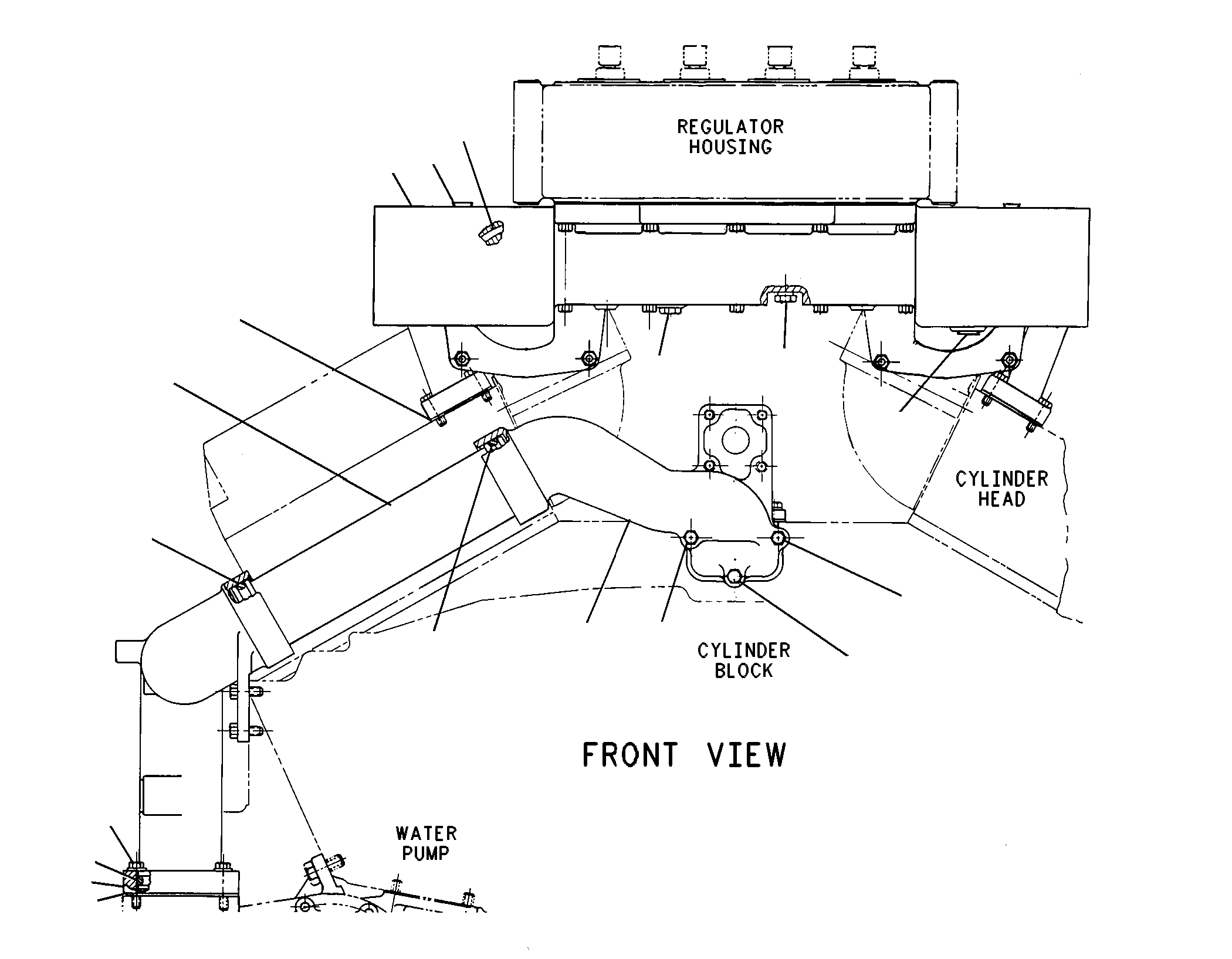

9Y-9087 LINES GP-WATERS/N 3RC163-1044
Group No: 9Y-9087
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4W4813 | 1 PLUG | 2 | |
| 8T2929 | SEAL-O-RING | 2 | |
| 6H5852 | 2 COVER | 2 | |
| 1A9066 | GASKET | 2 | |
| 0S1594 | 3 BOLT (3/8-16X1-IN) | 36 | |
| 5M2894 | 4 WASHER-HARD (10.2X18.5X2.5-MM THK) | 12 | |
| 7N7081 | 5 ELBOW | 16 | |
| 6V9769 | 6 SEAL-O-RING | 32 | |
| 1B7182 | 7 BOLT (5/16-18X1.25-IN) | 32 | |
| 8N7642 | 8 ELBOW | 16 | |
| 0S1590 | 9 BOLT (3/8-16X2-IN) | 4 | |
| 9S8752 | NUT-FULL (3/8-16-THD) | 4 | |
| 7N3368 | 10 GASKET | 1 | |
| 1A2029 | 11 BOLT (3/8-16X1.125-IN) | 6 | |
| 1N4087 | 12 ELBOW | 1 | |
| 5R1036 | 13 COVER | 1 | |
| 1Y7578 | GASKET-COVER | 1 | |
| 0S1618 | 14 BOLT (5/16-18X1-IN) | 4 | |
| 9M1974 | WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T2928 | 15 SEAL-O-RING | 2 | |
| 4N1320 | 16 GASKET (ADAPTER) | 1 | |
| 8N0386 | 17 FLANGE | 1 | |
| 6V5066 | 18 SEAL-O-RING | 1 | |
| 2A4639 | 19 BOLT (3/8-16X1.625-IN) | 4 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 6V1454 | 20 SEAL-O-RING | 2 | |
| 8N1989 | 21 TUBE | 1 | |
| 1104789 | 22 GASKET | 16 | |
| 9Y8540 | 23 HOUSING-REGULATOR | 1 | |
| 2B0858 | 24 PLUG-PIPE | 3 | |
| 6V6809 | 25 SEAL-O-RING | 2 | |
| 3J5389 | 26 PLUG (EXTERNAL) | 1 | |
| 9S4182 | 27 PLUG (7/16-20-THD) | 1 | |
| 6V9027 | SEAL-O-RING | 1 | |
| 0S1619 | 28 BOLT (3/8-16X3-IN) | 2 | |
| 0T0055 | 29 BOLT (3/8-16X4.25-IN) | 1 | |
| 7W0900 | 30 ELBOW | 1 |
