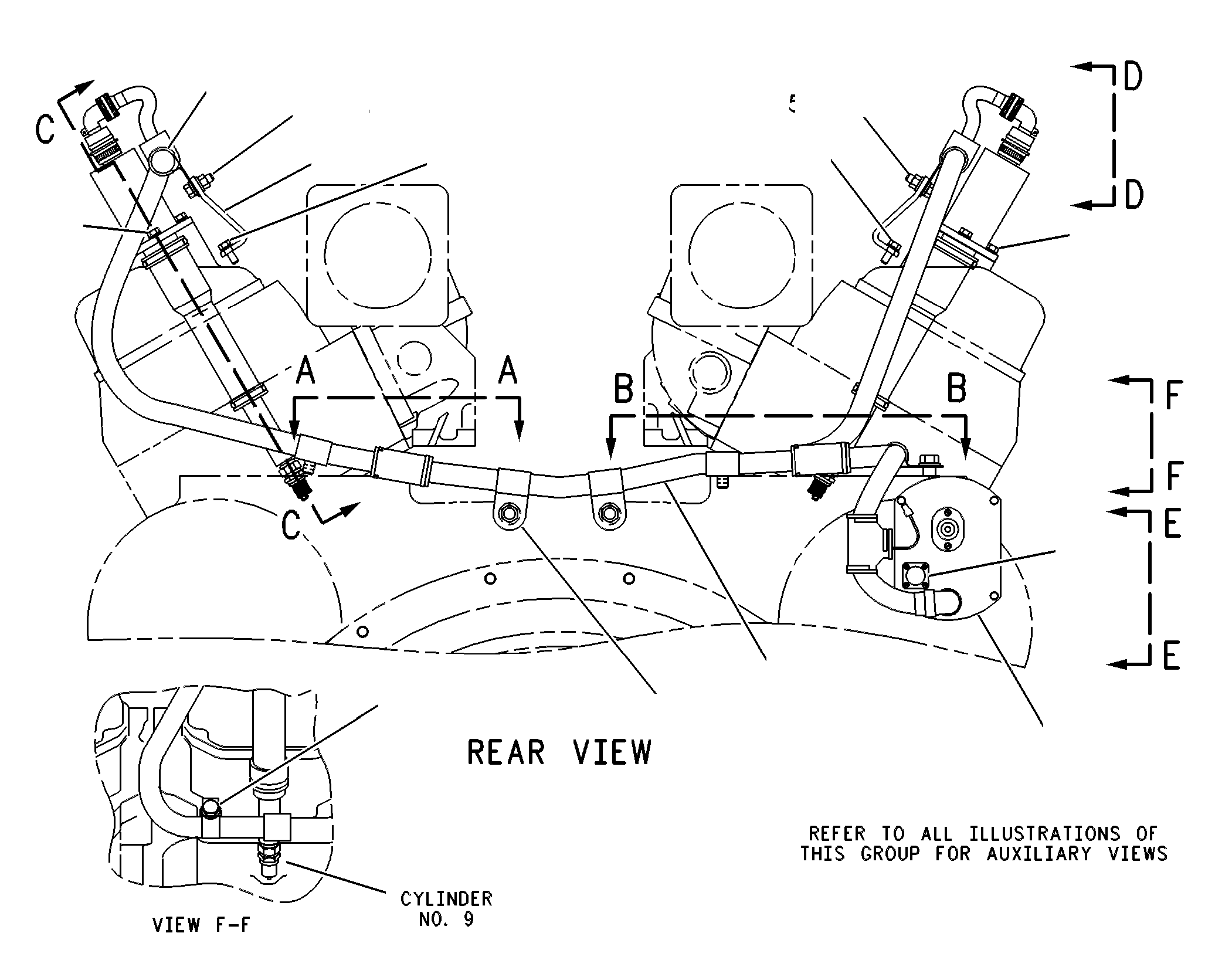

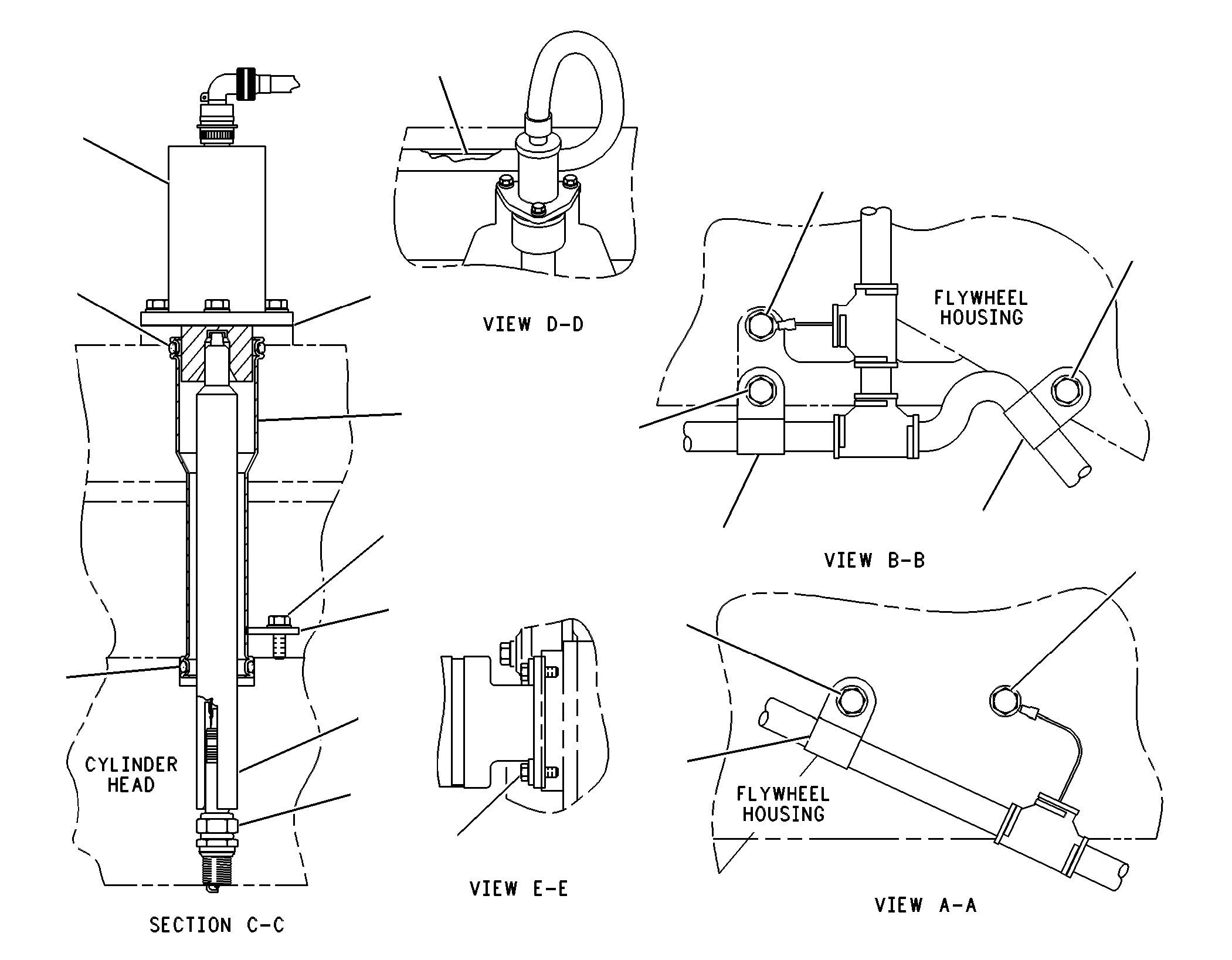

7C-0482 IGNITION GP-GAS ENGINES/N 3RC196-1254

Group No: 7C-0482
Part NumberPart NameQty
1B71821 BOLT (5/16-18X1.25-IN)48
9M19742 WASHER-HARD (8.8X16X2-MM THK)76
1A20293 BOLT (3/8-16X1.125-IN)14
5M28944 WASHER-HARD (10.2X18.5X2.5-MM THK)29
9S87525 NUT-FULL (3/8-16-THD)14
2B26956 BOLT (5/16-18X0.875-IN)28
4S19627 CLIP (LOOP)7
7W21728 MAGNETO GP1
6V1196SEAL-O-RING1
3S86649 CLIP6
8M276910 CLIP2
7C048711 HARNESS AS-ENGINE1
7N566712 BRACKET14
4S445513 CLIP1
9Y588514 PLUG AS1
8M277315 CLIP (LOOP)1
0L1143BOLT (3/8-16X2.5-IN)1
9L9132WASHER-HARD (10.2X25.5X2.5-MM THK)1
6B0933SPACER (10.31X19.05X6.35-MM THK)1
9Y6792GASKET-SPARK PLUG16
7W777916 ROD-SUPPORT2
7W437717 TRANSFORMER16
4W166118 TUBE16
0T032019 BOLT (7/16-14X1.25-IN)16
5P8244WASHER-HARD (12X22.5X2.5-MM THK)16
7C329420 RETAINER16
123471021 EXTENSION AS16
1251372SEAL-O-RING1
146258822 SPARK PLUG12
9Y6792GASKET-SPARK PLUG1
5P806823 SEAL-O-RING16
3P065024 SEAL-O-RING16
7W521525 GASKET16
5P824526 WASHER-HARD (13.5X25.5X3-MM THK)5
0S162027 BOLT (1/2-13X0.75-IN)3
7B323528 BOLT (1/2-13X1.375-IN)2
8D994729 CLIP1
8M276930 CLIP2
9M652731 WASHER-HARD (10.2X25.5X5-MM THK)3
1A202932 BOLT (3/8-16X1.125-IN)3
