System And Components

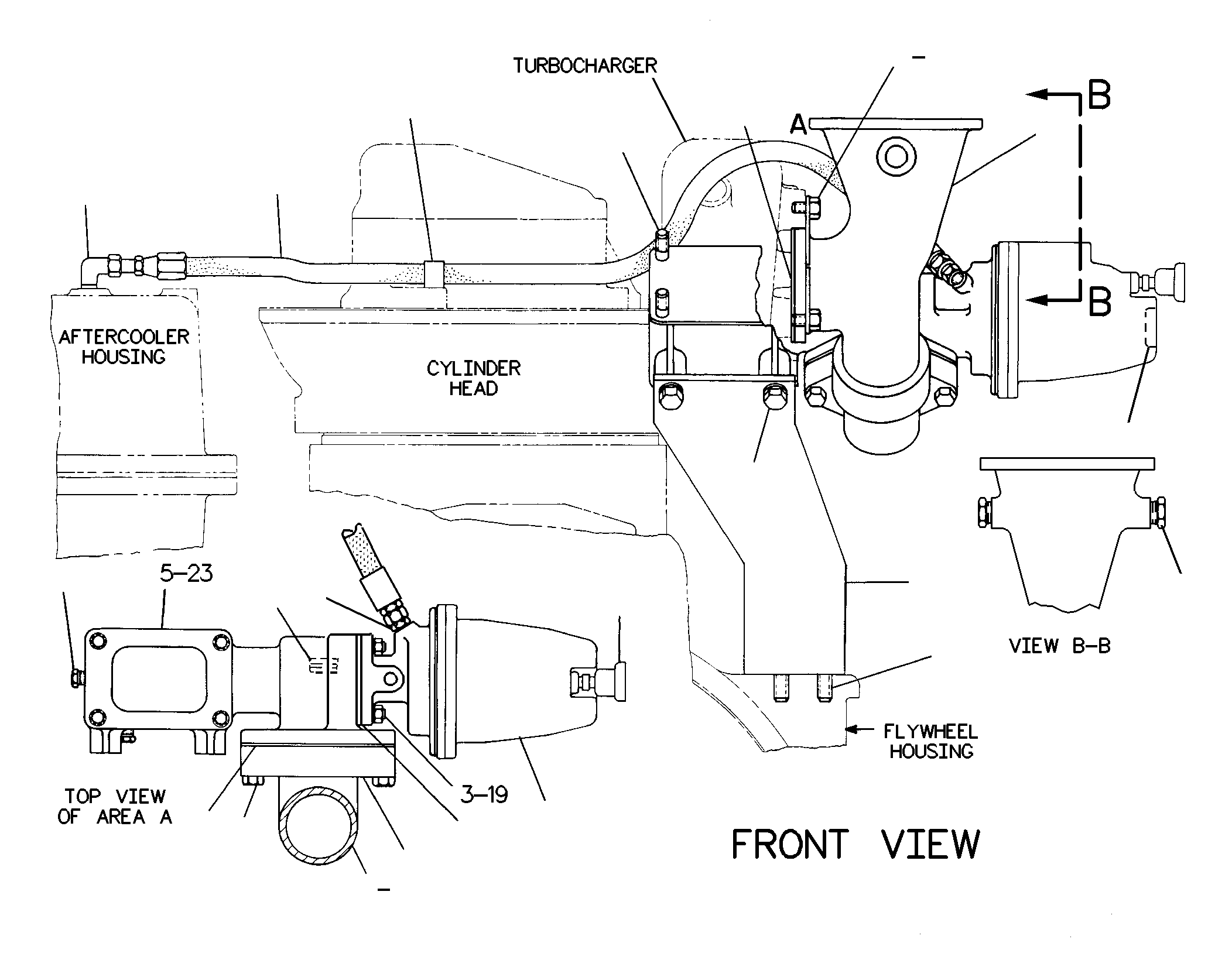

7C-9729 BYPASS GP-EXHAUSTS/N 4FD1-UP
Group No: 7C-9729
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0619463 | 1 CONNECTOR (FLARED) | 1 | |
| 4P8962 | 2 TUBE AS | 1 | |
| 2N2766 | 3 LOCKNUT (3/8-16-THD) | 4 | |
| 8T1753 | 4 STUD-TAPERLOCK | 4 | |
| 7C8784 | 5 ADAPTER-EXHAUST BYPASS | 1 | |
| 8T6765 | 6 PLUG-PIPE (1/4-18-THD) | 3 | |
| 4W9607 | 7 ELBOW-BYPASS | 1 | |
| 7C9710 | 8 GASKET | 1 | |
| 4P2587 | 9 BYPASS GP-EXHAUST | 1 | |
| 8M2665 | 10 BREATHER | 1 | |
| 7C9730 | 11 ELBOW-EXHAUST | 1 | |
| 8N6058 | 12 GASKET | 1 | |
| 6N0561 | 13 CLIP | 4 | |
| 0T0102 | 14 BOLT (3/8-16X0.625-IN) | 4 | |
| 3P7019 | 15 SEAL-METAL | 4 | |
| 4W9608 | 16 FLANGE | 1 | |
| 7L3195 | 17 BOLT-HIGH TEMPERATURE (3/8-16X1.75-IN) | 2 | |
| 4W9606 | 18 GASKET | 1 | |
| 5P2603 | 19 STUD-TAPERLOCK (3/8-16X1.57-IN) | 4 | |
| 4B0418 | 20 CLIP (LOOP) | 1 | |
| 7L7262 | 21 ELBOW-FLARED | 1 | |
| 3B0645 | 22 PLUG-CUP (32.08-MM OD) | 1 | |
| 7M7273 | 23 GASKET | 1 | |
| 7W9948 | 24 BRACKET | 1 | |
| 0L1351 | 25 BOLT (3/8-16X0.875-IN) | 6 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 9T3388 | 26 PLUG | 1 |
