System And Components

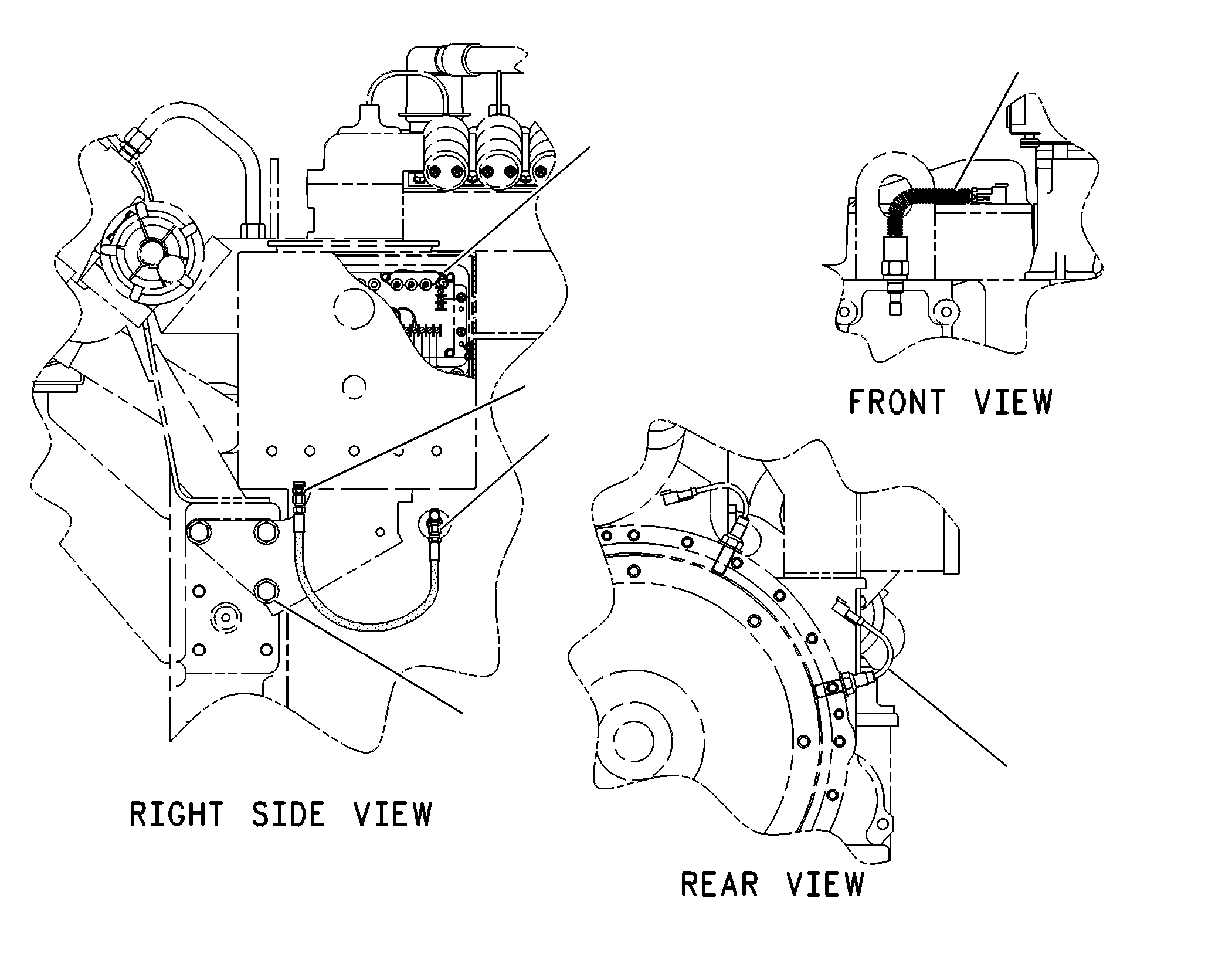

102-9269 SHUTOFF GP-ELECTRICALS/N 4FD1-UP
Group No: 102-9269
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V2455 | 1 SENSOR GP-SPEED (WATER) | 1 | |
| 1324577 | 2 SWITCH AS-TEMPERATURE | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 3E3371 | WEDGE-RECEPTACLE LOCK (3-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8S8158 | 3 SEAL-WIRE | 1 | |
| 5P1275 | 4 LOCKWIRE | ||
| 3B7721 | 5 BUSHING-REDUCER | 1 | |
| 2N1287 | 6 ELBOW-FLARED | 1 | |
| 5G3699 | 7 HOSE AS | 1 | |
| 3J7352 | 8 CONNECTOR | 1 | |
| 3J7354 | 9 SEAL-O-RING | 1 | |
| 7X0346 | 10 BOLT (5/8-11X2-IN) | 3 | |
| 8T4122 | 11 WASHER-HARD (17X32X3.5-MM THK) | 3 | |
| 4B4281 | 12 WASHER (16.8X33X2.5-MM THK) | 1 | |
| 2A0047 | 13 WASHER (0.656X1.125X0.688-IN THK) | 3 |
