System And Components

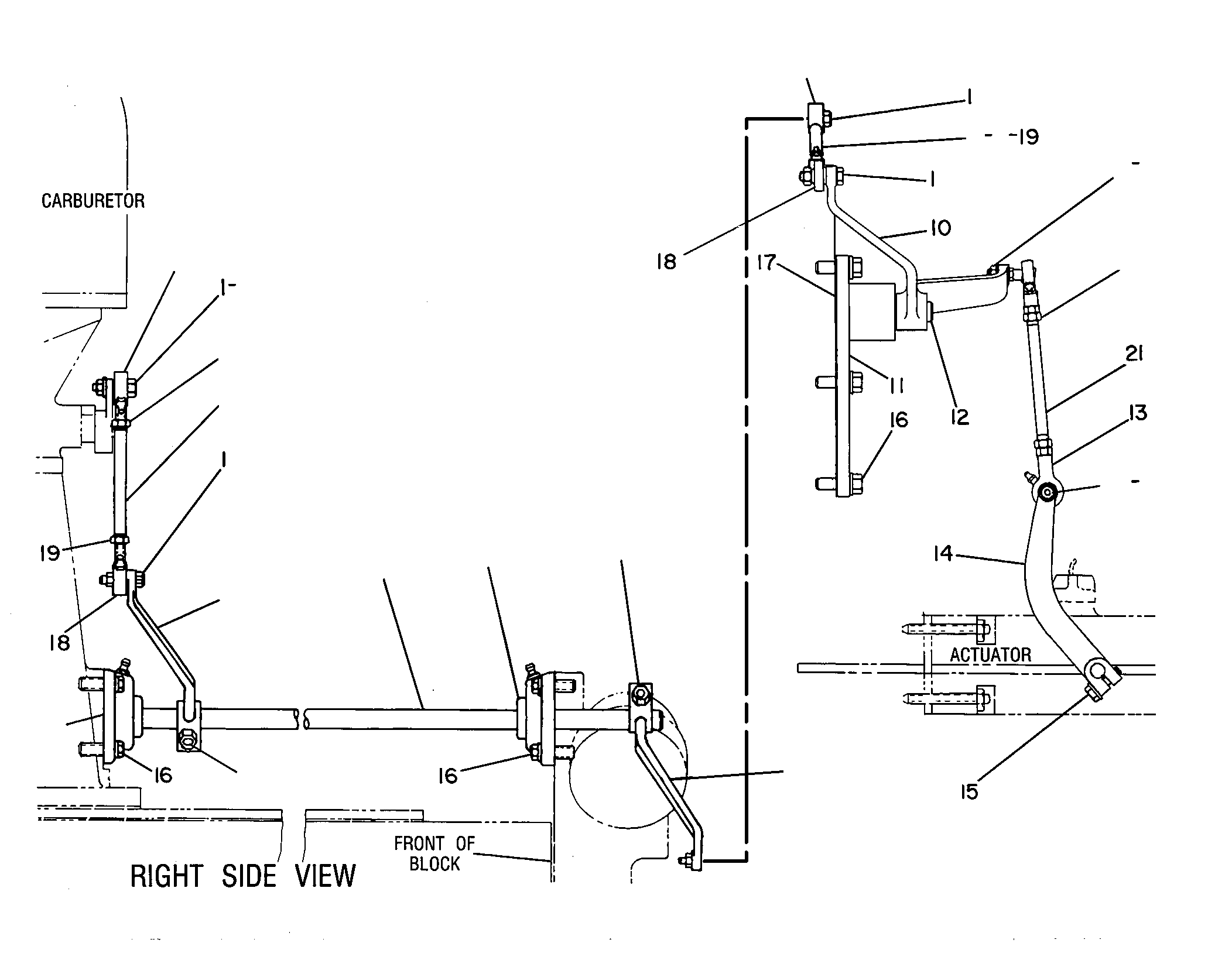

4P-3835 CONTROL GP-CARBURETORS/N 2JF1-135
Group No: 4P-3835
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4B3388 | 1 BOLT (5/16-18X1.125-IN) | 4 | |
| 1D4716 | NUT-FULL (5/16-18-THD) | 4 | |
| 9M1974 | 2 WASHER-HARD (8.8X16X2-MM THK) | 3 | |
| 4F2294 | 3 NUT-JAM (5/16-24-THD)(PLATED) | 2 | |
| 4W9001 | 4 ROD | 1 | |
| 4W2290 | 5 SHAFT | 1 | |
| 5L3291 | 6 BEARING AS-BALL | 2 | |
| 3B1915 | 7 BOLT (3/8-16X1.375-IN) | 2 | |
| 1D4717 | NUT (3/8-16-THD) | 2 | |
| 2W5404 | 8 LEVER (SHAFT LINKAGE) | 2 | |
| 1B8701 | KEY-WOODRUFF | 2 | |
| 2W5405 | 9 ROD | 1 | |
| 4W4945 | 10 LEVER AS (IDLER ARM) | 1 | |
| 4W4944 | LEVER-GOVERNOR | 1 | |
| 4W4946 | 11 COVER AS | 1 | |
| 6B2730 | 12 BEARING AS | 1 | |
| 6V8917 | 13 ROD END | 2 | |
| 9Y6987 | 14 LEVER-GOVERNOR CONTROL (ACTUATOR LINK) | 1 | |
| 0S1616 | 15 BOLT (1/4-20X1-IN) | 1 | |
| 5P0537 | WASHER-HARD (7.2X14.5X2-MM THK) | 1 | |
| 1A2029 | 16 BOLT (3/8-16X1.125-IN) | 15 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 15 | |
| 8N9885 | 17 GASKET-COVER | 1 | |
| 6V9163 | 18 ROD END (BEARING) | 2 | |
| 8L4496 | 19 NUT-JAM (5/16-24 LH-THD)(NON-PLATED) | 2 | |
| 9S8751 | 20 NUT-FULL (5/16-24-THD) | 4 | |
| 3N9311 | 21 ROD | 1 | |
| 6V8955 | 22 ROD END | 1 | |
| 7E9748 | 23 ROD END (BEARING) | 1 |
