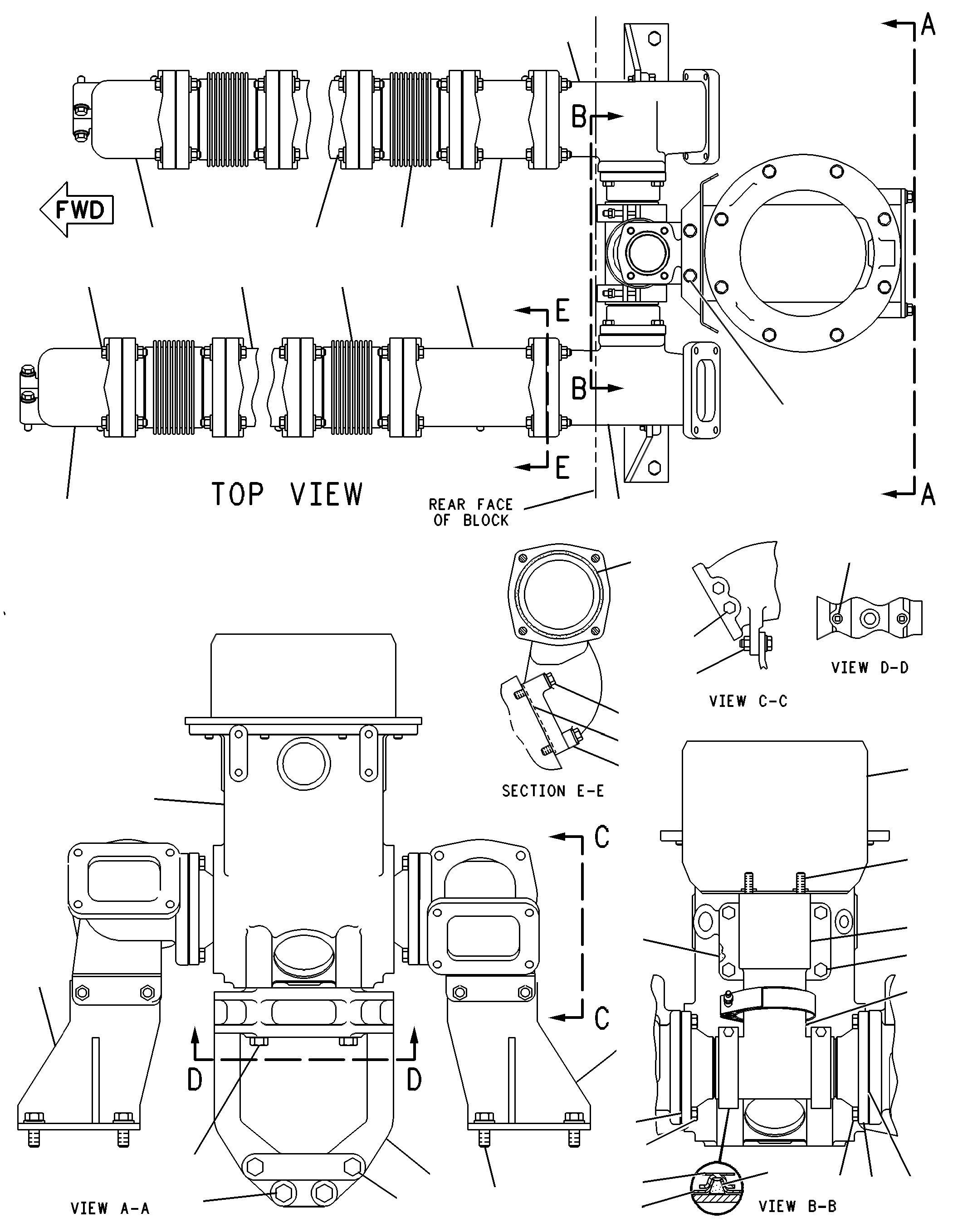

123-0011 MANIFOLD GP-EXHAUSTS/N 4EK1-1299

Group No: 123-0011

Part Number	Part Name	Qty
1003145	1 MANIFOLD-EXHAUST (FRONT, RH)	1
1003146	2 MANIFOLD-EXHAUST (INTERMEDIATE, RH)	7
1003147	3 MANIFOLD-EXHAUST (FRONT, LH)	1
1003148	4 MANIFOLD-EXHAUST (INTERMEDIATE, LH)	6
1003149	5 MANIFOLD-EXHAUST (REAR, LH)	1
3307327	6 BELLOWS AS	14
1239292	7 ELBOW-EXHAUST (LH)	1
1239293	8 ELBOW-EXHAUST (RH)	1
7L6443	9 BOLT-HIGH TEMPERATURE (3/8-16X2.25-IN)	120
8C8491	10 WASHER-HARD (10.2X22X3-MM THK)	240
3E6916	11 NUT-FULL (3/8-16-THD)	120
9L7373	12 BOLT-HIGH TEMPERATURE (3/8-16X2-IN)	64
5M2894	13 WASHER-HARD (10.2X18.5X2.5-MM THK)	66
7E8486	14 SEAL-RING (SPRING ENERGIZED)	30
7E4108	15 SEAL-RING (SPRING ENERGIZED)	16
5B7890	16 PLUG-PIPE	4
3B1915	17 BOLT (3/8-16X1.375-IN)	4
9S8752	18 NUT-FULL (3/8-16-THD)	4
0S0509	19 BOLT (3/8-16X0.75-IN)	2
1W2430	20 CLAMP-V BAND	3
7C3920	21 SEAL-EXHAUST	3
7C3921	22 RING-EXHAUST SEAL	3
0S1594	23 BOLT (3/8-16X1-IN)	8
2W5713	24 ADAPTER	2
1215736	25 GASKET (TURBOCHARGER)	3
1217526	26 TEE AS	1
7E2900	27 PLATE	1
5P2603	28 STUD-TAPERLOCK (3/8-16X1.57-IN)	4
9Y1568	29 HOUSING (WASTEGATE)	1
1A5822	30 BOLT (1/2-13X2.75-IN)	2
1217527	31 BRACKET (RH)	1
6V1943	32 BOLT-HIGH TEMPERATURE (3/8-16X1.125-IN)	12
9L9132	33 WASHER-HARD (10.2X25.5X2.5-MM THK)	4
8T6762	34 PLUG-PIPE (1/2-14-THD)	2
4P7680	35 SPACER (10.5X22.5X15-MM THK)	16
4W7283	36 ELBOW AS-EXHAUST	1
0S0519	PLUG-CUP (73.38MM)	2
4F5695	PLUG-CUP (51.16MM)	3
1217528	37 BRACKET (LH)	1
6H1717	38 BOLT (1/2-13X1.125-IN)	4
5P1076	39 WASHER-HARD (13.5X30X4-MM THK)	4
9X8874	40 BOLT (1/2-13X3-IN)	4
2W5958	41 SUPPORT	1
6M9613	42 BOLT (1/2-13X9-IN)	2
