System And Components

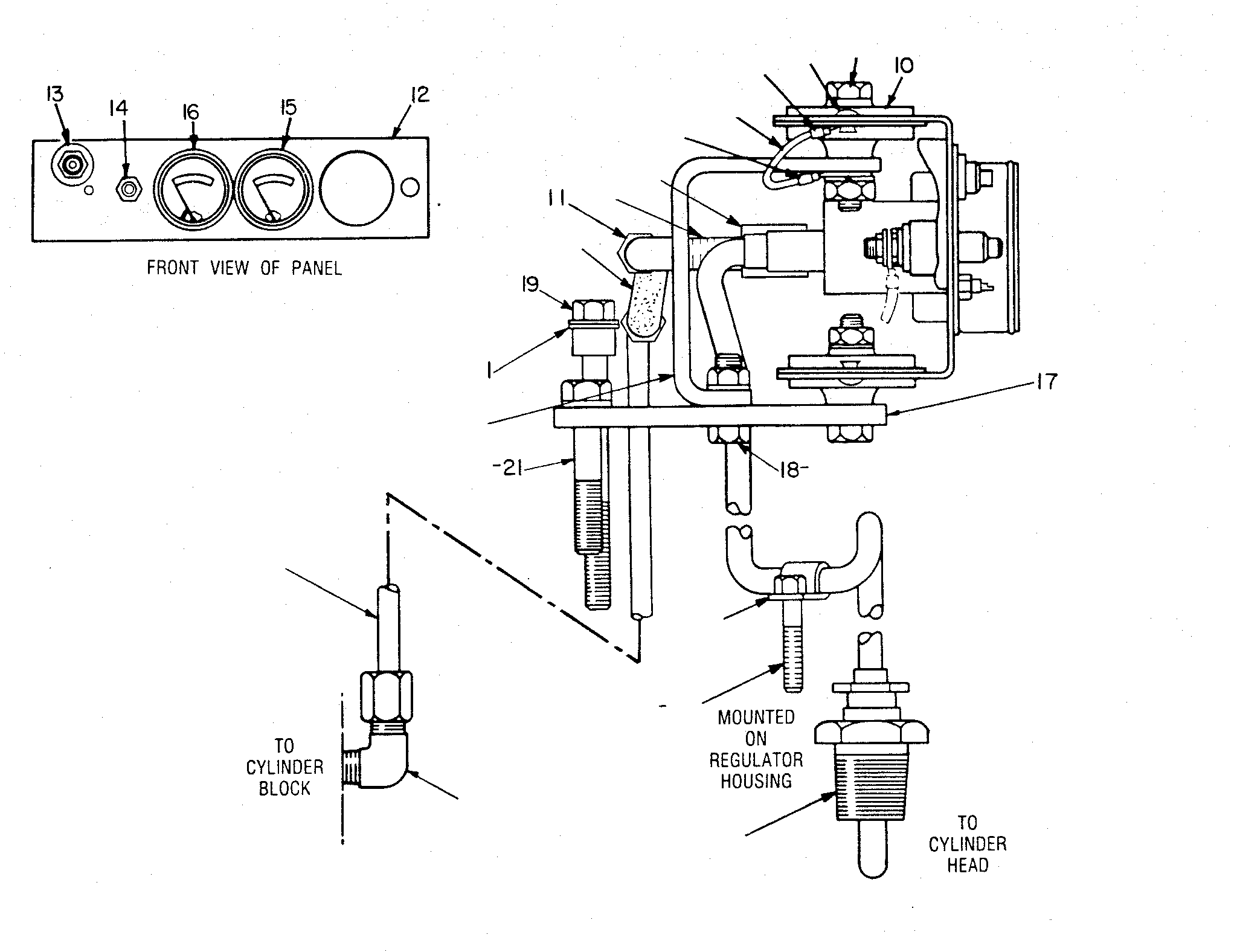

7N-6432 PANEL GP-INSTRUMENTS/N 07Y4279-UP
Group No: 7N-6432
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3L2875 | 1 CLIP | 1 | |
| 3B7264 | 2 FITTING | 1 | |
| 1B4330 | 3 NUT (1/4-20-THD) | 6 | |
| 5P0537 | WASHER-HARD (7.2X14.5X2-MM THK) | 6 | |
| 7N6369 | 4 BRACE-PANEL | 2 | |
| 2L8077 | 5 TERMINAL-RING (14-GA TO 16-GA, 1/4-IN SCREW) | 1 | |
| 5P5629 | 6 WIRE (14-GA, BLACK) | ||
| 2L8074 | 7 TERMINAL-RING (14-GA TO 16-GA, NO. 6 SCREW) | 1 | |
| 2N2258 | 8 RIVET-POP | 7 | |
| 5H6555 | LOCKWASHER | 1 | |
| 4B1219 | SCREW-MACHINE (6-32X0.375-IN) | 1 | |
| 4B2040 | NUT (6-32-THD) | 1 | |
| 7B2742 | 9 BOLT (1/4-20X1.25-IN) | 4 | |
| 7H4155 | 10 MOUNT-FLEXIBLE | 4 | |
| 8B4884 | 11 ELBOW | 1 | |
| 8L5850 | 12 PANEL AS-INSTRUMENT | 1 | |
| 8L5849 | 13 SWITCH-MAGNETIC (RESET) | 1 | |
| 6L2309 | 14 SWITCH-STOP | 1 | |
| 3N2780 | 15 GAUGE-OIL PRESSURE (ENGINE) | 1 | |
| 3N2781 | 16 GAUGE-WATER TEMPERATURE | 1 | |
| 7N3001 | 17 PLATE-PANEL MOUNTING | 1 | |
| 0S1615 | 18 BOLT (1/4-20X0.75-IN) | 2 | |
| 1D4541 | 19 BOLT (5/16-18X3-IN) | 1 | |
| 3H9348 | BOSS | 1 | |
| 6H6699 | 20 ADAPTER (HEAT INDICATOR) | 1 | |
| 1B9575 | 21 BOLT (5/16-18X1.56-IN) | 3 | |
| 8N4057 | 22 TUBE AS | 1 | |
| 6K1972 | 23 ELBOW-FLARED | 1 | |
| 3N7239 | 24 HOSE AS | 1 | |
| 5D9231 | CONNECTOR | 1 | |
| 4B0418 | 25 CLIP (LOOP) | 1 | |
| 8F2396 | GROMMET | 1 | |
| 0S1588 | 26 BOLT (3/8-16X1.25-IN) | 1 | |
| 5M2894 | 27 WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 3B6487 | 28 COUPLING (PIPE) | 1 |
