System And Components

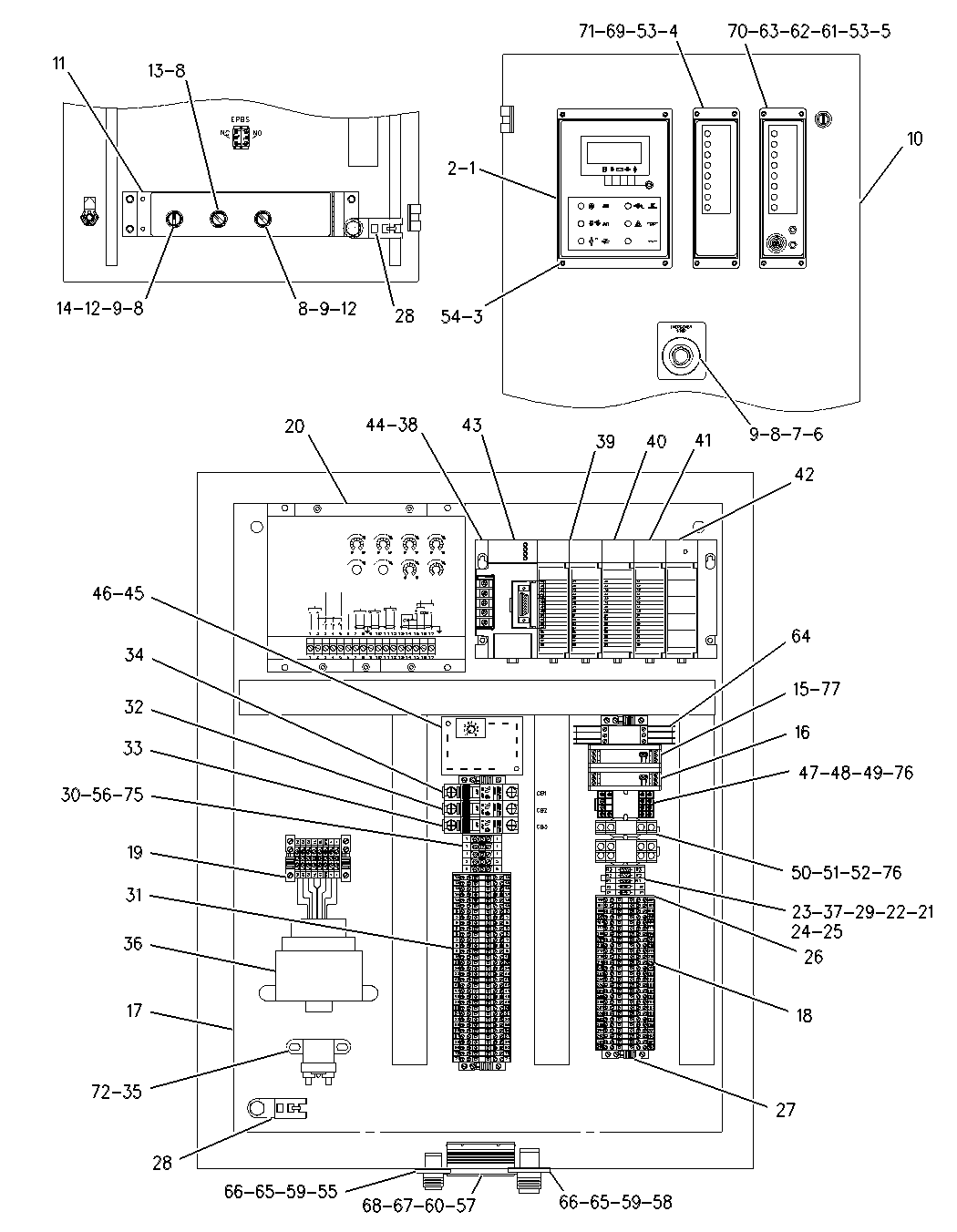

144-0457 CONTROL GP-EMCP ELECTRONICAN ATTACHMENT
Group No: 144-0457
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V6149 | 1 CONTROL GP-ENGINE MONITORING | 1 | |
| 3K8782 | 2 FUSE (10-AMPERE) | 8 | |
| 9S8750 | 3 NUT-FULL (1/4-20-THD) | 12 | |
| 9W1464 | 4 SCREW (1/4-20X1-IN) | 4 | |
| 1303349 | 5 MODULE GP-ALARM | 1 | |
| 1310020 | 6 SWITCH-PUSH BUTTON | 1 | |
| 1310022 | 7 GUARD-SWITCH | 1 | |
| 1310021 | 8 BASE-MOUNTING | 4 | |
| 1310029 | 9 BLOCK | 4 | |
| 1398390 | 10 ENCLOSURE | 1 | |
| 1288078 | 11 BRACKET-SWITCH | 1 | |
| 1288073 | 12 SWITCH-ROTARY (ENGINE CONTROL) | 2 | |
| 1310023 | 13 SWITCH-ROTARY (2-POSITION) | 1 | |
| 1310028 | 14 BLOCK | 2 | |
| 1157954 | 15 MODULE-INPUT (FREQUENCY) | 1 | |
| 1398405 | 16 MODULE-INPUT (TEMPERATURE) | 1 | |
| 1398389 | 17 PANEL | 1 | |
| 1151322 | 18 TERMINAL (DOUBLE) | 59 | |
| 9X9615 | 19 TERMINAL (SINGLE) | 8 | |
| 1486481 | 20 CONTROL AS-GOVERNOR | 1 | |
| 3E0357 | 21 DIODE AS | 2 | |
| 3E0356 | 22 BLOCK-TERMINAL | 5 | |
| 3T2706 | 23 RESISTOR | 1 | |
| 3T6933 | 24 RESISTOR | 1 | |
| 1152538 | 26 COVER-END | 2 | |
| 9X9675 | 27 BRACKET-END | 6 | |
| 4P7581 | 28 CLIP (LADDER) | 2 | |
| 3E0369 | 29 BRIDGE-INSERTION | 2 | |
| 1096539 | 30 PLATE-SEPARATOR | 1 | |
| 3E5503 | 31 BAR-FIXED BRIDGE | 2 | |
| 1141143 | 32 CIRCUIT BREAKER AS (16-AMPERE) | 1 | |
| 1258019 | 33 CIRCUIT BREAKER AS (6-AMPERE) | 1 | |
| 1398392 | 34 CIRCUIT BREAKER AS (20-AMPERE) | 1 | |
| 9X8124 | 35 SWITCH AS-MAGNETIC (24-VOLT) | 1 | |
| 3E8542 | 36 CONTROL GP-ENGINE MONITORING | 1 | |
| 9X9616 | 37 COVER-END | 3 | |
| 1169734 | 38 BASE | 1 | |
| 1169777 | 39 MODULE-INPUT (DIGITAL LOGIC) | 2 | |
| 1288076 | 40 MODULE-OUTPUT (RELAY) | 1 | |
| 1288093 | 41 MODULE-OUTPUT (RELAY) | 1 | |
| 1288092 | 42 MODULE-INPUT (CURRENT) | 1 | |
| 1169778 | 43 MODULE-POWER SUPPLY (24-VOLT) | 1 | |
| 1398411 | 44 CIRCUIT-INTEGRATED | 1 | |
| 1398400 | 45 TIMER-CONTROL | 1 | |
| 1398399 | 46 MODULE (TIME DELAY) | 1 | |
| 1157949 | 47 RELAY | 1 | |
| 1057541 | 48 SPRING-RELAY | 1 | |
| 1157948 | 49 SOCKET-RELAY | 1 | |
| 1157947 | 50 RELAY (2-POLE) | 2 | |
| 1G6420 | 51 SPRING (HOLD DOWN) | 2 | |
| 1157946 | 52 SOCKET-RELAY | 2 | |
| 7C2954 | 53 GASKET-MODULE (ALARM, SYNCHRONIZING) | 2 | |
| 7C2952 | 54 GASKET-MODULE (ENGINE CONTROL) | 1 | |
| 1459333 | 55 CONNECTOR | 1 | |
| 9X9614 | 56 TERMINAL (SINGLE) | 5 | |
| 9X1343 | 57 RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 1402910 | 58 CONNECTOR | 1 | |
| 1314890 | 59 GASKET | 2 | |
| 8C6024 | 60 SEAL-CONNECTOR | 1 | |
| 9W0073 | 61 SWITCH AS-PUSH BUTTON | 1 | |
| 2W4480 | 62 BOOT-SWITCH | 1 | |
| 8C6123 | 63 NUT (1/4-40-THD) | 1 | |
| 1402911 | 64 ISOLATOR | 1 | |
| 2S6251 | 65 SCREW (4-40X0.75-IN) | 8 | |
| 6B4540 | 66 NUT (4-40-THD) | 8 | |
| 5M6668 | 67 SCREW-MACHINE (8-32X0.75-IN) | 4 | |
| 6D5801 | 68 LOCKNUT (8-32-THD) | 4 | |
| 1398401 | 69 FILM-CONTROL PANEL | 1 | |
| 1398402 | 70 FILM-IDENTIFICATION | 1 | |
| 1498661 | 71 CONTROL GP-ENGINE MONITORING | 1 | |
| 8T4134 | 72 NUT (M6X1-THD) | 1 | |
| 9Y9771 | 73 FILM-IDENTIFICATION (CONTROL PANEL) | 1 | |
| 1152542 | 74 PLUG | 3 | |
| 3E5504 | 75 BAR-FIXED BRIDGE | 2 | |
| 5N4988 | 76 DIODE AS | 2 |
