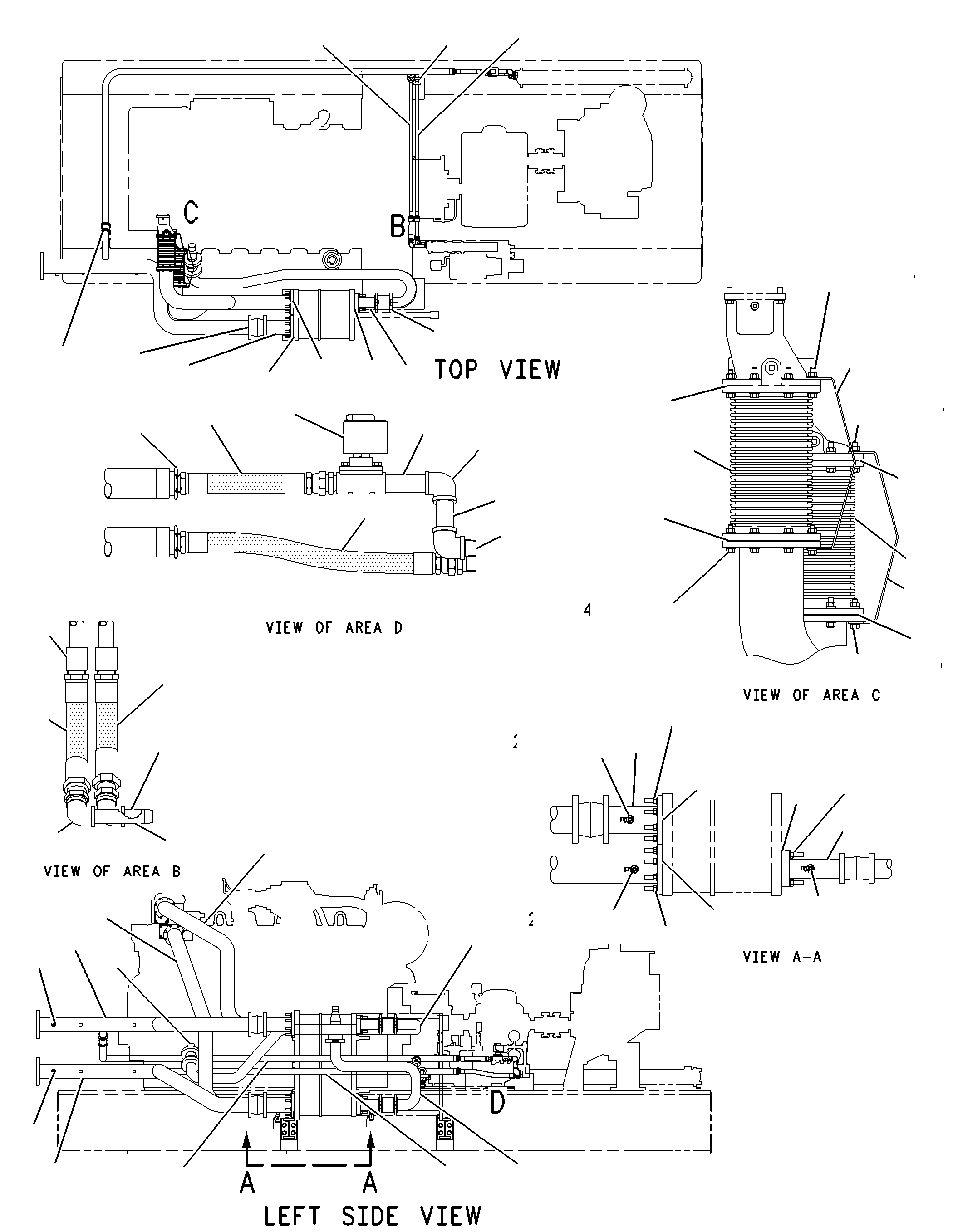

178-3236 LINES GP-WATERAN ATTACHMENT

Group No: 178-3236
Part NumberPart NameQty
15670521 TUBE AS1
15670512 TUBE AS1
16162413 TUBE AS1
7L41964 JOINT AS-TUBE2
9X7530SEAL2
11506835 PIPE AS2
16025826 TUBE AS1
5P00547 JOINT AS4
9X7340SEAL2
15681648 TUBE AS1
15681619 TUBE1
160256710 BELLOWS AS2
156706711 TUBE AS1
156706812 TUBE AS1
136357813 VALVE AS (SOLENOID VALVE)1
1L025414 ELBOW2
4T172615 BUSHING-REDUCER2
1K693716 ELBOW-PIPE2
6V354117 JOINT AS-TUBE2
9X7522SEAL2
3B649018 COUPLING-PIPE2
1F666019 NIPPLE-PIPE1
2D246020 NIPPLE-PIPE1
126511721 FITTING AS1
7B790822 NIPPLE-PIPE1
3B774923 NIPPLE-PIPE2
8T676224 PLUG-PIPE (1/2-14-THD)2
3B774125 NIPPLE-PIPE (CLOSE)3
132949626 VALVE-BALL3
7X773227 PLUG-PIPE3
5P824728 WASHER-HARD (17X32X3.5-MM THK)32
4K036729 NUT-FULL (5/8-11-THD)32
145127130 GASKET5
161624231 TUBE AS1
5P824832 WASHER-HARD (20X36.5X3.5-MM THK)8
2J350633 NUT-FULL (3/4-10-THD)8
149268734 GASKET2
149065235 ORIFICE1
161624336 TUBE AS2
6V043637 JOINT AS-TUBE2
9S2082SEAL (0.343-IN ID)2
156705538 TUBE AS1
156705639 TUBE AS1
149343140 KIT-HOSE2
1226891HOSE-HYDRAULIC
1241906COUPLING-PERMANENT1
1241921COUPLING-PERMANENT1
1493430KIT-HOSE2
122689241 HOSE-HYDRAULIC1
1241909COUPLING-HOSE1
1241922COUPLING-PERMANENT1
161623642 TUBE AS1
0S159043 BOLT (3/8-16X2-IN)32
9S875244 NUT-FULL (3/8-16-THD)32
5M289445 WASHER-HARD (10.2X18.5X2.5-MM THK)64
149229046 GASKET4
169543047 BRACKET2
