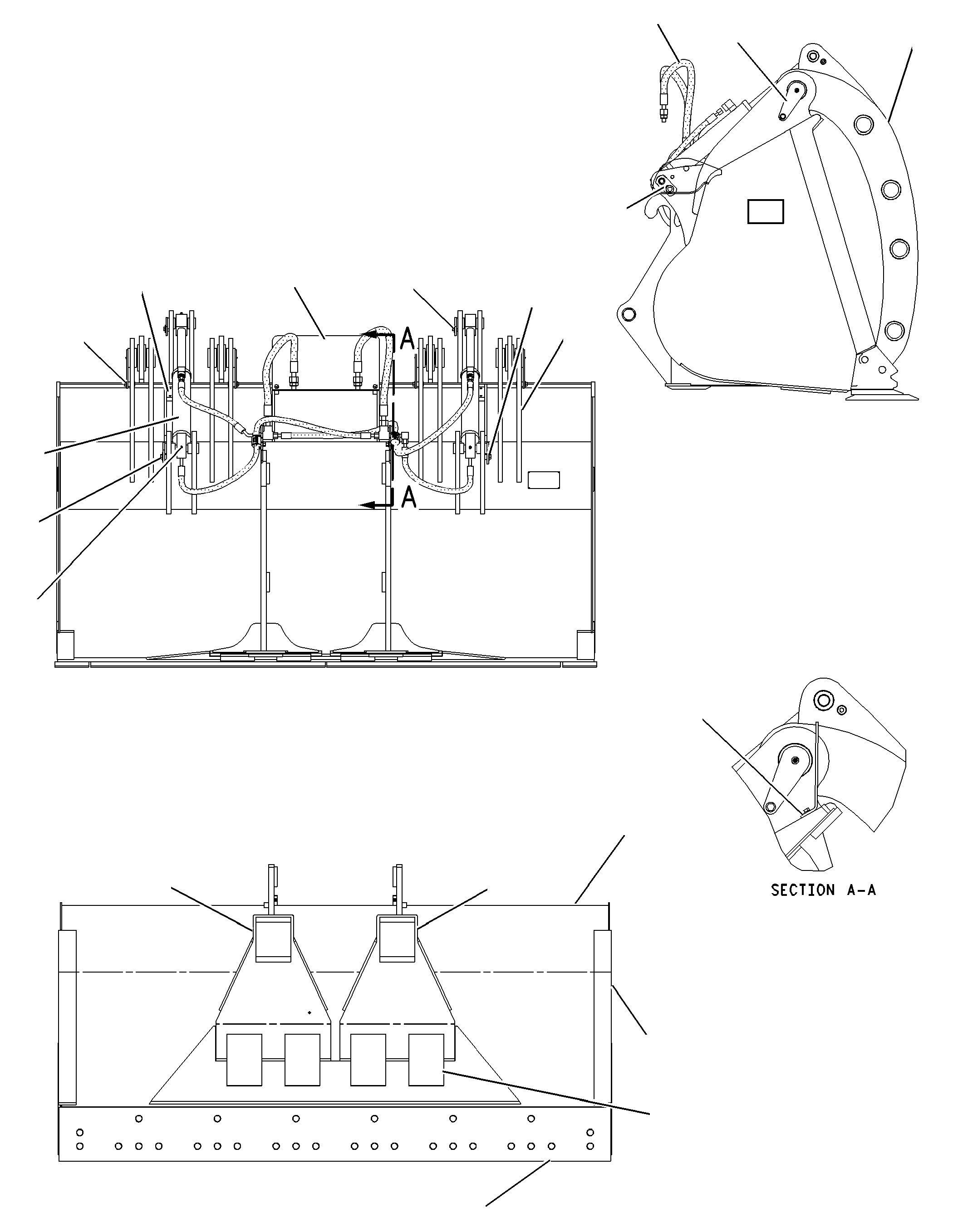

178-7424 BUCKET AR-TOP CLAMP -HOOK-ONFOR USE WITH 924G, HYD. 3RD VALVE AR., HYD. COUPLER AR. 1322400 OR 1322448

Group No: 178-7424
Part NumberPart NameQty
3B84891 FITTING-GREASE (1/8-27 PTF)8
8T48962 WASHER-HARD (10.2X18.5X2.5-MM THK)2
8T42233 WASHER-HARD (13.5X25.5X3-MM THK)4
17874254 CONVERSION GP-BUCKET (TOP CLAMP)1
17879895 CLAMP AS2
9M1328BEARING-SELF-ALIGNING2
17906766 LINES GP-CONNECTING1
17917667 PLATE-GUARD1
18084128 CYLINDER GP-HYDRAULIC2
20659559 PIN AS4
207467510 PIN AS2
207467611 PIN AS2
4B527312 WASHER (14.3X35X2.5-MM THK)4
8T413613 BOLT (M10X1.5X25-MM)2
8T413914 BOLT (M12X1.75X30-MM)8
178466515 BUCKET AS-GENERAL PURPOSE1
4E065916 EDGE-CUTTING1
9T359817 BOSS (M10X1.5X100-MM)2
9V448418 PLATE2
174472619 PLATE2
162779020 PLATE4
164931621 PLATE2
