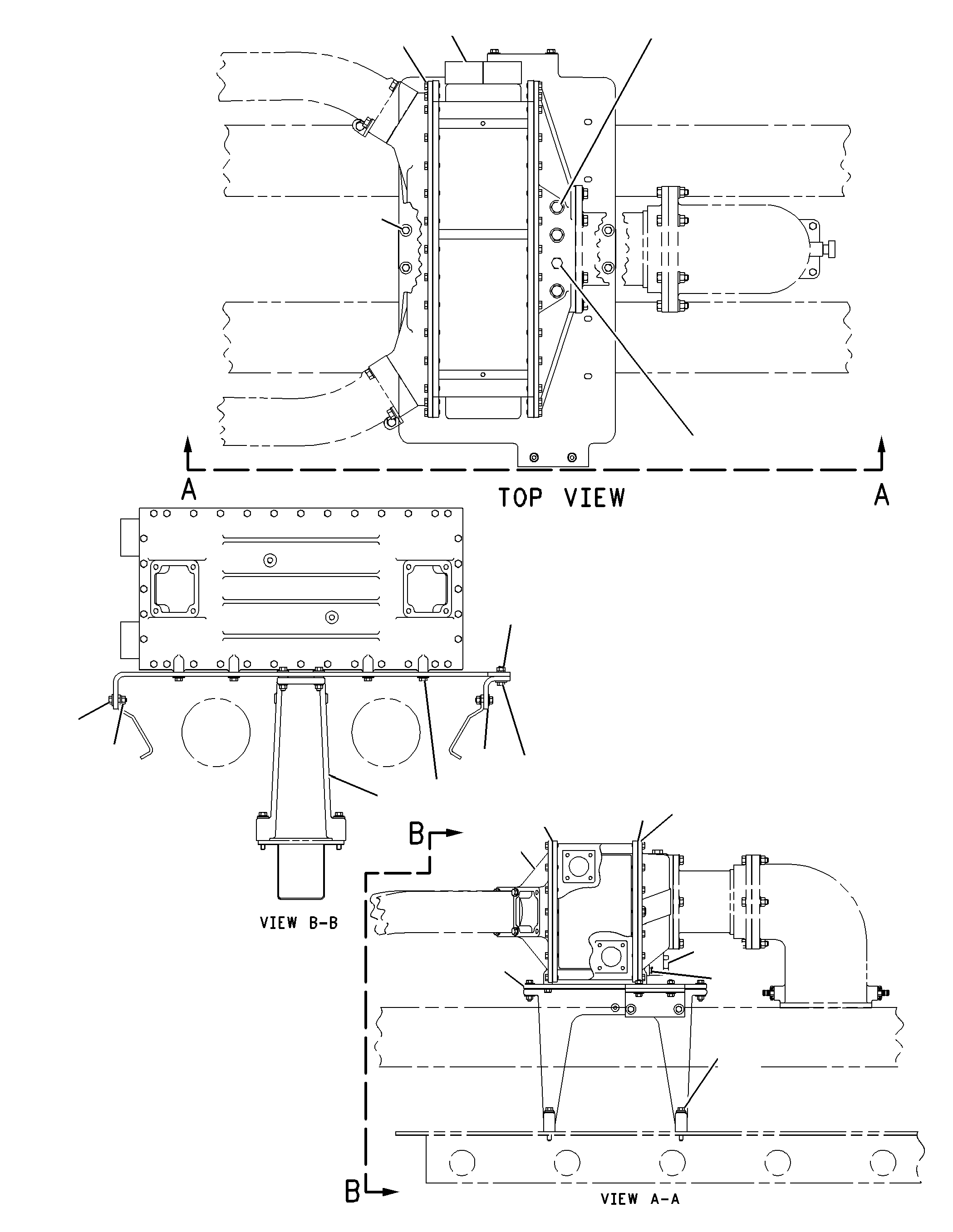

121-7545 AFTERCOOLER GP-AIRS/N CRN1-UP

Group No: 121-7545
Part NumberPart NameQty
0L11431 BOLT (3/8-16X2.5-IN)4
0S15712 BOLT (3/8-16X1.75-IN)4
0S15943 BOLT (3/8-16X1-IN)72
1A20294 BOLT (3/8-16X1.125-IN)8
3B19155 BOLT (3/8-16X1.375-IN)6
4W98526 HOUSING-REAR1
5M28947 WASHER-HARD (10.2X18.5X2.5-MM THK)10
5P77018 SEAL-O-RING1
6V88019 NUT (3/8-16-THD)4
7E182310 HOUSING-FRONT1
7E356811 CORE AS-AFTERCOOLER1
7W649212 PLUG-PIPE (1/2-14-THD)1
8L278613 SEAL-O-RING3
8T676514 PLUG-PIPE (1/4-18-THD)1
9L913215 WASHER-HARD (10.2X25.5X2.5-MM THK)18
9S418116 PLUG (1-5/16-12-THD)1
9S418517 PLUG (3/4-16-THD)3
9S875218 NUT-FULL (3/8-16-THD)6
121333919 SUPPORT1
121754320 PLATE1
122978521 BRACKET1
152570522 GASKET2
