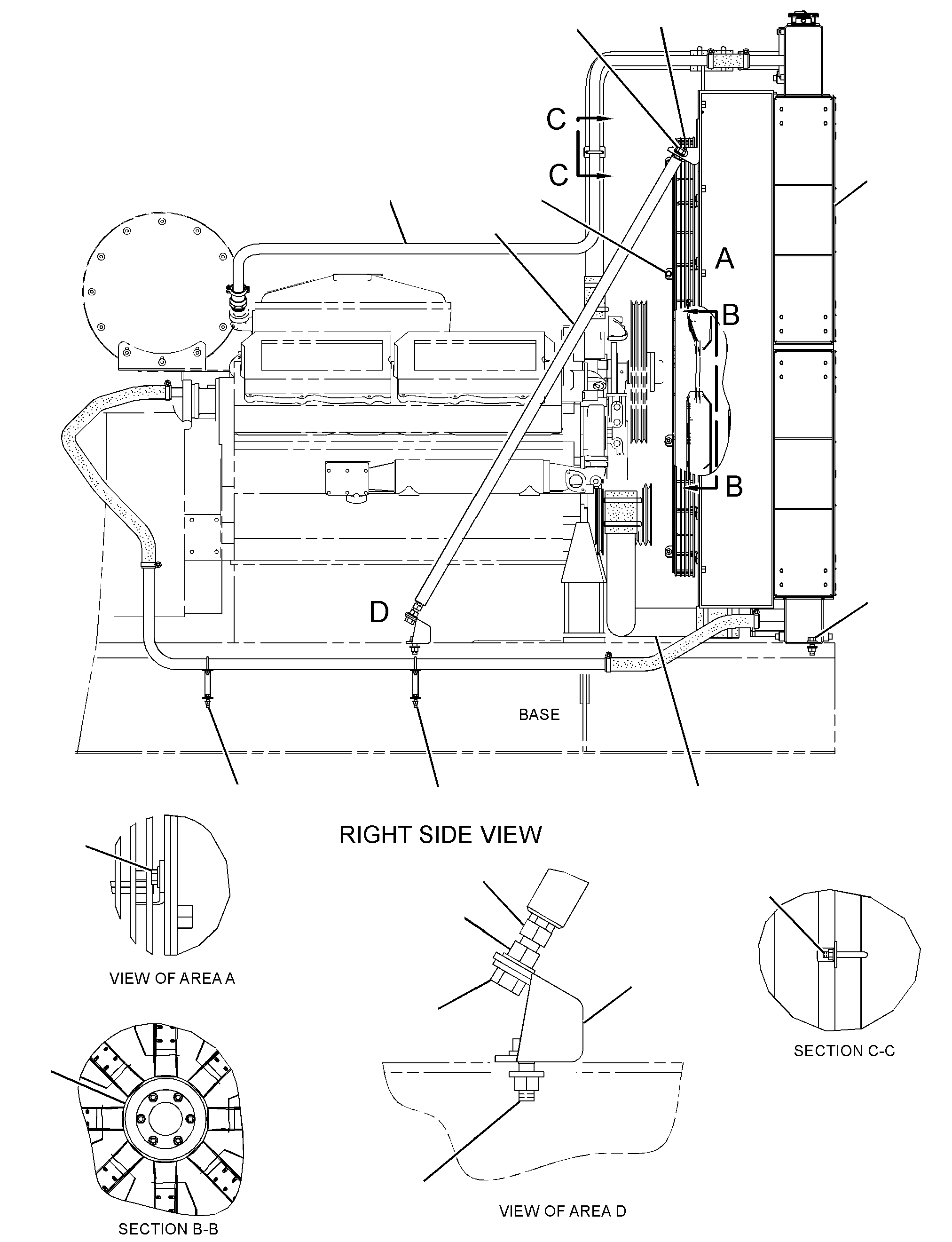

205-7784 RADIATOR & FAN GPS/N KAP1-UP

Group No: 205-7784
Part NumberPart NameQty
3K33181 BOLT (3/4-10X4.25-IN)2
20200522 FAN GP-BLOWER1
20565583 RADIATOR GP1
20565984 BRACKET2
20566005 BRACE2
20566206 LINES GP-WATER (AFTERCOOLER)1
22898497 LINES GP-WATER (JACKET WATER)1
23070648 GUARD AS-FAN2
1F0750NUT-WELD (3/8-16-THD)2
6N8599CLIP2
3H53899 U-BOLT1
4L645410 BOLT (3/8-16X1-IN)4
4L933711 BOLT (3/8-16X1.5-IN)4
5P107512 WASHER-HARD (10.2X22.5X3-MM THK)4
6V818213 NUT (3/4-10-THD)4
6V818914 NUT (5/16-18-THD)2
6V880115 NUT (3/8-16-THD)4
7X034616 BOLT (5/8-11X2-IN)4
7X036517 BOLT (3/4-10X1.5-IN)2
7X044818 NUT (5/8-11-THD)4
7X051519 WASHER-HARD (17X35X5-MM THK)8
7X058220 WASHER-HARD (20X44.5X6-MM THK)2
8T422421 WASHER-HARD (8.8X16X2-MM THK)2
8T489622 WASHER-HARD (10.2X18.5X2.5-MM THK)8
8T499423 WASHER-HARD (20X36.5X3.5-MM THK)4
4M642524 BOLT (5/16-18X1-IN)12
5P411625 WASHER-HARD (8.8X20.5X2-MM THK)12
