System And Components

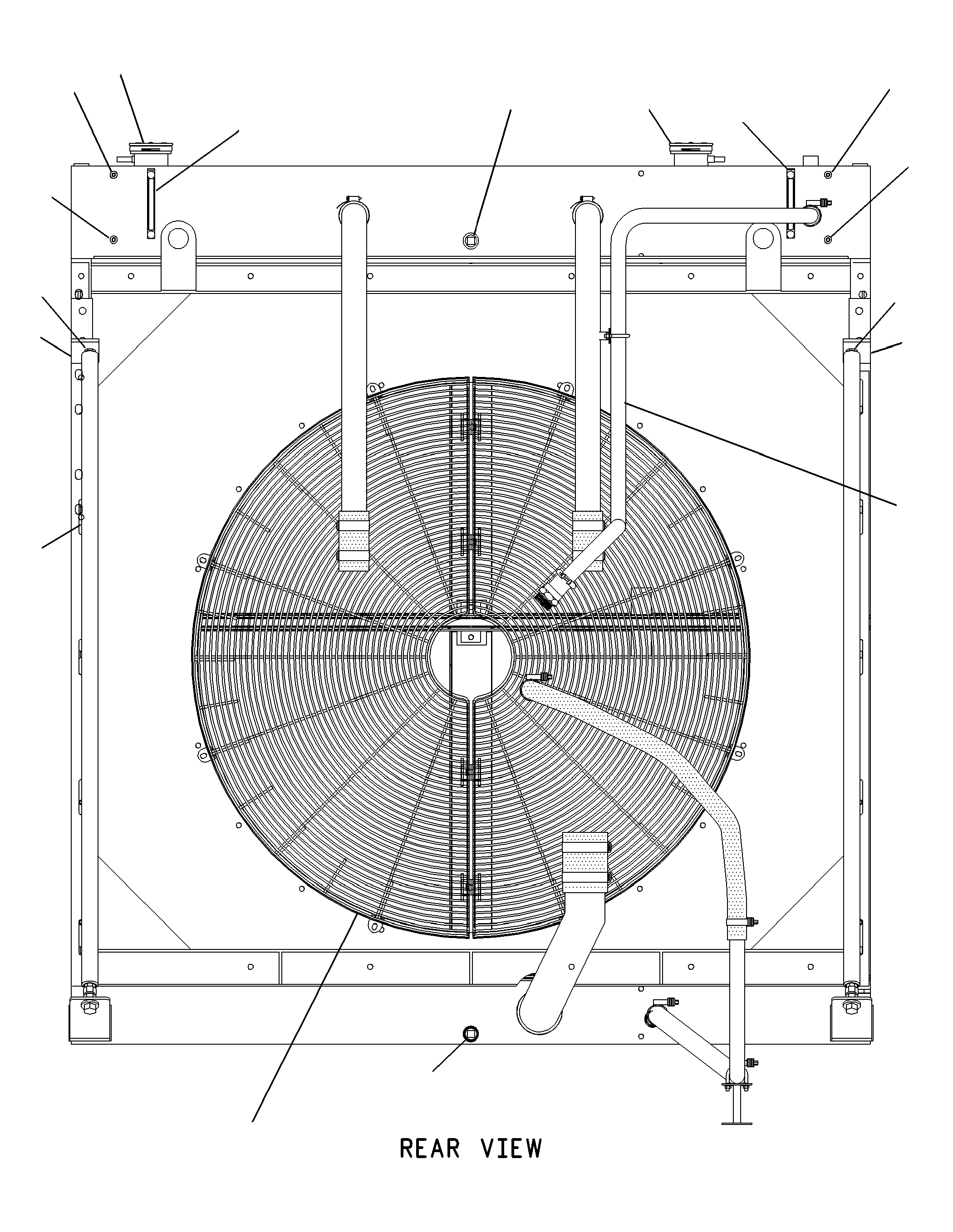

205-6557 RADIATOR GPS/N KAP1-UP
Group No: 205-6557
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3K3318 | 1 BOLT (3/4-10X4.25-IN) | 2 | |
| 6L2282 | 2 PLUG-PIPE | 4 | |
| 7L2505 | 3 PLUG-PIPE | 5 | |
| 9Y5994 | 4 PLATE-WASHER | 8 | |
| 9Y5995 | 5 PLATE-WASHER | 4 | |
| 9Y6003 | 6 BRACKET-CORNER | 8 | |
| 9Y6004 | 7 BRACKET-CORNER | 8 | |
| 9Y6005 | 8 BRACKET AS-GUARD | 24 | |
| 9Y6007 | 9 WASHER-FLANGE | 48 | |
| 1102991 | 10 STRAP-COREWASHER | 8 | |
| 1102992 | 11 GASKET | 8 | |
| 1102996 | 12 BRACKET | 1 | |
| 1103002 | 13 SPACER-SPECIAL | 2 | |
| 1103004 | 14 SUPPORT | 4 | |
| 1103005 | 15 WASHER-CORE | 16 | |
| 1103006 | 16 BRACKET | 1 | |
| 1103008 | 17 GUARD | 4 | |
| 1103901 | 18 CORE | 2 | |
| 1239314 | 19 PLATE-WASHER | 4 | |
| 1239316 | 20 GAUGE-SIGHT (COOLANT LEVEL) | 2 | |
| 1239320 | 21 BRACKET | 8 | |
| 1239362 | 22 CAP-FILLER (7-PSI) | 2 | |
| 1256287 | 23 GASKET | 4 | |
| 1260559 | 24 BOLT (5/16-18X1.25-IN) | 48 | |
| 2056563 | 25 CORE | 2 | |
| 2056576 | 26 TANK AS | 1 | |
| 2056578 | 27 BRACKET | 4 | |
| 2056586 | 28 GASKET | 6 | |
| 2056587 | 29 PLATE | 1 | |
| 2056590 | 30 SHROUD | 1 | |
| 2056598 | 31 BRACKET | 2 | |
| 2056600 | 32 BRACE | 2 | |
| 2056618 | 33 LINES GP-WATER (UPPER) | 1 | |
| 2056619 | 34 LINES GP-WATER (LOWER) | 1 | |
| 2056904 | 35 GUARD AS-FAN | 2 | |
| 2056567 | 36 TANK-TOP | 1 | |
| 2056572 | 37 TANK-BOTTOM | 1 | |
| 3H5389 | 38 U-BOLT | 1 | |
| 6V8182 | 39 NUT (3/4-10-THD) | 4 | |
| 6V8189 | 40 NUT (5/16-18-THD) | 2 | |
| 7X0365 | 41 BOLT (3/4-10X1.5-IN) | 2 | |
| 7X0582 | 42 WASHER-HARD (20X44.5X6-MM THK) | 2 | |
| 8T4994 | 43 WASHER-HARD (20X36.5X3.5-MM THK) | 2 |
