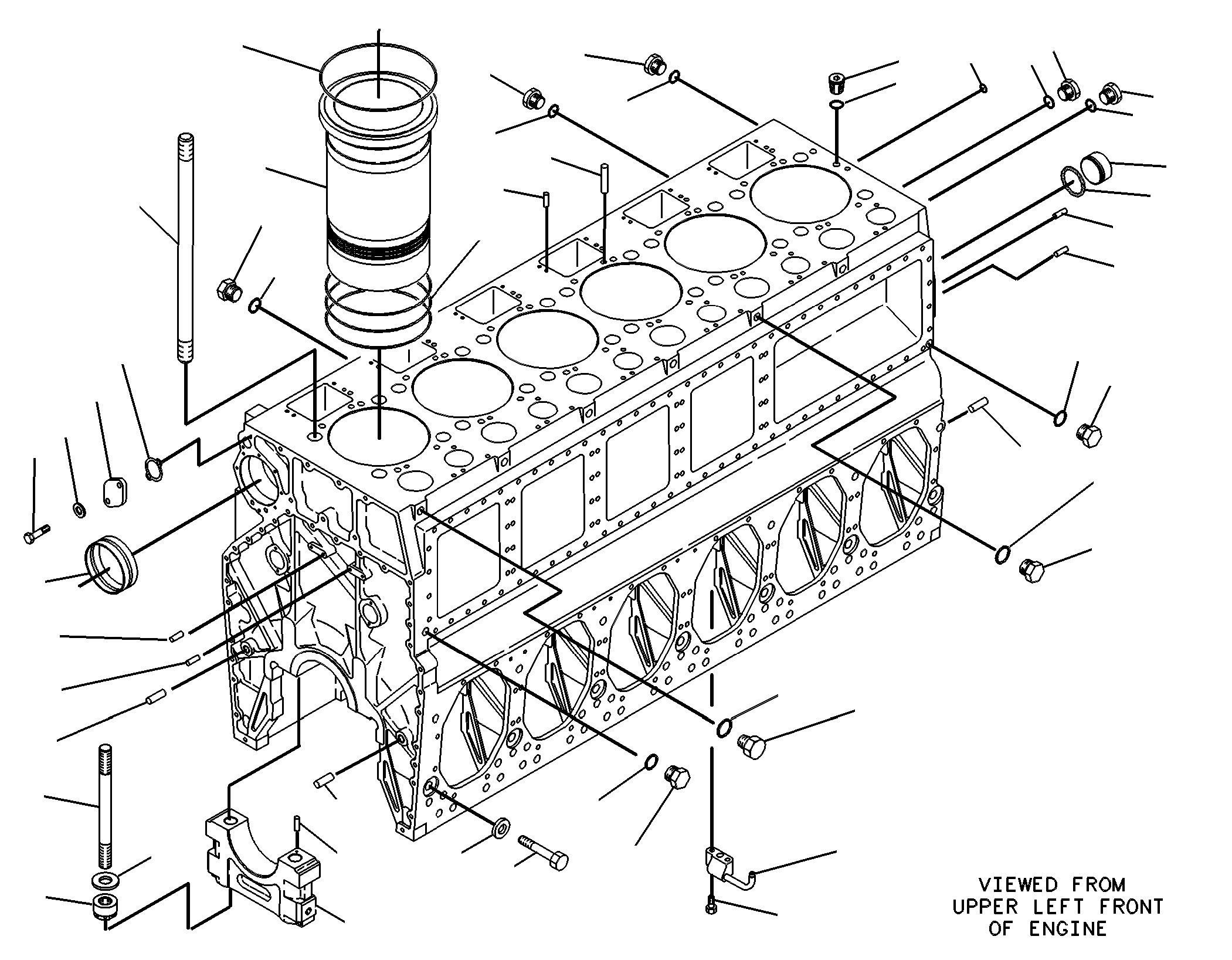

7C-0433 CYLINDER BLOCK GP (CHG -03 THRU -07, 7C-0434-06)
Group No: 7C-0433
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1W0121 | 1 STUD-TAPERLOCK | 14 | |
| 1W0123 | 2 NUT (2-12-THD) | 14 | |
| 1W0122 | 3 WASHER (52X110X12-MM THK) | 14 | |
| 3S7079 | 4 BOLT (1-1/4-12X9.5-IN) | 14 | |
| 4K0684 | 5 WASHER-HARD (34X55X6-MM THK) | 14 | |
| 6V3602 | 6 SEAL-O-RING | 6 | |
| 7C5044 | 7 LINER-CYLINDER BLOCK | 6 | |
| 8T9047 | 8 SEAL-O-RING | 18 | |
| 1W0105 | 9 BEARING-CAMSHAFT | 7 | |
| 6V3539 | 10 DOWEL | 12 | |
| 6V3538 | 11 DOWEL | 16 | |
| 6V3540 | 12 DOWEL | 2 | |
| 3P0656 | 13 SEAL-O-RING | 1 | |
| 6V3955 | 14 SEAL-O-RING | 3 | |
| 9S8005 | 15 PLUG (3/4-16-THD) | 3 | |
| 8L2786 | 16 SEAL-O-RING | 8 | |
| 7W7469 | 17 PLUG | 1 | |
| 4W6283 | 18 JET AS-PISTON COOLING | 6 | |
| 0T0573 | 19 BOLT (3/8-16X2.75-IN) | 12 | |
| 7E8400 | 20 STUD-TAPERLOCK | 24 | |
| 7N2328 | 21 DOWEL | 2 | |
| 9S8006 | 22 PLUG (7/8-14-THD) | 8 | |
| 6V4589 | 23 SEAL-O-RING | 8 | |
| 9S4185 | 24 PLUG (3/4-16-THD) | 5 | |
| 1W1960 | 25 GASKET | 1 | |
| 4B3140 | 26 COVER | 1 | |
| 0S1594 | 27 BOLT (3/8-16X1-IN) | 2 | |
| 3V3308 | 28 WASHER-HARD (10.2X20.5X2.5-MM THK) | 2 | |
| 1241836 | 29 CAP AS-BEARING (CRANKSHAFT)(EACH INCLUDES) | 7 | |
| 6V3538 | 30 DOWEL | 1 |
