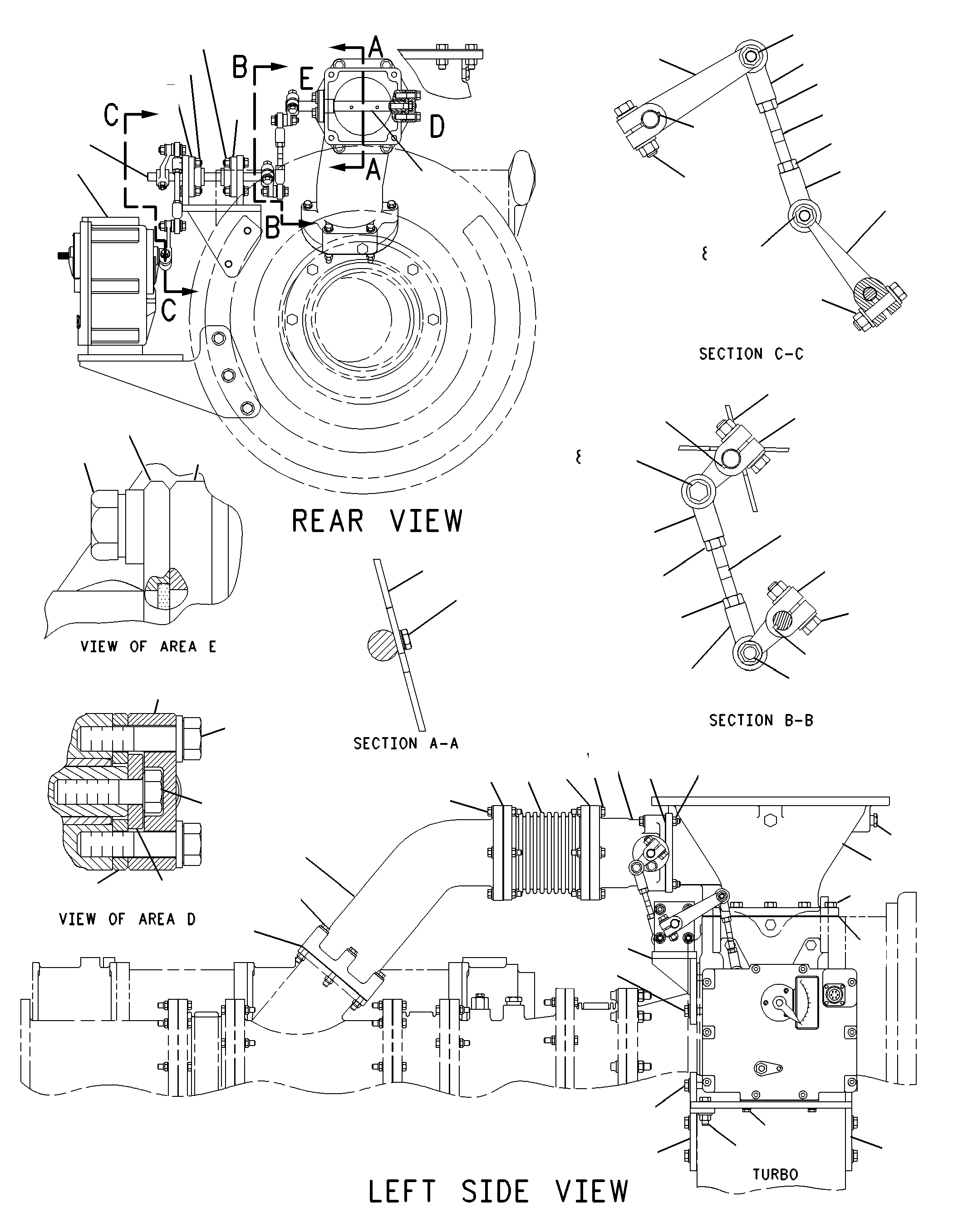

6I-2667 BYPASS GP-EXHAUST (CHG -00 THRU -06, -07D1, -08)PART OF 106-8122 SCHEMATIC & COMPONENT GP

Group No: 6I-2667
Part NumberPart NameQty
7C83631 GASKET1
8C84912 WASHER-HARD (10.2X22X3-MM THK)44
3W73983 LEVER1
5H25324 KEY-WOODRUFF3
0S15715 BOLT (3/8-16X1.75-IN)8
3V33086 WASHER-HARD (10.2X20.5X2.5-MM THK)32
9S8752NUT-FULL (3/8-16-THD)16
11959317 SPACER1
8M90248 WASHER-HARD (10.2X22.5X5-MM THK)4
8C73219 ROD END2
1S358410 NUT-FULL (3/8-24 LH-THD)2
119592711 SHAFT1
3S271312 NUT-FULL (3/8-24-THD)2
8C731513 ROD END2
100851014 LEVER1
2N276615 LOCKNUT (3/8-16-THD)22
3H663016 BOLT (3/8-16X3.25-IN)6
6I252717 ELBOW-EXHAUST1
7L644318 BOLT-HIGH TEMPERATURE (3/8-16X2.25-IN)12
7E070119 GASKET2
123571720 BELLOWS AS1
119593021 HOUSING AS1
5P275522 BOLT-HIGH TEMPERATURE (3/8-16X2.75-IN)4
7W919123 GASKET1
103811224 SHAFT1
7W911525 ADAPTER-EXHAUST1
4J438226 PLUG-PIPE (1/2-14-THD)2
0S159527 BOLT (1/2-13X1.25-IN)18
2W043928 GASKET1
102994329 PLATE AS1
100748130 BRACKET AS1
100748031 SUPPORT AS1
6V366832 BOLT (M12X1.75X30-MM)8
6V568433 BOLT (M12X1.75X45-MM)2
5P824534 WASHER-HARD (13.5X25.5X3-MM THK)12
6V814935 NUT (M12X1.75-THD)2
9M197436 WASHER-HARD (8.8X16X2-MM THK)4
6V2317BOLT (M8X1.25X30-MM)4
6V194337 BOLT-HIGH TEMPERATURE (3/8-16X1.125-IN)2
4P039438 LEVER2
039923439 ROD2
5P996040 BOLT (1/4-20X0.75-IN)2
4F275341 LOCKNUT1
102169442 PLATE1
102345743 COVER1
102631144 STOP1
102630945 WASHER-THRUST1
0S159146 BOLT (3/8-16X1.5-IN)8
5L329147 BEARING AS-BALL2
6I058148 ACTUATOR GP-ELECTRONIC1
6V675349 BOLT-HIGH TEMPERATURE (3/8-16X1.375-IN)1
8M229550 BOLT (3/8-16X1.625-IN)(3/8-16X1-5/8)2
133850151 COVER AS1
110831452 WASHER (10.3X18.3X2.66-MM THK)4
