System And Components

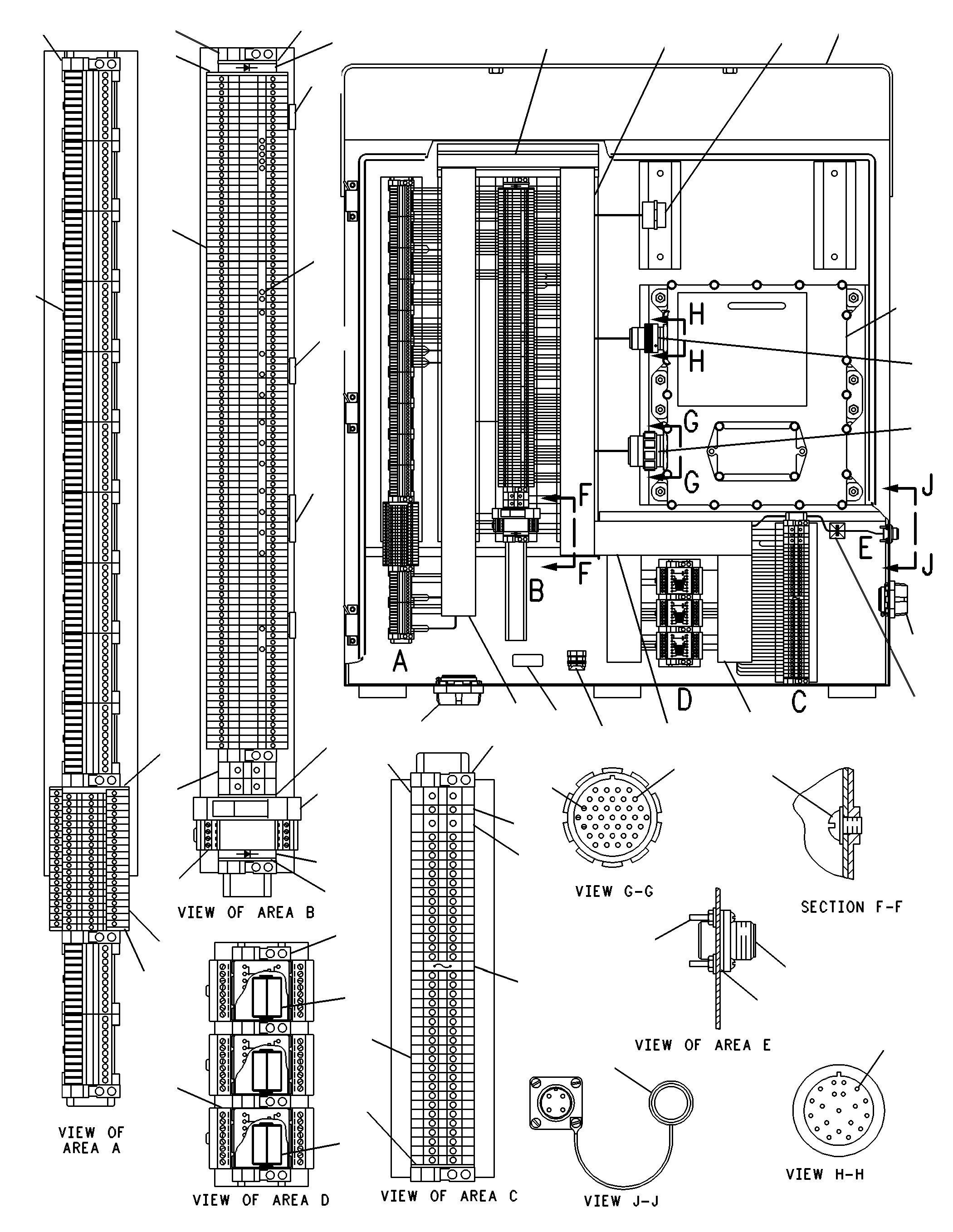

3E-7305 CONTROL GP-ENGINE ELECTRONIC (CHG -00 THRU -03)ESS BASIC-CSA
Group No: 3E-7305
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9X3018 | 1 BOX AS | 1 | |
| 9X6442 | SEAL (342 CM) | ||
| 7N7792 | 2 PLUG AS-CONNECTOR (30-PIN) | 1 | |
| 1085888 | 3 CONTROL GP-ENGINE ELECTRONIC | 1 | |
| 5M2894 | 4 WASHER-HARD (10.2X18.5X2.5-MM THK) | 8 | |
| 9S8752 | NUT-FULL (3/8-16-THD) | 8 | |
| 8D9537 | 5 CAP-DUST | 1 | |
| 8N1525 | 6 PLUG AS-CONNECTOR (20-PIN) | 1 | |
| 8N1514 | 7 PLUG AS-CONNECTOR (37-PIN) | 1 | |
| 3E0105 | 8 MOUNT | 2 | |
| 8L8413 | STRAP-CABLE (WHITE) | 2 | |
| 9G3695 | 9 PLUG-SEAL | 3 | |
| 6V3276 | 10 CONNECTOR AS | 1 | |
| 1143110 | 11 DUCT-SLOTTED | 2 | |
| 6V3273 | COVER | 2 | |
| 8N1539 | 12 SOCKET-CONNECTOR | 54 | |
| 3E7992 | 13 FUSE (30-AMPERE) | 6 | |
| 1143116 | 14 DUCT-SLOTTED | 1 | |
| 6K3274 | 15 PLATE-RIVET | 4 | |
| 2S6251 | SCREW (4-40X0.75-IN) | 4 | |
| 6B4540 | NUT (4-40-THD) | 4 | |
| 8C6188 | 16 SEAL-SECURITY | 1 | |
| 3E2129 | 17 CONNECTOR AS | 1 | |
| 1143112 | 18 DUCT-SLOTTED | 1 | |
| 1143113 | COVER | 1 | |
| 2H8533 | 19 SCREW-MACHINE (10-32X0.25-IN) | 23 | |
| 2W5907 | WASHER (5.16X11.13X0.81-MM THK) | 23 | |
| 1143115 | 20 DUCT | 1 | |
| 4P4251 | 21 GASKET | 1 | |
| 1143111 | 22 DUCT-SLOTTED | 1 | |
| 1143114 | COVER | 1 | |
| 9X6987 | 23 RECEPTACLE AS-CONNECTOR (4-PIN) | 1 | |
| 9X9612 | 24 COVER (SPACER) | 1 | |
| 9X9674 | 25 TERMINAL | 20 | |
| 9X9613 | 26 SPACER (50-MM LGX2.5-MM THK) | 1 | |
| 9X9673 | 27 CONNECTOR (BLOCK) | 12 | |
| 9X9675 | 28 BRACKET-END | 13 | |
| 3E2283 | 29 BRIDGE-INSERTION | 1 | |
| 3E2286 | 30 STRIP-CONTACT | 8 | |
| 3E2282 | 31 BRIDGE-INSERTION | 2 | |
| 3E2284 | 32 BRIDGE-INSERTION | 1 | |
| 9X9616 | 33 COVER-END | 4 | |
| 1069819 | 34 TERMINAL | 4 | |
| 9X9676 | 35 TERMINAL | 98 | |
| 9X9677 | 36 COVER-END | 1 | |
| 9X9615 | 37 TERMINAL (SINGLE) | 36 | |
| 3E0355 | 38 BLOCK-FUSE | 1 | |
| 0870546 | 39 RELAY (24-VOLT) | 2 | |
| 3E3616 | 40 RELAY AS (12-VOLT) | 1 | |
| 1017685 | 41 MODULE-RELAY | 3 | |
| 3E0356 | 42 BLOCK-TERMINAL | 3 | |
| 3E0357 | 43 DIODE AS | 2 | |
| 3E2246 | 44 MODULE-RELAY (24-VOLT) | 1 | |
| 1069347 | 45 HOLDER-FUSE | 1 | |
| 1069352 | 46 FUSE (1-AMPERE) | 1 | |
| 6V3156 | 47 COVER | 2 | |
| 9X8551 | CABLE-ELECTRICAL (16-GA) | ||
| 4G2556 | CABLE-SHIELDED (16-GA) | ||
| 5P5677 | WIRE (18-GA, BLACK) | ||
| 5P5689 | WIRE (8-GA, BLACK) |
