System And Components

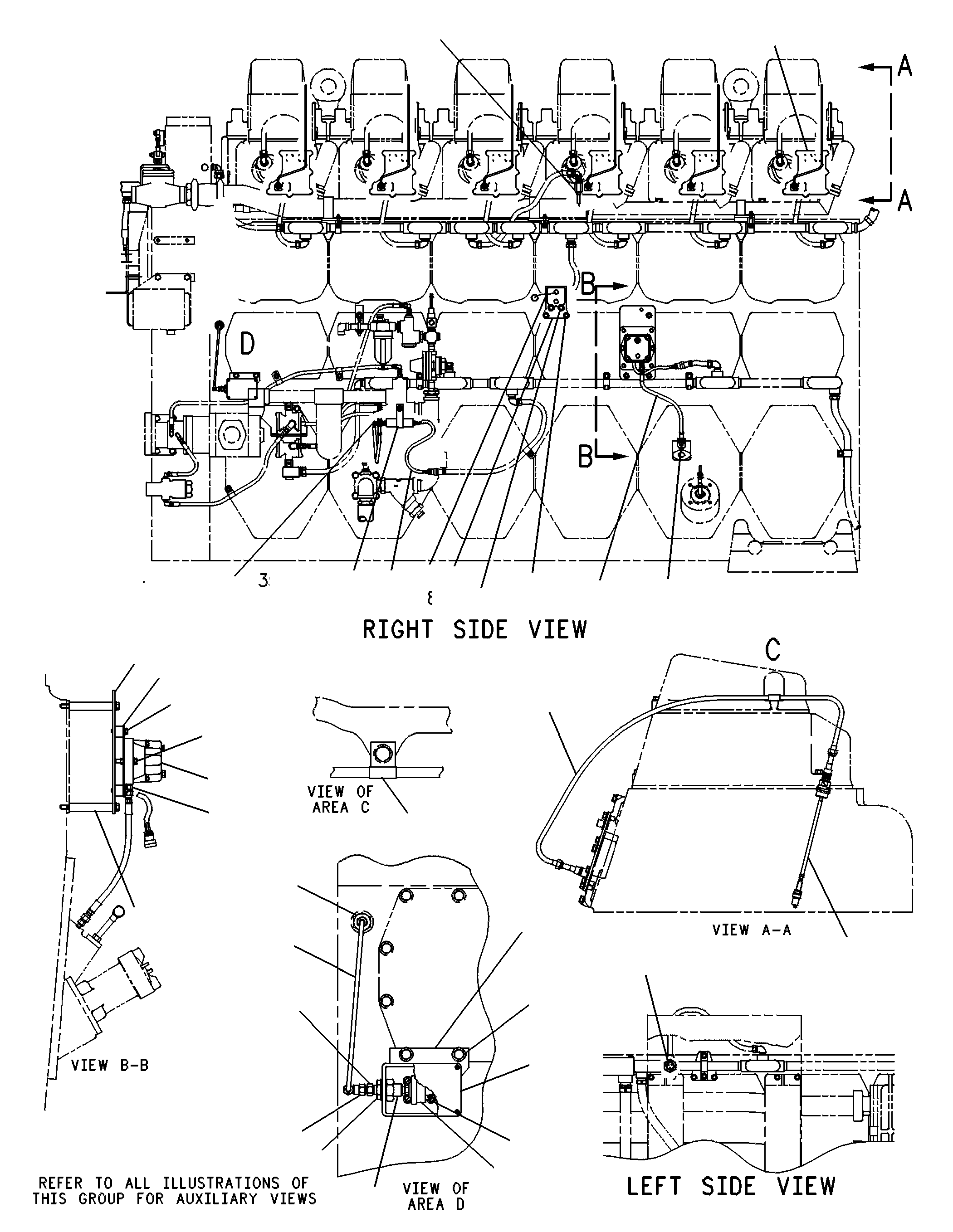

104-2918 SENSOR & MOUNTING GP (CHG -03, -04, -04D1)PART OF 106-8122 SCHEMATIC & COMPONENT GP
Group No: 104-2918
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 6V9601 | 1 ADAPTER | 1 | |
| 6V5049 | 2 SEAL-O-RING | 1 | |
| 1129273 | 3 SENSOR GP-DETONATION | 1 | |
| 7E1322 | 4 PLATE | 1 | |
| 0S1588 | 5 BOLT (3/8-16X1.25-IN) | 4 | |
| 0L2070 | 6 BOLT (3/8-16X2.25-IN) | 2 | |
| 3V3308 | 7 WASHER-HARD (10.2X20.5X2.5-MM THK) | 13 | |
| 9S8752 | 8 NUT-FULL (3/8-16-THD) | 3 | |
| 9Y9969 | 9 PLATE | 1 | |
| 1W0393 | 10 TUBE | 3 | |
| 0S1571 | 11 BOLT (3/8-16X1.75-IN) | 2 | |
| 9X5272 | 12 SENSOR GP-PRESSURE (STARTING AIR PRESS SENSOR) | 1 | |
| 3E8689 | 13 SENSOR GP-PRESSURE (CRANKCASE PRESS SENSOR) | 1 | |
| 4S6399 | 14 CONNECTOR | 2 | |
| 6V5048 | 15 SEAL-O-RING | 3 | |
| 3J7352 | 16 CONNECTOR | 2 | |
| 1132039 | 17 TUBE AS | 1 | |
| 5P0537 | 18 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 7K9197 | 19 ELBOW | 1 | |
| 4J9448 | 20 LUG | 4 | |
| 9W0532 | 21 SENSOR GP-TEMPERATURE (FUEL TEMP SENSOR) | 1 | |
| 8L2786 | 22 SEAL-O-RING | 2 | |
| 7B2742 | 23 BOLT (1/4-20X1.25-IN) | 4 | |
| 7X6354 | 24 CONTROL GP-ENGINE MONITORING (COMBUSTION SENSOR) | 6 | |
| 3E6116 | 25 CONTROL GP-ENGINE ELECTRONIC (COMBUSTION BUFFER) | 6 | |
| 7C9897 | 26 HOSE AS | 1 | |
| 3N1400 | 27 SWITCH AS-PRESSURE (PRELUBE OIL PRESS) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 4B1229 | 28 SCREW (10-24X12.7-MM) | 4 | |
| 6V7699 | WASHER-HARD (5.5X13X1.6-MM THK) | 4 | |
| 1007834 | 29 PLATE AS | 1 | |
| 5P8247 | 30 WASHER-HARD (17X32X3.5-MM THK) | 1 | |
| 0328970 | 31 SEAL-O-RING | 6 | |
| 6V5050 | 32 SEAL-O-RING | 6 | |
| 0S1594 | 33 BOLT (3/8-16X1-IN) | 1 | |
| 5M2894 | 34 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 5N2840 | 35 CLIP | 1 | |
| 5B2638 | 36 BOLT (3/8-16X5.25-IN) | 3 | |
| 7J8744 | 37 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 9M7357 | 38 COUPLING AS | 1 | |
| 6V4589 | 39 SEAL-O-RING | 1 | |
| 9Y1925 | 40 BOX AS | 1 | |
| 8N0896 | GEAR (151-TEETH) | 1 | |
| 0308195 | 41 CONNECTOR | 1 | |
| 1140126 | 42 PLATE | 1 | |
| 6I3783 | 43 WIRE AS-SENSOR | 6 | |
| 5P9297 | 44 CLIP (LOOP) | 6 | |
| 9W0532 | 45 SENSOR GP-TEMPERATURE (INLET AIR TEMP) | 1 | |
| 6V5049 | 1 SEAL-O-RING | 6 | |
| 3V3308 | 2 WASHER-HARD (10.2X20.5X2.5-MM THK) | 1 | |
| 0S1571 | 3 BOLT (3/8-16X1.75-IN) | 2 | |
| 6I0407 | 4 THERMOCOUPLE | 1 | |
| 0307946 | 5 ELBOW | 2 | |
| 6V5048 | 6 SEAL-O-RING | 4 | |
| 3E9189 | 7 SENSOR GP-PRESSURE (INLET AIR RESTRICTION SENSOR) | 1 | |
| 2A5546 | 8 BOLT (1/4-20X1.375-IN) | 4 | |
| 4J9448 | 9 LUG | 4 | |
| 8L2786 | 10 SEAL-O-RING | 2 | |
| 5P9617 | 11 ADAPTER | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 0307961 | 12 ELBOW | 1 | |
| 7E1230 | 13 HOSE AS | 1 | |
| 6D3479 | 14 CLIP (LOOP) | 3 | |
| 8M9024 | 15 WASHER-HARD (10.2X22.5X5-MM THK) | 5 | |
| 0T0573 | 16 BOLT (3/8-16X2.75-IN) | 2 | |
| 0L1143 | 17 BOLT (3/8-16X2.5-IN) | 3 | |
| 2T1392 | 18 HOSE AS | 1 | |
| 3E0166 | 19 CONTROL GP-ENGINE MONITORING (AIR FUEL PRESS MODULE) | 1 | |
| 7X1043 | 20 SENSOR GP-TEMPERATURE (JACKET WATER TEMP SENSOR) | 1 | |
| 5T4375 | 21 HOSE AS | 1 | |
| 0689941 | 22 WIRE-TIE | 2 | |
| 0054362 | 23 ELBOW | 1 | |
| 1007834 | 24 PLATE AS | 1 | |
| 1B4971 | 25 SPACER (0.406X1X1-IN THK) | 6 | |
| 8M2773 | 26 CLIP (LOOP) | 2 | |
| 5P8247 | 27 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 6V8647 | 28 CONNECTOR | 1 | |
| 8T0788 | 29 ELBOW | 2 | |
| 5M2894 | 30 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 3N8278 | 31 ADAPTER-SENSOR | 1 | |
| 1077142 | 32 SENSOR GP-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE (11 CM) | ||
| 8L4171 | 33 SENSOR GP-SPEED (ENGINE) | 1 | |
| 2P1314 | 34 CONNECTOR | 1 | |
| 5P0537 | 35 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 5N2840 | 36 CLIP | 2 | |
| 1073952 | 37 SENSOR GP-PRESSURE (CMS UNFILTERED SENSOR) | 1 | |
| 8L2779 | 38 SEAL-O-RING | 2 | |
| 6V9872 | 39 CONNECTOR | 2 | |
| 5B2638 | 40 BOLT (3/8-16X5.25-IN) | 1 | |
| 1007887 | 41 SENSOR GP-TEMPERATURE (SCM ENGINE OIL TEMP SENSOR) | 1 | |
| 1007870 | 42 ADAPTER-O-RING | 1 | |
| 5P8245 | 43 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 0S1587 | 44 BOLT (1/2-13X1.75-IN) | 1 | |
| 8T3285 | 45 ADAPTER | 1 | |
| 1072675 | 46 SENSOR AS-SPEED | 1 | |
| 4N3329 | 47 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 1073952 | 48 SENSOR GP-PRESSURE (CMS FILTERED SENSOR) | 1 |
