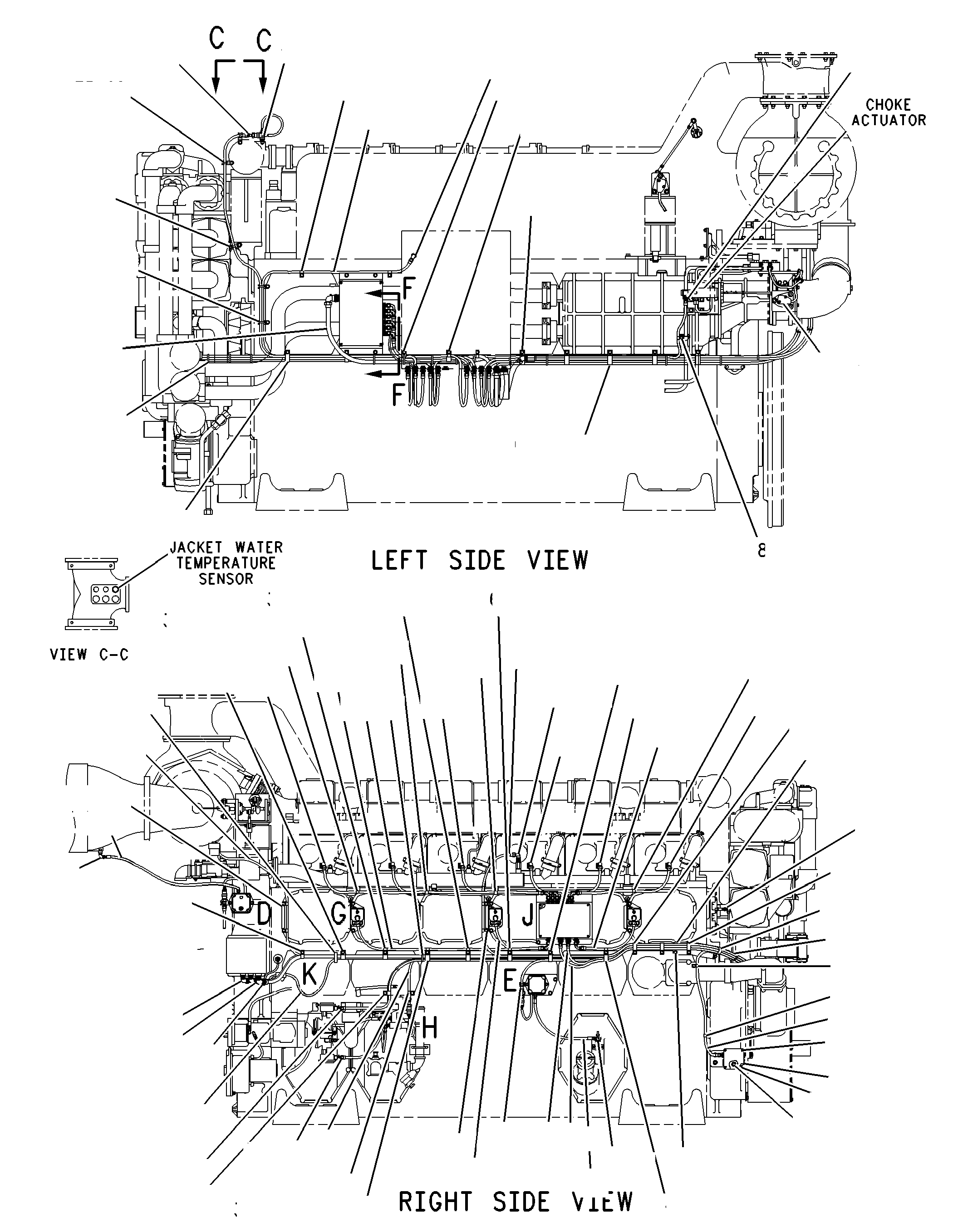

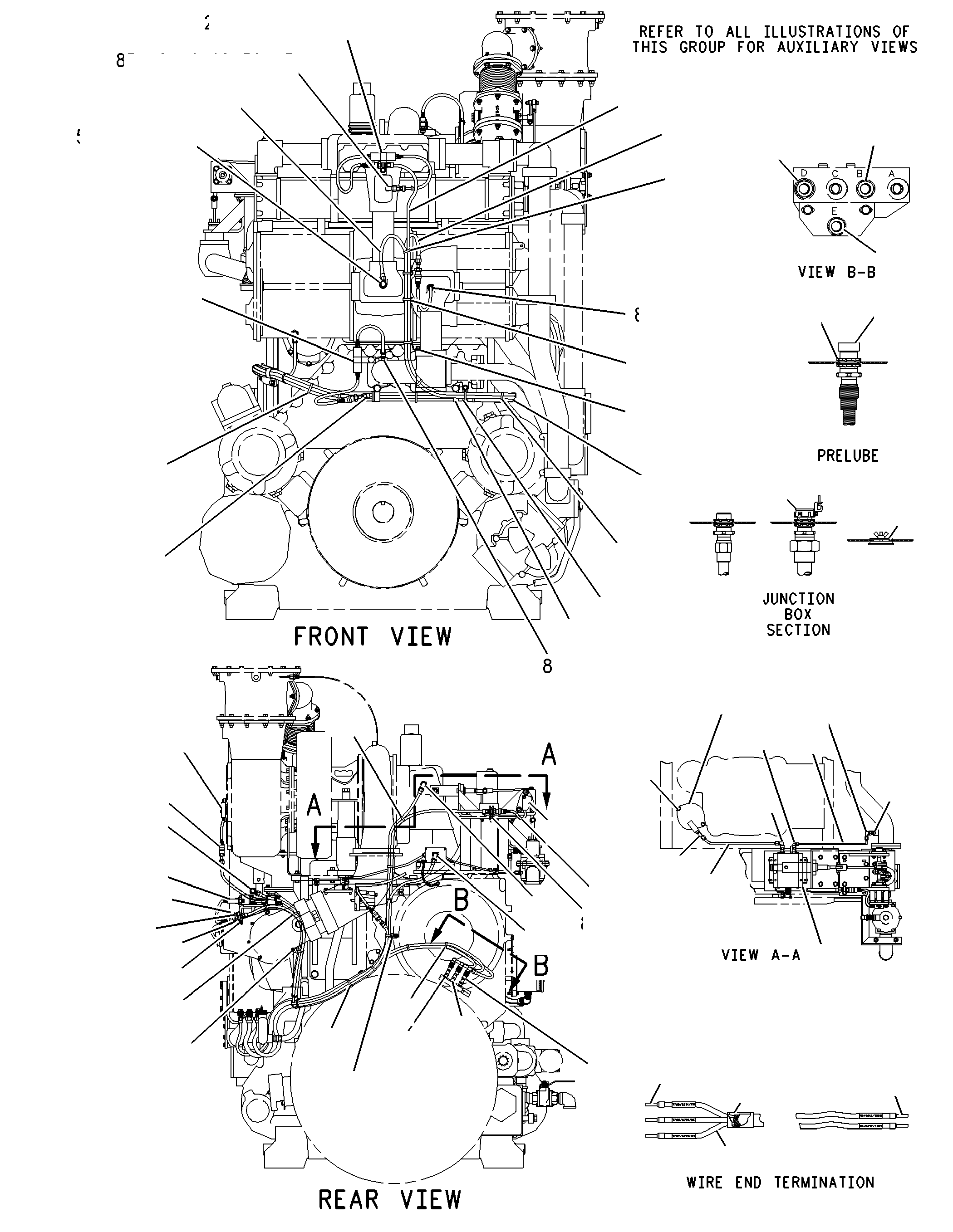

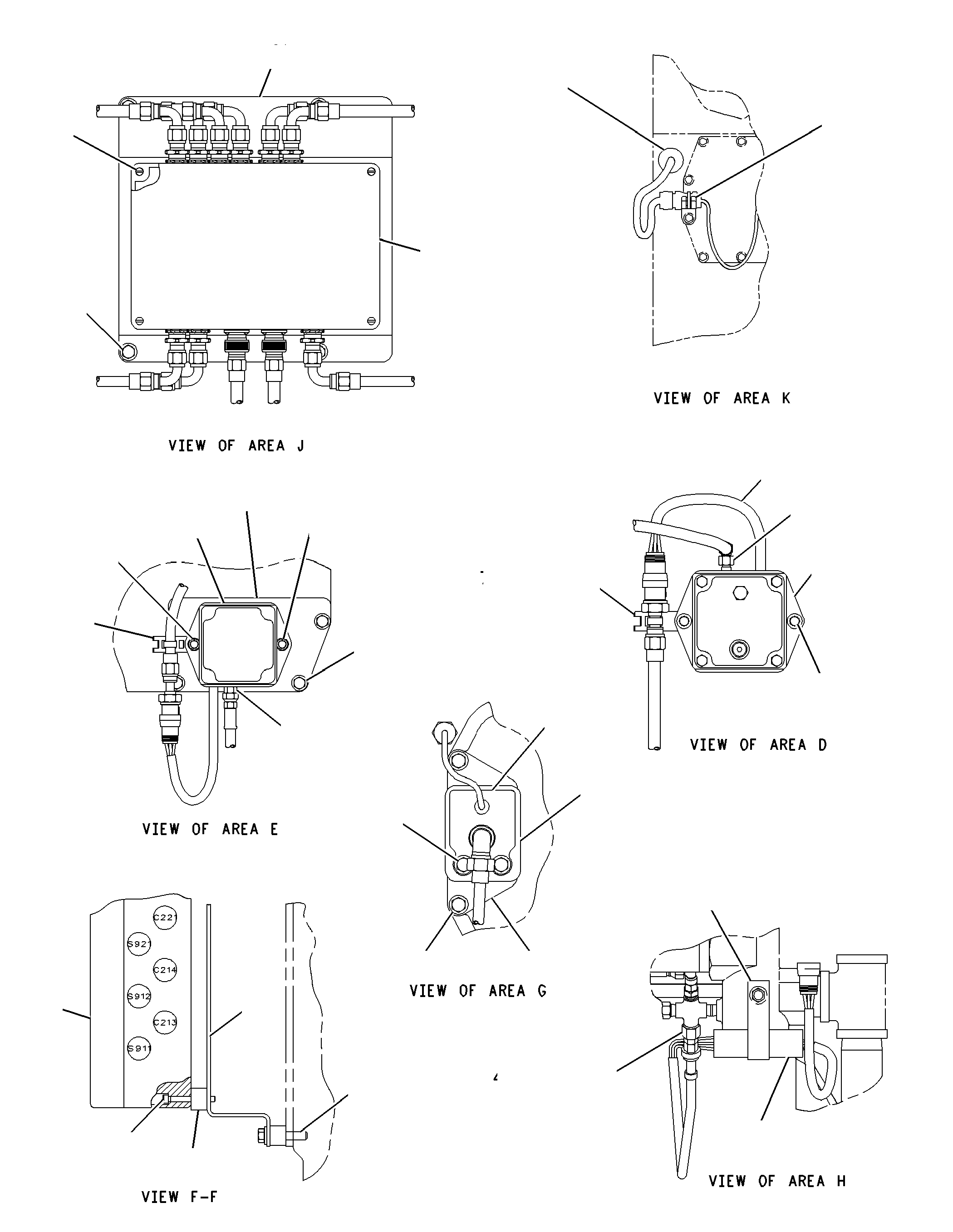

140-9353 WIRING GP-ENGINE (CHG -04, -05)G3606 HYDRAX
Group No: 140-9353
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L1143 | 1 BOLT (3/8-16X2.5-IN) | 6 | |
| 0L2070 | 2 BOLT (3/8-16X2.25-IN) | 10 | |
| 0S0509 | 3 BOLT (3/8-16X0.75-IN) | 2 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 1 | |
| 0S1588 | 5 BOLT (3/8-16X1.25-IN) | 2 | |
| 0S1590 | 6 BOLT (3/8-16X2-IN) | 12 | |
| 0S1591 | 7 BOLT (3/8-16X1.5-IN) | 2 | |
| 0S1594 | 8 BOLT (3/8-16X1-IN) | 11 | |
| 0S1619 | 9 BOLT (3/8-16X3-IN) | 1 | |
| 1A2029 | 10 BOLT (3/8-16X1.125-IN) | 13 | |
| 1S0994 | 11 CLIP (LOOP) | 1 | |
| 2N3162 | 12 SCREW-MACHINE (10-24X1.25-IN) | 8 | |
| 2P1314 | 13 CONNECTOR | 1 | |
| 3B1915 | 14 BOLT (3/8-16X1.375-IN) | 9 | |
| 1620275 | 15 SENSOR GP-PRESSURE (CRANKCASE) | 1 | |
| 3E9189 | 16 SENSOR GP-PRESSURE (INLET AIR RESTRICTION) | 1 | |
| 3J1907 | 17 SEAL-O-RING | 1 | |
| 3J7352 | 18 CONNECTOR | 1 | |
| 3K0360 | 19 SEAL-O-RING | 1 | |
| 3V2431 | 20 WASHER (10.2X16X2-MM THK) | 4 | |
| 3V3308 | 21 WASHER-HARD (10.2X20.5X2.5-MM THK) | 77 | |
| 4B4274 | 22 WASHER (5.5X13X1.2-MM THK) | 6 | |
| 4D7388 | 23 CLIP | 3 | |
| 4H1225 | 24 WASHER (11X22X6-MM THK) | 7 | |
| 8H0707 | 25 BOLT (1/4-20X1-IN) | 4 | |
| 4N3329 | 26 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 4P7428 | 27 CLIP (LADDER) | 1 | |
| 4P7581 | 28 CLIP (LADDER) | 12 | |
| 4P8134 | 29 CLIP (LADDER) | 6 | |
| 4S1962 | 30 CLIP (LOOP) | 1 | |
| 4S5719 | 31 SPACER (10.31X25X12.7-MM THK) | 5 | |
| 5B2638 | 32 BOLT (3/8-16X5.25-IN) | 1 | |
| 5N2840 | 33 CLIP | 3 | |
| 5P7854 | 34 CLIP (LOOP) | 3 | |
| 5P8245 | 35 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 5P8247 | 36 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 5P9297 | 37 CLIP (LOOP) | 13 | |
| 5T4375 | 38 HOSE AS | 1 | |
| 6K9194 | 39 ELBOW | 2 | |
| 6V2313 | 40 BOLT (M5X0.8X30-MM) | 6 | |
| 6V4589 | 41 SEAL-O-RING | 1 | |
| 6V5048 | 42 SEAL-O-RING | 7 | |
| 6V5049 | 43 SEAL-O-RING | 8 | |
| 6V8647 | 44 CONNECTOR | 2 | |
| 6V9601 | 45 ADAPTER | 1 | |
| 6V9872 | 46 CONNECTOR | 2 | |
| 7C9897 | 47 HOSE AS | 1 | |
| 7D1553 | 48 CLIP | 2 | |
| 7D4092 | 49 CLIP | 3 | |
| 7D7233 | 50 CLIP (LOOP) | 10 | |
| 7E7731 | 51 MOUNT | 4 | |
| 7J4026 | 52 ELBOW | 1 | |
| 7K9197 | 53 ELBOW | 1 | |
| 7X1043 | 54 SENSOR GP-TEMPERATURE (JACKET WATER) | 1 | |
| 8C3103 | 55 SEAL-O-RING | 1 | |
| 8L2779 | 56 SEAL-O-RING | 2 | |
| 8L2786 | 57 SEAL-O-RING | 3 | |
| 8L4171 | 58 SENSOR GP-SPEED (ENGINE)(TIMING CONTROL CRANK ANGLE) | 1 | |
| 8L4171 | 58A SENSOR GP-SPEED (ENGINE)(TIMING CONTROL) | 1 | |
| 8M2770 | 59 CLIP (LOOP) | 4 | |
| 8M2773 | 60 CLIP (LOOP) | 3 | |
| 8S4626 | 61 SPLICE-WIRE | 4 | |
| 8T0788 | 62 ELBOW | 2 | |
| 8T1887 | 63 CLIP (SLOT) | 1 | |
| 8T1888 | 64 CLIP (TAB) | 1 | |
| 1356662 | 65 HARNESS AS (WASTEGATE POSITION SENSOR) | 1 | |
| 1B4971 | 66 SPACER (0.406X1X1-IN THK) | 2 | |
| 8T3285 | 67 ADAPTER | 1 | |
| 8T6342 | 68 TUBE-HEAT SHRINK (3.2-MM DIA) | ||
| 9M4594 | 69 SPACER (0.406X0.875X0.75-IN THK) | 8 | |
| 9S8752 | 70 NUT-FULL (3/8-16-THD) | 4 | |
| 9W0532 | 71 SENSOR GP-TEMPERATURE (INLET AIR) | 1 | |
| 9W0532 | 71A SENSOR GP-TEMPERATURE (FUEL) | 1 | |
| 9X5272 | 72 SENSOR GP-PRESSURE (STARTING AIR) | 1 | |
| 9X6772 | 73 STRAP-CABLE | 20 | |
| 9X6772 | 74 STRAP-CABLE | ||
| 0307946 | 75 ELBOW | 2 | |
| 0307947 | 76 ADAPTER-ELBOW | 1 | |
| 3P0764 | 77 PLUG | 1 | |
| 0532294 | 78 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 4 | |
| 0919035 | 79 SPACER (11X25X20-MM THK) | 6 | |
| 1007870 | 80 ADAPTER-O-RING | 1 | |
| 1069154 | 81 INSULATOR | 3 | |
| 1935517 | 82 SENSOR GP-SPEED (ENGINE CONTROL SPEED) | 1 | |
| 1643692 | 83 SENSOR GP-PRESSURE (CMS ENGINE OIL)(UNFILTERED) | 1 | |
| 1643692 | 83A SENSOR GP-PRESSURE (CMS ENGINE OIL)(FILTERED) | 1 | |
| 1638516 | 84 SENSOR GP-PRESSURE (SCM ENGINE OIL)(FILTERED) | 1 | |
| 1093038 | 85 END-WIRE (16-GA) | 18 | |
| 1108714 | 86 END-WIRE (18-GA) | 115 | |
| 1129273 | 87 SENSOR GP-DETONATION | 3 | |
| 1142269 | 88 SENSOR GP-TEMPERATURE (SCM ENGINE OIL) | 1 | |
| 1168092 | 89 BRACKET | 1 | |
| 1168146 | 90 BOX GP-JUNCTION | 1 | |
| 1253747 | 91 HARNESS AS (OIL TEMPERATURE) | 1 | |
| 1749024 | 92 HARNESS AS-WIRING (ENGINE PRELUBRICATION) | 1 | |
| 1253749 | 93 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1253750 | 94 HARNESS AS (FUEL TEMPERATURE) | 1 | |
| 1253751 | 95 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1253752 | 96 HARNESS AS (OIL PRESSURE UNFILTERED) | 1 | |
| 1253753 | 97 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1253754 | 98 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1253755 | 99 HARNESS AS (STARTING AIR PRESSURE) | 1 | |
| 1253756 | 100 HARNESS AS (CRANKCASE PRESSURE) | 1 | |
| 1253757 | 101 HARNESS AS (START AIR SOLENOID) | 1 | |
| 1253758 | 102 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253759 | 103 HARNESS AS (CRANK ANGLE SENSOR) | 1 | |
| 1253760 | 104 HARNESS AS-SENSOR (SPEED) | 1 | |
| 1253761 | 105 HARNESS AS (SPEED MAGNETIC PICKUP) | 1 | |
| 1253762 | 106 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253763 | 107 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253764 | 108 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253765 | 109 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253766 | 110 HARNESS AS (AIR RESTRICTION) | 1 | |
| 1253767 | 111 HARNESS AS (PRESSURE MODULE) | 1 | |
| 1253768 | 112 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253769 | 113 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253771 | 114 HARNESS AS-SENSOR (COMBUSTION) | 2 | |
| 1253772 | 115 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253773 | 116 HARNESS AS-SENSOR (COMBUSTION) | 1 | |
| 1253774 | 117 HARNESS AS-SENSOR (COMBUSTION) | 1 | |
| 1253776 | 118 HARNESS AS (OIL, WATER LEVEL) | 1 | |
| 1254587 | 119 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1254588 | 120 PLATE | 3 | |
| 1254589 | 121 PLATE | 1 | |
| 1257859 | 122 BOX GP-JUNCTION | 1 | |
| 1257860 | 123 BRACKET AS | 1 | |
| 1257861 | 124 SEAL | 9 | |
| 1257875 | 125 TUBE-HEAT SHRINK (7.44-MM DIA) | ||
| 1618931 | 126 SENSOR GP-POSITION (CHOKE) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1618931 | 126A SENSOR GP-POSITION (WASTE GATE ACTUATOR) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1618931 | 126B SENSOR GP-POSITION (FUEL ACTUATOR) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1286325 | 127 BUSHING | 1 | |
| 1293543 | 128 BOX GP-JUNCTION (HYDRAX) | 1 | |
| 1323125 | 129 COVER AS | 1 | |
| 1599009 | 130 CONTROL GP-GAS PRESSURE | 1 | |
| 1564311 | 131 TUBE AS | 1 | |
| 1356656 | 132 HARNESS AS (ACTUATOR) | 1 | |
| 1356657 | 133 HARNESS AS (FUEL HYDRAX) | 1 | |
| 1356658 | 134 HARNESS AS (FUEL POSITION SENSOR) | 1 | |
| 1356659 | 135 HARNESS AS (CHOKE HYDRAX) | 1 | |
| 1356660 | 136 HARNESS AS (CHOKE POSITION SENSOR) | 1 | |
| 1356661 | 137 HARNESS AS (WASTEGATE HYDRAX) | 1 | |
| 1356663 | 138 HARNESS AS (HYDRAX OIL PRESSURE SWITCH) | 1 | |
| 1564312 | 139 TUBE AS | 1 | |
| 1383132 | 140 BRACKET | 1 | |
| 1409669 | 141 SWITCH AS-PRESSURE (HYDRAX PRESSURE) | 1 | |
| 1863736 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE (21CM) | ||
| 1457982 | 142 SENSOR AS (JACKET WATER TEMP) | 1 | |
| 1461804 | 143 HARNESS AS (CIS CAM ANGLE) | 1 | |
| 1461805 | 144 HARNESS AS (CIS CONTROL SIGNALS) | 1 | |
| 1461806 | 145 HARNESS AS (CIS POWER) | 1 | |
| 1466671 | 146 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1521959 | 147 SWITCH AS-PRESSURE (PRELUBE OIL) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 9G3695 | PLUG-SEAL | 1 | |
| 0307961 | 148 ELBOW | 1 | |
| 8W4755 | 149 NUT-SEALING | 1 | |
| 1631209 | 150 BUSHING | 1 |
