System And Components

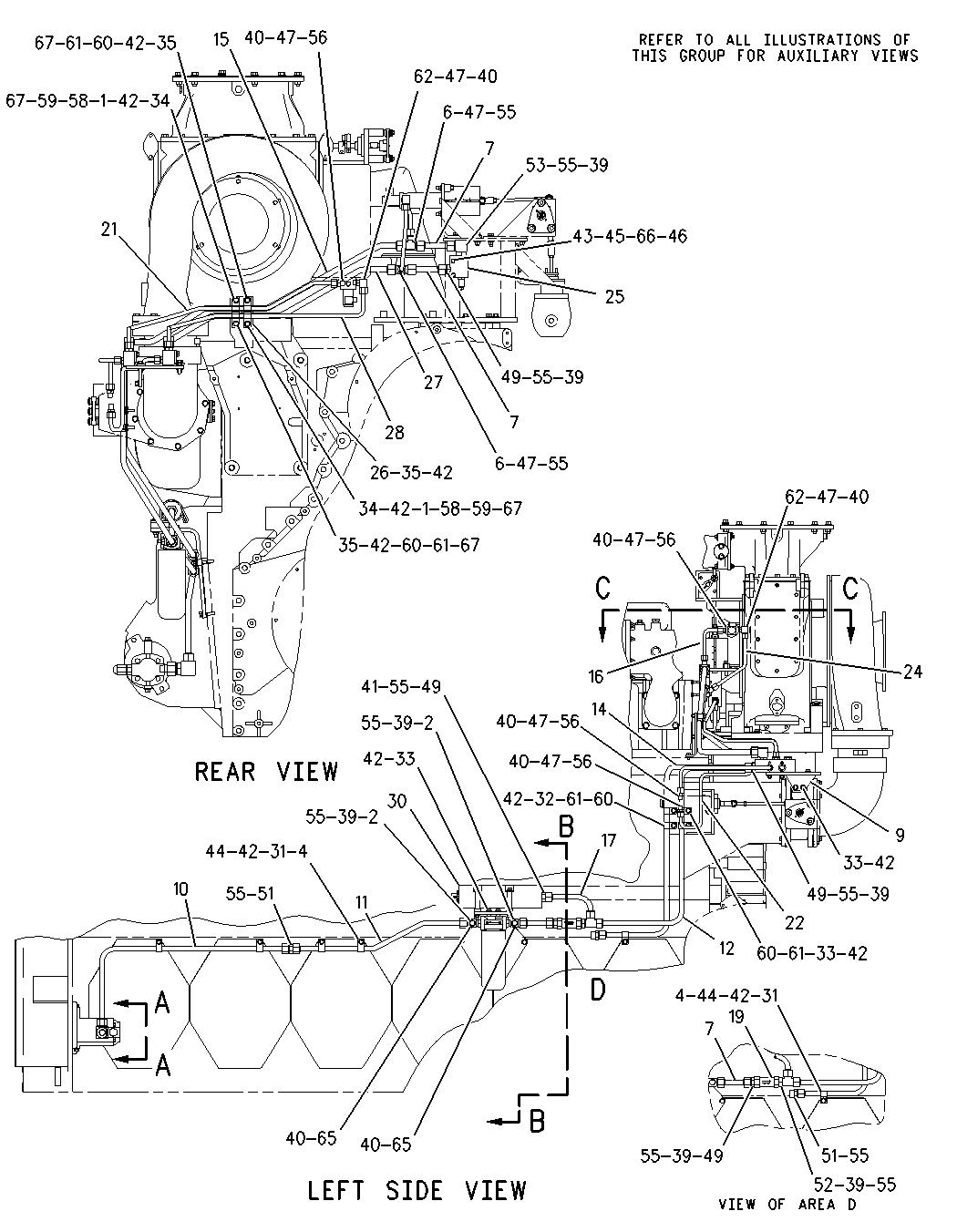

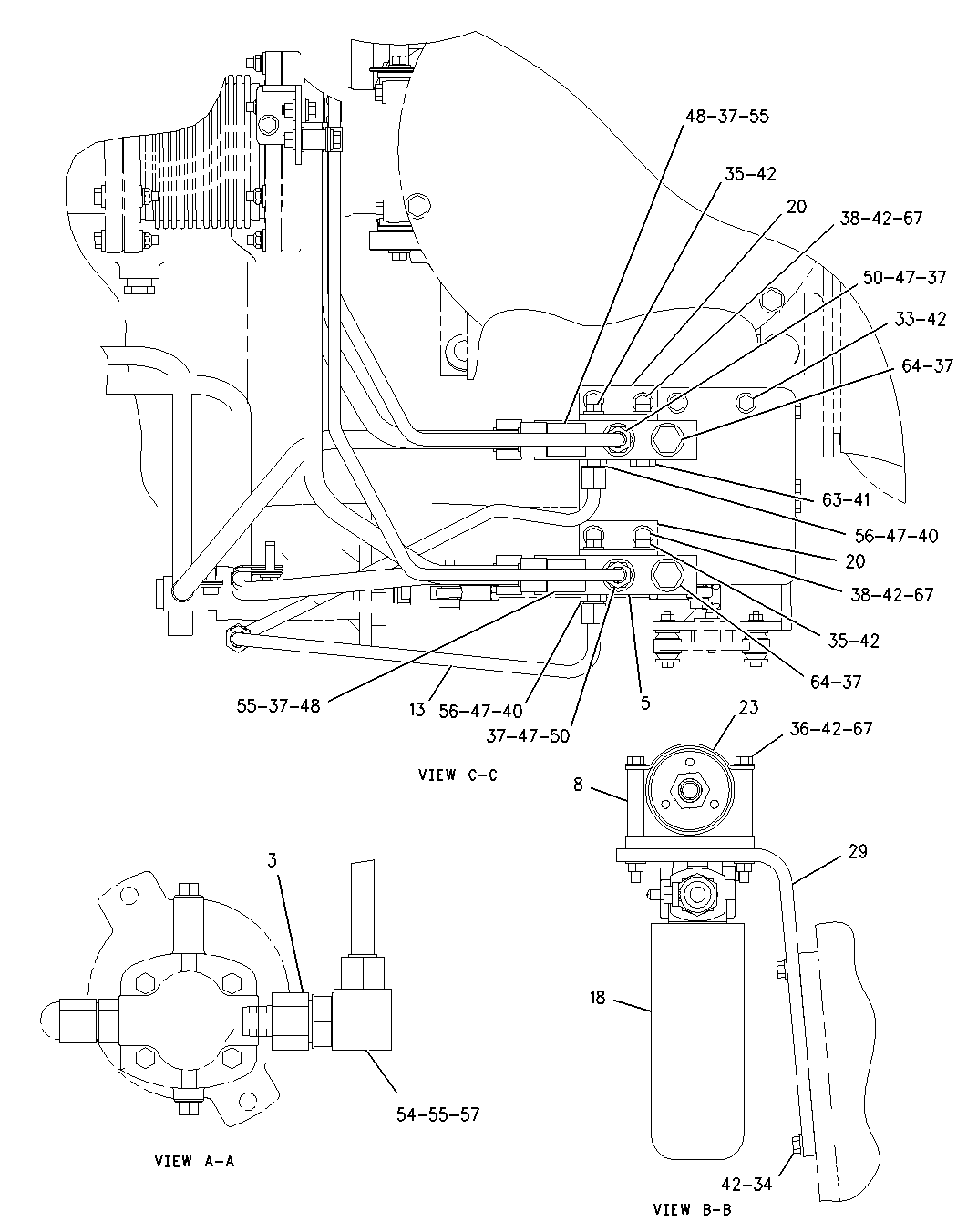

142-5067 LINES GP-HYDRAULIC (CHG -07 THRU -09)HYDRAC-DISCHARGE
Group No: 142-5067
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7C8246 | 1 SPACER (10.5X20X24-MM THK) | 2 | |
| 8C0569 | 2 TEE-O-RING | 2 | |
| 8C5053 | 3 ADAPTER | 1 | |
| 9C5344 | 4 SPACER (10.5X20X18-MM THK) | 5 | |
| 1216750 | 5 MANIFOLD | 2 | |
| 1217697 | 6 TEE-FACE SEAL | 2 | |
| 1253902 | 7 TUBE AS | 3 | |
| 1263005 | 8 PIPE | 4 | |
| 1317747 | 9 BRACKET AS | 1 | |
| 1319370 | 10 TUBE AS | 1 | |
| 1319371 | 11 TUBE AS | 1 | |
| 1319372 | 12 TUBE AS | 1 | |
| 1319373 | 13 TUBE AS | 1 | |
| 1319376 | 14 TUBE AS | 1 | |
| 1319379 | 15 TUBE AS | 1 | |
| 1319381 | 16 TUBE AS | 1 | |
| 1319382 | 17 TUBE AS | 1 | |
| 1386144 | 18 FILTER GP-ENGINE OIL | 1 | |
| 1386158 | 19 VALVE-CHECK | 1 | |
| 1386261 | 20 BRACKET | 2 | |
| 1419904 | 21 TUBE AS | 1 | |
| 1470529 | 22 TUBE AS | 1 | |
| 1700990 | 23 CLAMP | 2 | |
| 1715858 | 24 TUBE AS | 1 | |
| 1763586 | 25 VALVE AS-RELIEF | 1 | |
| 2M9780 | SEAL-O-RING | 2 | |
| 1763591 | 26 BRACKET AS | 1 | |
| 1845287 | 27 TUBE AS | 1 | |
| 1845288 | 28 TUBE AS | 1 | |
| 1987778 | 29 BRACKET AS | 1 | |
| 1993141 | 30 ACCUMULATOR GP-TURBOCHARGER | 1 | |
| 0L1143 | 31 BOLT (3/8-16X2.5-IN) | 5 | |
| 0S0509 | 32 BOLT (3/8-16X0.75-IN) | 2 | |
| 0S1588 | 33 BOLT (3/8-16X1.25-IN) | 10 | |
| 0S1590 | 34 BOLT (3/8-16X2-IN) | 5 | |
| 0S1594 | 35 BOLT (3/8-16X1-IN) | 7 | |
| 1A5183 | 36 BOLT (3/8-16X4.75-IN) | 4 | |
| 2M9780 | 37 SEAL-O-RING | 6 | |
| 3B1915 | 38 BOLT (3/8-16X1.375-IN) | 4 | |
| 3D2824 | 39 SEAL-O-RING | 8 | |
| 3J1907 | 40 SEAL-O-RING | 10 | |
| 3K0360 | 41 SEAL-O-RING | 2 | |
| 3V3308 | 42 WASHER-HARD (10.2X20.5X2.5-MM THK) | 49 | |
| 4B9365 | 43 BOLT (1/4-20X3-IN) | 2 | |
| 5K9660 | 44 CLIP (LOOP) | 5 | |
| 5P0537 | 45 WASHER-HARD (7.2X14.5X2-MM THK) | 2 | |
| 6V7646 | 46 WASHER-HARD (7.2X25X2-MM THK) | 2 | |
| 6V8398 | 47 SEAL-O-RING | 12 | |
| 6V8629 | 48 ELBOW | 2 | |
| 6V8637 | 49 CONNECTOR | 5 | |
| 6V8638 | 50 CONNECTOR | 2 | |
| 6V8733 | 51 UNION | 2 | |
| 6V8784 | 52 TEE-FACE SEAL | 1 | |
| 6V9007 | 53 ELBOW | 1 | |
| 6V9182 | 54 ELBOW | 1 | |
| 6V9746 | 55 SEAL-O-RING | 20 | |
| 6V9873 | 56 CONNECTOR | 6 | |
| 7M8485 | 57 SEAL-O-RING | 1 | |
| 8T1885 | 58 CLIP (SLOT) | 2 | |
| 8T1886 | 59 CLIP (TAB) | 2 | |
| 8T1887 | 60 CLIP (SLOT) | 6 | |
| 8T1888 | 61 CLIP (TAB) | 6 | |
| 8T6876 | 62 ELBOW | 2 | |
| 9S4185 | 63 PLUG (3/4-16-THD) | 1 | |
| 9S4190 | 64 PLUG-O-RING (7/8-14-THD) | 2 | |
| 9S4191 | 65 PLUG (9/16-18-THD) | 2 | |
| 9S8750 | 66 NUT-FULL (1/4-20-THD) | 2 | |
| 9S8752 | 67 NUT-FULL (3/8-16-THD) | 12 |
