System And Components

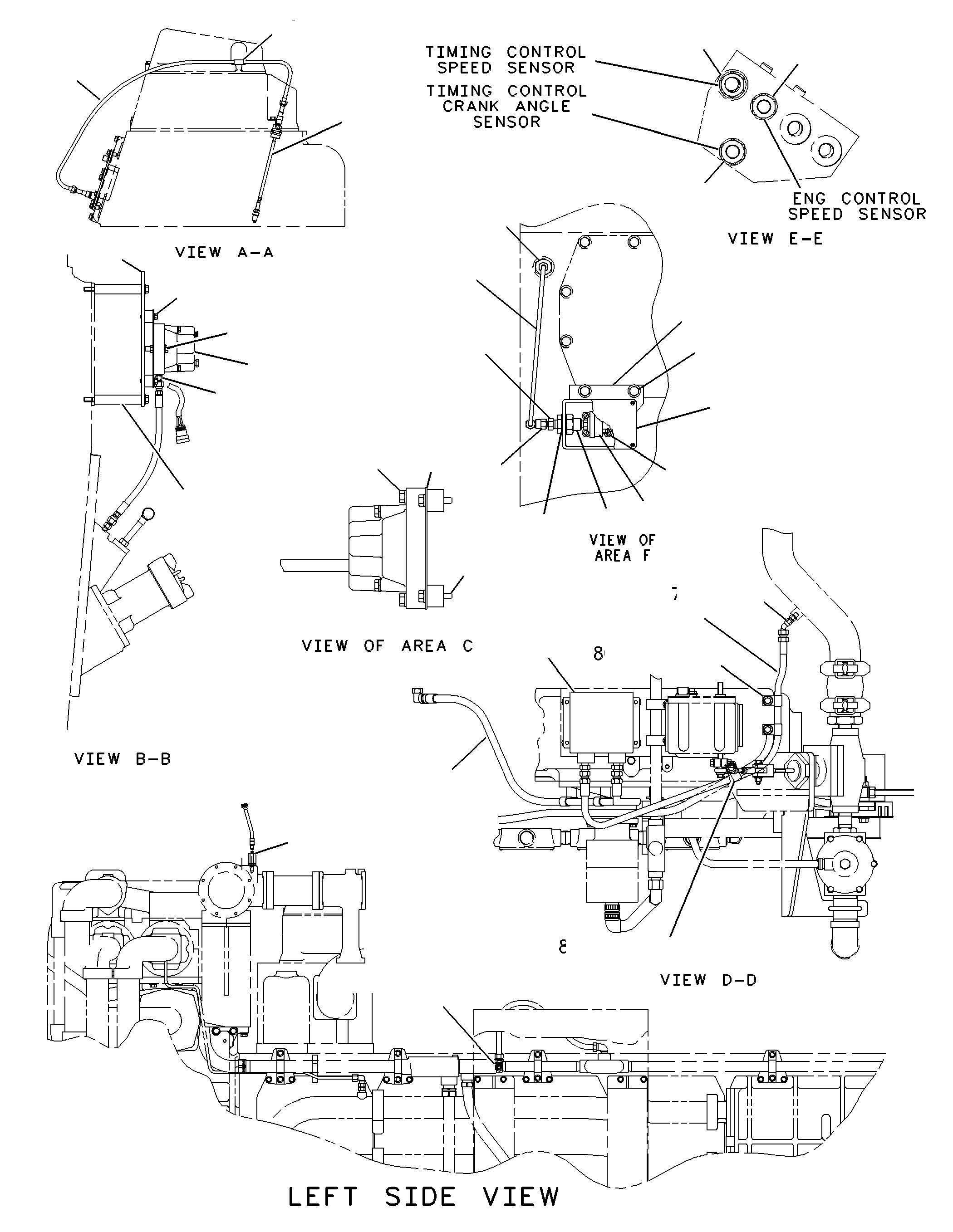

4P-5801 SENSOR & MOUNTING GP (CHG -08, -08D1)PART OF 101-1271, 106-8121 SCHEMATIC & COMPONENT GP
Group No: 4P-5801
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W0532 | 1 SENSOR GP-TEMPERATURE (FUEL TEMPERATURE SENSOR) | 1 | |
| 8L2786 | 2 SEAL-O-RING | 3 | |
| 3E6116 | 3 CONTROL GP-ENGINE ELECTRONIC (COMBUSTION BUFFER) | 8 | |
| 6V9601 | 4 ADAPTER | 1 | |
| 6V5049 | 5 SEAL-O-RING | 5 | |
| 6V8647 | 6 CONNECTOR | 2 | |
| 6V5048 | 7 SEAL-O-RING | 5 | |
| 9S8752 | 8 NUT-FULL (3/8-16-THD) | 3 | |
| 3V3308 | 9 WASHER-HARD (10.2X20.5X2.5-MM THK) | 9 | |
| 0S1594 | 10 BOLT (3/8-16X1-IN) | 1 | |
| 5N2840 | 11 CLIP | 3 | |
| 1007870 | 12 ADAPTER-O-RING | 1 | |
| 9X5272 | 13 SENSOR GP-PRESSURE (STARTING AIR PRESSURE SENSOR) | 1 | |
| 1129273 | 14 SENSOR GP-DETONATION | 1 | |
| 7E1322 | 15 PLATE | 1 | |
| 0L2070 | 16 BOLT (3/8-16X2.25-IN) | 2 | |
| 0S1588 | 17 BOLT (3/8-16X1.25-IN) | 2 | |
| 7C9897 | 18 HOSE AS | 1 | |
| 3J7352 | 19 CONNECTOR | 1 | |
| 3E9189 | 20 SENSOR GP-PRESSURE (INLET AIR RESTRICTION SENSOR) | 1 | |
| 1B4971 | 21 SPACER (0.406X1X1-IN THK) | 2 | |
| 8M2773 | 22 CLIP (LOOP) | 2 | |
| 0L1143 | 23 BOLT (3/8-16X2.5-IN) | 2 | |
| 8M9024 | 24 WASHER-HARD (10.2X22.5X5-MM THK) | 2 | |
| 0054362 | 25 ELBOW | 1 | |
| 1073952 | 26 SENSOR GP-PRESSURE (CMS ENG. SENSOR-UNFILTERED) | 1 | |
| 8T0788 | 27 ELBOW | 2 | |
| 8L2779 | SEAL-O-RING | 2 | |
| 6V9872 | CONNECTOR | 2 | |
| 1077142 | 28 SENSOR GP-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 9X1813 | SLEEVE | ||
| 5P8245 | 29 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 0S1587 | 30 BOLT (1/2-13X1.75-IN) | 1 | |
| 3N8278 | 31 ADAPTER-SENSOR | 1 | |
| 6I0407 | 32 THERMOCOUPLE | 1 | |
| 5P9617 | 33 ADAPTER | 1 | |
| 3J1907 | 34 SEAL-O-RING | 1 | |
| 0307946 | 35 ELBOW | 2 | |
| 5T4375 | 36 HOSE AS | 1 | |
| 0689941 | 37 WIRE-TIE | 2 | |
| 1007887 | 38 SENSOR GP-TEMPERATURE (CMS ENGINE OIL) | 1 | |
| 5B2638 | 39 BOLT (3/8-16X5.25-IN) | 1 | |
| 1073952 | 40 SENSOR GP-PRESSURE (CMS ENG. SENSOR-FILTERED) | 1 | |
| 0328970 | 41 SEAL-O-RING | 8 | |
| 6I3783 | WIRE AS-SENSOR | 8 | |
| 5P9297 | 42 CLIP (LOOP) | 8 | |
| 7X6354 | 43 CONTROL GP-ENGINE MONITORING (COMBUSTION SENSOR) | 8 | |
| 6V5050 | SEAL-O-RING | 8 | |
| 9Y9969 | 44 PLATE | 1 | |
| 1007834 | 45 PLATE AS | 2 | |
| 7B2742 | 46 BOLT (1/4-20X1.25-IN) | 4 | |
| 5P0537 | 47 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 4J9448 | LUG | 8 | |
| 0S1571 | 48 BOLT (3/8-16X1.75-IN) | 4 | |
| 5M2894 | WASHER-HARD (10.2X18.5X2.5-MM THK) | 4 | |
| 3E8689 | 49 SENSOR GP-PRESSURE (CRANKCASE) | 1 | |
| 6V5048 | 50 SEAL-O-RING | 3 | |
| 3J7352 | 51 CONNECTOR | 1 | |
| 5B2638 | 52 BOLT (3/8-16X5.25-IN) | 3 | |
| 3V3308 | 53 WASHER-HARD (10.2X20.5X2.5-MM THK) | 5 | |
| 1W0393 | 54 TUBE | 3 | |
| 2A5546 | 55 BOLT (1/4-20X1.375-IN) | 4 | |
| 1140126 | 56 PLATE | 1 | |
| 6V4589 | 57 SEAL-O-RING | 1 | |
| 0S1588 | 58 BOLT (3/8-16X1.25-IN) | 2 | |
| 9Y1925 | 59 BOX AS | 1 | |
| 8N0896 | GEAR (151-TEETH) | 1 | |
| 4B1229 | 60 SCREW (10-24X12.7-MM) | 4 | |
| 6V7699 | WASHER-HARD (5.5X13X1.6-MM THK) | 4 | |
| 3N1400 | 61 SWITCH AS-PRESSURE (PRELUBE OIL PRESS) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9M7357 | 62 COUPLING AS | 1 | |
| 7J8744 | 63 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 7K9197 | 64 ELBOW | 1 | |
| 8L2786 | 65 SEAL-O-RING | 1 | |
| 4S6399 | 66 CONNECTOR | 1 | |
| 8L4171 | 67 SENSOR GP-SPEED (ENGINE) | 2 | |
| 5P8247 | 68 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 1072675 | 69 SENSOR AS-SPEED | 1 | |
| 4N3329 | 70 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 2T1392 | 71 HOSE AS | 1 | |
| 3E0166 | 72 CONTROL GP-ENGINE MONITORING (AIR/FUEL PRESSURE MODULE) | 1 | |
| 7E1230 | 73 HOSE AS | 1 | |
| 2P1314 | 74 CONNECTOR | 1 | |
| 6V5049 | 75 SEAL-O-RING | 7 | |
| 0307961 | 76 ELBOW | 1 | |
| 6D3479 | 77 CLIP (LOOP) | 3 | |
| 0L1143 | 78 BOLT (3/8-16X2.5-IN) | 1 | |
| 8M9024 | 79 WASHER-HARD (10.2X22.5X5-MM THK) | 3 | |
| 1B4971 | 80 SPACER (0.406X1X1-IN THK) | 4 | |
| 0T0573 | 81 BOLT (3/8-16X2.75-IN) | 2 | |
| 7X1043 | 82 SENSOR GP-TEMPERATURE (JACKET WATER TEMP. SENSOR) | 1 | |
| 8T3285 | 83 ADAPTER | 1 | |
| 9W0532 | 84 SENSOR GP-TEMPERATURE (FUEL TEMPERATURE SENSOR) | 1 | |
| 1132039 | 85 TUBE AS | 1 | |
| 0308195 | 86 CONNECTOR | 1 |
