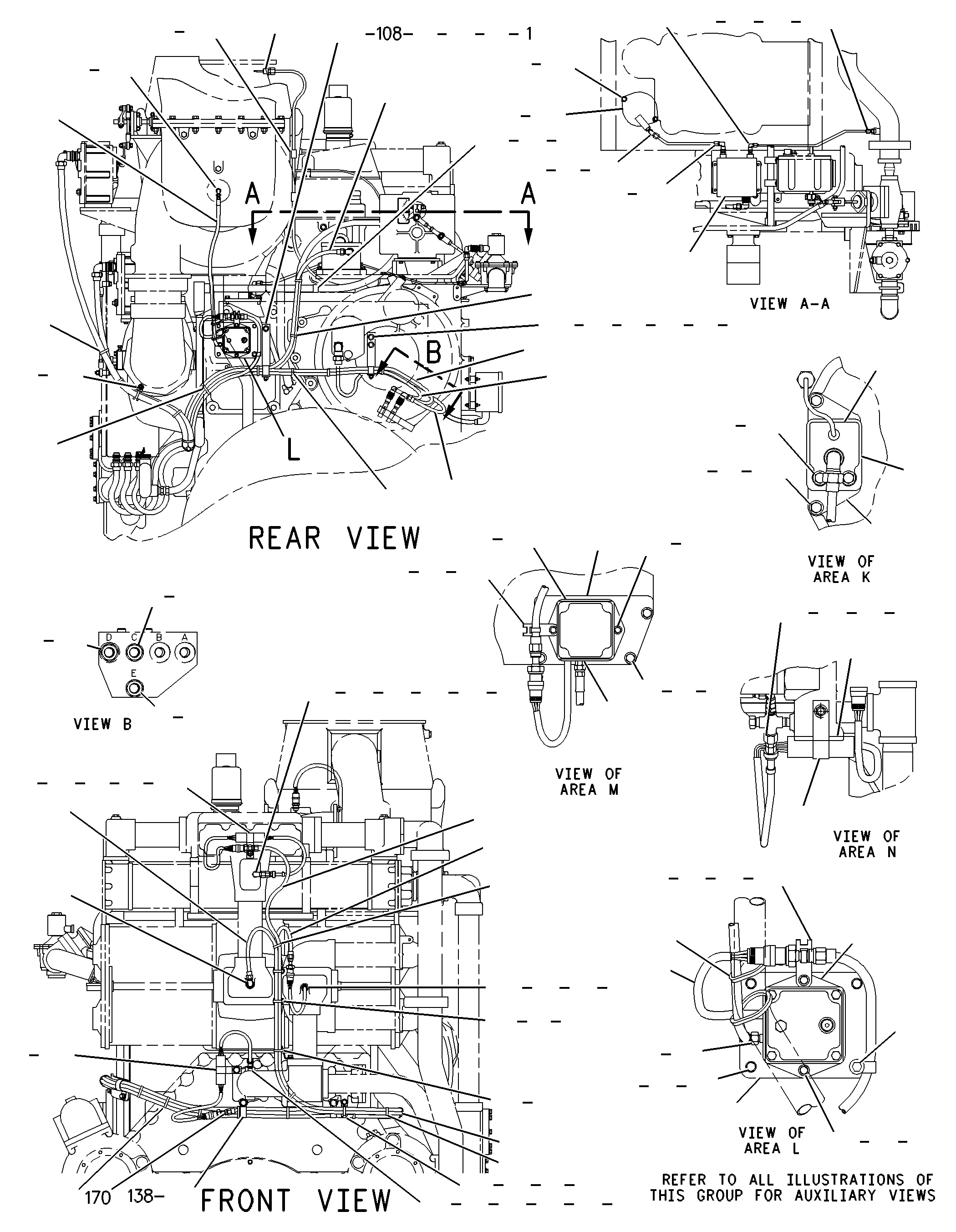

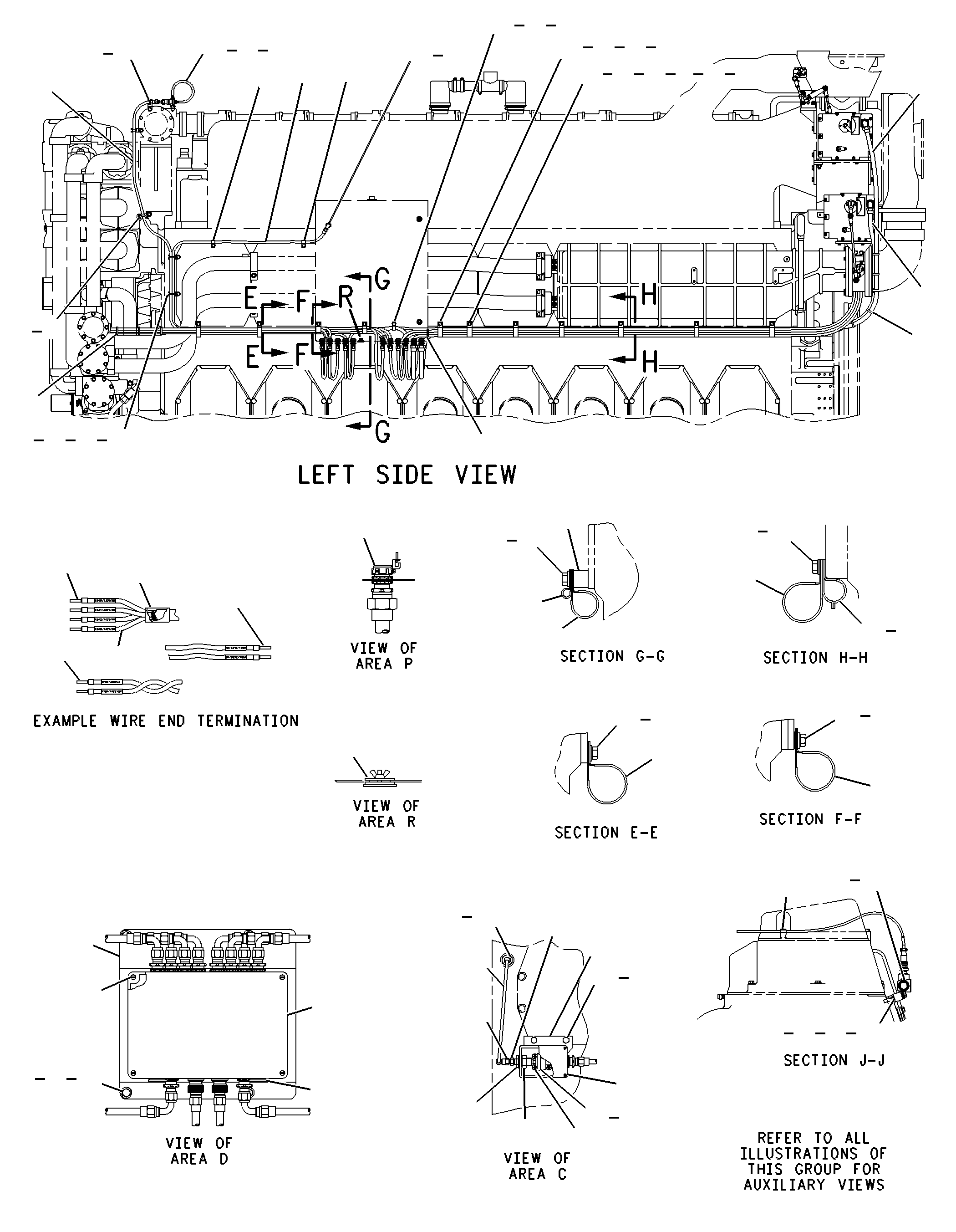

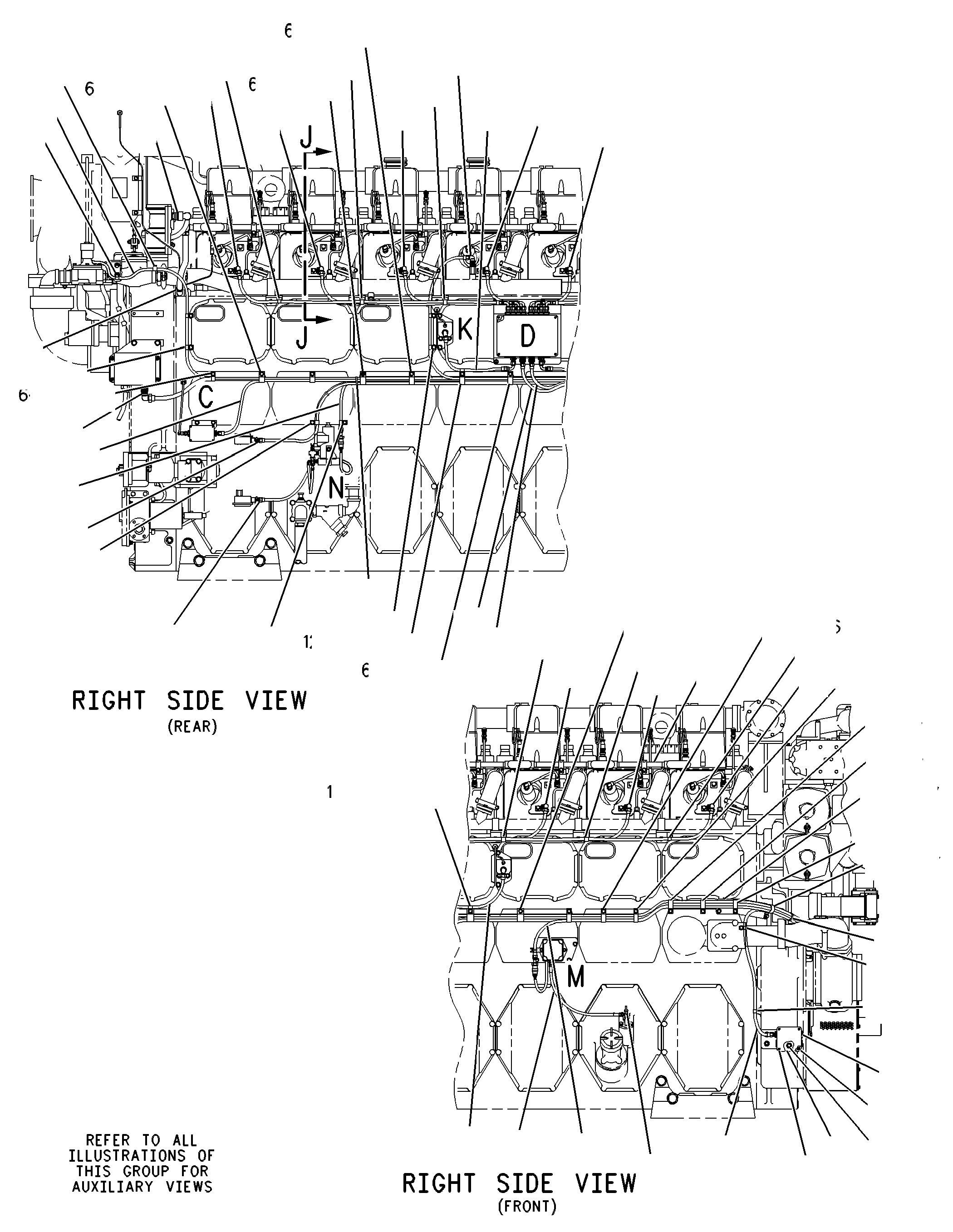

125-3806 WIRING GP-ENGINE (CHG -03)PART OF 117-5306 SCHEMATIC & COMPONENT GP

Group No: 125-3806
Part NumberPart NameQty
0S15941 BOLT (3/8-16X1-IN)8
3B19152 BOLT (3/8-16X1.375-IN)13
9X67723 STRAP-CABLE
7D72334 CLIP (LOOP)7
3V33085 WASHER-HARD (10.2X20.5X2.5-MM THK)33
4H12256 WASHER (11X22X6-MM THK)11
9S87527 NUT-FULL (3/8-16-THD)1
4S19628 CLIP (LOOP)2
1A20299 BOLT (3/8-16X1.125-IN)6
8M277010 CLIP (LOOP)4
4D738811 CLIP2
5P929712 CLIP (LOOP)9
8M277313 CLIP (LOOP)3
6V504814 SEAL-O-RING1
7C989715 HOSE AS1
8L278616 SEAL-O-RING1
9W053217 SENSOR GP-TEMPERATURE (FUEL TEMP SENSOR)1
5P785418 CLIP (LOOP)4
2N316219 SCREW-MACHINE (10-24X1.25-IN)4
0S158820 BOLT (3/8-16X1.25-IN)1
0S157121 BOLT (3/8-16X1.75-IN)1
030794622 ELBOW1
8S462623 SPLICE-WIRE4
1S099424 CLIP (LOOP)3
125380225 HARNESS AS (COMBUSTION BUFFER)1
125379626 HARNESS AS (GAS SHUTOFF VALVE)1
125378527 HARNESS AS1
125377428 HARNESS AS-SENSOR (COMBUSTION)1
125377329 HARNESS AS-SENSOR (COMBUSTION)2
125377230 HARNESS AS (COMBUSTION BUFFER)2
125379831 HARNESS AS-SENSOR (DETONATION)1
125378932 HARNESS AS (FUEL TEMPERATURE)1
125380333 HARNESS AS1
125377634 HARNESS AS (OIL, WATER LEVEL)1
125377135 HARNESS AS-SENSOR (COMBUSTION)2
125380436 HARNESS AS-SENSOR (DETONATION)1
125380137 HARNESS AS (COMBUSTION BUFFER)1
125379738 HARNESS AS-SENSOR (DETONATION)1
125375639 HARNESS AS (CRANKCASE PRESSURE)1
125378840 HARNESS AS1
125379041 HARNESS AS (STARTING AIR PRESSURE)1
125379242 HARNESS AS (AIR PRELUBRICATION SOLENOID)1
125379143 HARNESS AS (STARTING AIR SOLENOID)1
125458944 PLATE1
125786145 SEAL3
125786046 BRACKET AS1
0S159147 BOLT (3/8-16X1.5-IN)2
0S050948 BOLT (3/8-16X0.75-IN)1
4S571949 SPACER (10.31X25X12.7-MM THK)1
125785950 BOX GP-JUNCTION1
125380751 HARNESS AS-SENSOR (THERMOCOUPLE)1
9X677252 STRAP-CABLE5
9X677253 STRAP-CABLE
8T634254 TUBE-HEAT SHRINK (3.2-MM DIA)
3V330855 WASHER-HARD (10.2X20.5X2.5-MM THK)20
0L207056 BOLT (3/8-16X2.25-IN)4
4S571957 SPACER (10.31X25X12.7-MM THK)4
1A202958 BOLT (3/8-16X1.125-IN)5
5P929759 CLIP (LOOP)3
9L913260 WASHER-HARD (10.2X25.5X2.5-MM THK)14
128632561 BUSHING1
8L278662 SEAL-O-RING1
1B497163 SPACER (0.406X1X1-IN THK)9
8M277364 CLIP (LOOP)1
9W053265 SENSOR GP-TEMPERATURE (INLET AIR TEMPERATURE)1
7X104366 SENSOR GP-TEMPERATURE1
8T328567 ADAPTER1
6V504968 SEAL-O-RING1
0S159069 BOLT (3/8-16X2-IN)7
5P785470 CLIP (LOOP)1
9M459471 SPACER (0.406X0.875X0.75-IN THK)3
0S159172 BOLT (3/8-16X1.5-IN)1
7D155373 CLIP10
0S161974 BOLT (3/8-16X3-IN)1
8T189675 CLIP (TAB)13
125378676 HARNESS AS1
125378777 HARNESS AS1
125375178 HARNESS AS (JACKET WATER TEMPERATURE)1
125374979 HARNESS AS (JACKET WATER TEMPERATURE)1
8T189580 CLIP (SLOT)13
4P758181 CLIP (LADDER)4
4P742882 CLIP (LADDER)1
0T057383 BOLT (3/8-16X2.75-IN)7
2L807584 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW)2
109303885 END-WIRE (16-GA)9
109303986 END-WIRE (12-GA)6
110871487 END-WIRE (18-GA)75
129763688 BOX GP-JUNCTION1
116809289 BRACKET1
124963390 CLIP (SLOT)7
2N316291 SCREW-MACHINE (10-24X1.25-IN)4
114012692 PLATE1
0S158893 BOLT (3/8-16X1.25-IN)2
9Y192594 BOX AS1
2N347895 SCREW-MACHINE (10-24X0.375-IN)4
125786196 SEAL8
3N140097 SWITCH AS-PRESSURE1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9M735798 COUPLING AS1
7J874499 WASHER (0.781X0.125X0.075-IN THK)1
7K9197100 ELBOW1
1132039101 TUBE AS1
0308195102 CONNECTOR1
6V4589103 SEAL-O-RING1
6K8179104 CLIP8
4S6399105 CONNECTOR1
1257875106 TUBE-HEAT SHRINK (7.44-MM DIA)
9X6772107 STRAP-CABLE9
0S1594108 BOLT (3/8-16X1-IN)8
9X6772109 STRAP-CABLE
3V3308110 WASHER-HARD (10.2X20.5X2.5-MM THK)24
9S8752111 NUT-FULL (3/8-16-THD)2
5P1075112 WASHER-HARD (10.2X22.5X3-MM THK)3
0919035113 SPACER (11X25X20-MM THK)4
6B5072114 ADAPTER1
6K9194115 ELBOW2
3J7352116 CONNECTOR1
4P8134117 CLIP (LADDER)4
7K9197118 ELBOW1
8L2786119 SEAL-O-RING1
8C3103120 SEAL-O-RING1
0307947121 ADAPTER-ELBOW1
1323125122 COVER AS1
1374348123 TUBE AS1
0689941124 WIRE-TIE2
7J4026125 ELBOW1
3J1907126 SEAL-O-RING1
6V5048127 SEAL-O-RING6
0307946128 ELBOW1
5T4375129 HOSE AS1
3E9189130 SENSOR GP-PRESSURE (INLET AIR SENSOR)1
1007834131 PLATE AS1
1F0750NUT-WELD (3/8-16-THD)2
5P0537132 WASHER-HARD (7.2X14.5X2-MM THK)3
2A5546133 BOLT (1/4-20X1.375-IN)4
0L1143134 BOLT (3/8-16X2.5-IN)4
4J9448135 LUG4
1374347136 TUBE AS1
8L4171137 SENSOR GP-SPEED (ENGINE)1
7D4092138 CLIP2
5P8245139 WASHER-HARD (13.5X25.5X3-MM THK)5
5N2840140 CLIP3
5B2638141 BOLT (3/8-16X5.25-IN)1
1142269142 SENSOR GP-TEMPERATURE (OIL)1
1007870143 ADAPTER-O-RING1
6V5049144 SEAL-O-RING7
1077142145 SENSOR GP-PRESSURE (FILTERED OIL PRESSURE)1
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)3
8T8731PLUG-CONNECTOR (3-PIN)1
9X1813SLEEVE
6V8647146 CONNECTOR2
1073952147 SENSOR GP-PRESSURE (UNFILTERED OIL PRESSURE)1
8L2779148 SEAL-O-RING2
8T0788149 ELBOW2
6V9872150 CONNECTOR2
0S1590151 BOLT (3/8-16X2-IN)3
5P7854152 CLIP (LOOP)1
1073952153 SENSOR GP-PRESSURE (FILTERED OIL PRESSURE)1
0532294154 BOLT-12 POINT HEAD (3/8-16X1.75-IN)4
7E2953155 BRACKET1
9M4594156 SPACER (0.406X0.875X0.75-IN THK)3
1129273157 SENSOR GP-DETONATION2
1254588158 PLATE2
3E8689159 SENSOR GP-PRESSURE1
1254587160 PLATE AS1
1F0750NUT-WELD (3/8-16-THD)2
9X5272161 SENSOR GP-PRESSURE1
6V9601162 ADAPTER1
4P7581163 CLIP (LADDER)5
7E2954164 BRACKET1
0S0509165 BOLT (3/8-16X0.75-IN)1
1253747166 HARNESS AS (OIL TEMPERATURE)1
1253752167 HARNESS AS (OIL PRESSURE UNFILTERED)1
1253754168 HARNESS AS (OIL PRESSURE FILTERED)1
1253795169 HARNESS AS (SPEED MAGNETIC PICKUP)1
1253753170 HARNESS AS (OIL PRESSURE FILTERED)1
1253800171 HARNESS AS (PRESSURE MODULE)1
1253799172 HARNESS AS (AIR RESTRICTION)1
1253794173 HARNESS AS (ENGINE CONTROL MODULE)1
1253793174 HARNESS AS (CRANK ANGLE SENSOR)1
1S0994175 CLIP (LOOP)1
0L2070176 BOLT (3/8-16X2.25-IN)4
2P1314177 CONNECTOR1
1331412178 CONTROL GP-ENGINE MONITORING1
8L4171179 SENSOR GP-SPEED (ENGINE)(TIMING SPEED)1
5P8247180 WASHER-HARD (17X32X3.5-MM THK)2
1072675181 SENSOR AS-SPEED (ENGINE SPEED)1
4N3329182 WASHER (16.25X25.65X0.79-MM)1
4S1962183 CLIP (LOOP)1
4D8948184 CLIP2
1069154185 INSULATOR2
0307961186 ELBOW1
3V2431187 WASHER (10.2X16X2-MM THK)4
5P9297188 CLIP (LOOP)1
6V7646189 WASHER-HARD (7.2X25X2-MM THK)1
