System And Components

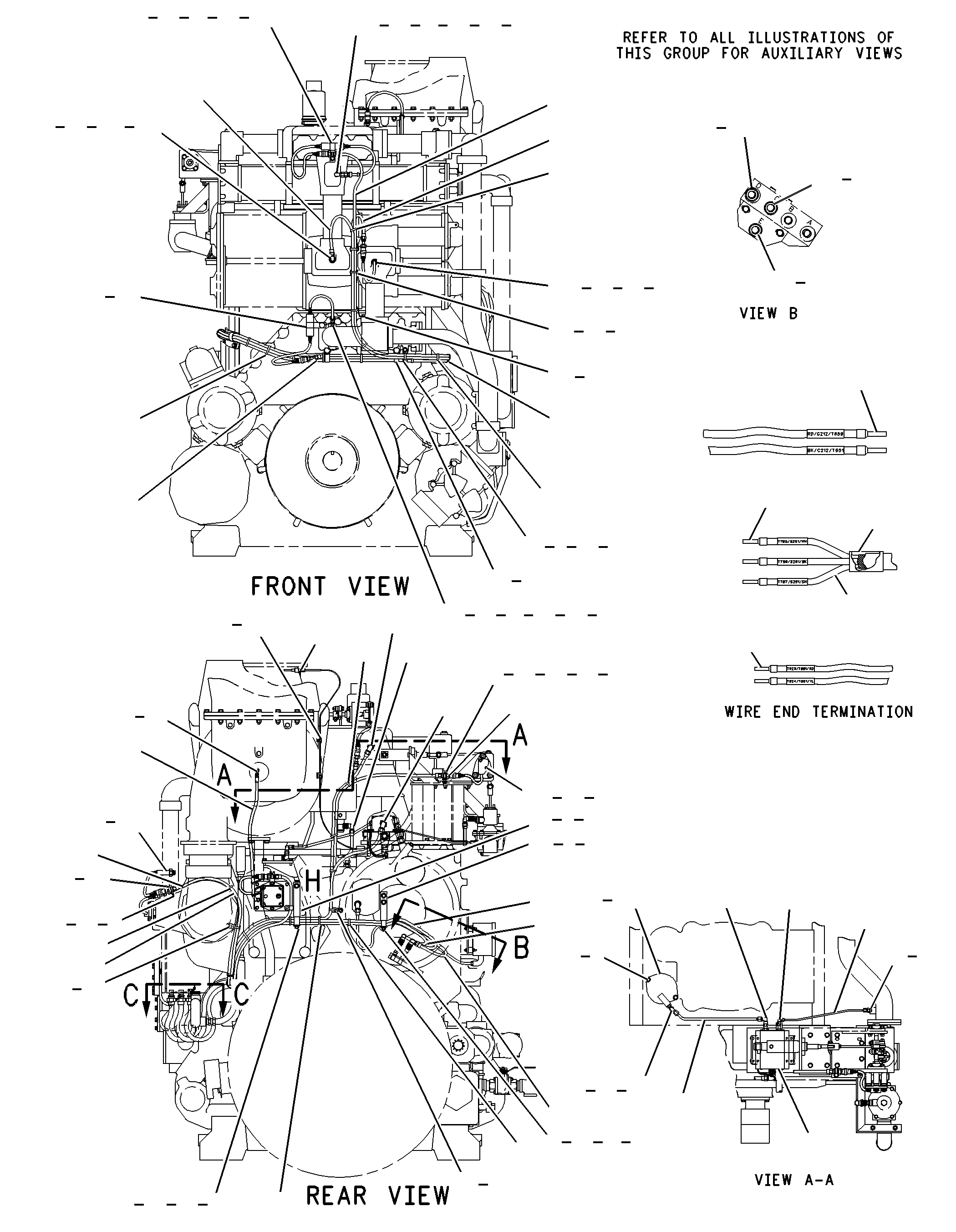

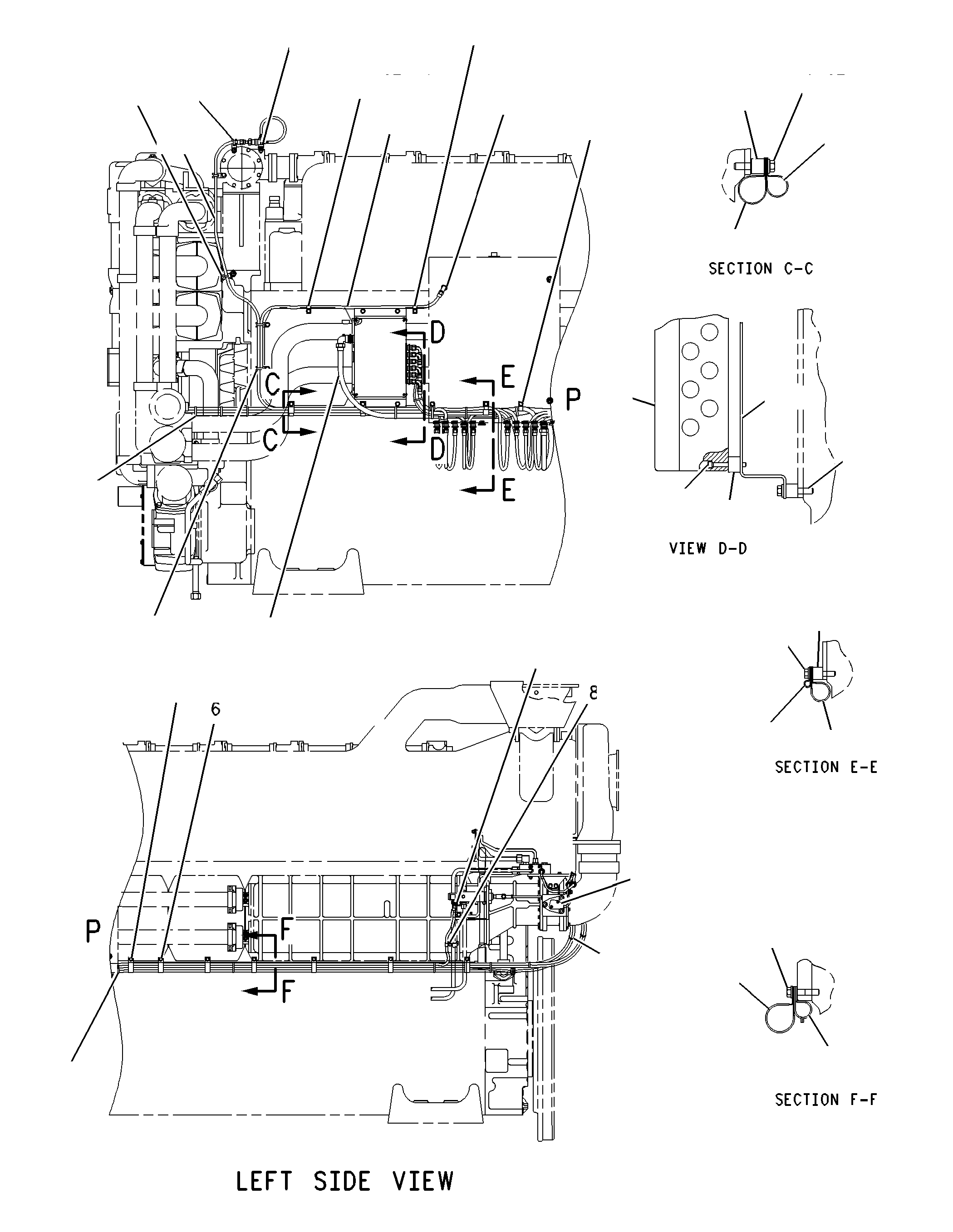

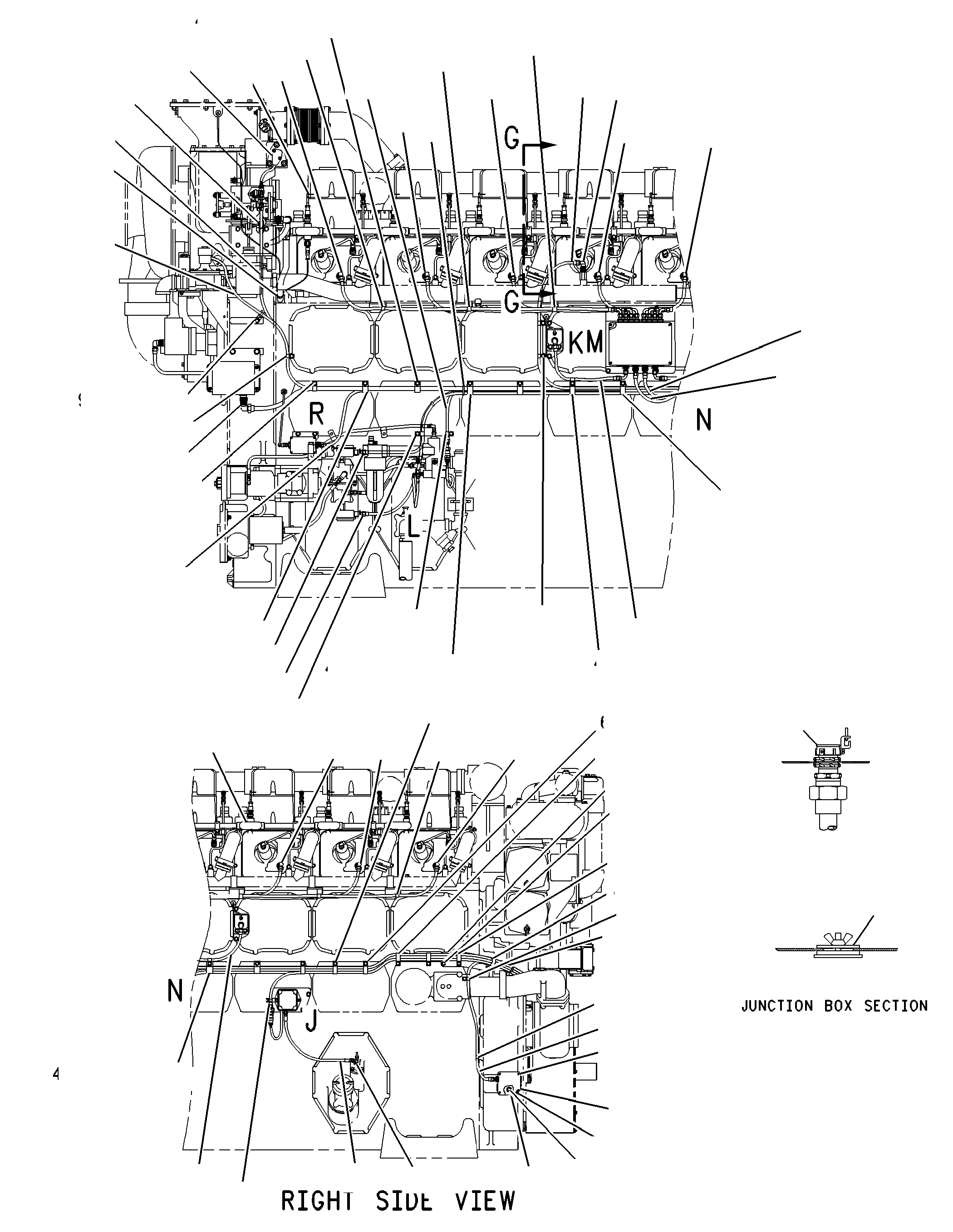

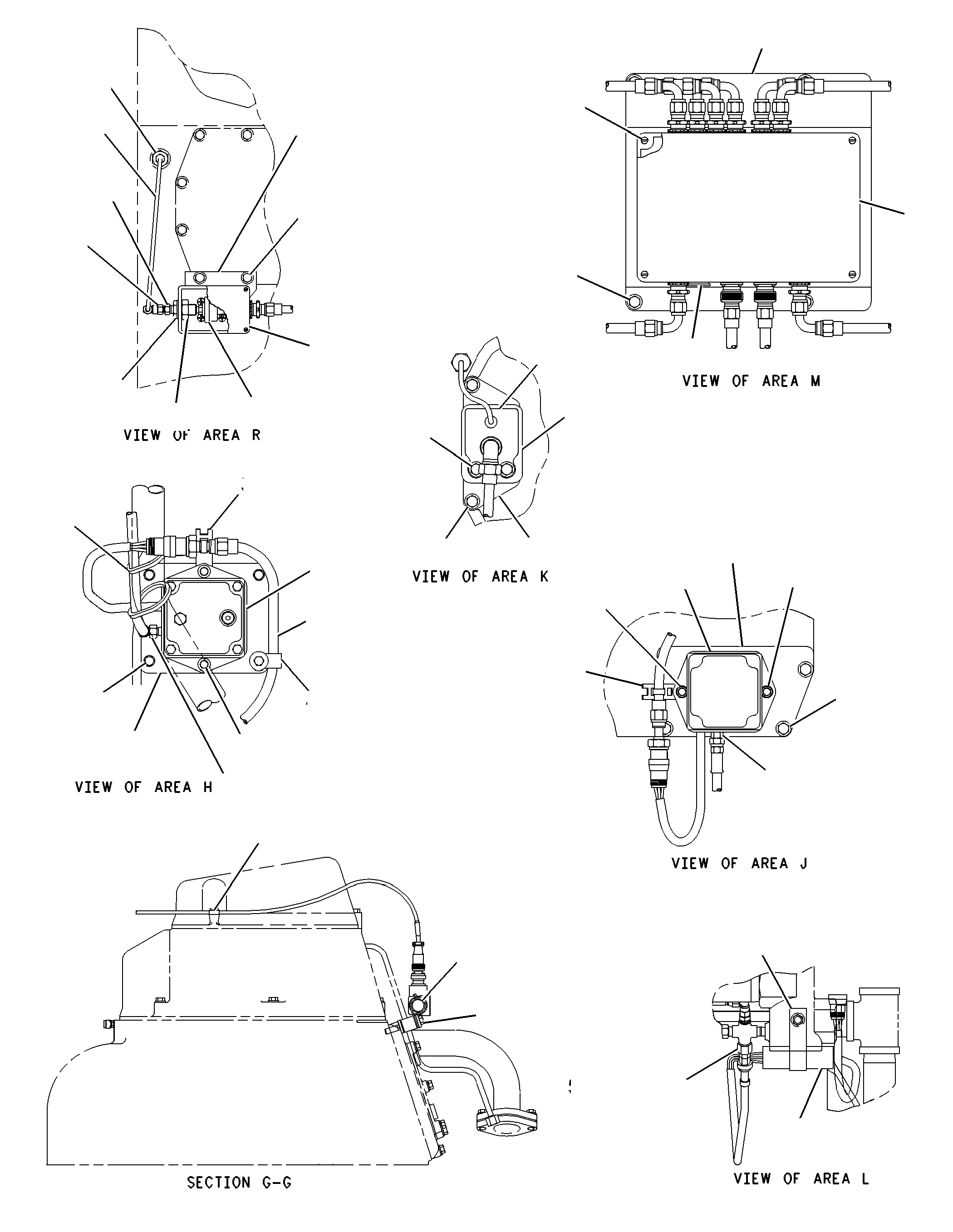

142-5015 WIRING GP-ENGINE (CHG -00)G3608-HYDRAX
Group No: 142-5015
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0L1143 | 1 BOLT (3/8-16X2.5-IN) | 4 | |
| 0L2070 | 2 BOLT (3/8-16X2.25-IN) | 8 | |
| 0S0509 | 3 BOLT (3/8-16X0.75-IN) | 2 | |
| 0S1571 | 4 BOLT (3/8-16X1.75-IN) | 3 | |
| 0S1588 | 5 BOLT (3/8-16X1.25-IN) | 4 | |
| 0S1590 | 6 BOLT (3/8-16X2-IN) | 16 | |
| 0S1591 | 7 BOLT (3/8-16X1.5-IN) | 2 | |
| 0S1594 | 8 BOLT (3/8-16X1-IN) | 17 | |
| 0S1619 | 9 BOLT (3/8-16X3-IN) | 1 | |
| 0T0573 | 10 BOLT (3/8-16X2.75-IN) | 5 | |
| 1A2029 | 11 BOLT (3/8-16X1.125-IN) | 10 | |
| 1B4971 | 12 SPACER (0.406X1X1-IN THK) | 7 | |
| 1S0994 | 13 CLIP (LOOP) | 3 | |
| 2A5546 | 14 BOLT (1/4-20X1.375-IN) | 4 | |
| 2L8075 | 15 TERMINAL-RING (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 2N3162 | 16 SCREW-MACHINE (10-24X1.25-IN) | 8 | |
| 2N3478 | 17 SCREW-MACHINE (10-24X0.375-IN) | 4 | |
| 2P1314 | 18 CONNECTOR | 1 | |
| 3B1915 | 19 BOLT (3/8-16X1.375-IN) | 11 | |
| 3E8689 | 20 SENSOR GP-PRESSURE | 1 | |
| 3E9189 | 21 SENSOR GP-PRESSURE | 1 | |
| 3J1907 | 22 SEAL-O-RING | 1 | |
| 3J7352 | 23 CONNECTOR | 1 | |
| 3K0360 | 24 SEAL-O-RING | 1 | |
| 3N1400 | 25 SWITCH AS-PRESSURE | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 3V2431 | 26 WASHER (10.2X16X2-MM THK) | 4 | |
| 3V3308 | 27 WASHER-HARD (10.2X20.5X2.5-MM THK) | 85 | |
| 4B4274 | 28 WASHER (5.5X13X1.2-MM THK) | 6 | |
| 4D7388 | 29 CLIP | 3 | |
| 4D8948 | 30 CLIP | 2 | |
| 4H1225 | 31 WASHER (11X22X6-MM THK) | 9 | |
| 4J9448 | 32 LUG | 4 | |
| 4L7124 | 33 BOLT (1/4-20X1.25-IN) | 4 | |
| 4N3329 | 34 WASHER (16.25X25.65X0.79-MM) | 1 | |
| 4P7428 | 35 CLIP (LADDER) | 1 | |
| 4P7581 | 36 CLIP (LADDER) | 11 | |
| 4P8134 | 37 CLIP (LADDER) | 6 | |
| 4S1962 | 38 CLIP (LOOP) | 4 | |
| 4S5719 | 39 SPACER (10.31X25X12.7-MM THK) | 7 | |
| 4S6399 | 40 CONNECTOR | 1 | |
| 5B2638 | 41 BOLT (3/8-16X5.25-IN) | 1 | |
| 5N2840 | 42 CLIP | 3 | |
| 5P0537 | 43 WASHER-HARD (7.2X14.5X2-MM THK) | 3 | |
| 5P1075 | 44 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 5P7854 | 45 CLIP (LOOP) | 5 | |
| 5P8245 | 46 WASHER-HARD (13.5X25.5X3-MM THK) | 3 | |
| 5P8247 | 47 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 5P8248 | 48 WASHER-HARD (20X36.5X3.5-MM THK) | 2 | |
| 5P9297 | 49 CLIP (LOOP) | 16 | |
| 5T4375 | 50 HOSE AS | 1 | |
| 6B5072 | 51 ADAPTER | 1 | |
| 6K8179 | 52 CLIP | 7 | |
| 6K9194 | 53 ELBOW | 2 | |
| 6V2313 | 54 BOLT (M5X0.8X30-MM) | 6 | |
| 6V4589 | 55 SEAL-O-RING | 1 | |
| 6V5048 | 56 SEAL-O-RING | 7 | |
| 6V5049 | 57 SEAL-O-RING | 8 | |
| 6V7646 | 58 WASHER-HARD (7.2X25X2-MM THK) | 1 | |
| 6V8647 | 59 CONNECTOR | 2 | |
| 6V9601 | 60 ADAPTER | 1 | |
| 6V9872 | 61 CONNECTOR | 2 | |
| 7C9897 | 62 HOSE AS | 1 | |
| 7D1553 | 63 CLIP | 7 | |
| 7D4092 | 64 CLIP | 2 | |
| 7D7233 | 65 CLIP (LOOP) | 9 | |
| 7E2953 | 66 BRACKET | 1 | |
| 7E2954 | 67 BRACKET | 1 | |
| 7E7731 | 68 MOUNT | 4 | |
| 7J4026 | 69 ELBOW | 1 | |
| 7J8744 | 70 WASHER (0.781X0.125X0.075-IN THK) | 1 | |
| 7K9197 | 71 ELBOW | 2 | |
| 7X1043 | 72 SENSOR GP-TEMPERATURE | 1 | |
| 8C3103 | 73 SEAL-O-RING | 1 | |
| 8L2779 | 74 SEAL-O-RING | 2 | |
| 8L2786 | 75 SEAL-O-RING | 3 | |
| 8L4171 | 76 SENSOR GP-SPEED (ENGINE) | 2 | |
| 8M2770 | 77 CLIP (LOOP) | 4 | |
| 8M2773 | 78 CLIP (LOOP) | 3 | |
| 8S4626 | 79 SPLICE-WIRE | 4 | |
| 8T0788 | 80 ELBOW | 2 | |
| 8T1887 | 81 CLIP (SLOT) | 1 | |
| 8T1888 | 82 CLIP (TAB) | 1 | |
| 8T1895 | 83 CLIP (SLOT) | 11 | |
| 8T1896 | 84 CLIP (TAB) | 11 | |
| 8T3285 | 85 ADAPTER | 1 | |
| 8T6342 | 86 TUBE-HEAT SHRINK (3.2-MM DIA) | ||
| 9L9132 | 87 WASHER-HARD (10.2X25.5X2.5-MM THK) | 10 | |
| 9M4594 | 88 SPACER (0.406X0.875X0.75-IN THK) | 12 | |
| 9M7357 | 89 COUPLING AS | 1 | |
| 9S8752 | 90 NUT-FULL (3/8-16-THD) | 6 | |
| 9W0532 | 91 SENSOR GP-TEMPERATURE | 2 | |
| 9X5272 | 92 SENSOR GP-PRESSURE | 1 | |
| 9X6772 | 93 STRAP-CABLE | 18 | |
| 9X6772 | 94 STRAP-CABLE | ||
| 9Y1925 | 95 BOX AS | 1 | |
| 0307946 | 96 ELBOW | 2 | |
| 0307947 | 97 ADAPTER-ELBOW | 1 | |
| 0308195 | 98 CONNECTOR | 1 | |
| 0532294 | 99 BOLT-12 POINT HEAD (3/8-16X1.75-IN) | 4 | |
| 0689941 | 100 WIRE-TIE | 2 | |
| 0919035 | 101 SPACER (11X25X20-MM THK) | 4 | |
| 1007834 | 102 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1007870 | 103 ADAPTER-O-RING | 1 | |
| 1069154 | 104 INSULATOR | 2 | |
| 1072675 | 105 SENSOR AS-SPEED | 1 | |
| 1073952 | 106 SENSOR GP-PRESSURE | 2 | |
| 1077142 | 107 SENSOR GP-PRESSURE | 1 | |
| 1093038 | 108 END-WIRE (16-GA) | 20 | |
| 1108714 | 109 END-WIRE (18-GA) | 129 | |
| 1129273 | 110 SENSOR GP-DETONATION | 2 | |
| 1132039 | 111 TUBE AS | 1 | |
| 1140126 | 112 PLATE | 1 | |
| 1142269 | 113 SENSOR GP-TEMPERATURE | 1 | |
| 1168092 | 114 BRACKET | 1 | |
| 1168146 | 115 BOX GP-JUNCTION | 1 | |
| 1249633 | 116 CLIP (SLOT) | 5 | |
| 1253747 | 117 HARNESS AS (OIL TEMPERATURE) | 1 | |
| 1253749 | 118 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1253751 | 119 HARNESS AS (JACKET WATER TEMPERATURE) | 1 | |
| 1253752 | 120 HARNESS AS (OIL PRESSURE UNFILTERED) | 1 | |
| 1253753 | 121 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1253754 | 122 HARNESS AS (OIL PRESSURE FILTERED) | 1 | |
| 1253756 | 123 HARNESS AS (CRANKCASE PRESSURE) | 1 | |
| 1253771 | 124 HARNESS AS-SENSOR (COMBUSTION) | 2 | |
| 1253772 | 125 HARNESS AS (COMBUSTION BUFFER) | 2 | |
| 1253773 | 126 HARNESS AS-SENSOR (COMBUSTION) | 2 | |
| 1253774 | 127 HARNESS AS-SENSOR (COMBUSTION) | 1 | |
| 1253776 | 128 HARNESS AS (OIL, WATER LEVEL) | 1 | |
| 1253788 | 129 HARNESS AS | 1 | |
| 1253789 | 130 HARNESS AS (FUEL TEMPERATURE) | 1 | |
| 1253790 | 131 HARNESS AS (STARTING AIR PRESSURE) | 1 | |
| 1253791 | 132 HARNESS AS (STARTING AIR SOLENOID) | 1 | |
| 1253792 | 133 HARNESS AS (AIR PRELUBRICATION SOLENOID) | 1 | |
| 1253793 | 134 HARNESS AS (CRANK ANGLE SENSOR) | 1 | |
| 1253794 | 135 HARNESS AS (ENGINE CONTROL MODULE) | 1 | |
| 1253795 | 136 HARNESS AS (SPEED MAGNETIC PICKUP) | 1 | |
| 1253796 | 137 HARNESS AS (GAS SHUTOFF VALVE) | 1 | |
| 1253797 | 138 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253798 | 139 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253799 | 140 HARNESS AS (AIR RESTRICTION) | 1 | |
| 1253800 | 141 HARNESS AS (PRESSURE MODULE) | 1 | |
| 1253801 | 142 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253802 | 143 HARNESS AS (COMBUSTION BUFFER) | 1 | |
| 1253803 | 144 HARNESS AS | 1 | |
| 1253804 | 145 HARNESS AS-SENSOR (DETONATION) | 1 | |
| 1253807 | 146 HARNESS AS-SENSOR (THERMOCOUPLE) | 1 | |
| 1254587 | 147 PLATE AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 1254588 | 148 PLATE | 2 | |
| 1254589 | 149 PLATE | 1 | |
| 1257859 | 150 BOX GP-JUNCTION | 1 | |
| 1257860 | 151 BRACKET AS | 1 | |
| 1257861 | 152 SEAL | 11 | |
| 1257875 | 153 TUBE-HEAT SHRINK (7.44-MM DIA) | ||
| 1280946 | 154 SENSOR GP-POSITION (EACH INCLUDES) | 3 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8732 | RECEPTACLE-CONNECTOR (3-PIN) | 1 | |
| 1286325 | 155 BUSHING | 1 | |
| 1297636 | 156 BOX GP-JUNCTION | 1 | |
| 1323125 | 157 COVER AS | 1 | |
| 1331412 | 158 CONTROL GP-ENGINE MONITORING | 1 | |
| 1356656 | 159 HARNESS AS (ACTUATOR) | 1 | |
| 1383132 | 160 BRACKET | 1 | |
| 1402089 | 161 TUBE AS | 1 | |
| 1402090 | 162 TUBE AS | 1 | |
| 1409669 | 163 SWITCH AS-PRESSURE | 1 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 3 | |
| 8T8731 | PLUG-CONNECTOR (3-PIN) | 1 | |
| 1425008 | 164 HARNESS AS (FUEL HYDRAX) | 1 | |
| 1425009 | 165 HARNESS AS (FUEL POSITION SENSOR) | 1 | |
| 1425010 | 166 HARNESS AS (CHOKE HYDRAX) | 1 | |
| 1425011 | 167 HARNESS AS (CHOKE POSITION SENSOR) | 1 | |
| 1425012 | 168 HARNESS AS (WASTEGATE HYDRAX) | 1 | |
| 1425013 | 169 HARNESS AS (WASTEGATE POSITION SENSOR) | 1 | |
| 1425014 | 170 HARNESS AS (HYDRAX OIL PRESSURE SWITCH) | 1 |
